Pinpoint Test B: The Shift Control Is Out Of Proper Gear Relationship

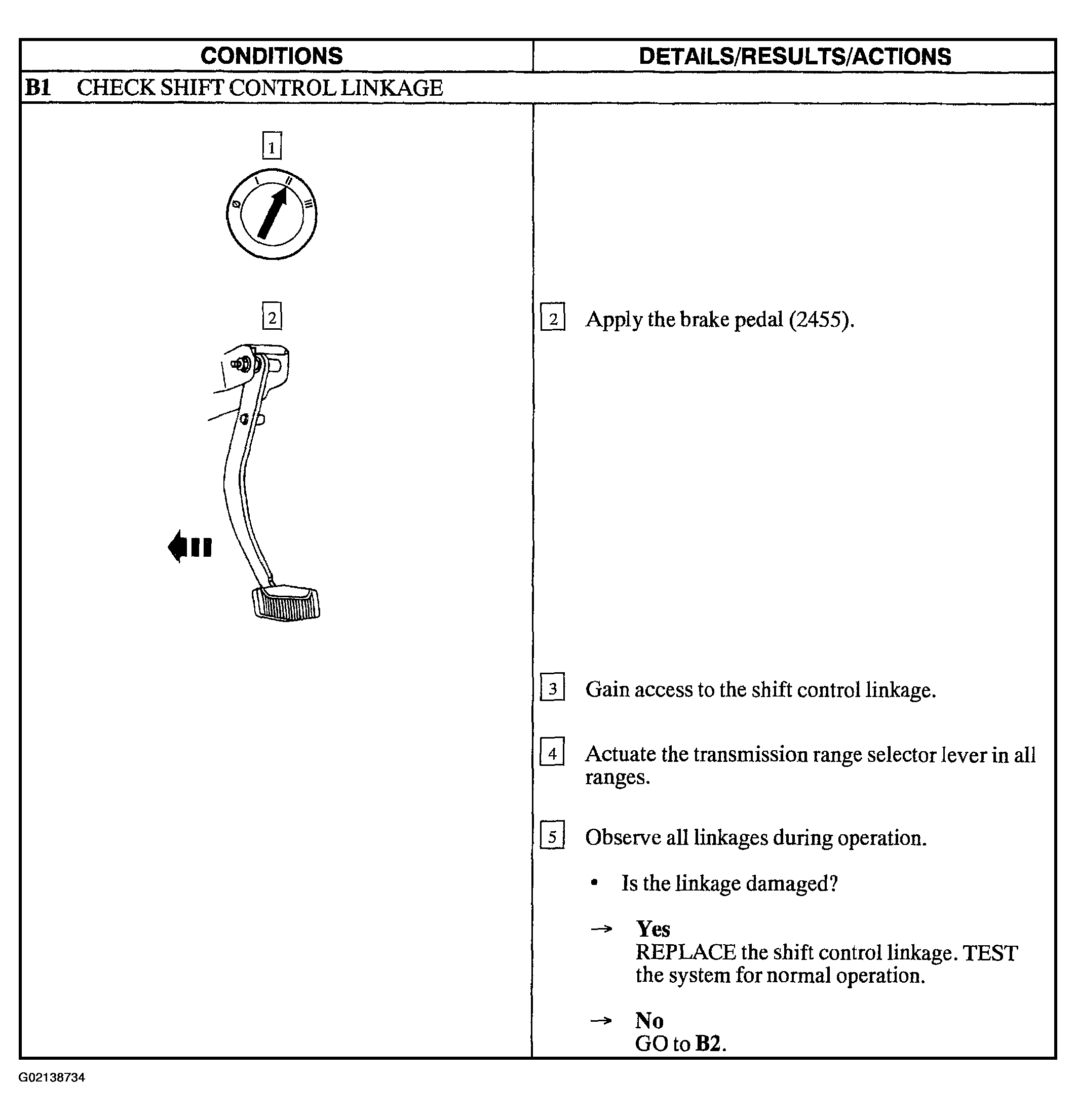

Fig 1: Pinpoint Test B: The Shift Control Is Out Of Proper Gear Relationship (Step B1)

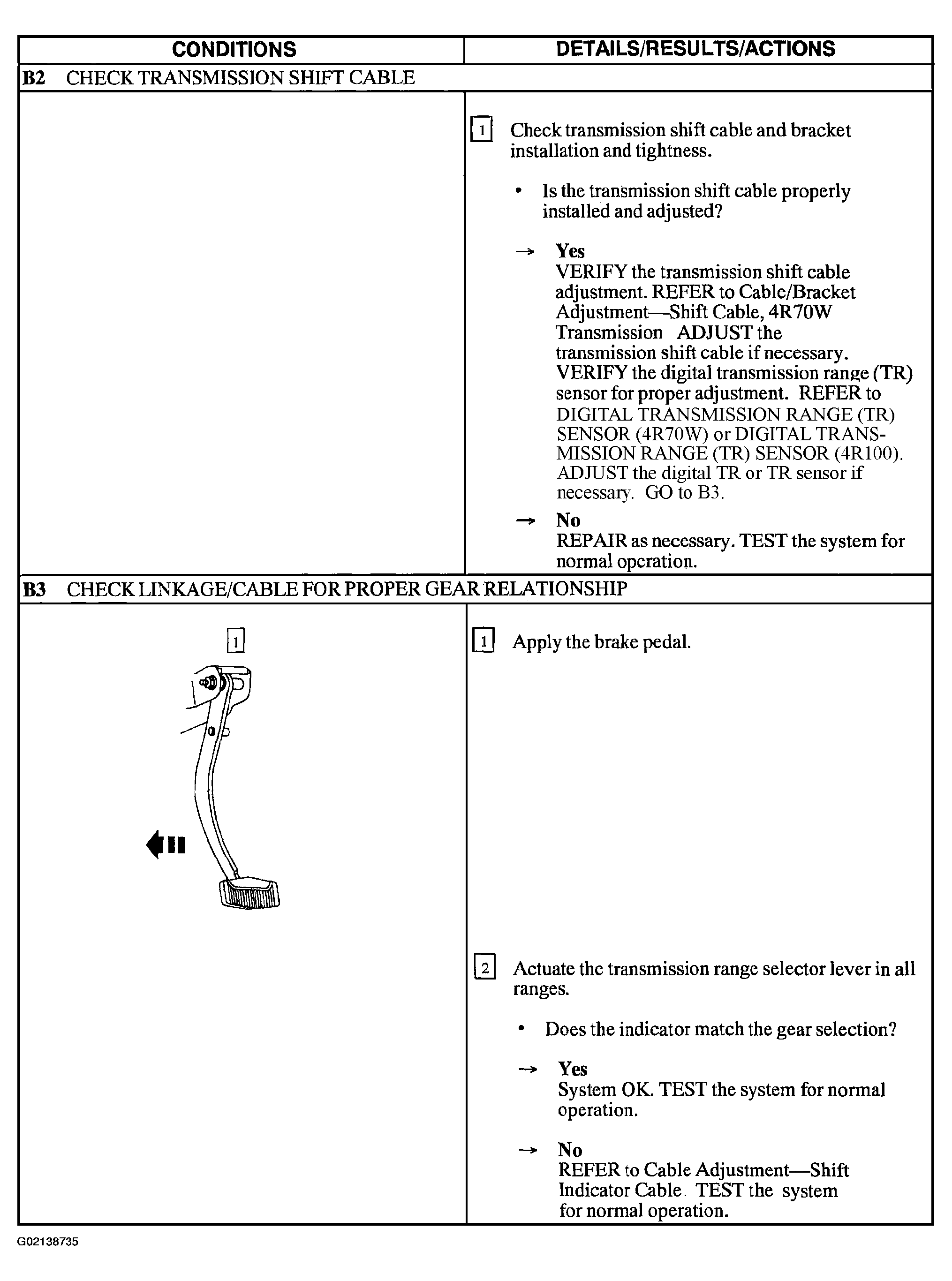

Fig 2: Pinpoint Test B: The Shift Control Is Out Of Proper Gear Relationship (Steps B2-B3)
