Pinpoint Test C: The Transmission Control Switch (TCS) Is Inoperative

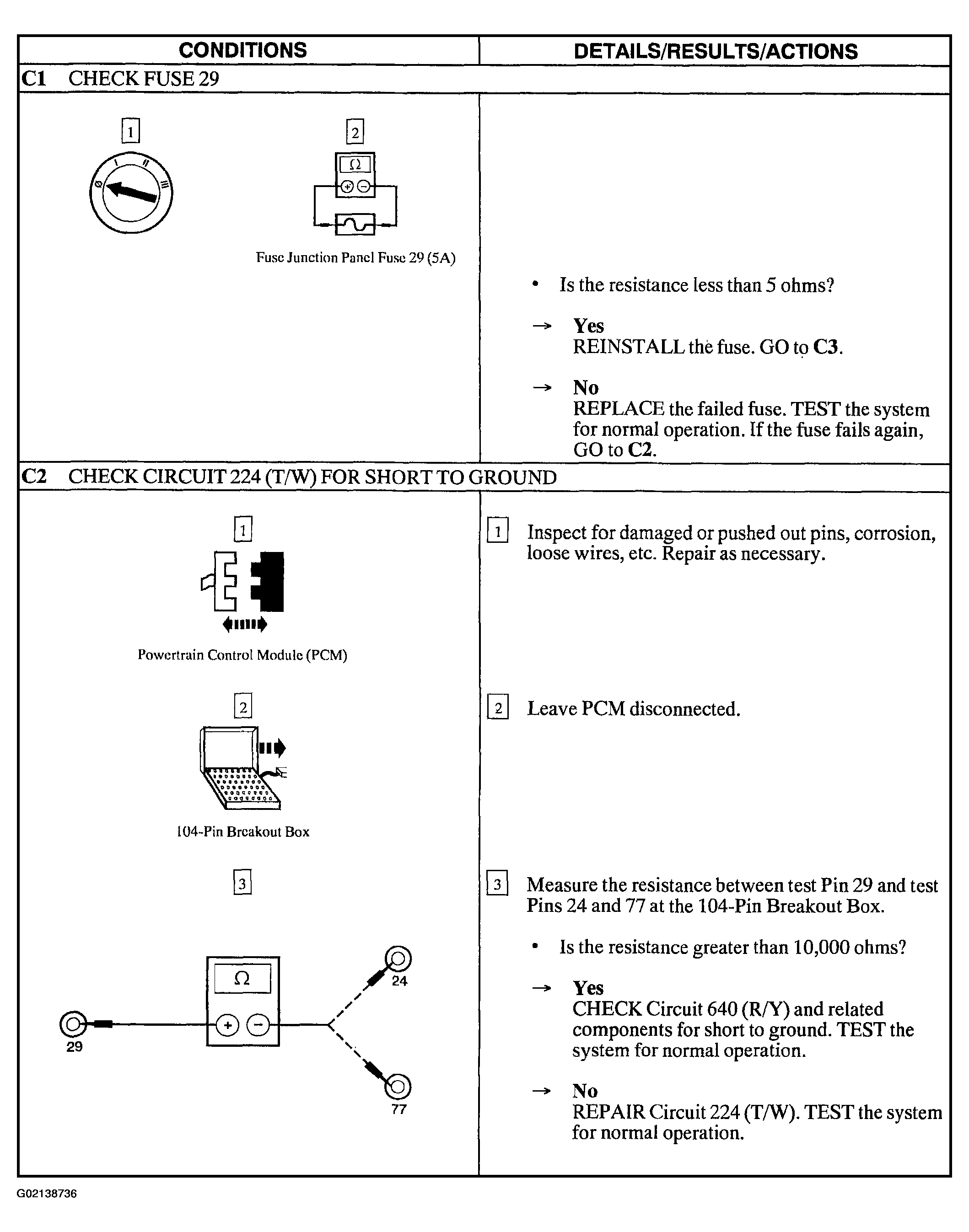

Fig 1: Pinpoint Test C: The Transmission Control Switch (TCS) Is Inoperative (Steps C1-C2)
G02138736

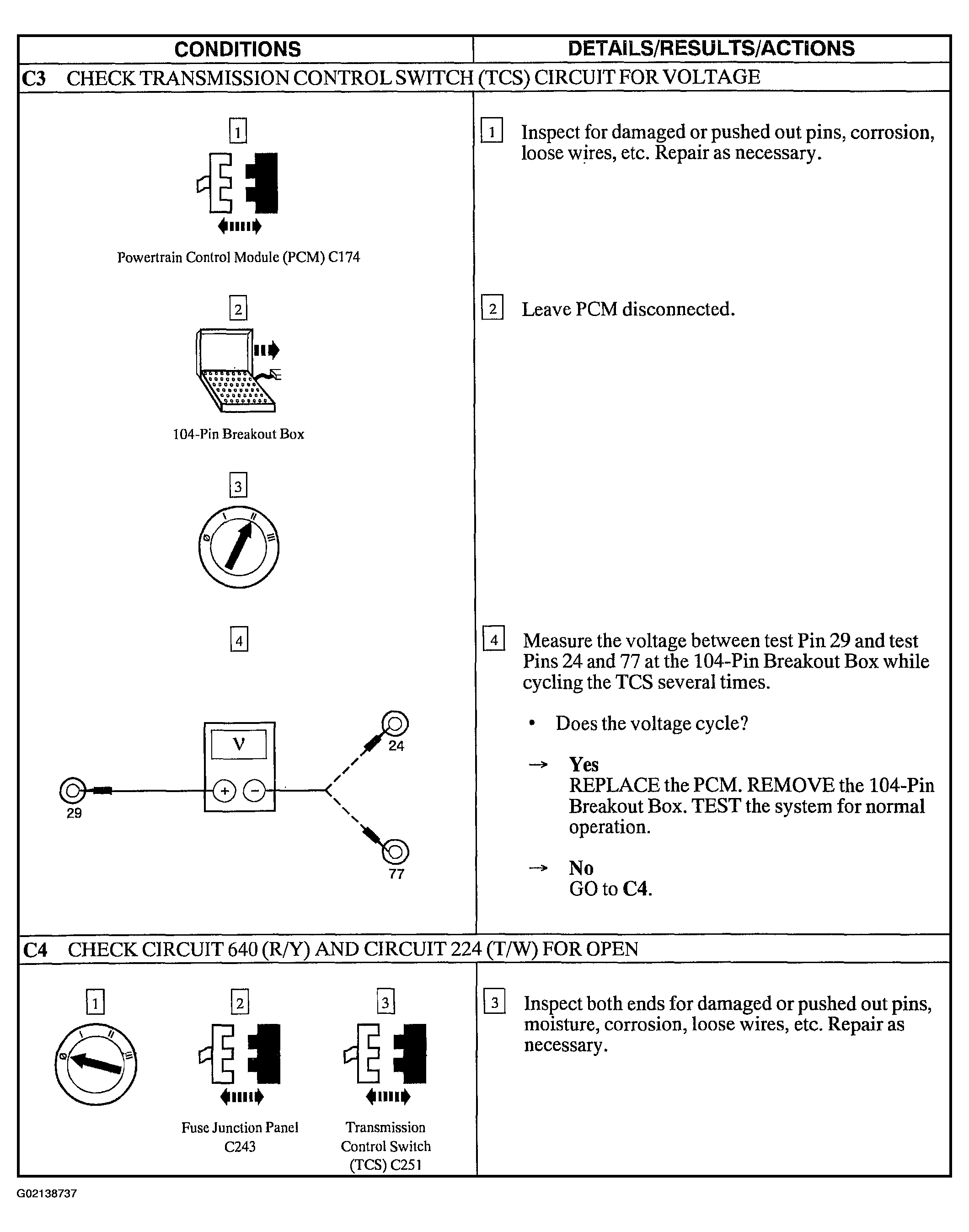

Fig 2: Pinpoint Test C: The Transmission Control Switch (TCS) Is Inoperative (Steps C3-C4)
G02138737

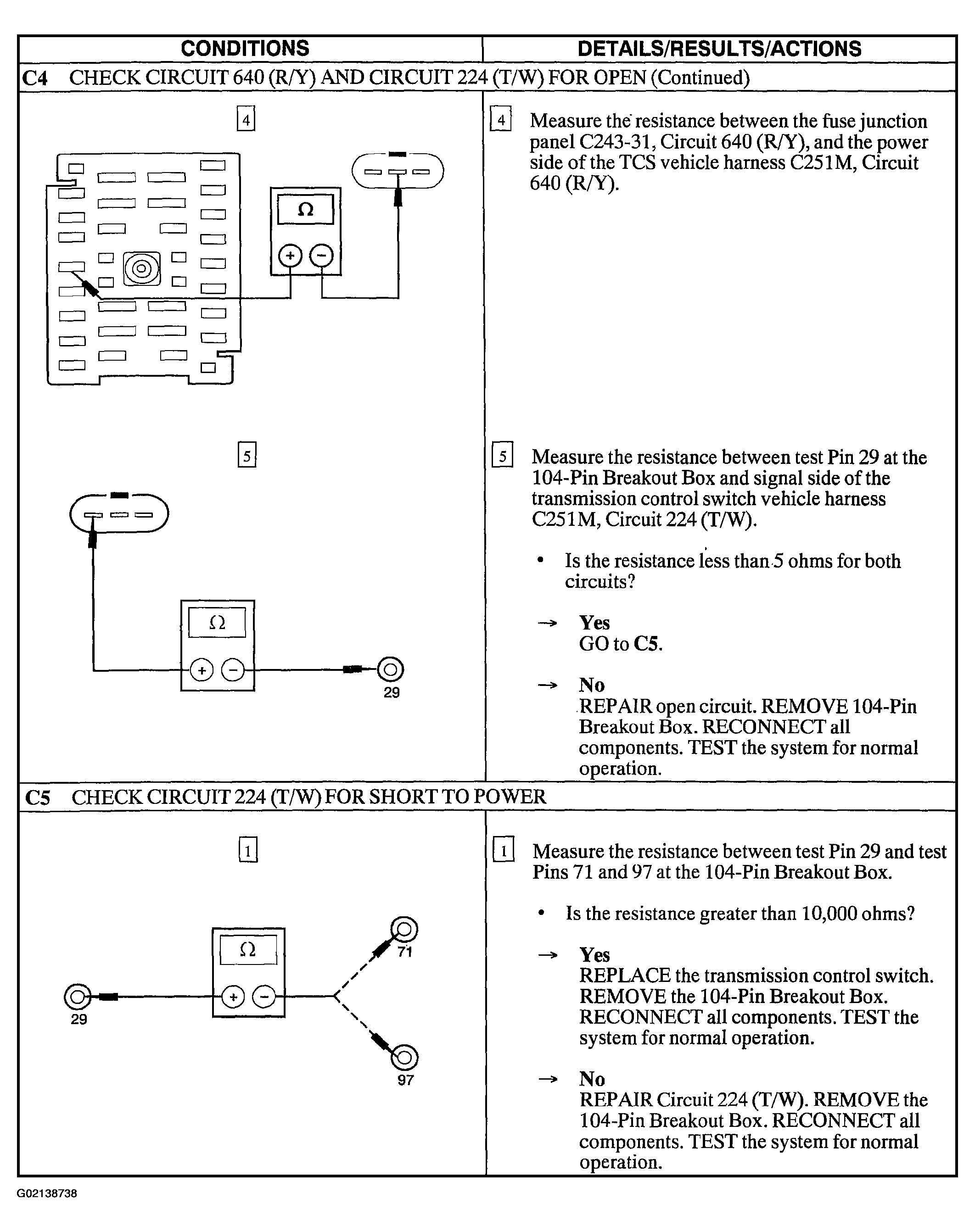

Fig 3: Pinpoint Test C: The Transmission Control Switch (TCS) Is Inoperative (Steps C4-C5)
G02138738
