Pinpoint Test D: Transmission Control Indicator Lamp (TCIL) Is Not Operating Properly

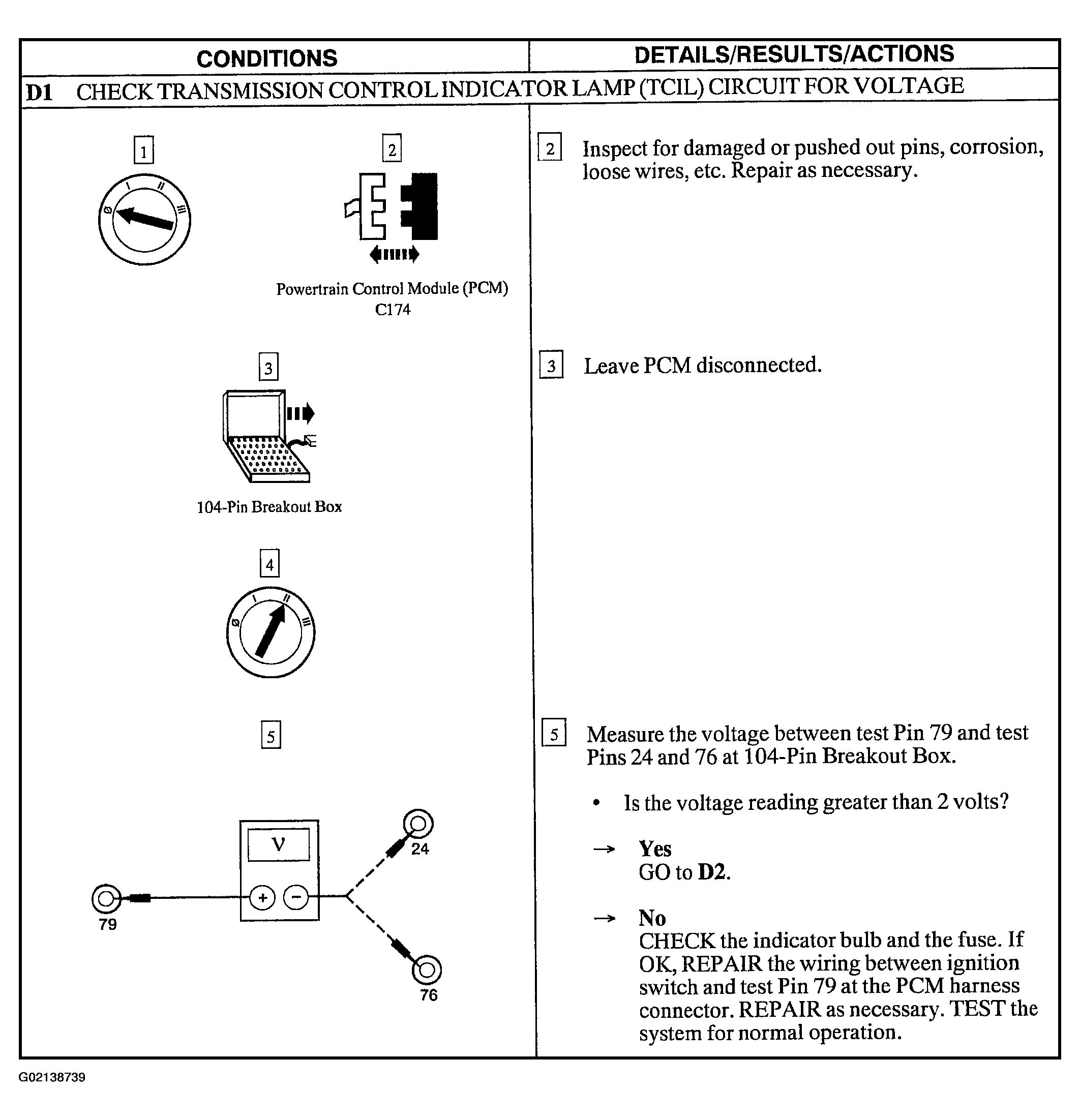

Fig 1: Pinpoint Test D: Transmission Control Indicator Lamp (TCIL) Is Not Operating Properly (Step D1)
G02138739

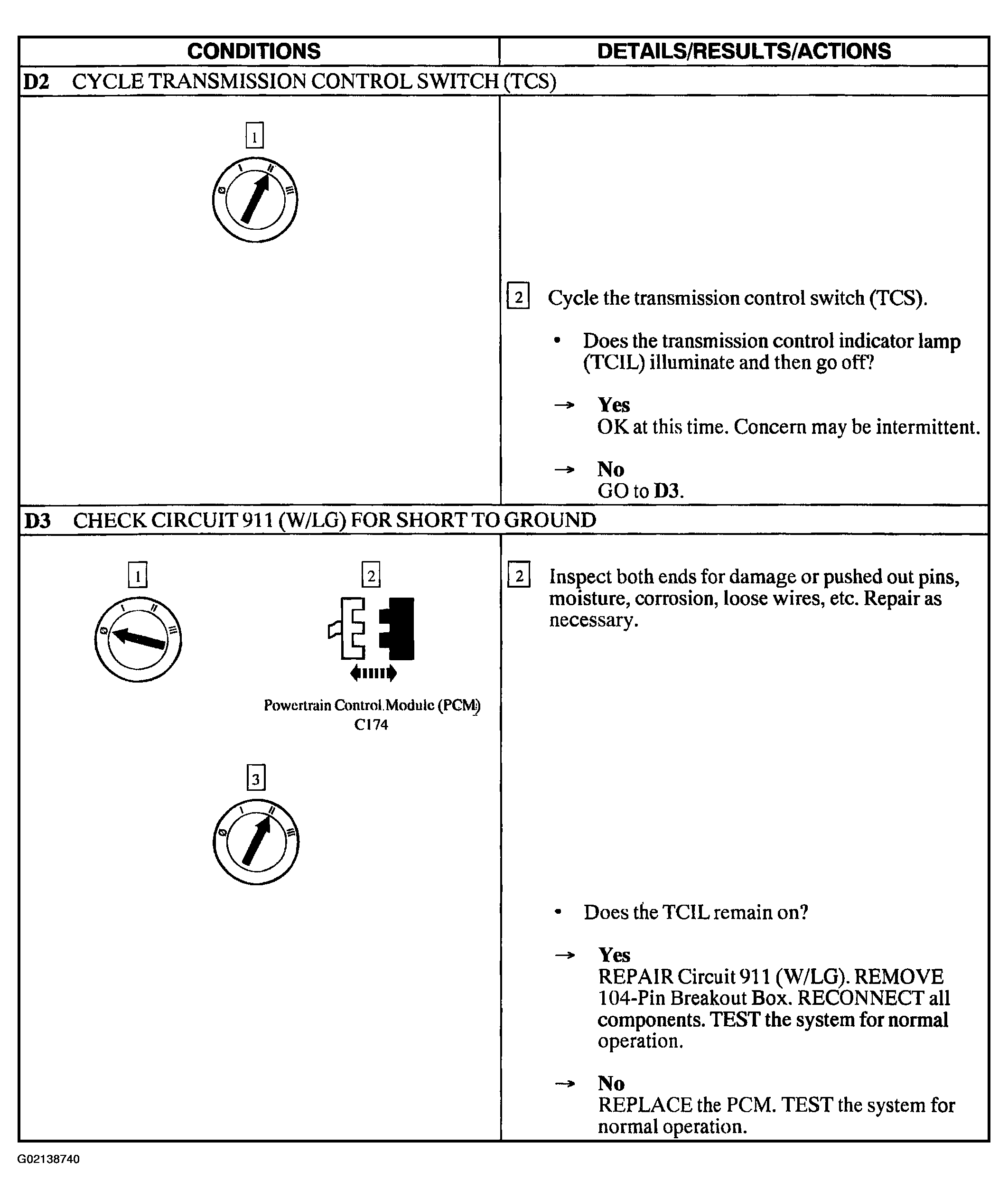

Fig 2: Pinpoint Test D: Transmission Control Indicator Lamp (TCIL) Is Not Operating Properly (Steps D2-D3)
G02138740
