Pinpoint Test A: No Communication With The Anti-Lock Brake System (Abs) Module

WARNING: This page is about a different car, the 2002 Lincoln Navigator and 2002 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

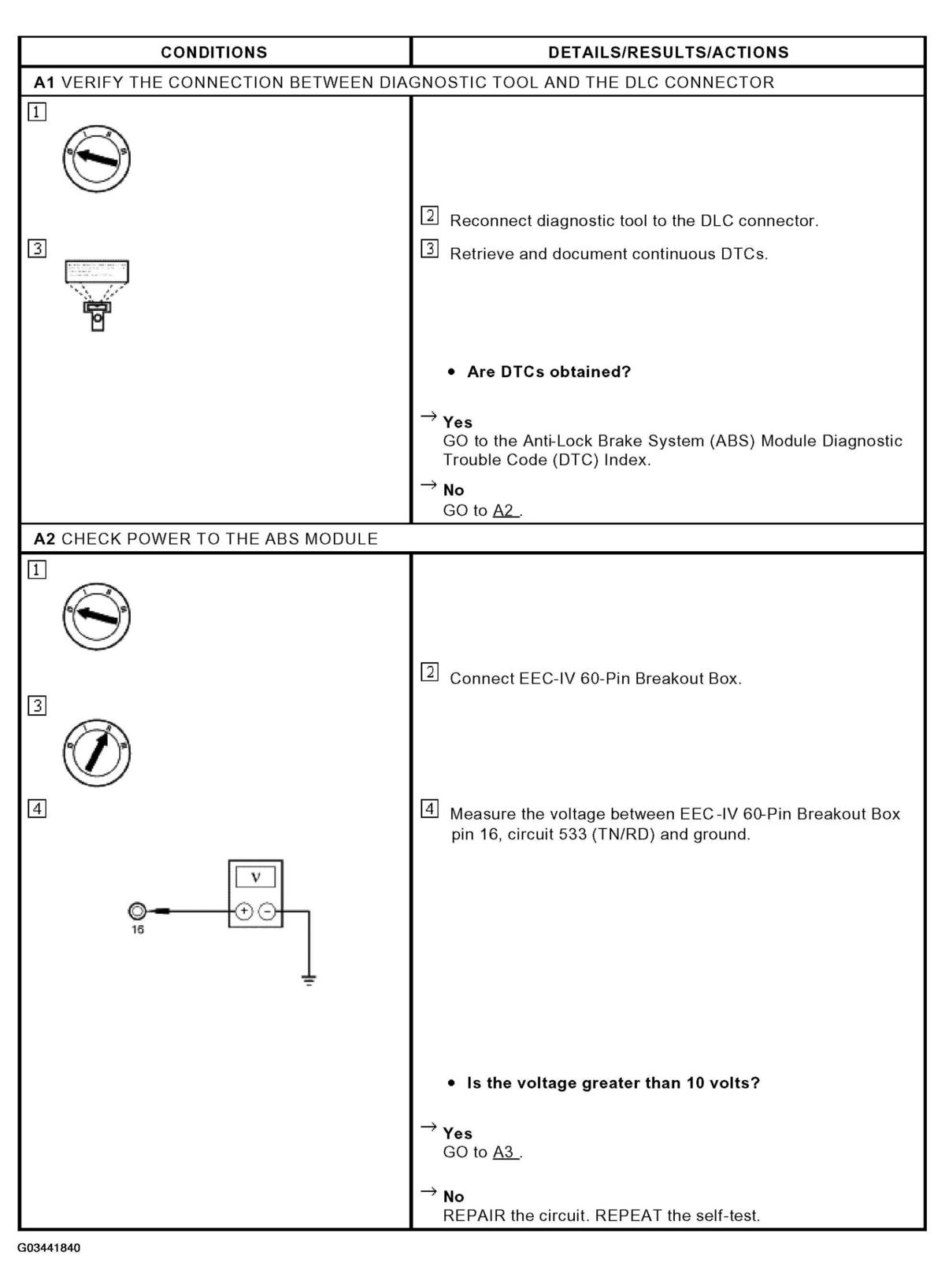

Fig 1: Pinpoint Test A: No Communication With Anti-Lock Brake System (ABS) Module (Steps A1 - A2)

Courtesy of FORD MOTOR CO.

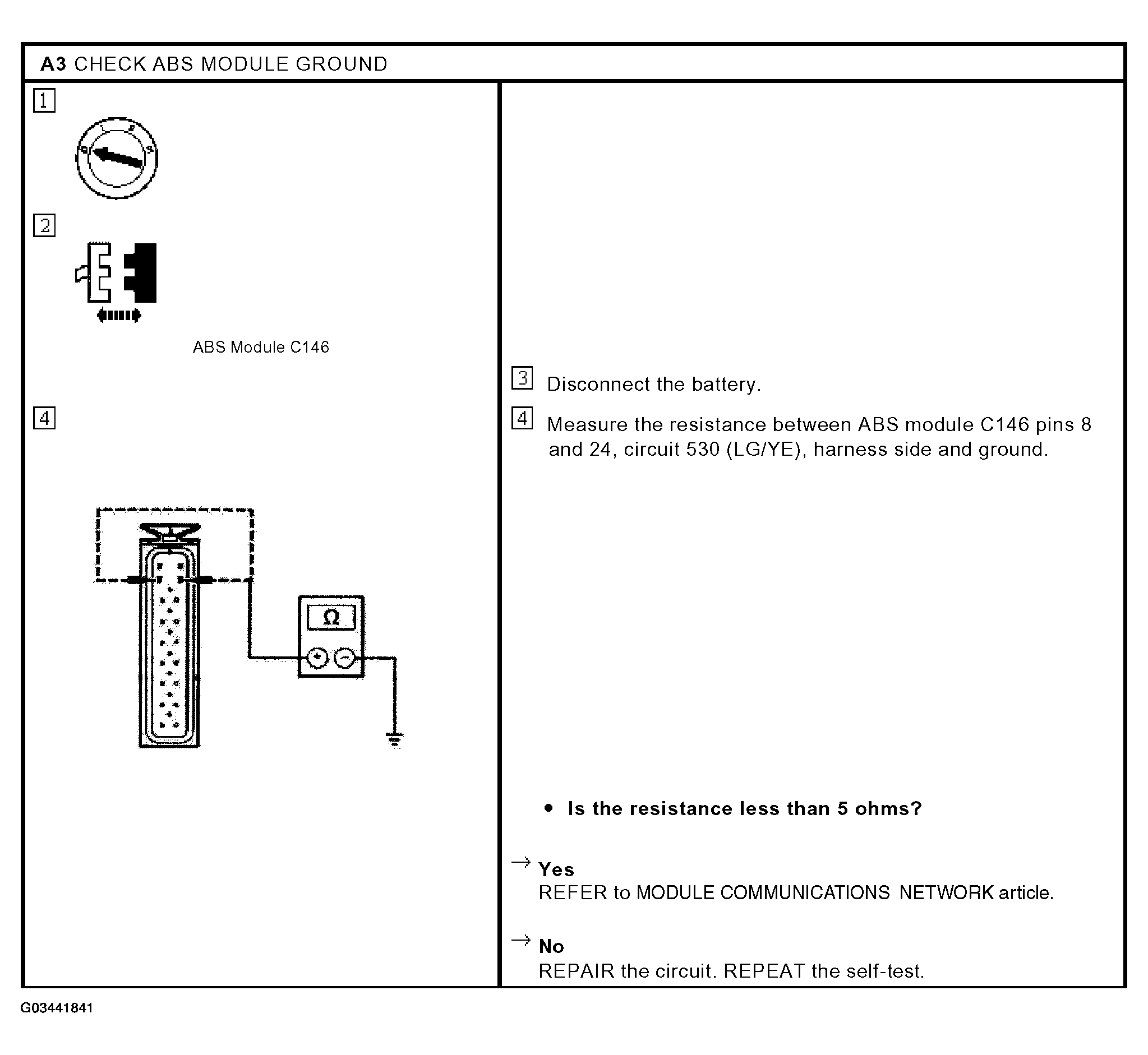

Fig 2: Pinpoint Test A: No Communication With Anti-Lock Brake System (ABS) Module (Step A3)

Courtesy of FORD MOTOR CO.
