Home >> Ford >> 2001 >> Explorer 4WD V6-4.0L VIN E >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Differential Assembly >> Front
April 5, 2026: LEMON Manuals is launched! Read the announcement.

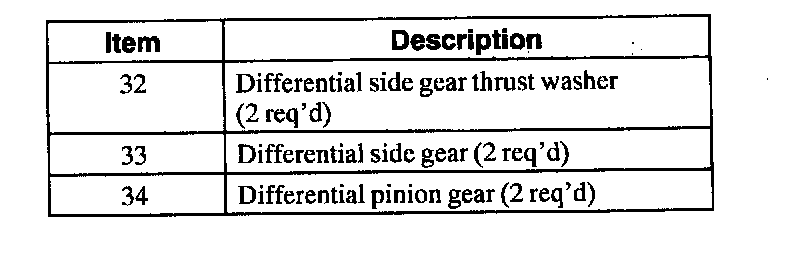

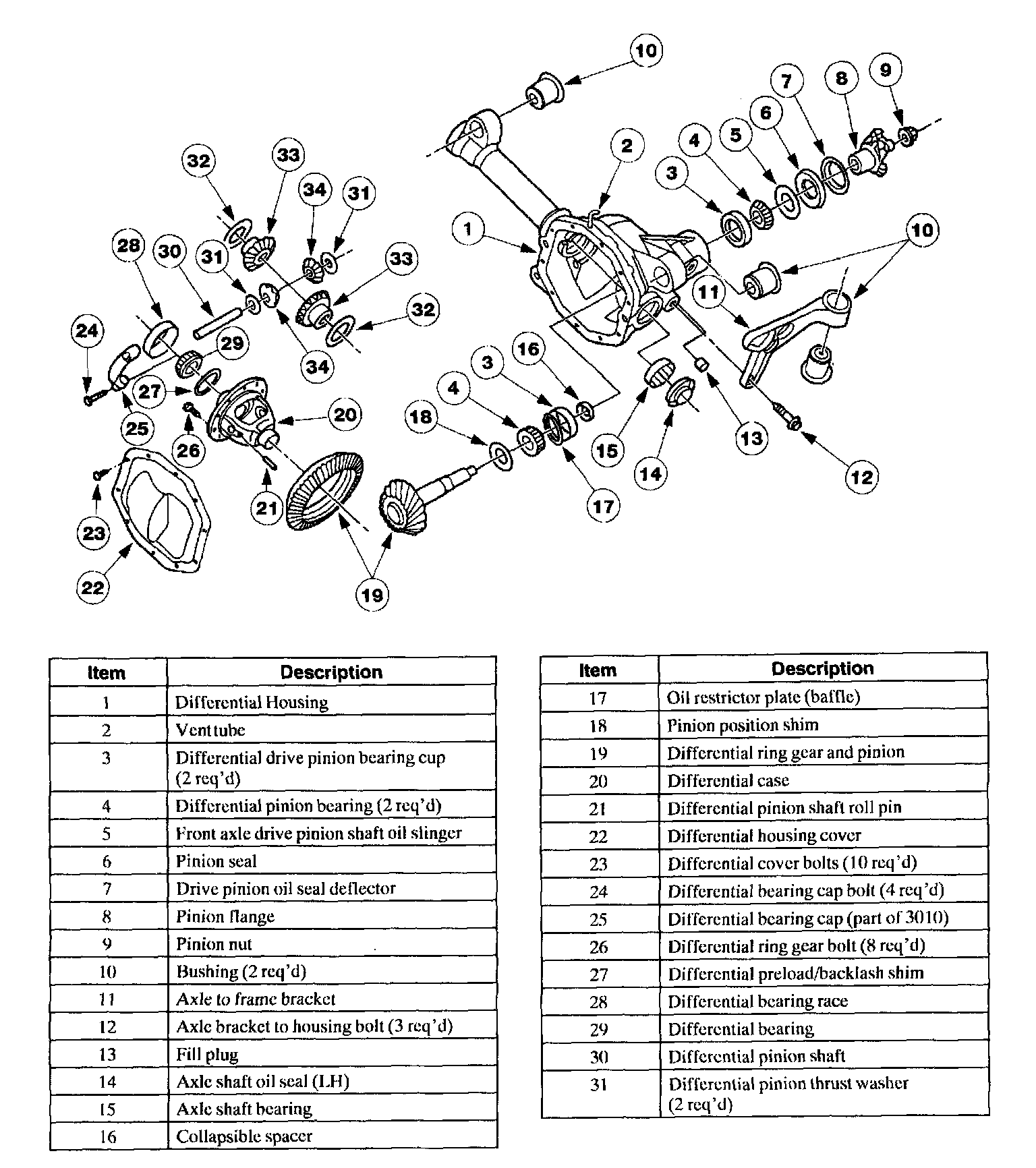

Front





1 of 2





2 of 2
