Load Leveling

The load leveling system adjusts the suspension to accommodate quickly changing road conditions. The load leveling system is an option available on 4WD vehicles. For additional information regarding the load leveling system, see 1996-97 ELECTRONIC SUSPENSION -- EXPLORER & MOUNTAINE , 1998-99 ELECTRONIC -- EXPLORER & MOUNTAINEER or 2000-01 ELECTRONIC -- EXPLORER & MOUNTAINEER .

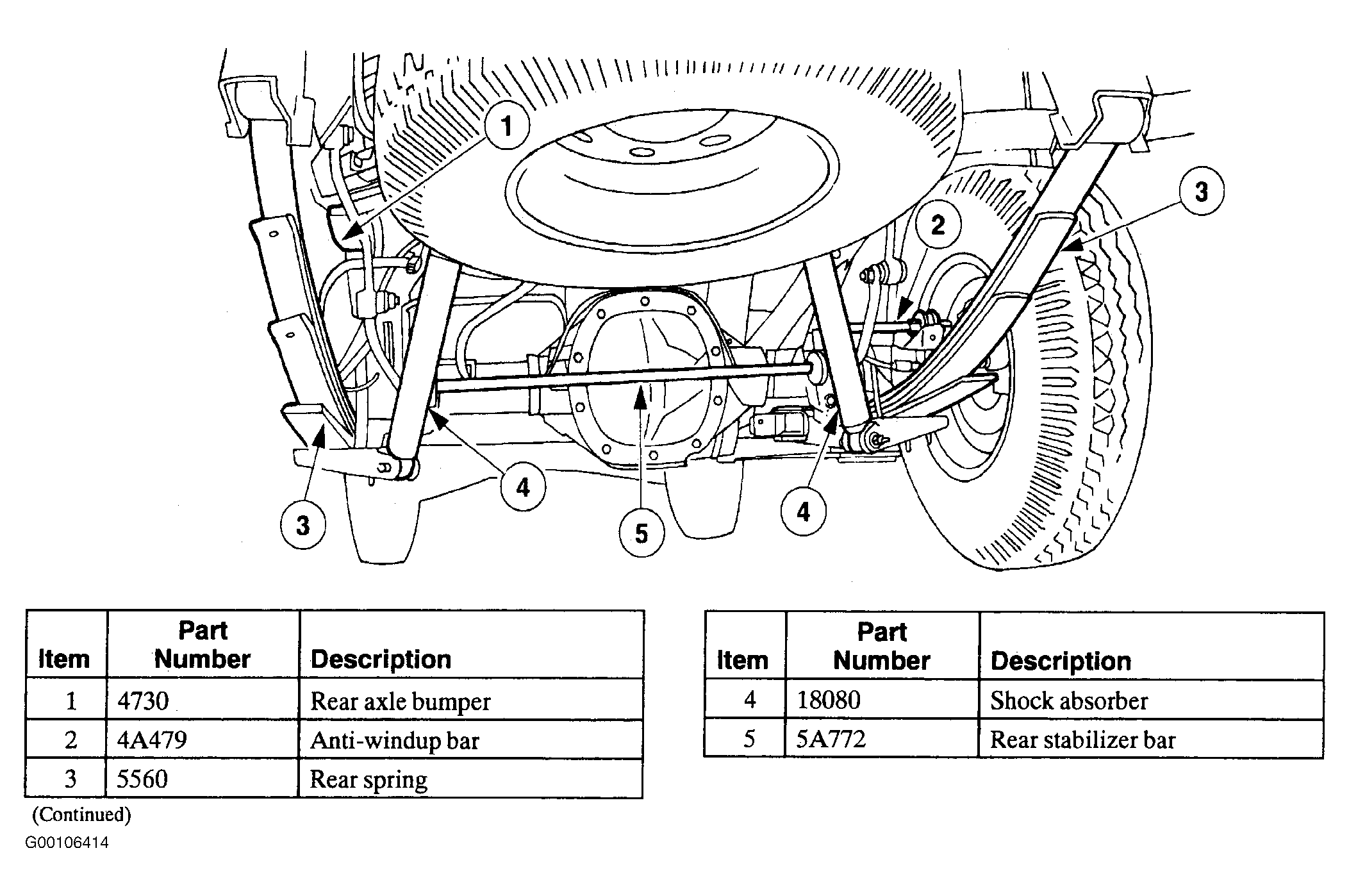

Fig 1: Identifying Rear Suspension Components
G00106414Courtesy of FORD MOTOR CO.
