Traction Control Module

Vehicles Equipped With Electronic Stability Control

Electronic Stability Program Module

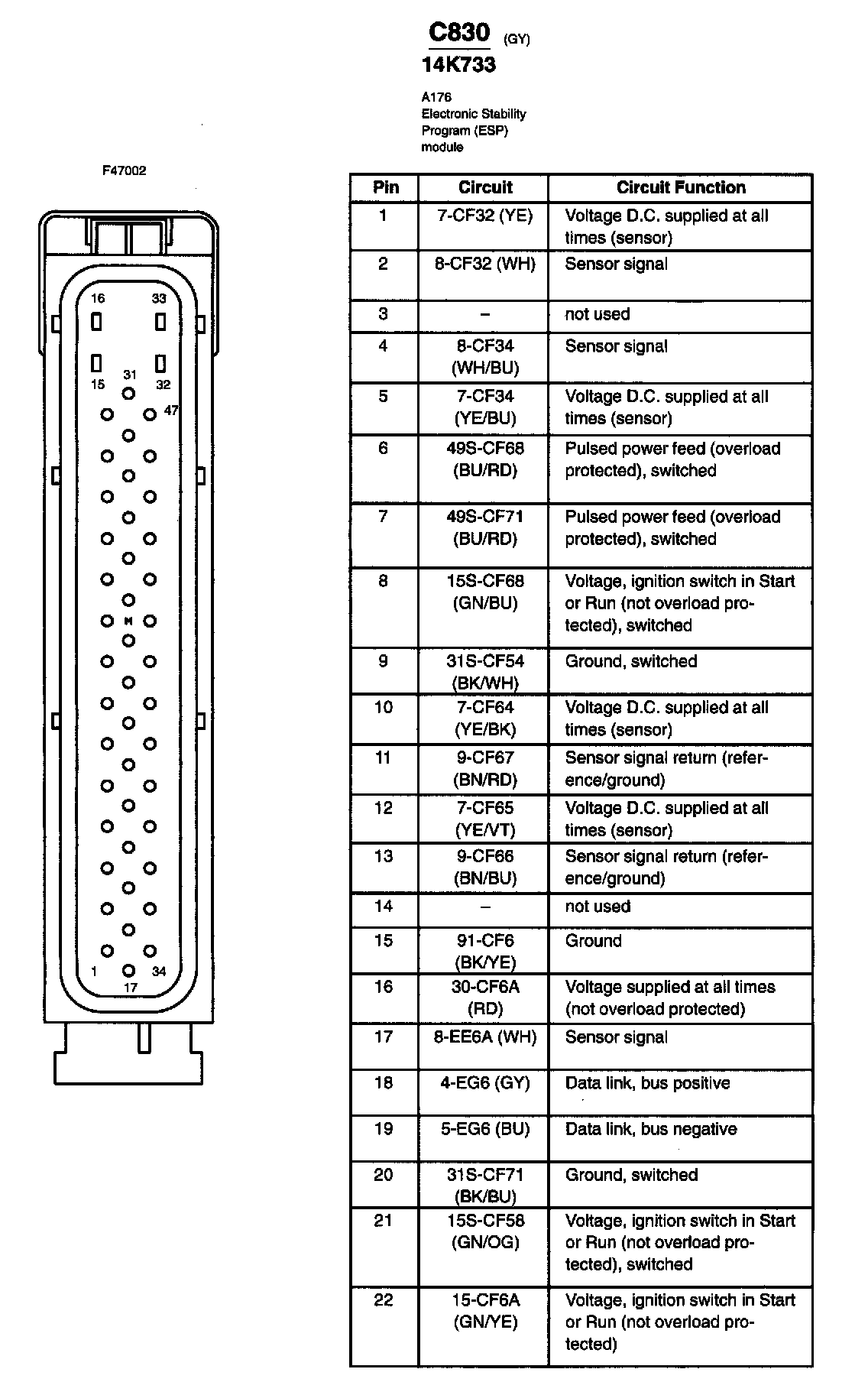

Connector Views

Part 1:

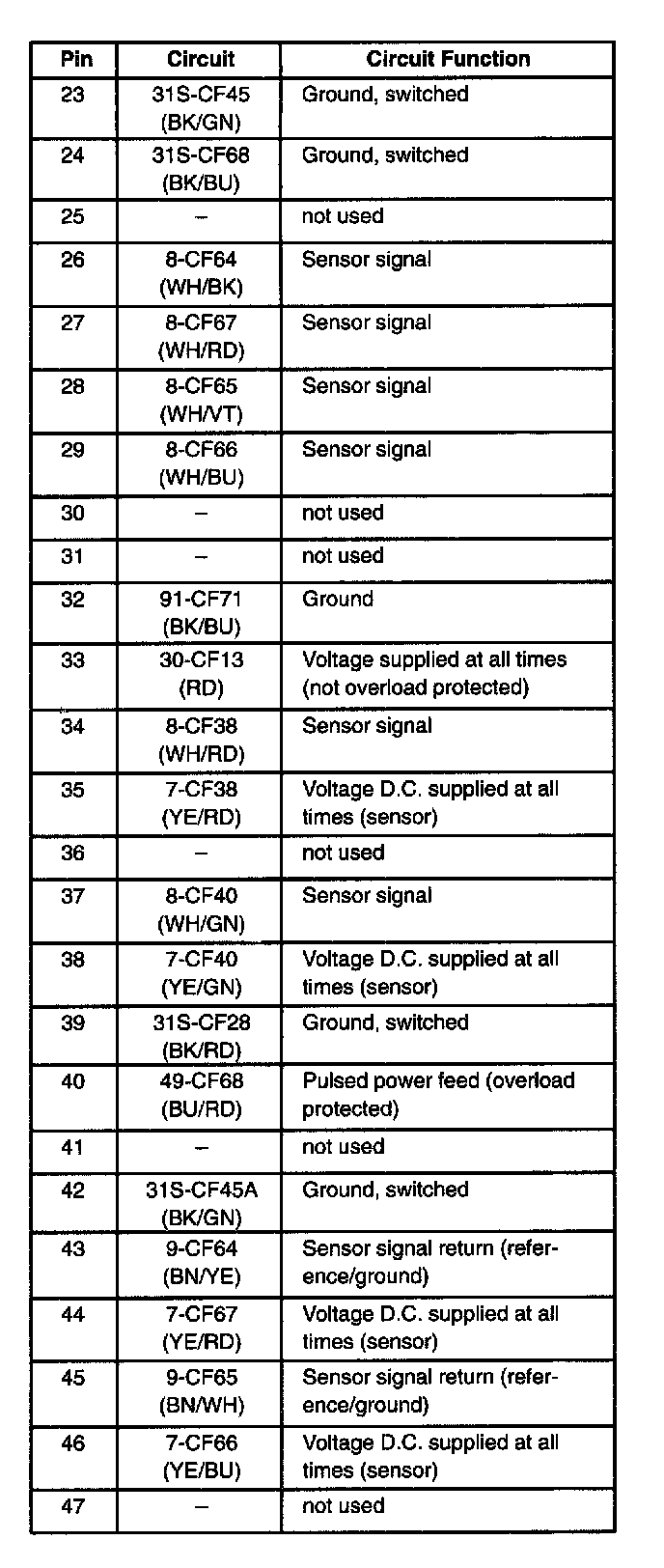

Part 2:
