General Specifications

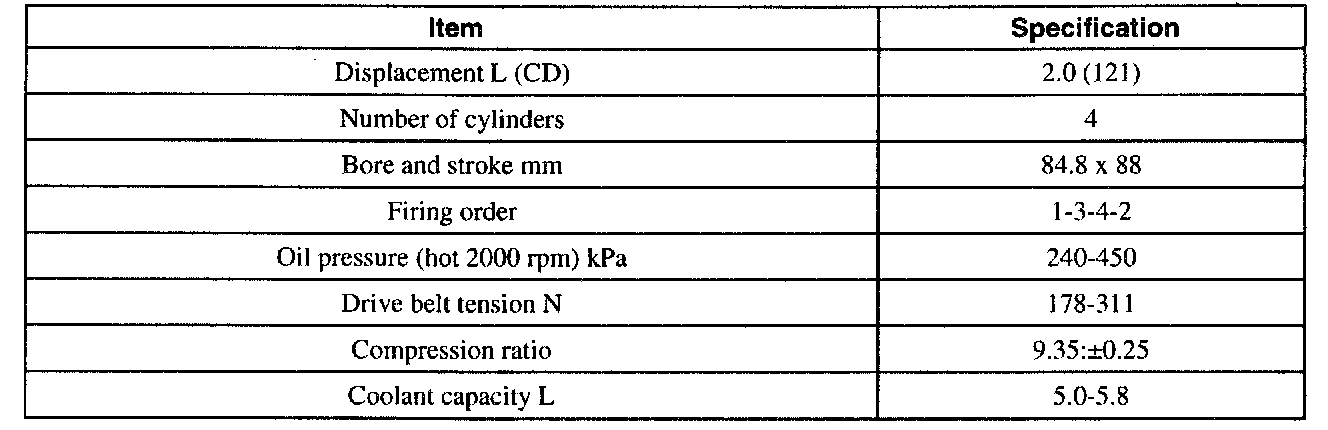

General Specifications

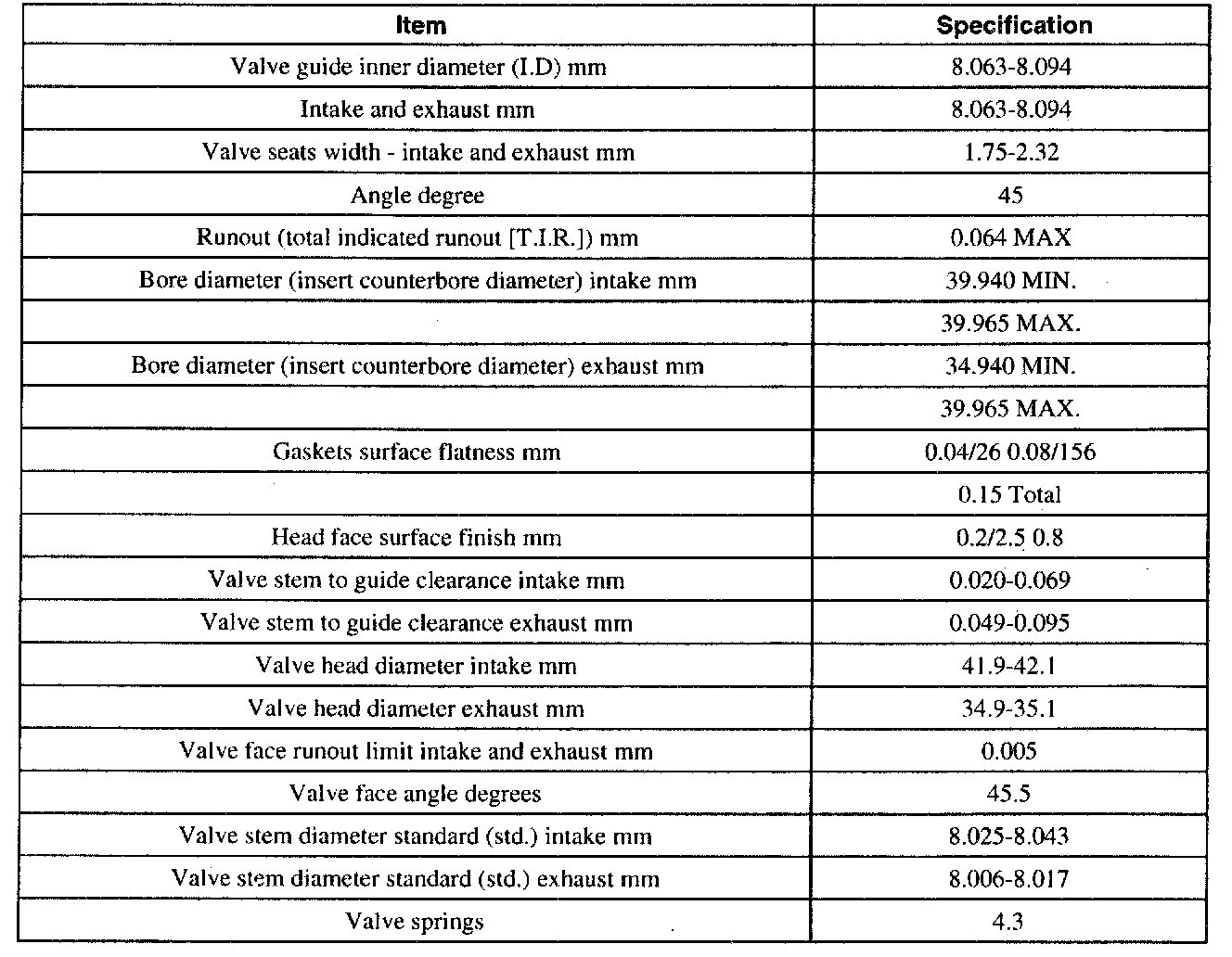

Cylinder Head and Valve Train

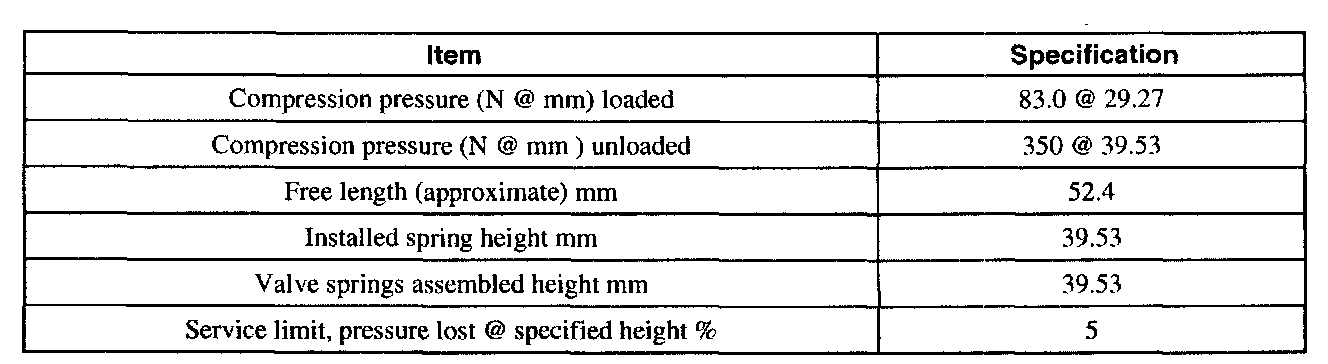

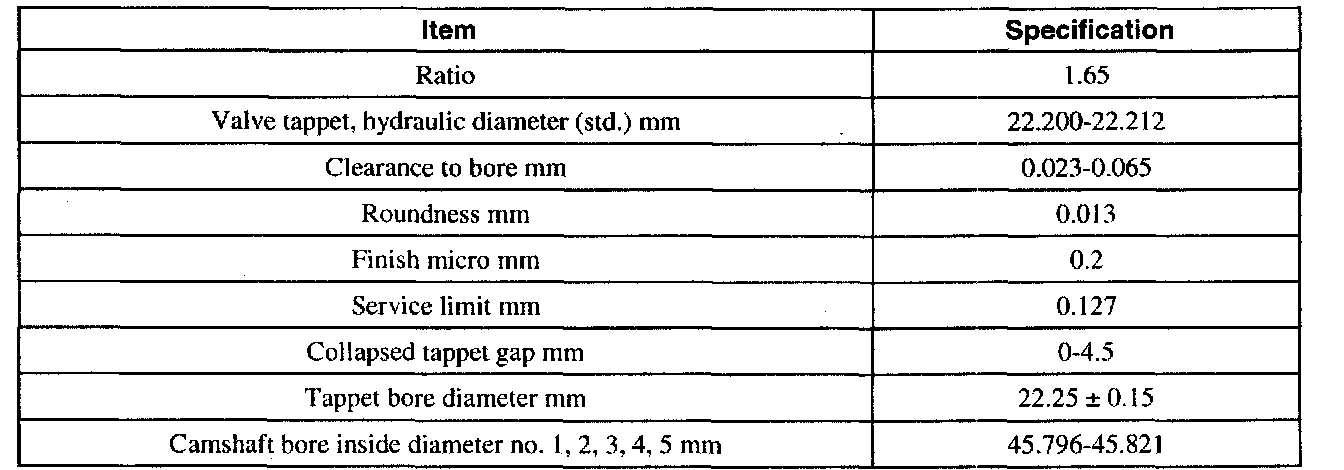

Rocker Arm

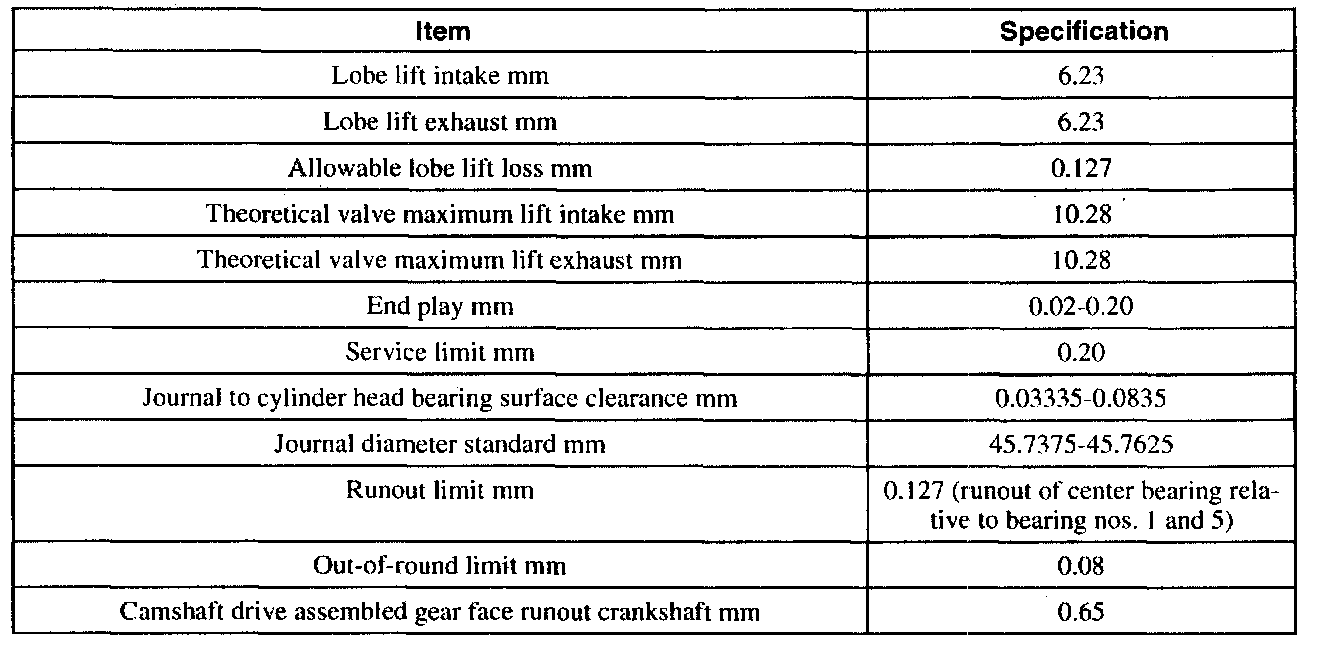

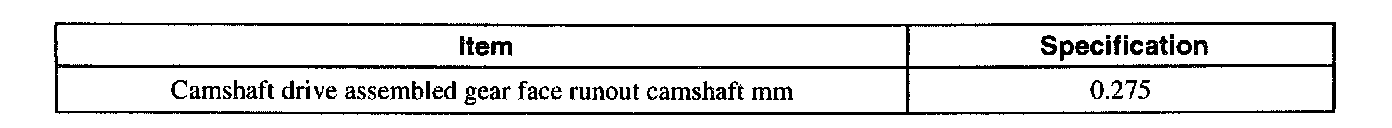

Camshaft

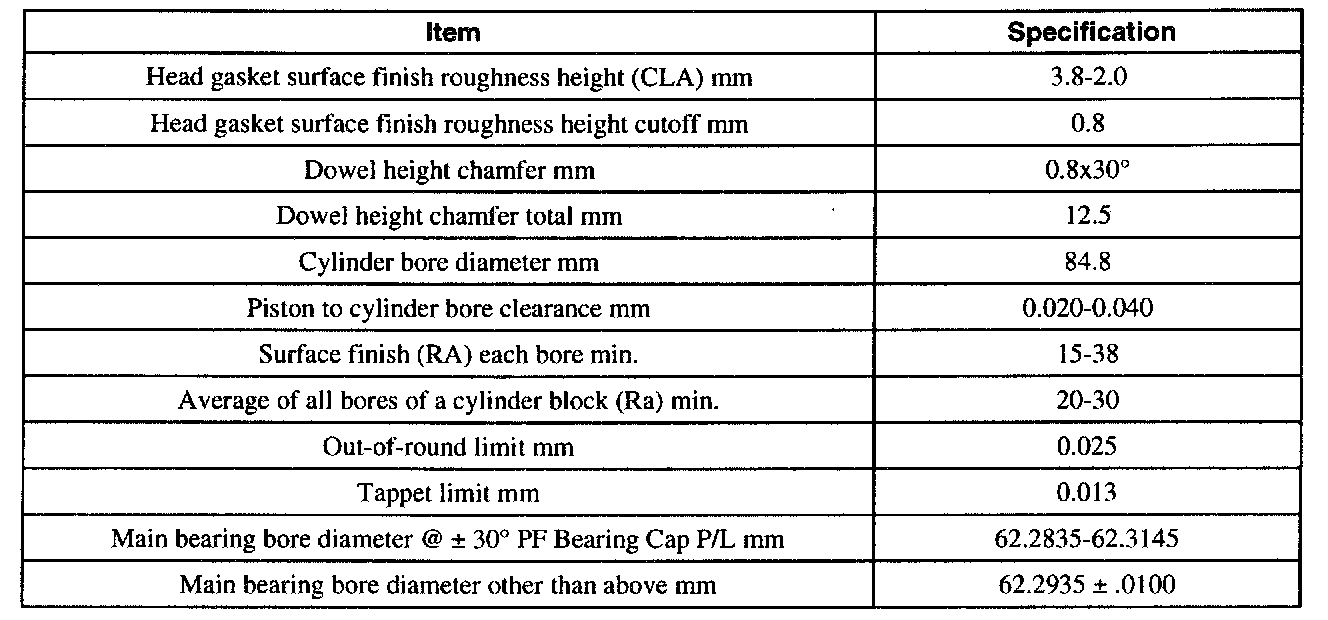

Cylinder Block

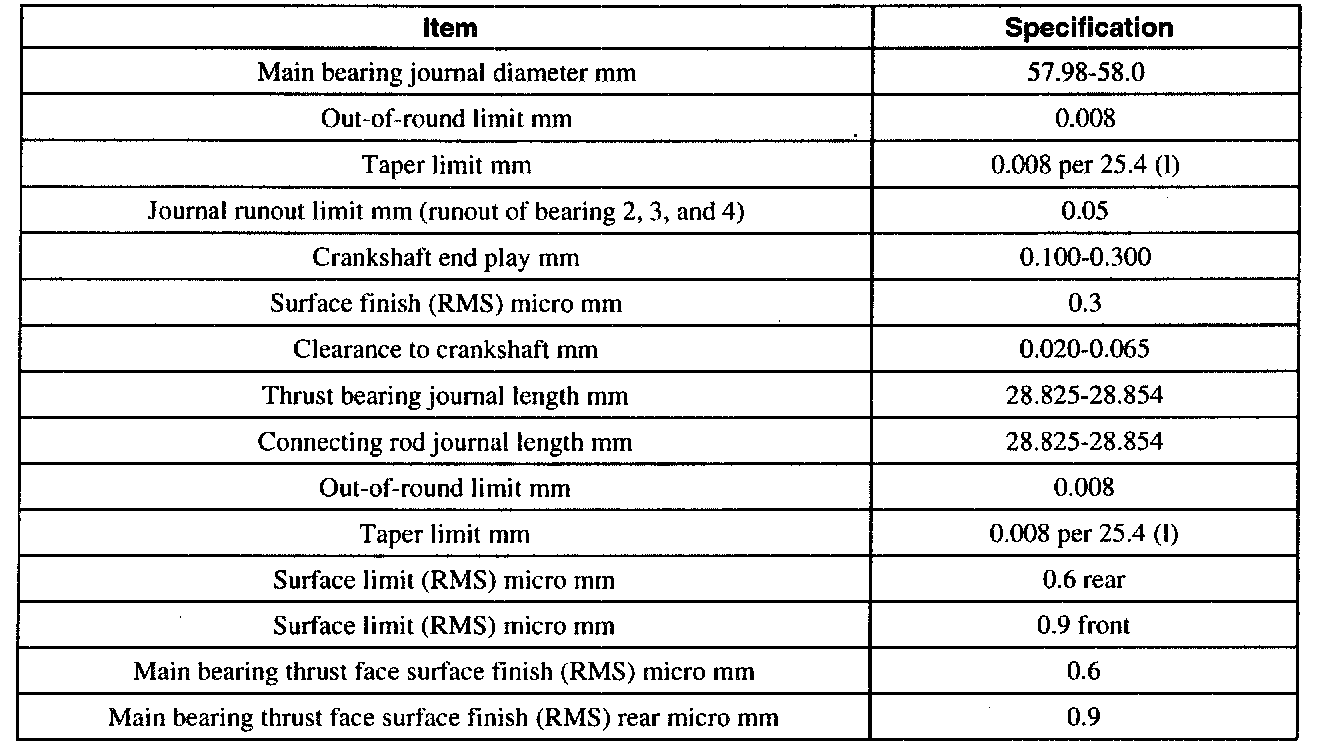

Crankshaft

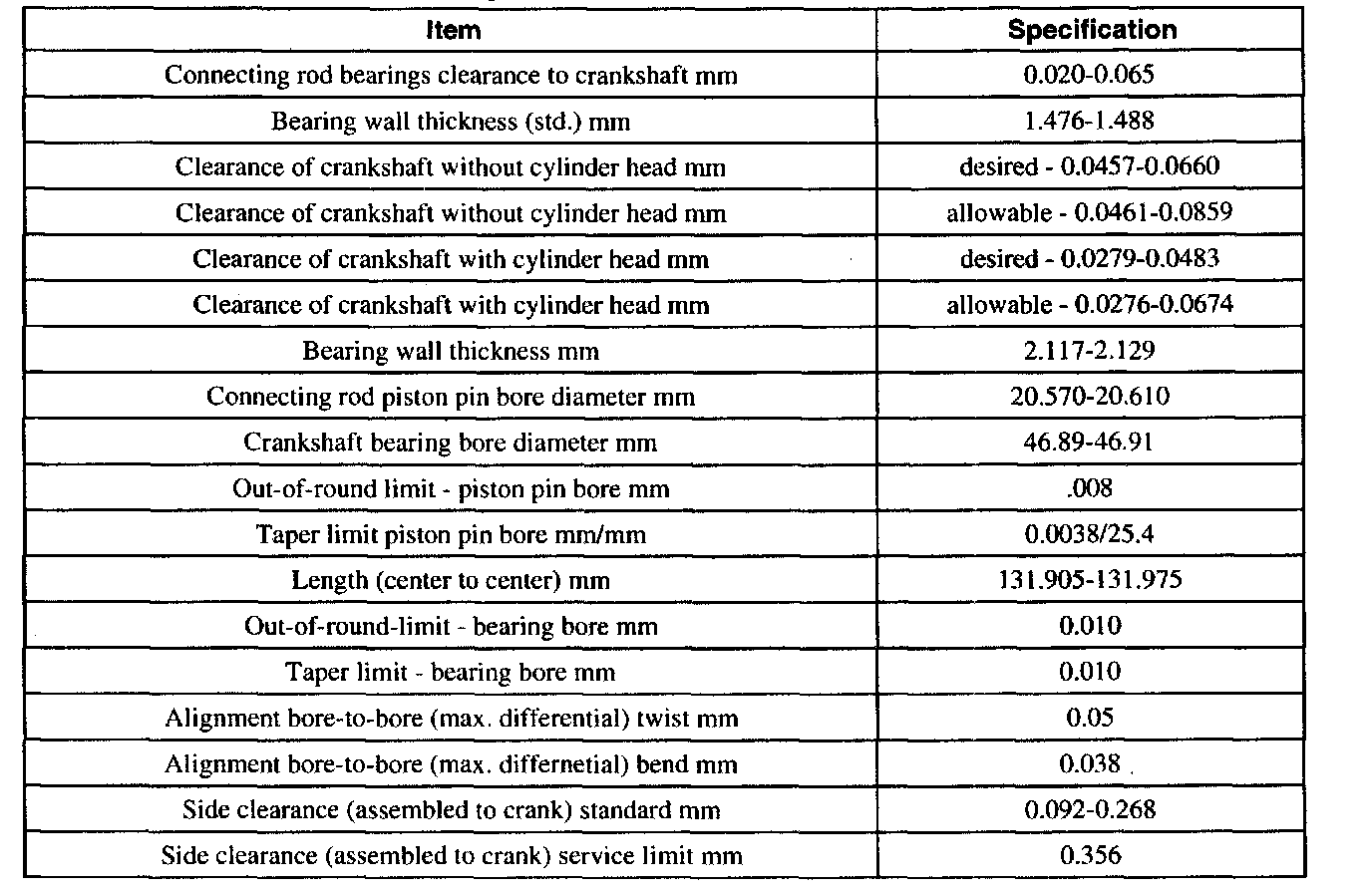

Connecting Rod

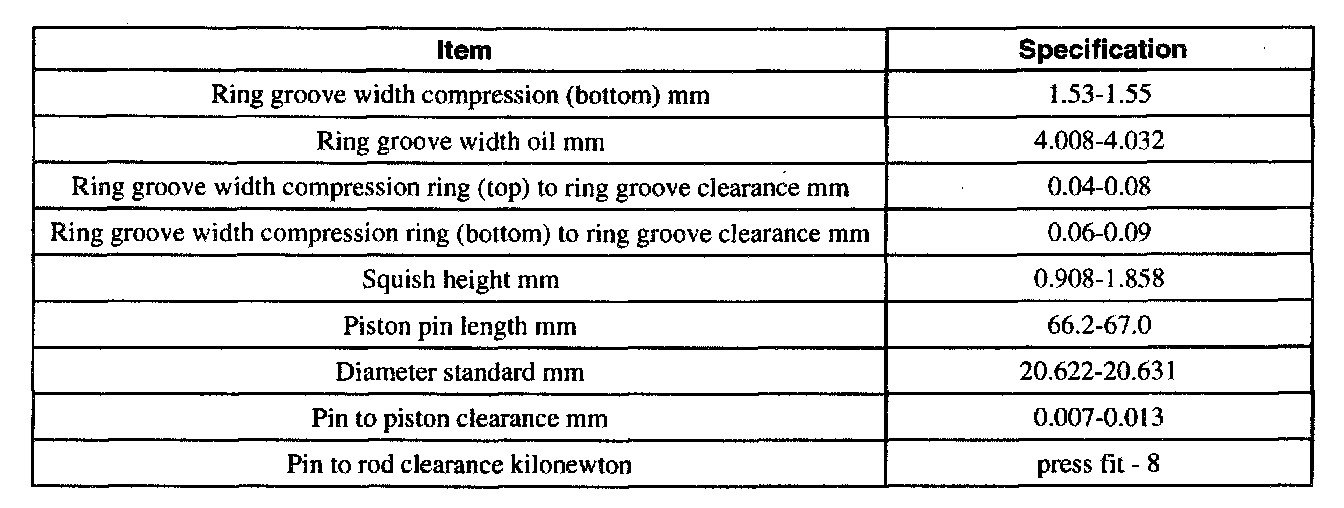

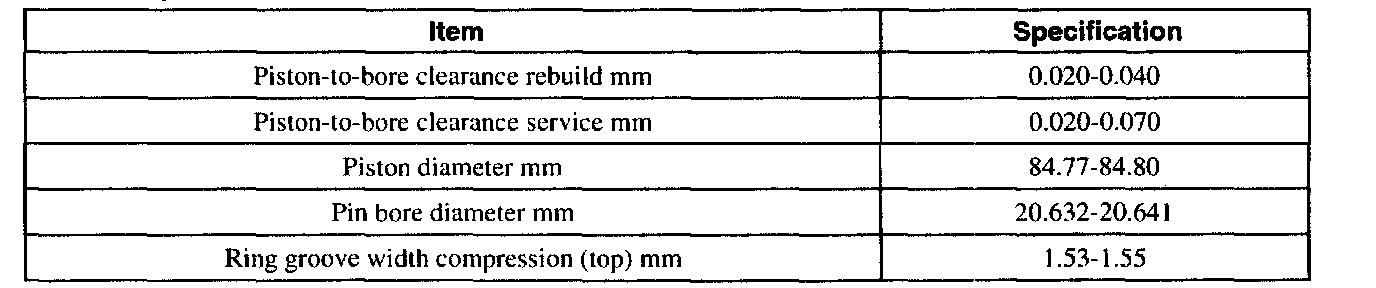

Pistons

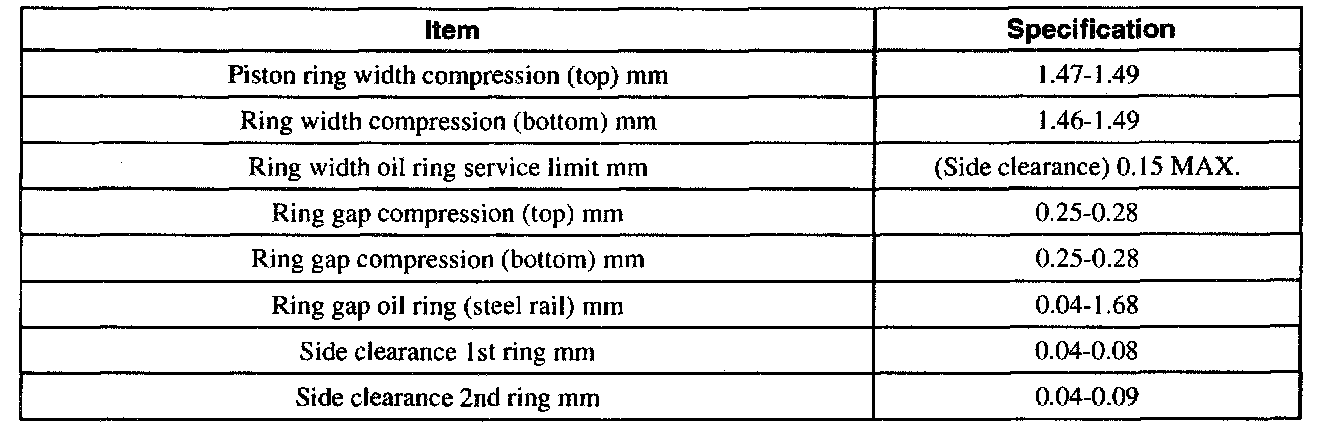

Pistons Rings

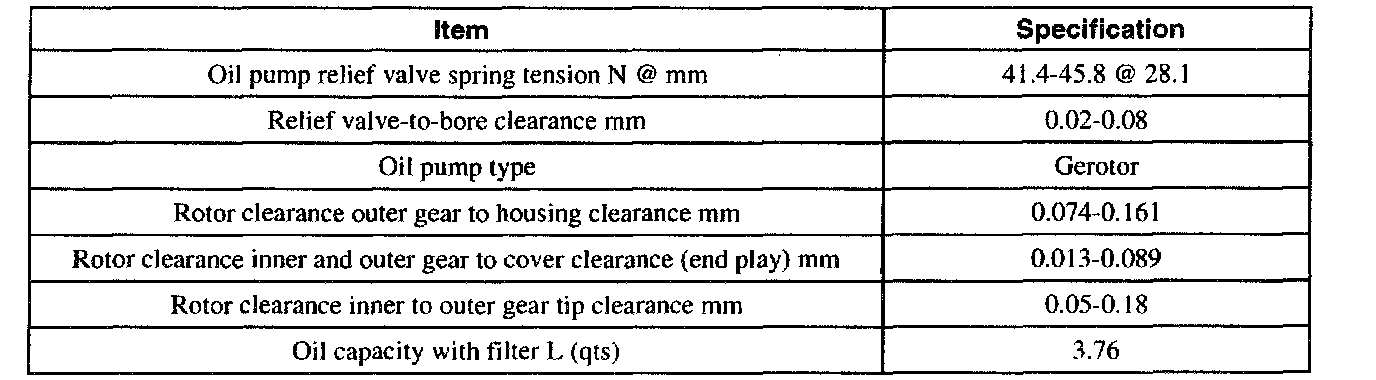

Lubrication System
