Pinpoint Test G: The Rear Electronic Module (Rem) Does Not Respond To The Diagnostic Tool
WARNING: This page is about a different car, the 2003 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

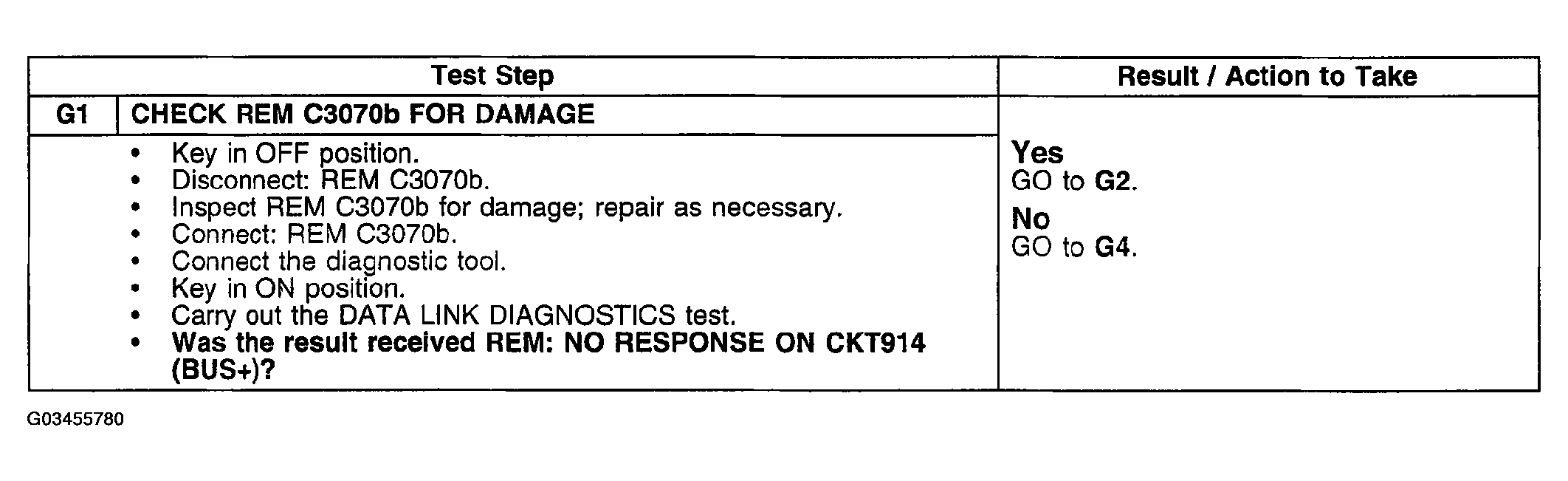

Fig 1: Pinpoint Test G: Rear Electronic Module Does Not Respond To Diagnostic Tool (Step G1)
Courtesy of FORD MOTOR CO.

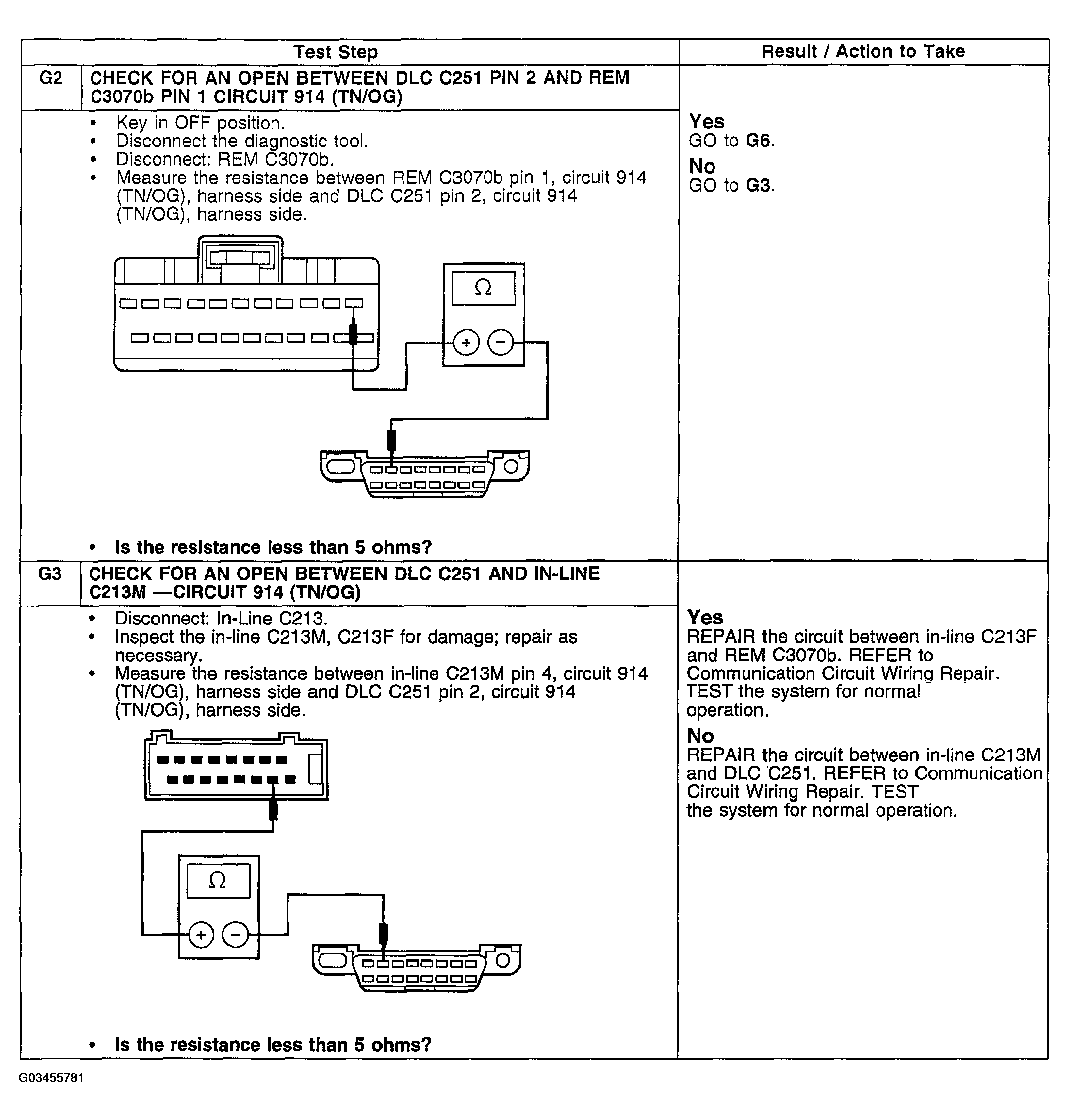

Fig 2: Pinpoint Test G: Rear Electronic Module Does Not Respond To Diagnostic Tool (Step G2-G3)
Courtesy of FORD MOTOR CO.

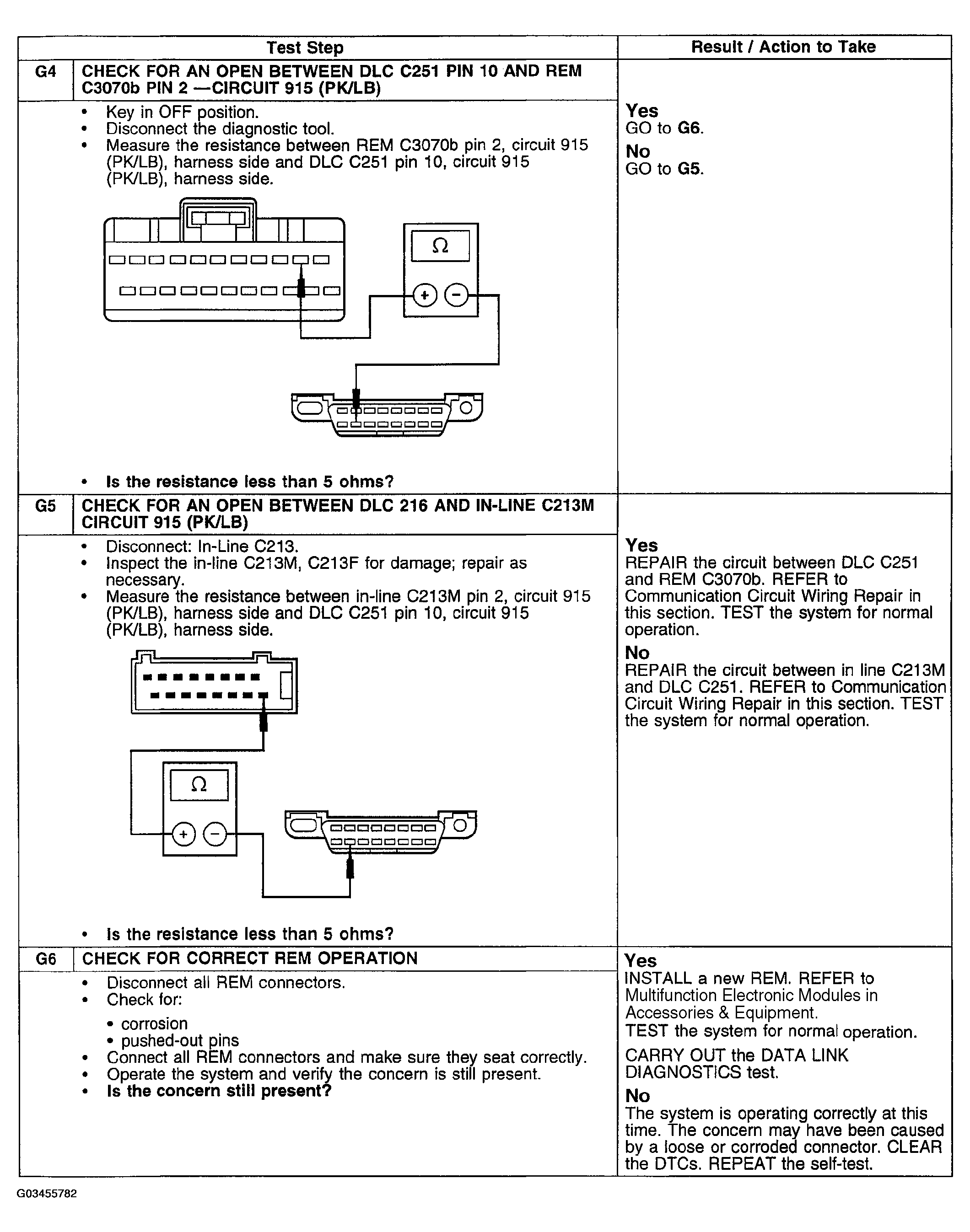

Fig 3: Pinpoint Test G: Rear Electronic Module Does Not Respond To Diagnostic Tool (Step G4-G6)
