Pinpoint Test I: The Front Electronic Module (Fem) Does Not Respond To The Diagnostic Tool
WARNING: This page is about a different car, the 2003 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

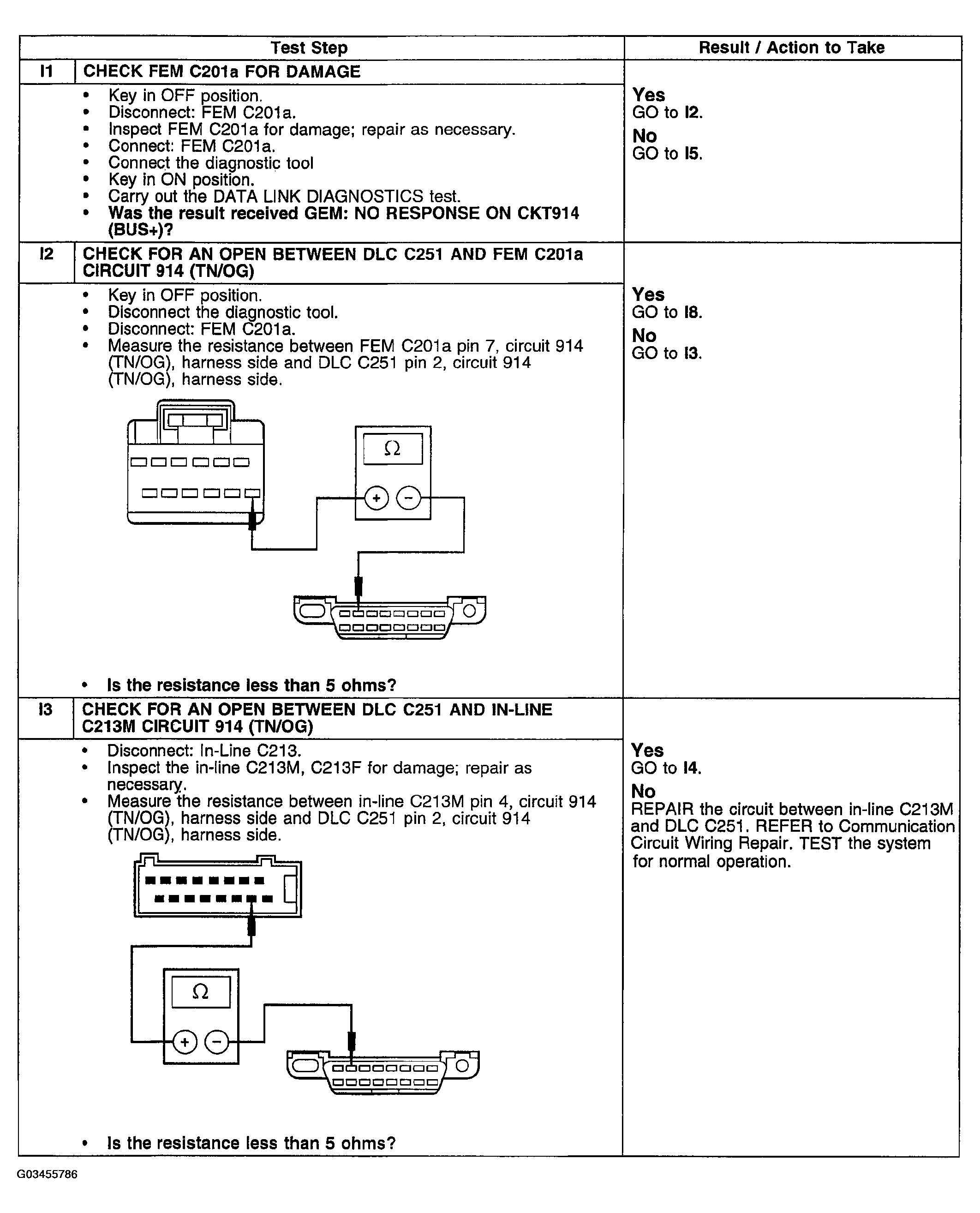

Fig 1: Pinpoint Test I: Front Electronic Module Does Not Respond To Diagnostic Tool (Step I1-I3)
Courtesy of FORD MOTOR CO.

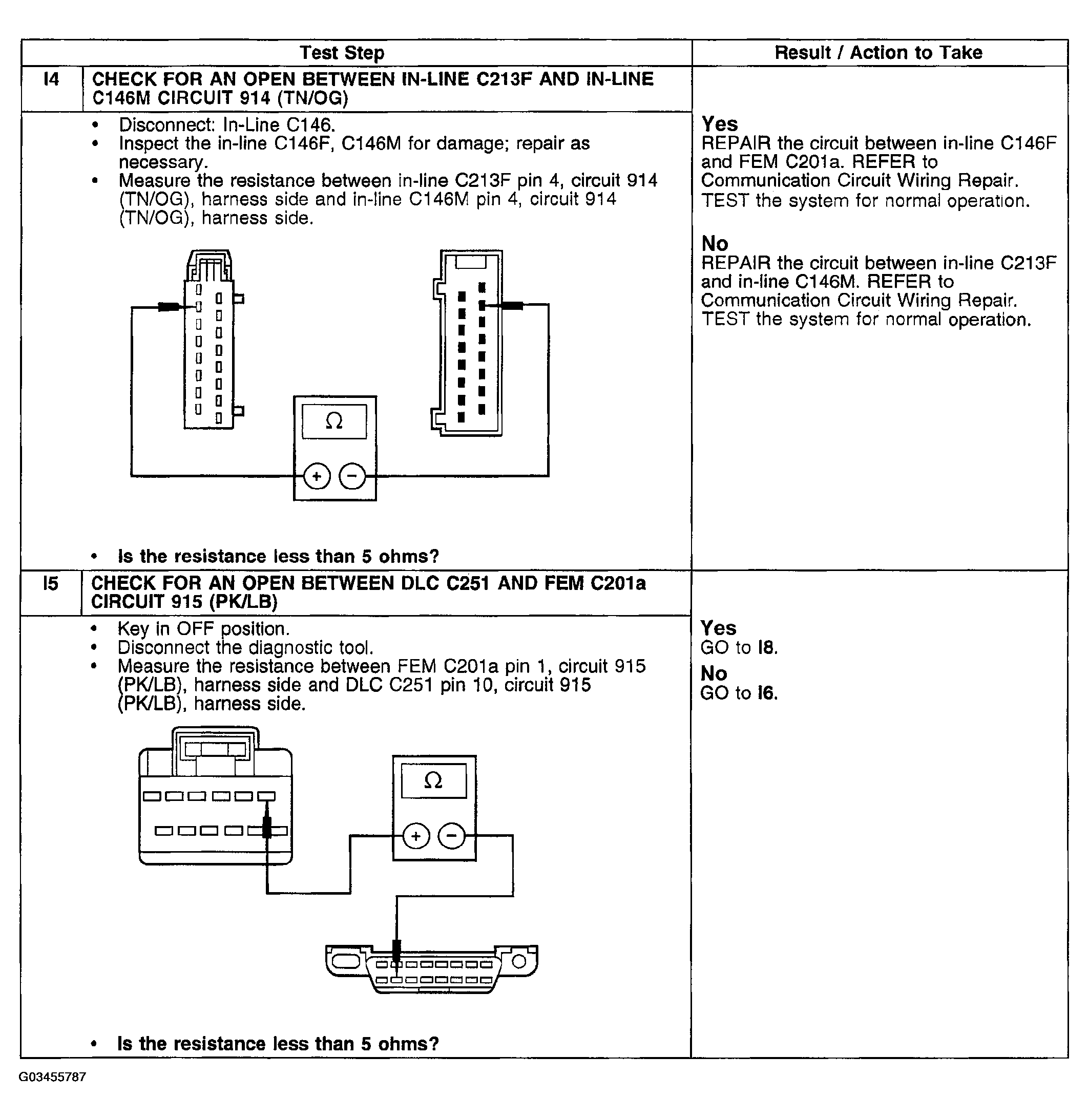

Fig 2: Pinpoint Test I: Front Electronic Module Does Not Respond To Diagnostic Tool (Step I4-I5)
Courtesy of FORD MOTOR CO.

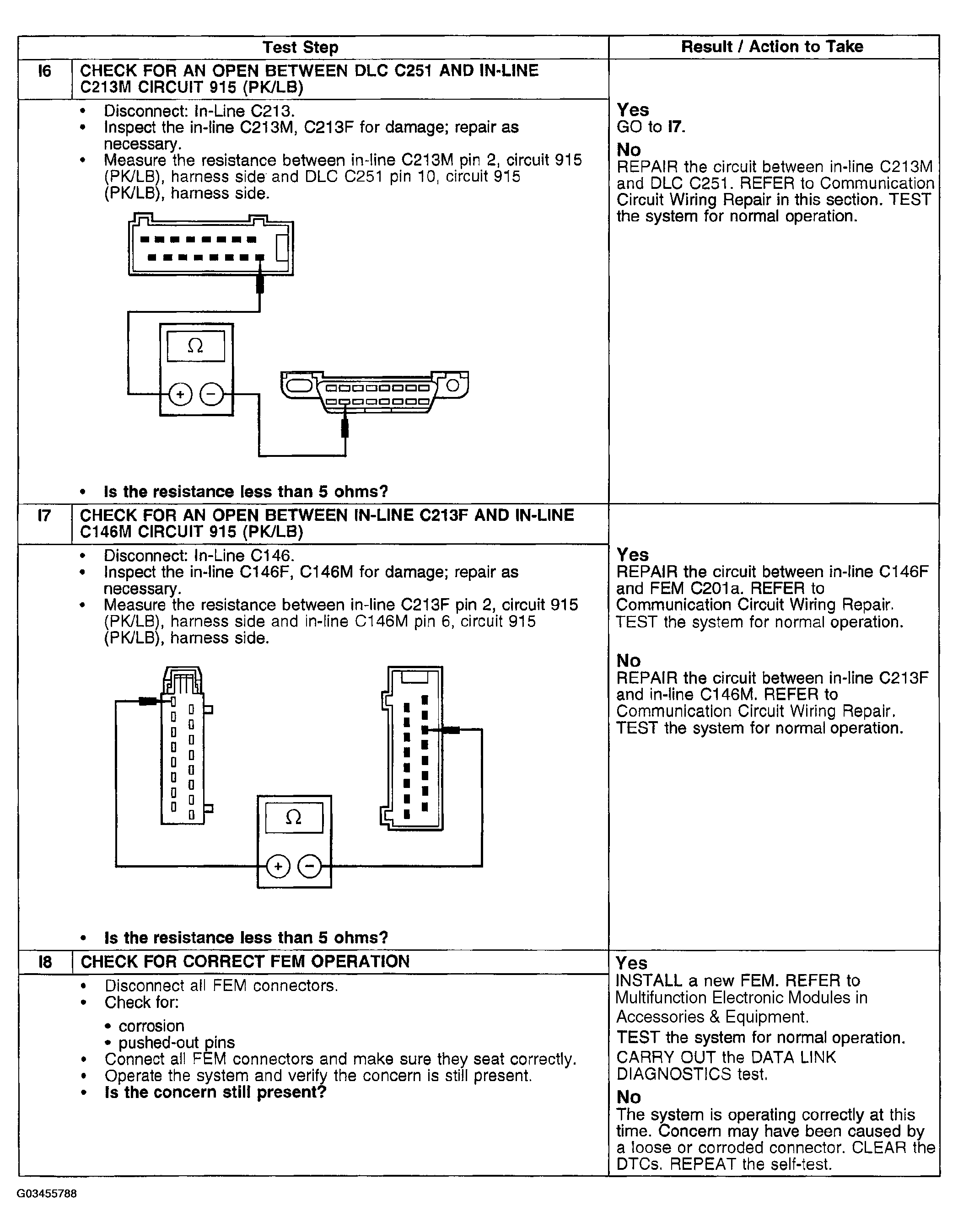

Fig 3: Pinpoint Test I: Front Electronic Module Does Not Respond To Diagnostic Tool (Step I6-I8)
