Pinpoint Test C: A Map Reading Lamp Is Inoperative

WARNING: This page is about a different car, the 2003 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

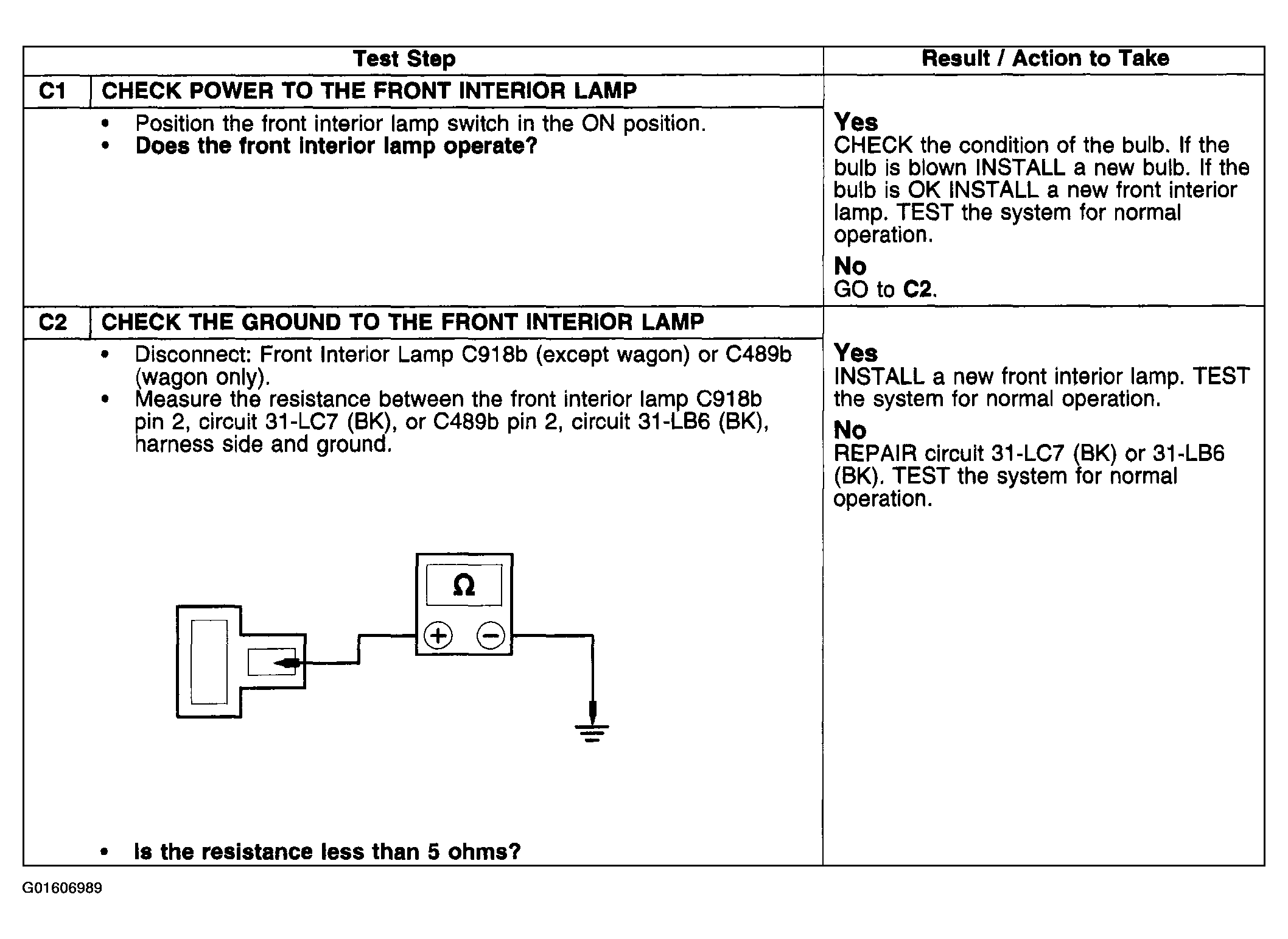

Fig 1: Pinpoint Test C: Map Reading Lamp Inoperative (C1-C2)
G01606989Courtesy of FORD MOTOR CO.
