Pinpoint Test A: The Anti-Lock Brake Control Module (Abs) Does Not Respond To The Diagnostic Tool

WARNING: This page is about a different car, the 2002 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

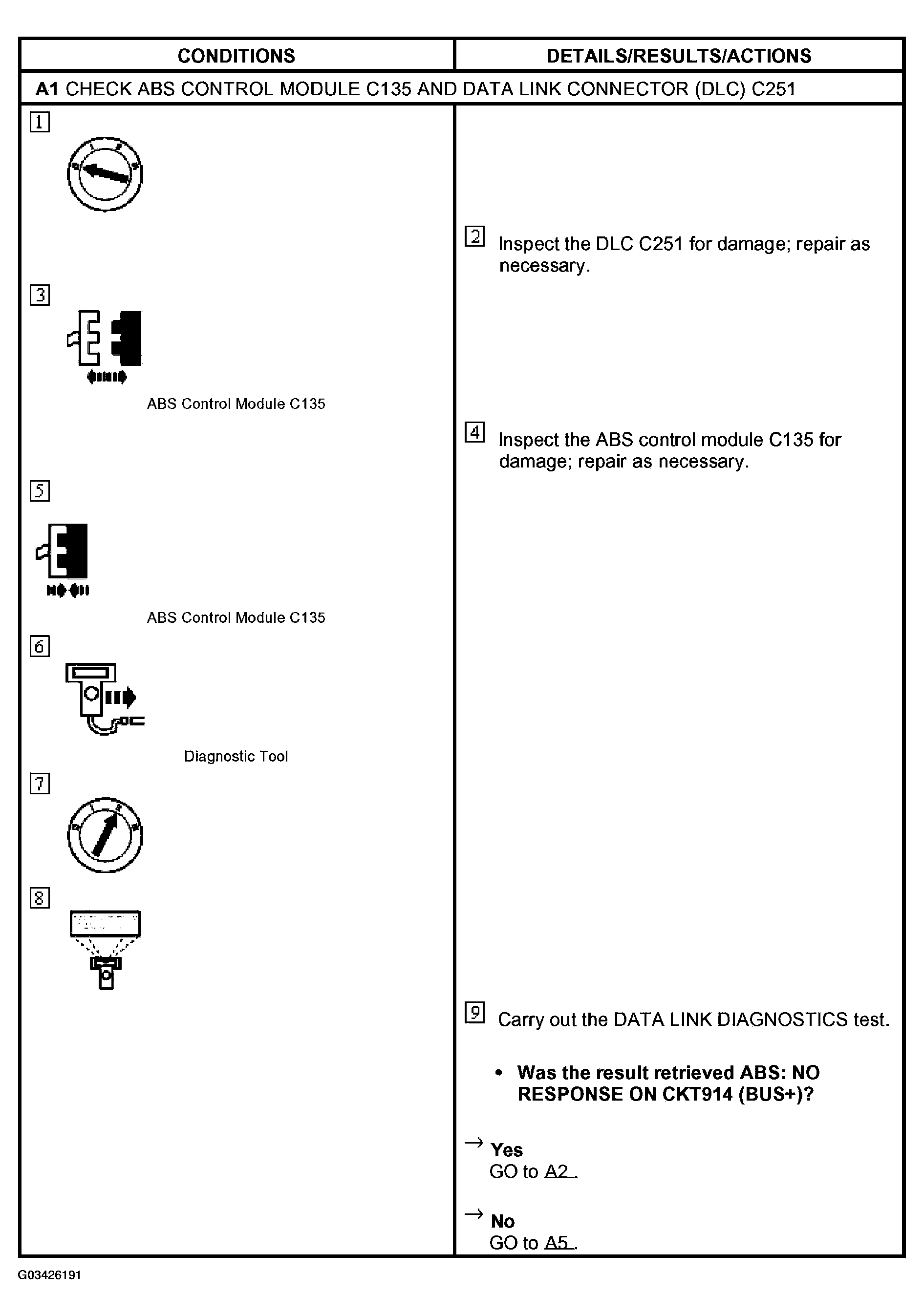

Fig 1: Pinpoint Test A Chart - Anti-Lock Brake Control Module Does Not Respond To Diagnostic Tool (A1)
G03426191Courtesy of FORD MOTOR CO.

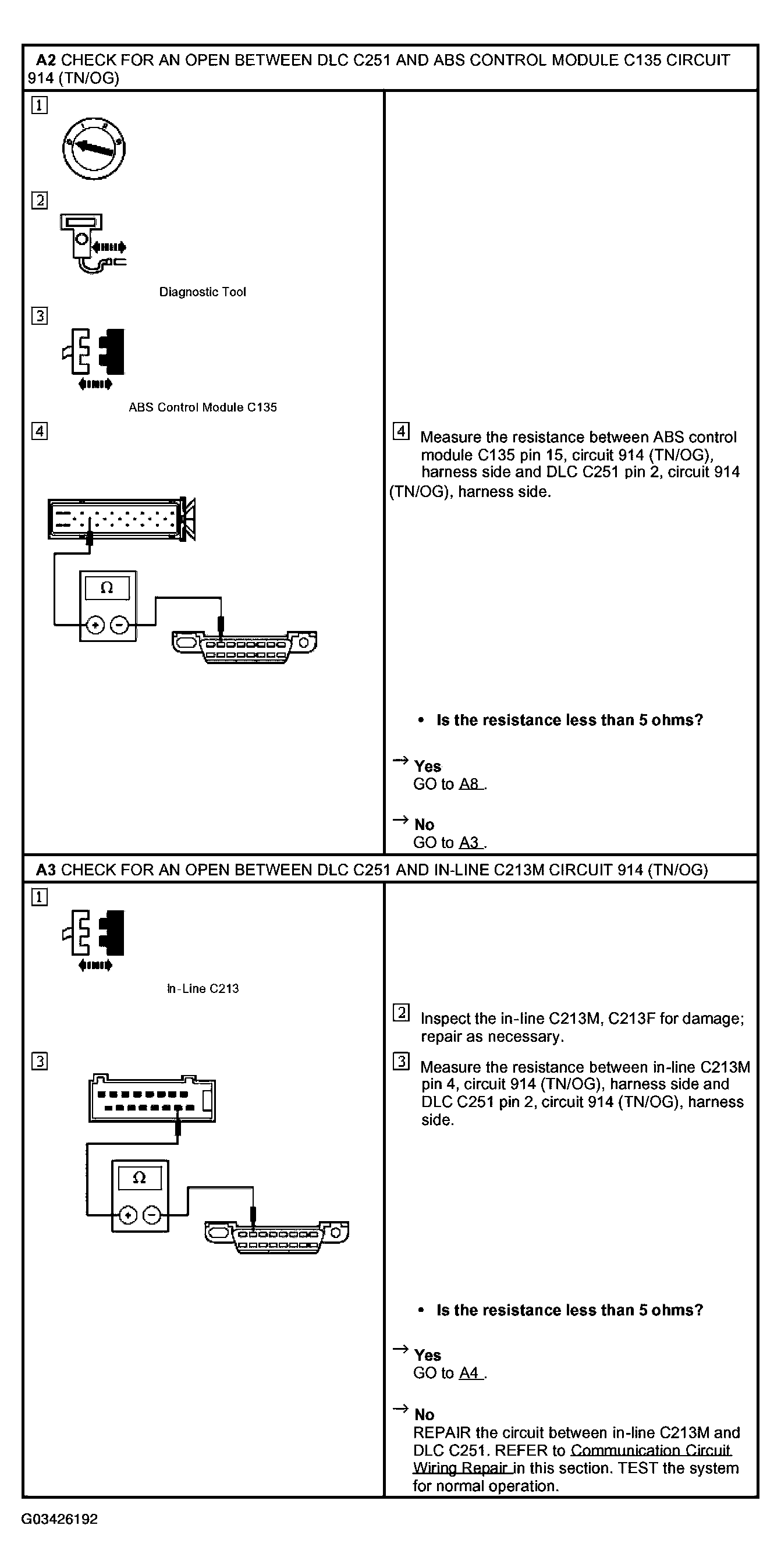

Fig 2: Pinpoint Test A Chart - Anti-Lock Brake Control Module Does Not Respond To Diagnostic Tool (A2 & A3)
G03426192Courtesy of FORD MOTOR CO.

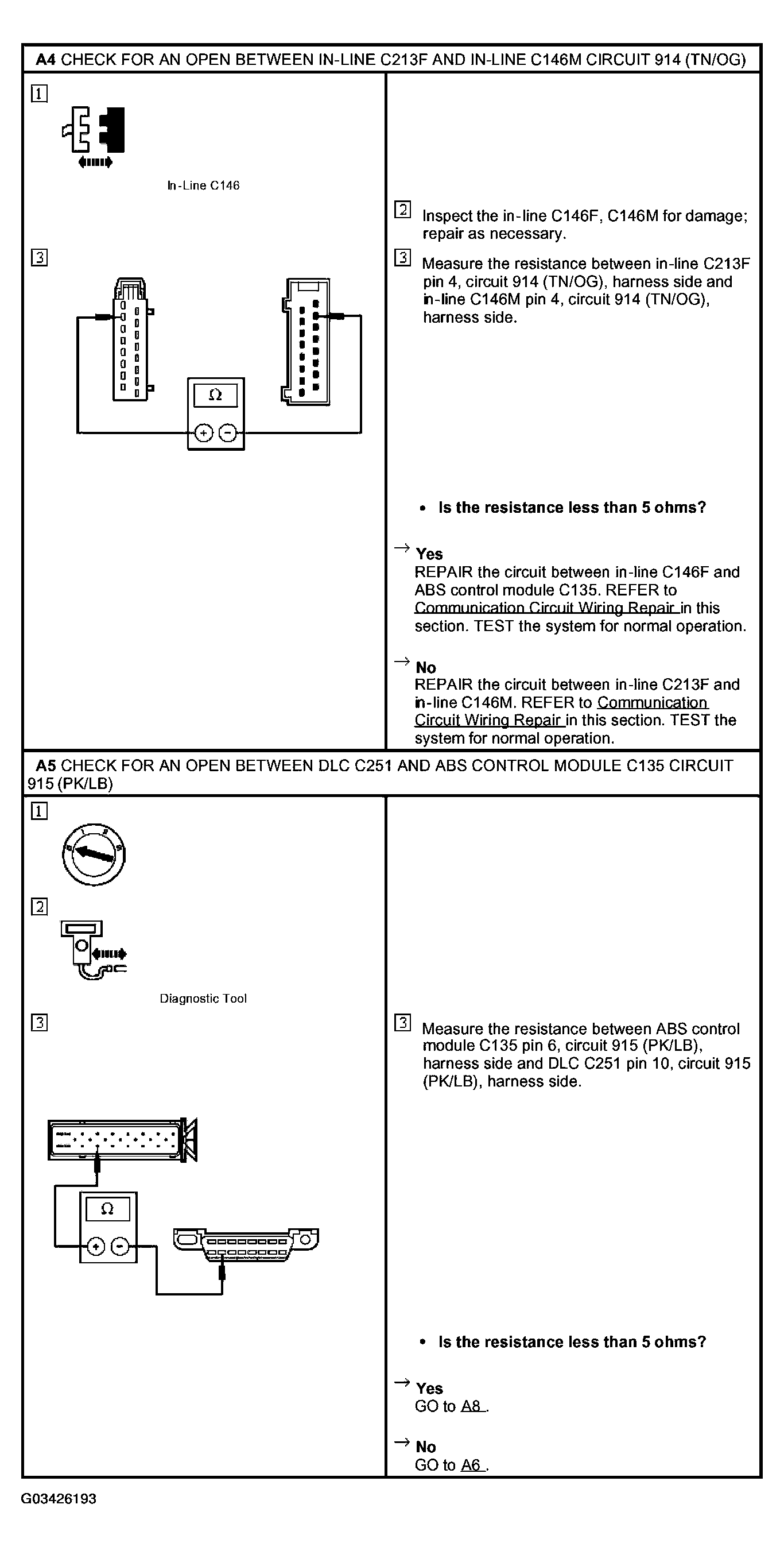

Fig 3: Pinpoint Test A Chart - Anti-Lock Brake Control Module Does Not Respond To Diagnostic Tool (A4 & A5)
G03426193Courtesy of FORD MOTOR CO.

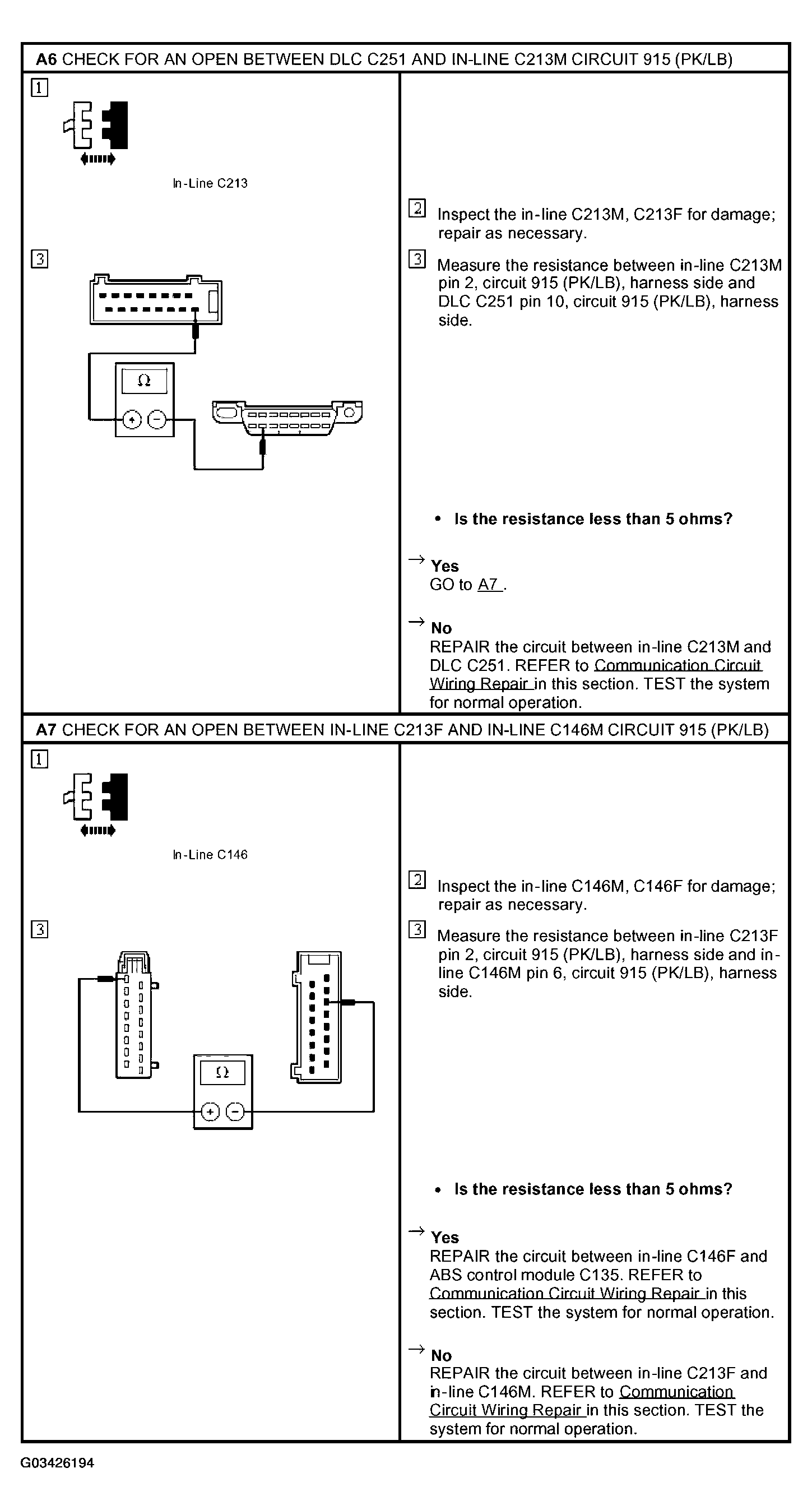

Fig 4: Pinpoint Test A Chart - Anti-Lock Brake Control Module Does Not Respond To Diagnostic Tool (A6 & A7)
G03426194Courtesy of FORD MOTOR CO.

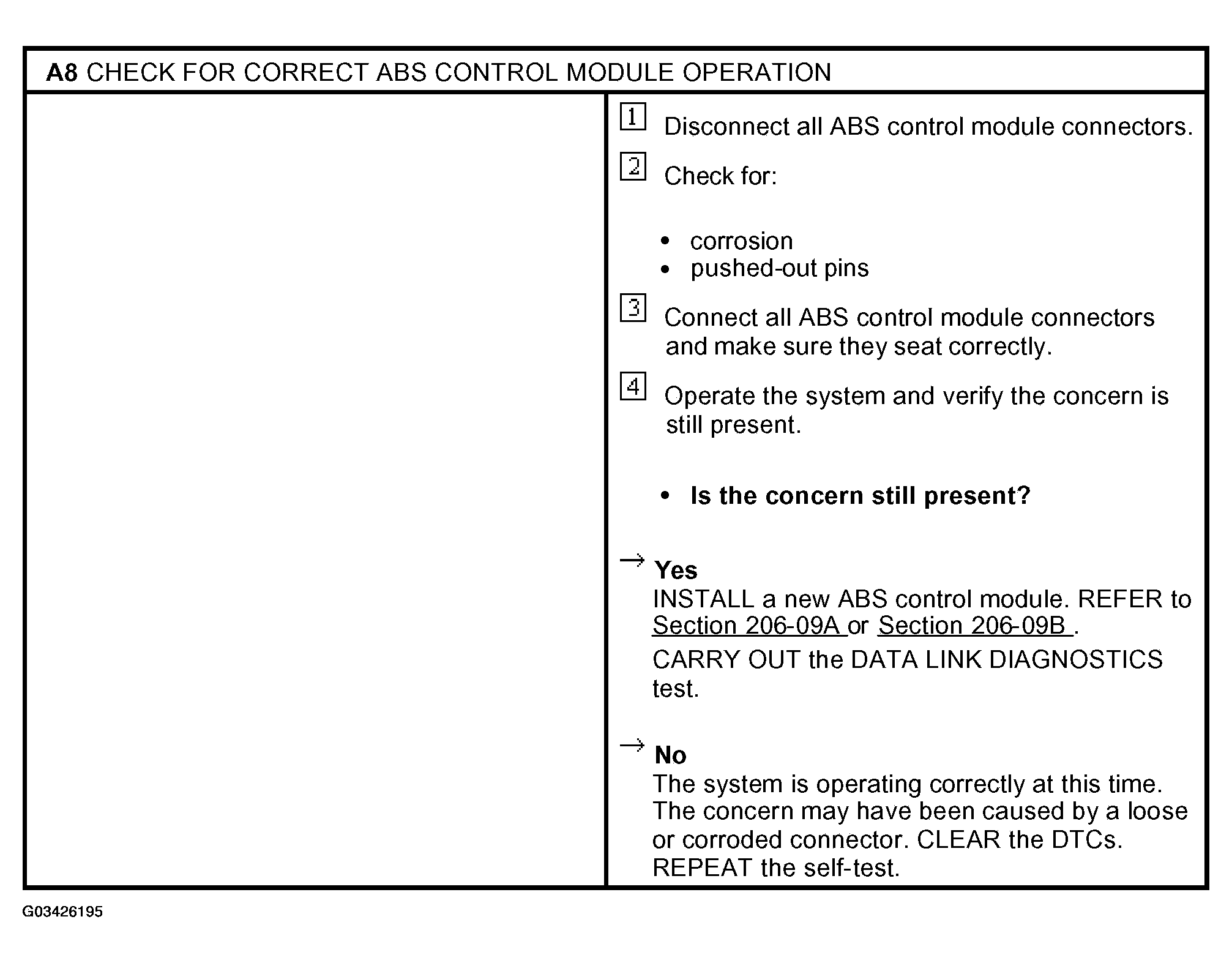

Fig 5: Pinpoint Test A Chart - Anti-Lock Brake Control Module Does Not Respond To Diagnostic Tool (A8)
G03426195Courtesy of FORD MOTOR CO.
