Pinpoint Test K: The Set/ACCEL Switch Is Inoperative

WARNING: This page is about a different car, the 2002 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

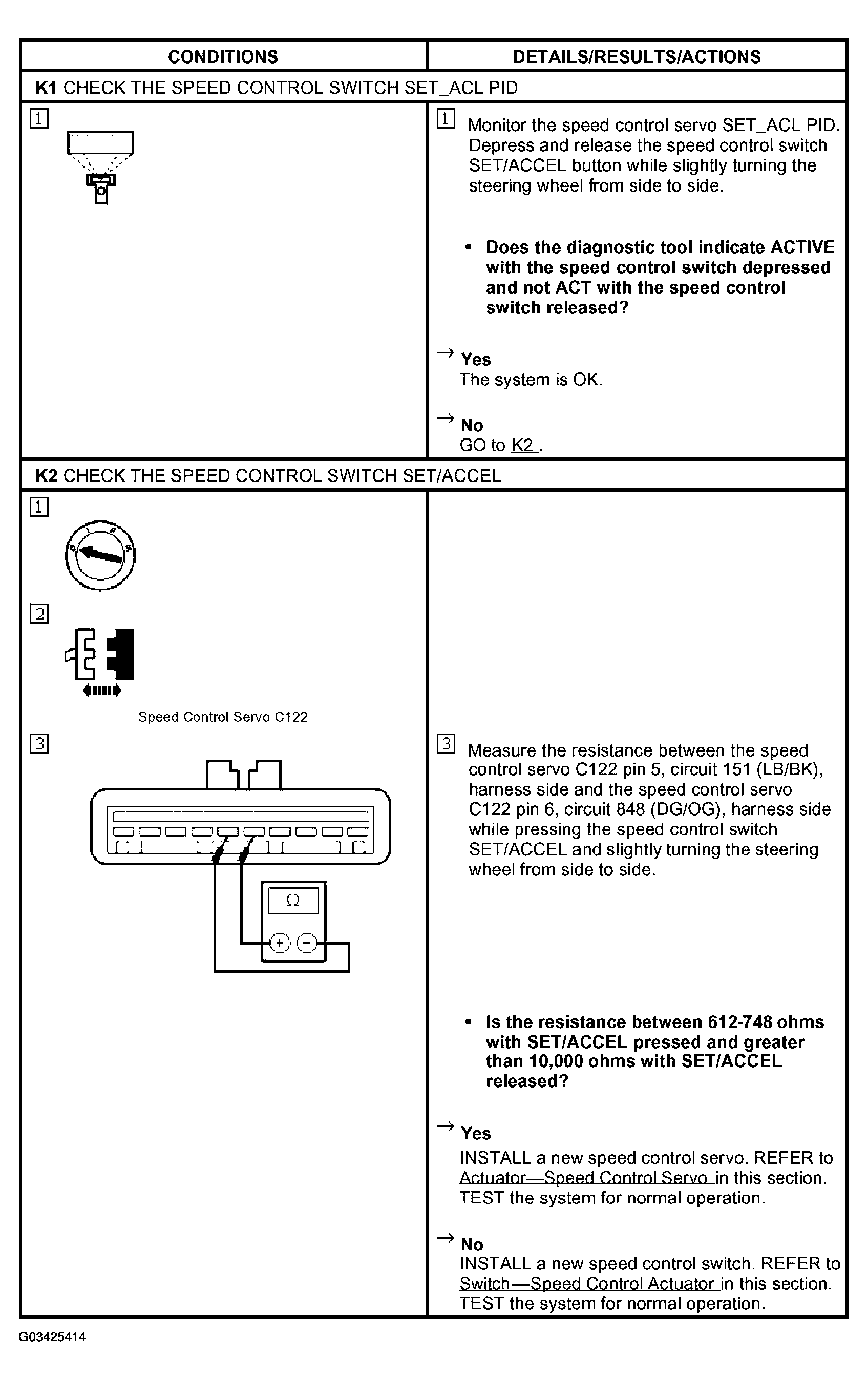

Fig 1: Pinpoint Test K: Set/Accel Switch Is Inoperative (K1 & K2)
G03425414Courtesy of FORD MOTOR CO.
