Passenger Climate Controlled Seat Module C3036a

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

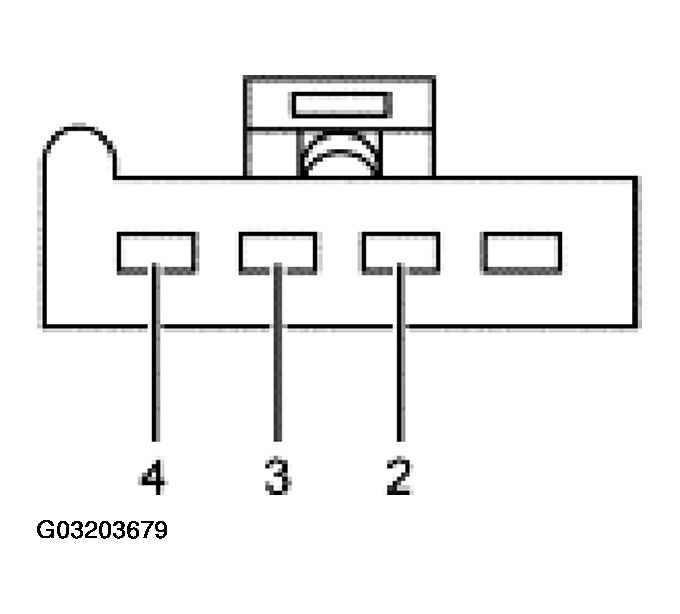

Fig 1: Identifying Passenger Climate Controlled Seat Module C3036a Connector
G03203679Courtesy of FORD MOTOR CO.
PINS CIRCUIT REFERENCE

Pin Number(s) Circuit Designation/Description Normal Condition/Measurement
2 CKT 20-HC22 (PK/YE) Battery voltage from PJB Greater than 10 volts when switch is in the run position.
3 CKT 31-HC22 (BK/YE) Ground Continuity to ground, less than 5 ohms.
4 CKT 30-HC22 (RD/YE) Battery voltage from rear PDB Greater than 10 volts at all times.
