Pinpoint Test H: The Traction Control Is Inoperative/Cannot Be Disabled

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: The Flex Probe Kit must be used for all test connections. Use of standard multimeter probes may damage wiring terminals.
  1. H1 CHECK THE ANTI-LOCK BRAKE SYSTEM (ABS) MODULE
    • Connect the scan tool.
    • Key in ON position.
    • Using the diagnostic tool, retrieve and document any continuous DTCs.
    • Are DTCs retrieved?

    Yes  : GO to the ANTI-LOCK BRAKE SYSTEM (ABS) MODULE DIAGNOSTIC TROUBLE CODE (DTC) INDEX .

    No  : GO to H2.

  2. H2 CHECK THE TRACTION CONTROL SWITCH
    • Key in OFF position.
    • Disconnect: Traction Control Switch C280.
    • Place the traction control switch in the ON position.
    • Measure the resistance between traction control switch C280-1, circuit 959 (GY), component side and traction control switch C280-2, circuit 57 (BK), component side.

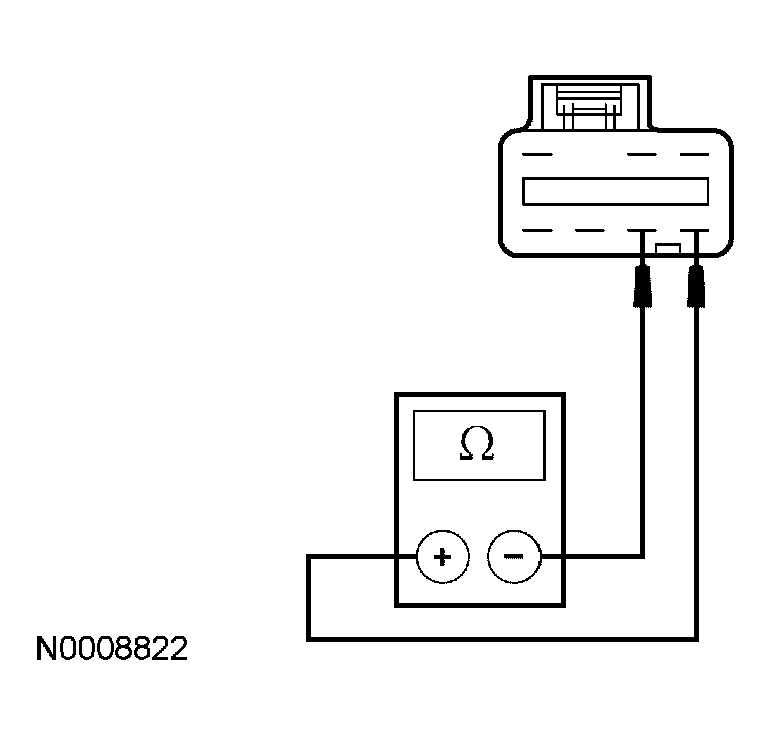

      Fig 1: Measuring Resistance Between Traction Control Switch C280-1, Circuit 959 (GY), And Traction Control Switch C280-2, Circuit 57 (BK)
      G04583213Courtesy of FORD MOTOR CO.
    • Is the resistance less than 5 ohms?

    Yes  : GO to H3.

    No  : INSTALL a new traction control switch. TEST the system for normal operation.

  3. H3 CHECK CIRCUIT 959 (GY) FOR AN OPEN
    • Key in OFF position.
    • Disconnect: ABS Module C135.
    • Disconnect: Traction Control Switch C280.
    • Measure the resistance between ABS module C135-11, circuit 959 (GY), harness side and traction control switch C280-1, circuit 959 (GY), harness side.

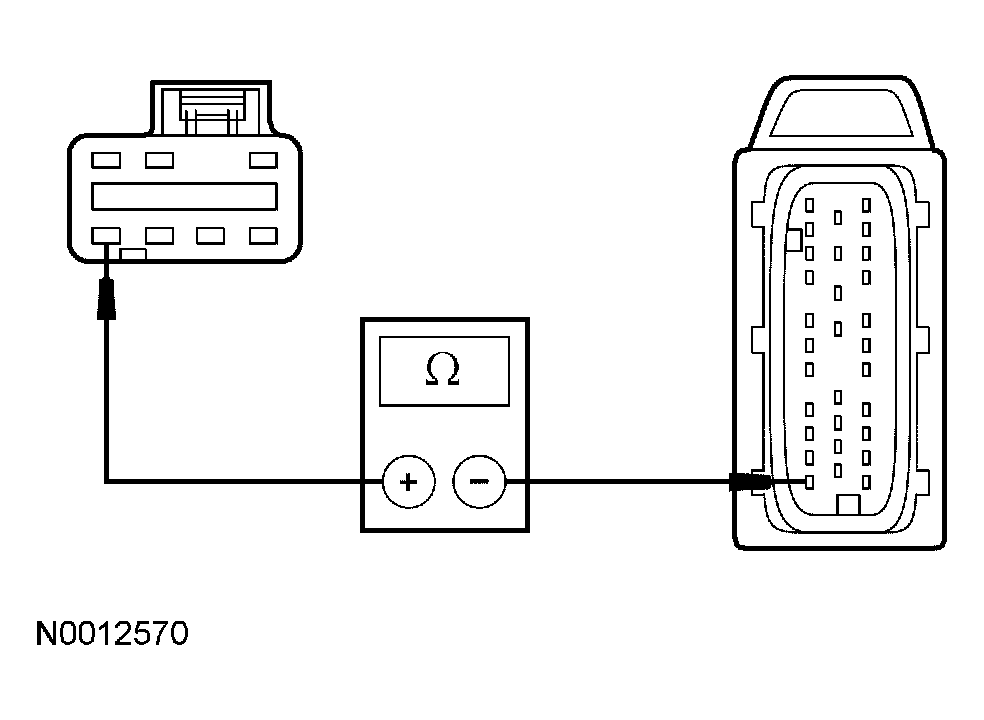

      Fig 2: Measuring Resistance Between ABS Module C135-11, And Traction Control Switch C280-1
      G04583214Courtesy of FORD MOTOR CO.
    • Is the resistance greater than 5 ohms?

    Yes  : REPAIR circuit 959 (GY) for an open. TEST the system for normal operation.

    No  : GO to H4.

  4. H4 CHECK CIRCUIT 57 (BK) FOR AN OPEN
    • Measure the resistance between traction control switch C280-2, circuit 57 (BK), harness side and ground.

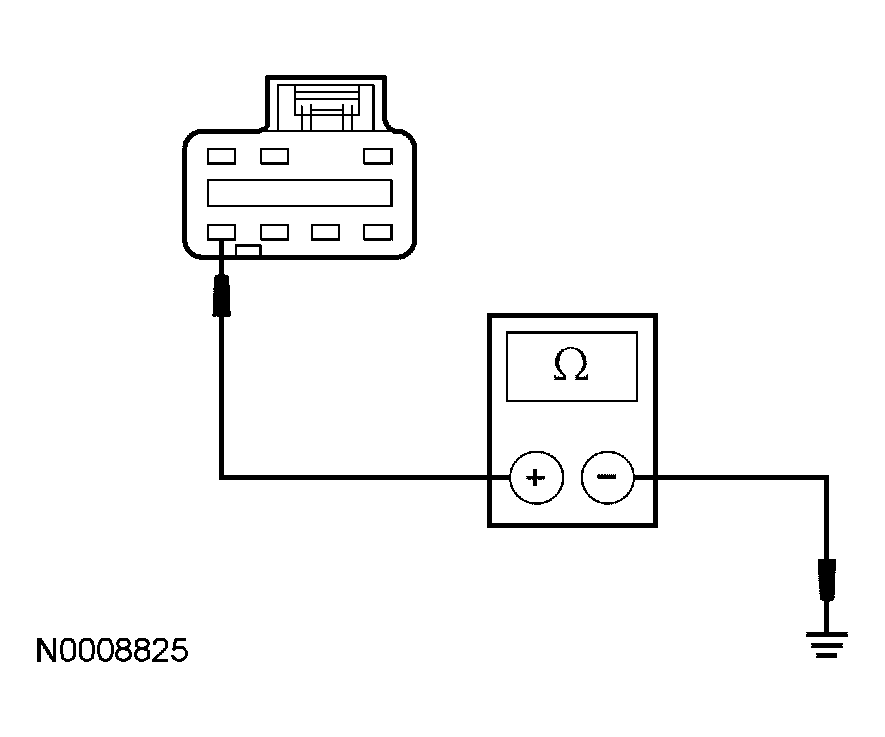

      Fig 3: Measuring Resistance Between Traction Control Switch C280-2, Circuit 57 (BK), And Ground
      G04583215Courtesy of FORD MOTOR CO.
    • Is the resistance greater than 5 ohms?

    Yes  : REPAIR circuit 57 (BK) for an open. TEST the system for normal operation.

    No  : GO to H5.

  5. H5 CHECK CIRCUIT 959 (GY) FOR A SHORT TO GROUND
    • Measure the resistance between traction control switch C280-1, circuit 959 (GY), harness side and ground.

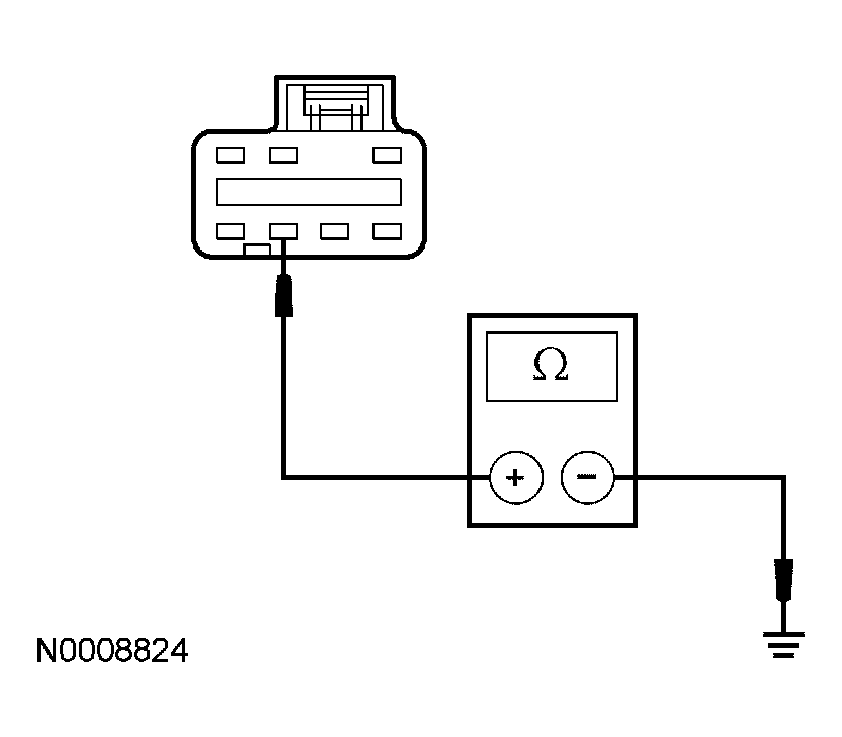

      Fig 4: Measuring Resistance Between Traction Control Switch C280-1, Circuit 959 (GY), And Ground
      G04583216Courtesy of FORD MOTOR CO.
    • Is the resistance less than 10,000 ohms?

    Yes  : REPAIR circuit 959 (GY) for a short to ground. TEST the system for normal operation.

    No  : INSTALL a new ABS module. REFER to ANTI-LOCK BRAKE SYSTEM (ABS) MODULE . TEST the system for normal operation.
