Multifunction Switch C202

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

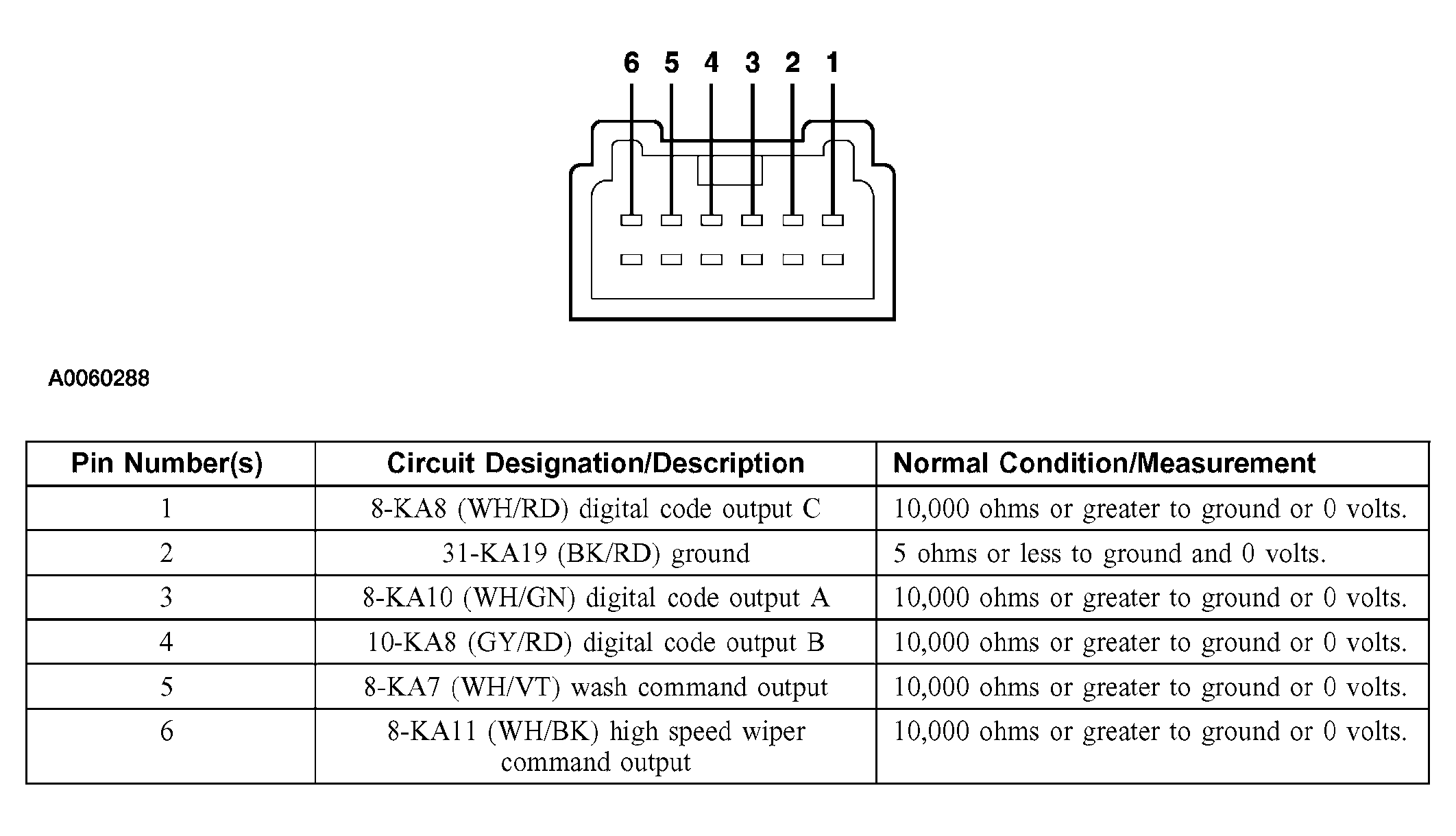

Fig 1: Identifying Multifunction Switch C202 - Connector Pinout
G03999783Courtesy of FORD MOTOR CO.
