Engine Intake Components

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

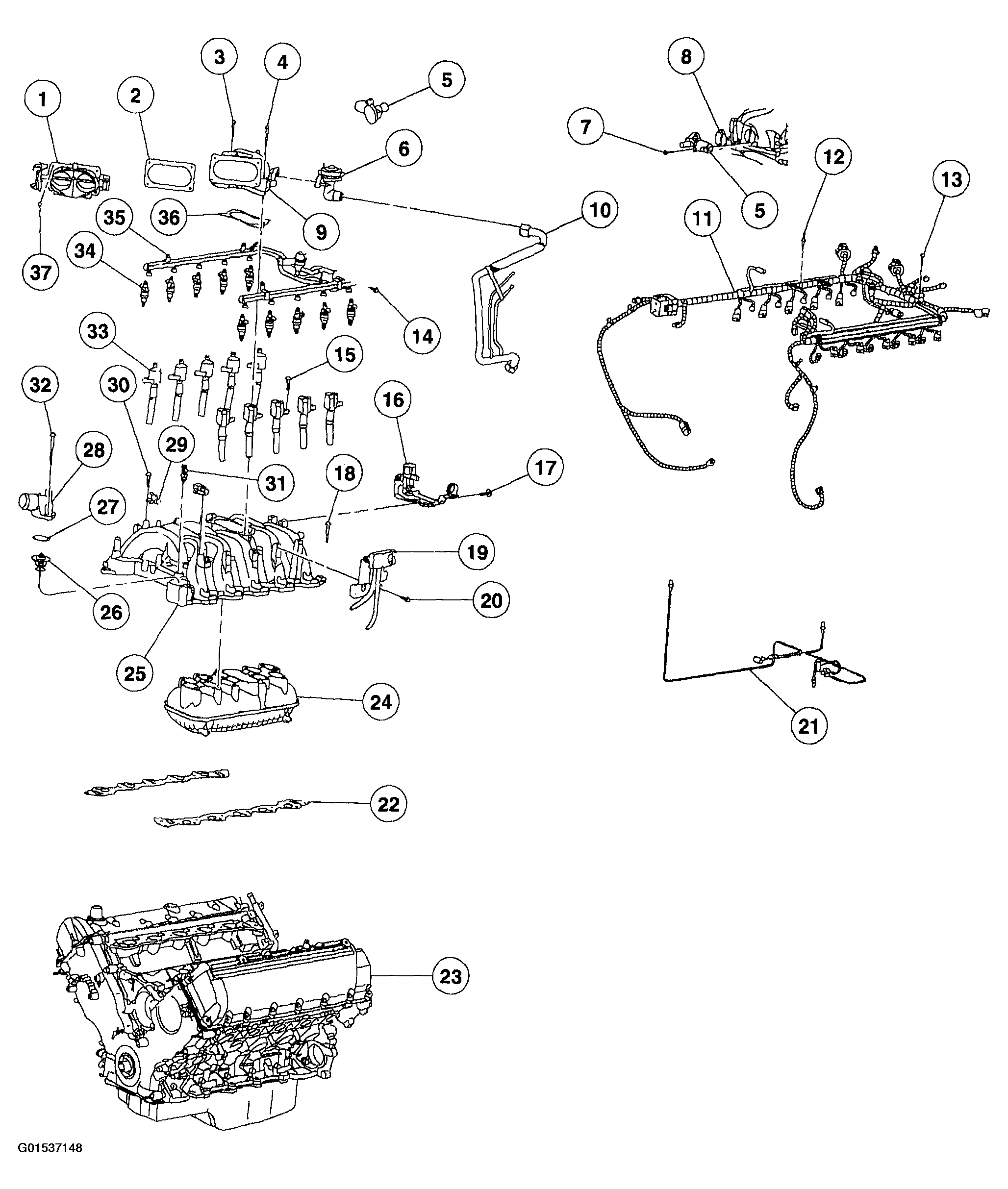

Fig 1: Identifying Engine Intake Components
G01537148Courtesy of FORD MOTOR CO.

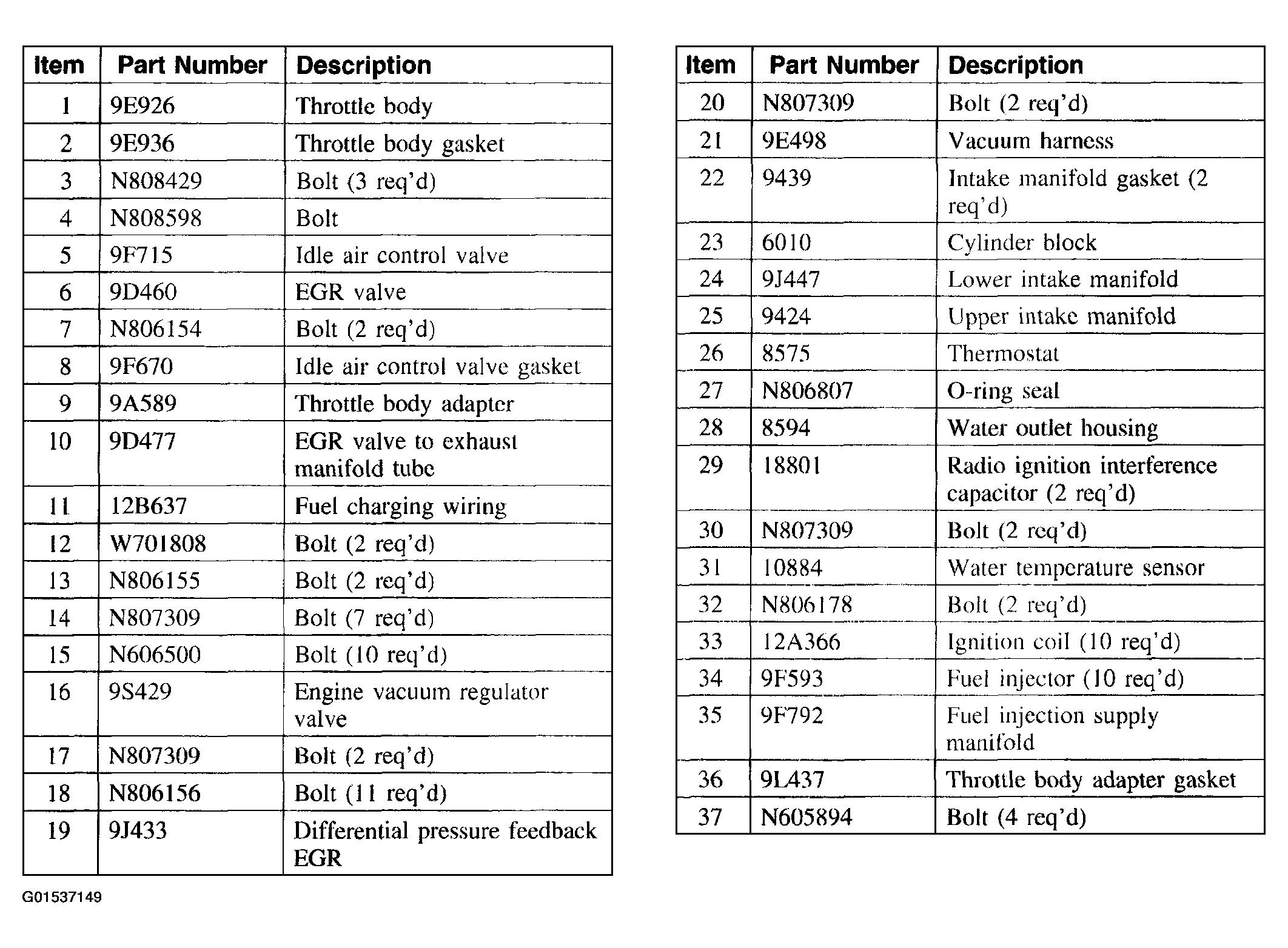

Fig 2: Engine Intake Components Description Chart (Items 1-37)
G01537149Courtesy of FORD MOTOR CO.
