Oil Pump: Installation

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean and inspect the mating surfaces.

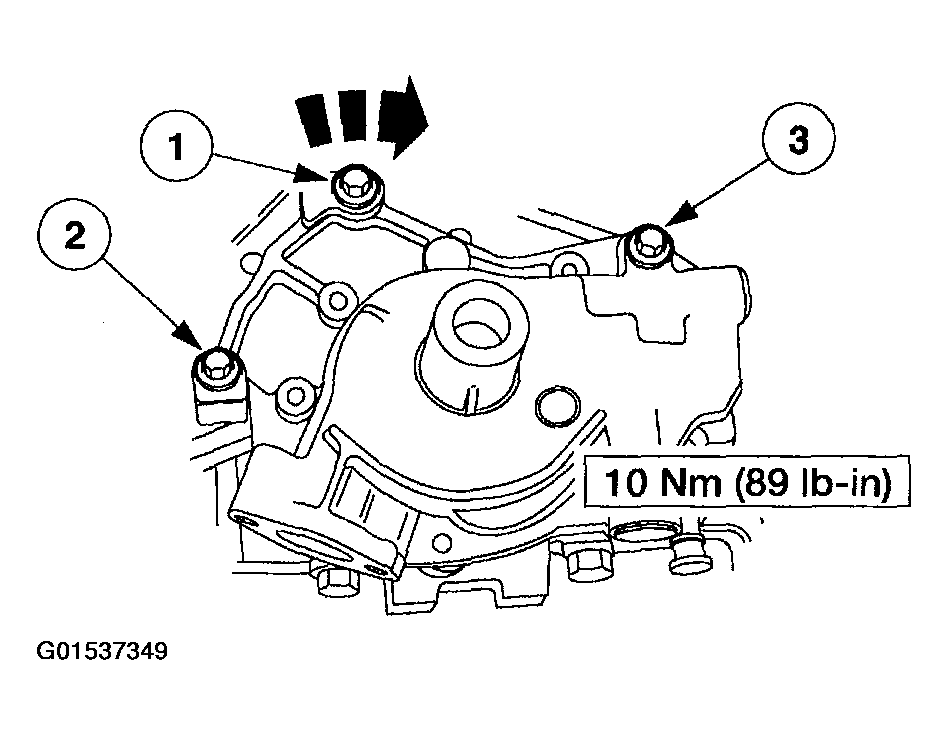

  2. Position the oil pump and loosely install the bolts. Tighten the bolts in the sequence shown.
    Fig 1: Installing Oil Pump
    G01537349Courtesy of FORD MOTOR CO.
  3. Install the oil pan. For additional information, refer to OIL PAN .
  4. Install the timing drive components. For additional information, refer to TIMING DRIVE COMPONENTS .
