Removal & Installation

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. For additional information, refer to Battery, Mounting & Cables  .
  2. Remove the air cleaner assembly. For additional information, refer to Intake Air Distribution & Filtering  .
  3. Disconnect the Powertrain Control Module (PCM) Electrical Connector.

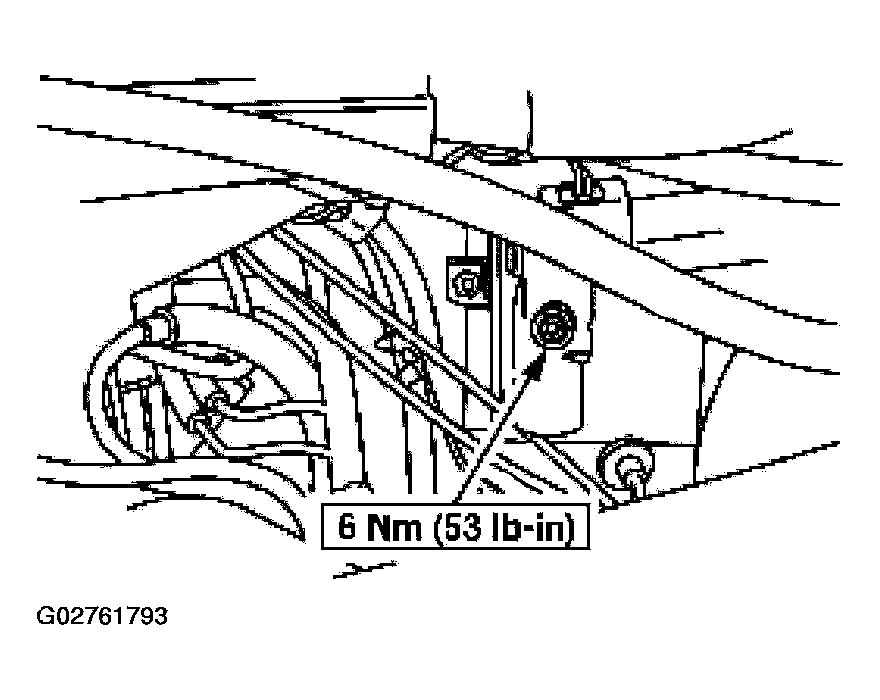

    Fig 1: Disconnecting Powertrain Control Module (PCM) Electrical Connector
    G02761793Courtesy of FORD MOTOR CO.
  4. Remove the PCM.
    1. Remove the nuts.
    2. Remove the cover.
    3. Remove the PCM.

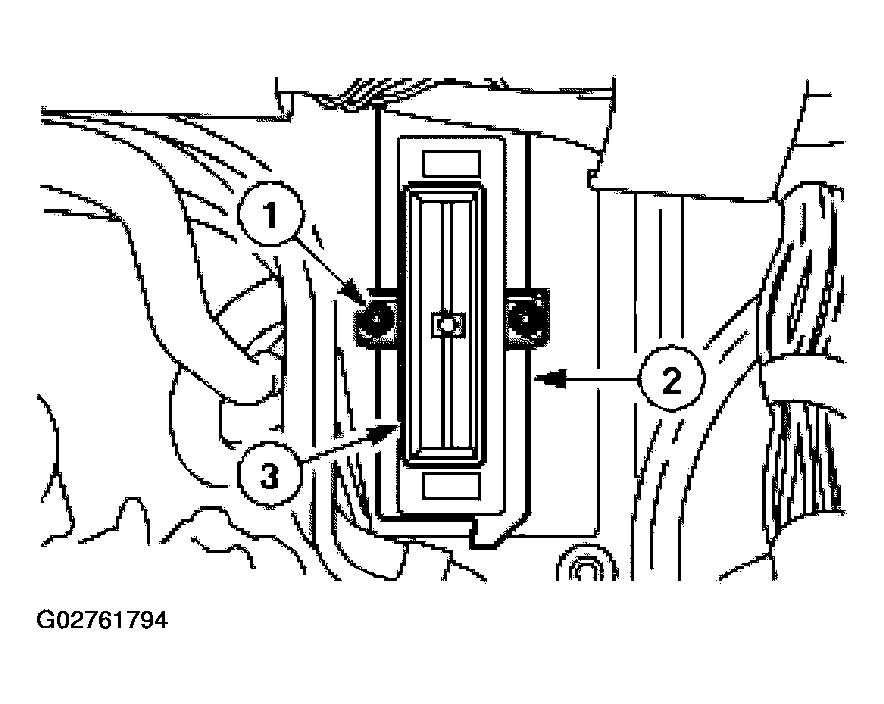

    Fig 2: Removing PCM
    G02761794Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
