Powertrain Control Module (PCM) C175t

WARNING: This page is about a different car, the 2005 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

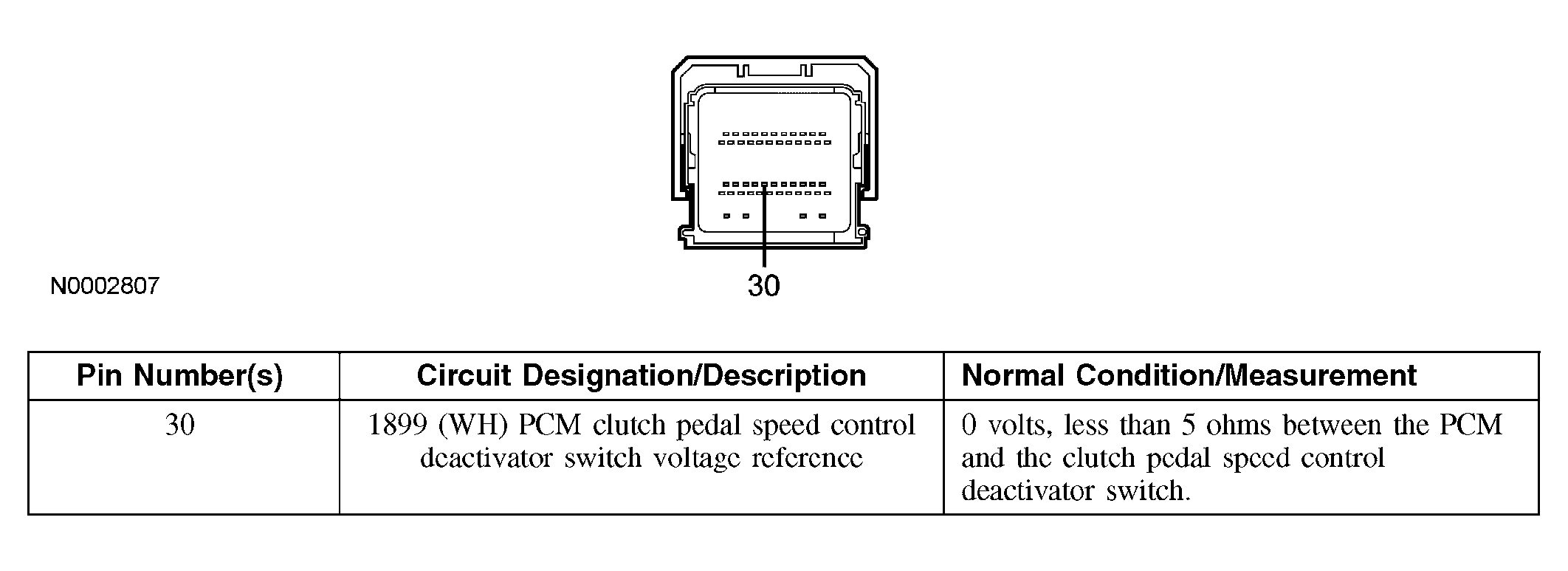

Fig 1: Identifying Powertrain Control Module (PCM) C175t
G03986182Courtesy of FORD MOTOR CO.
