Pinpoint Test C: The Transmission Control Switch (TCS) Is Inoperative
WARNING:
This page is about a different variant/trim than selected.

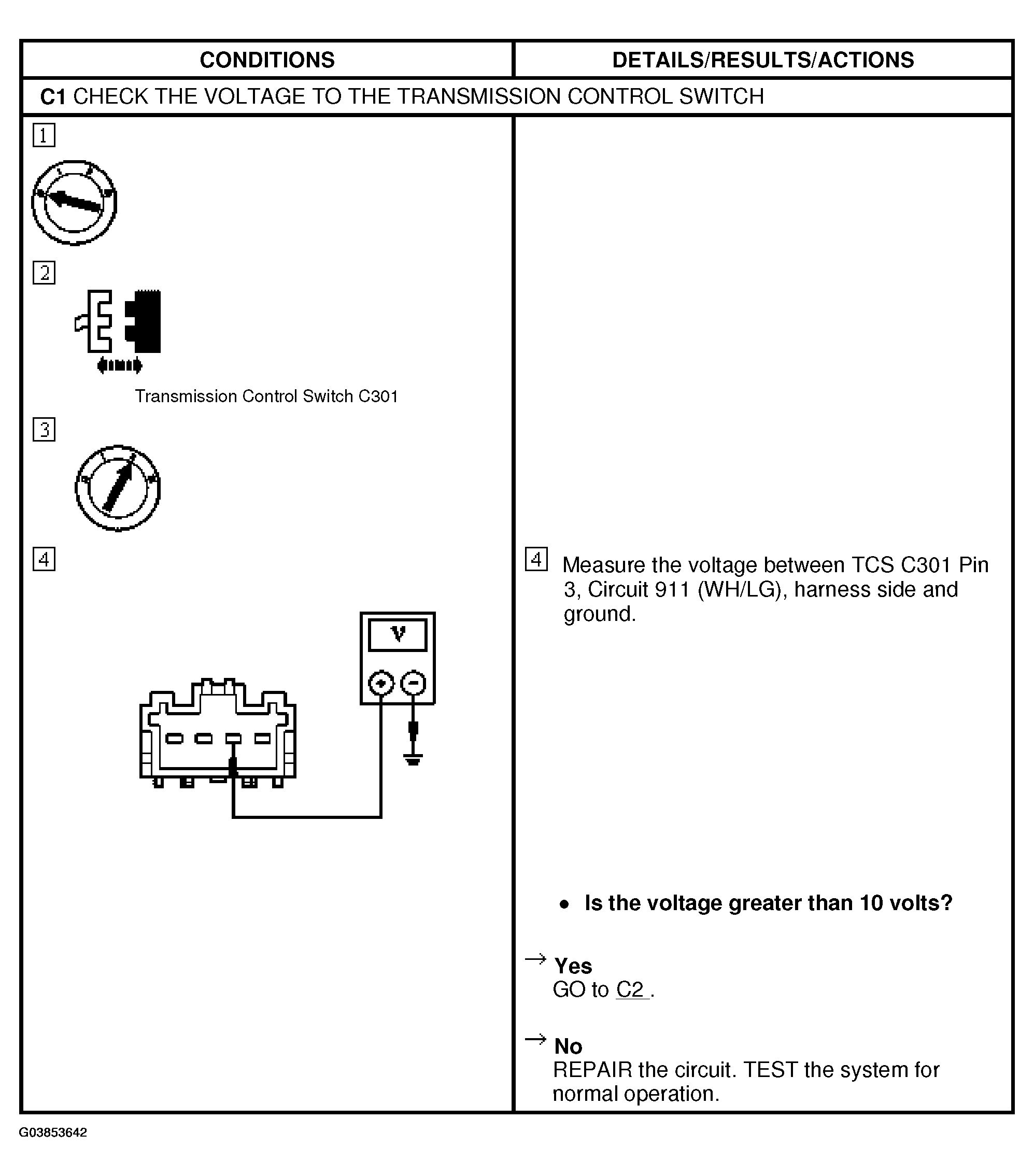

Fig 1: Pinpoint Test C Chart - Transmission Control Switch (TCS) Is Inoperative (C1)

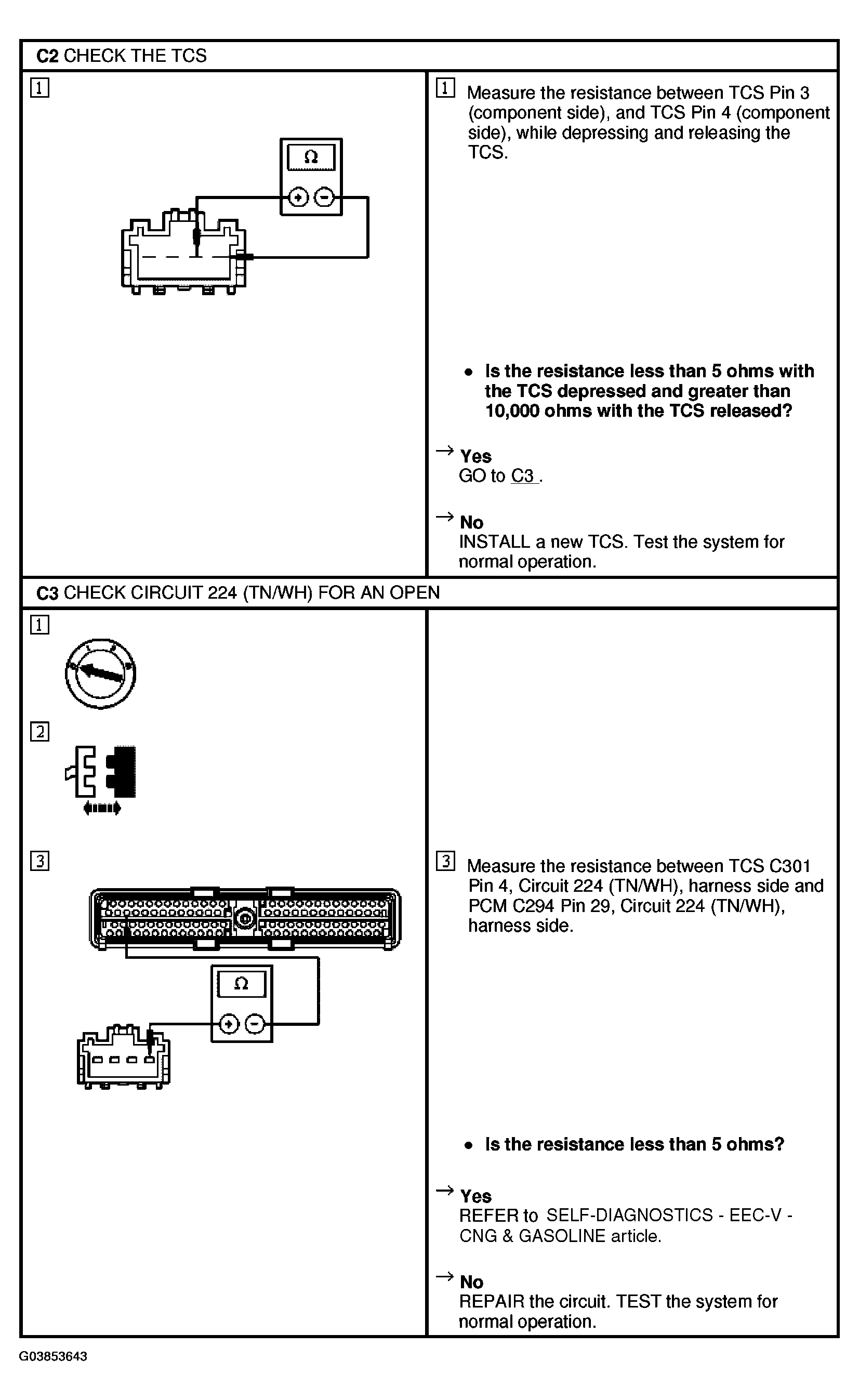

Fig 2: Pinpoint Test C Chart - Transmission Control Switch (TCS) Is Inoperative (C2 & C3)
