Exploded Views

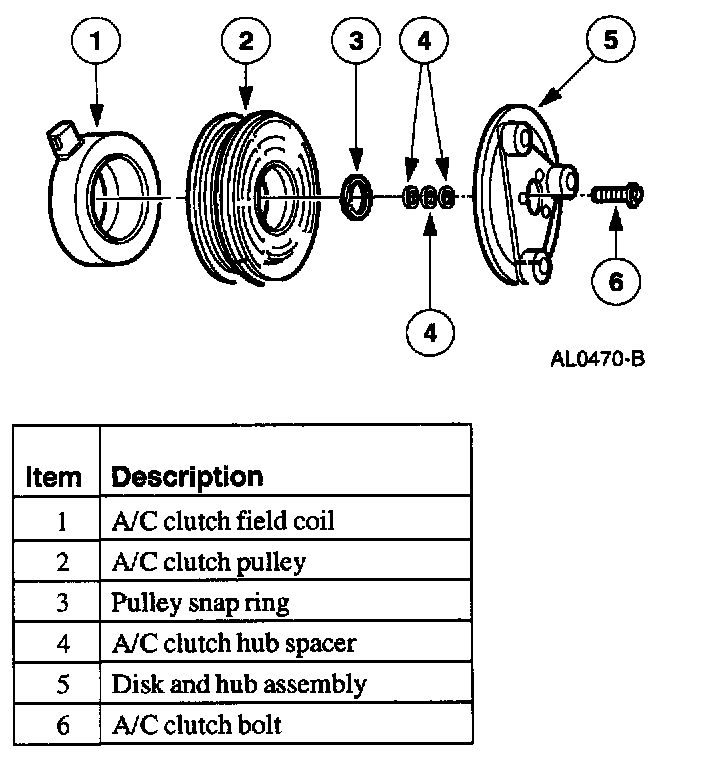

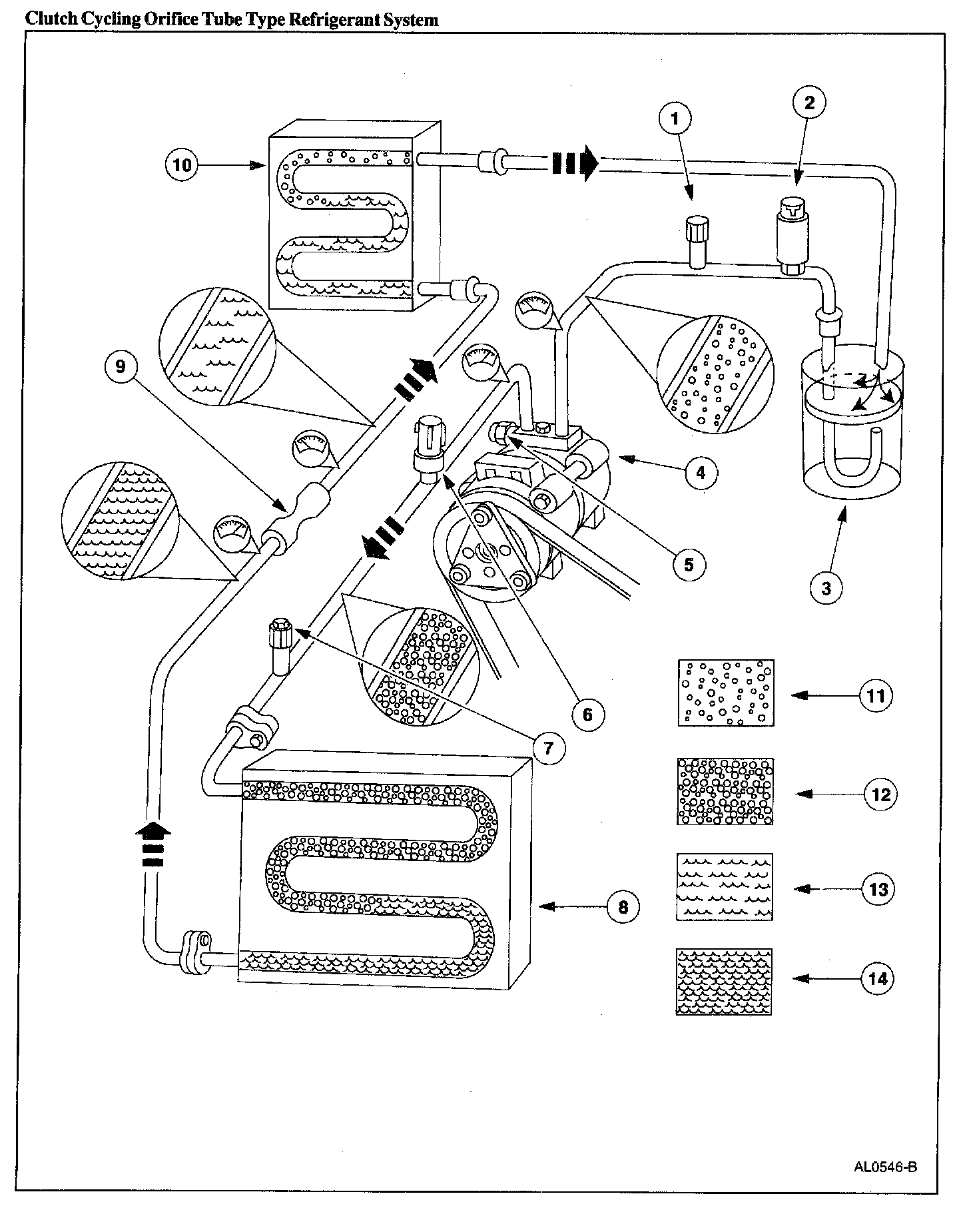

Clutch Cycling Orifice Tube Type Refrigerant System, Part 1:

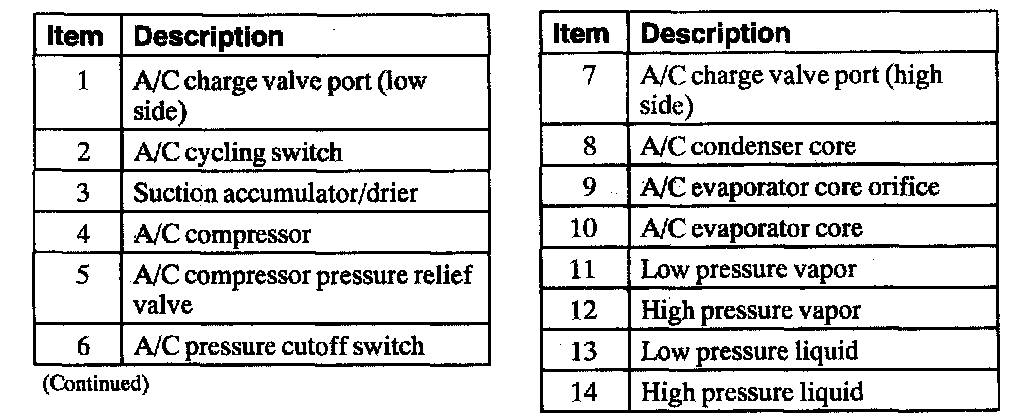

Clutch Cycling Orifice Tube Type Refrigerant System, (Legend) Part 2:

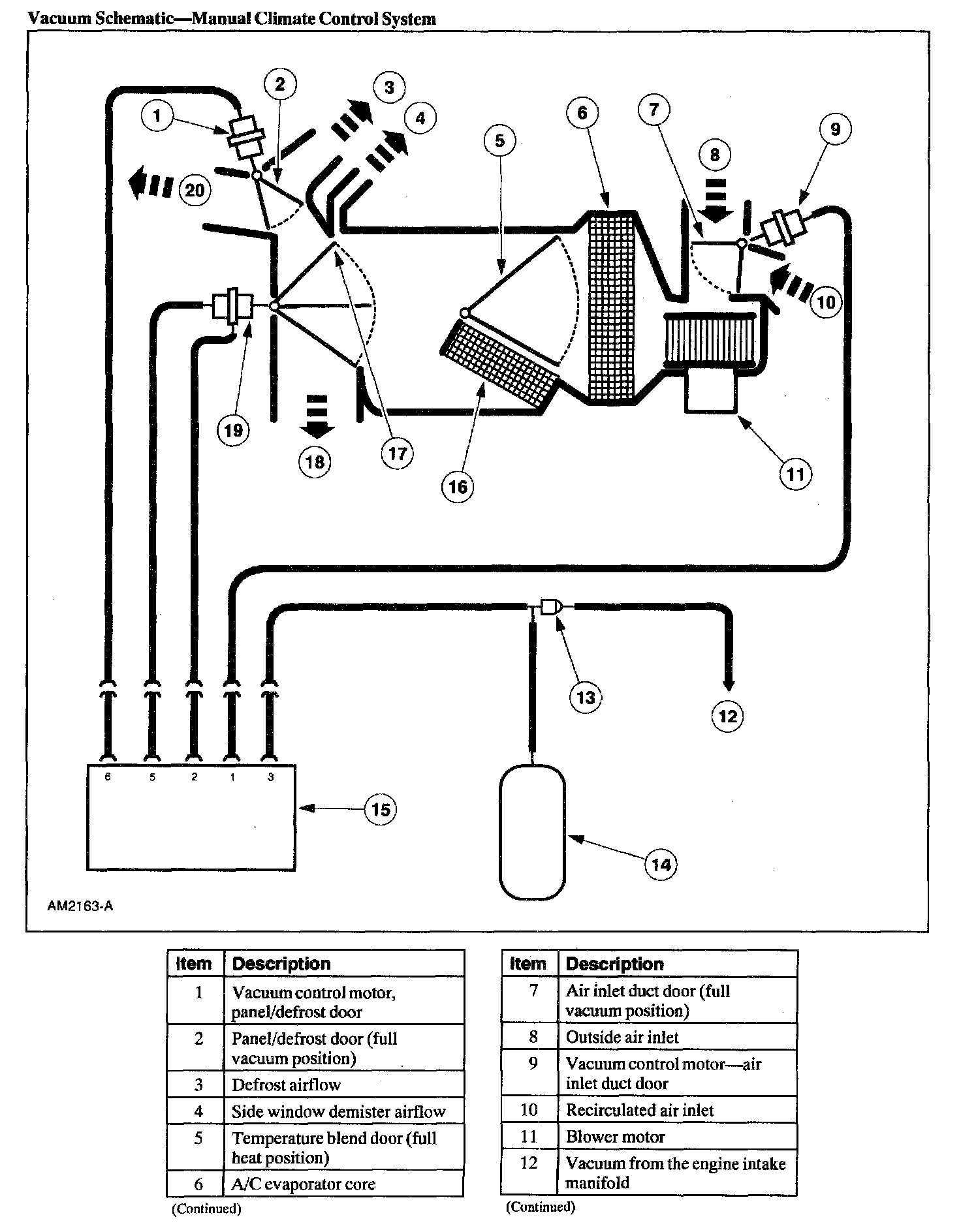

Vacuum Schematic - Manual Climate Control System, Part 1:

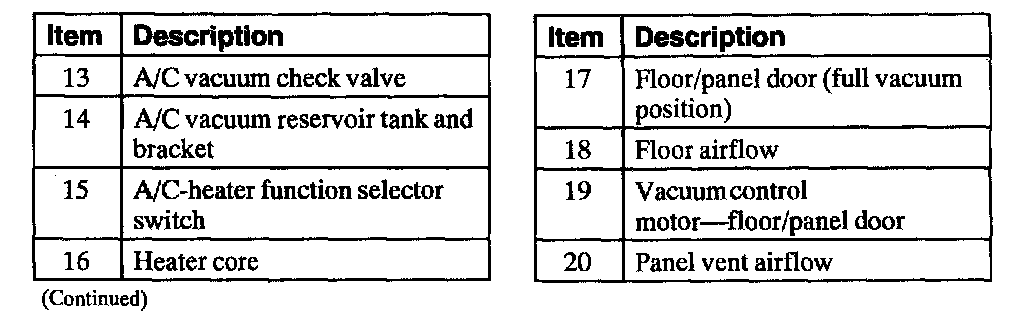

Vacuum Schematic - Manual Climate Control System, (Legend Continued) Part 2:

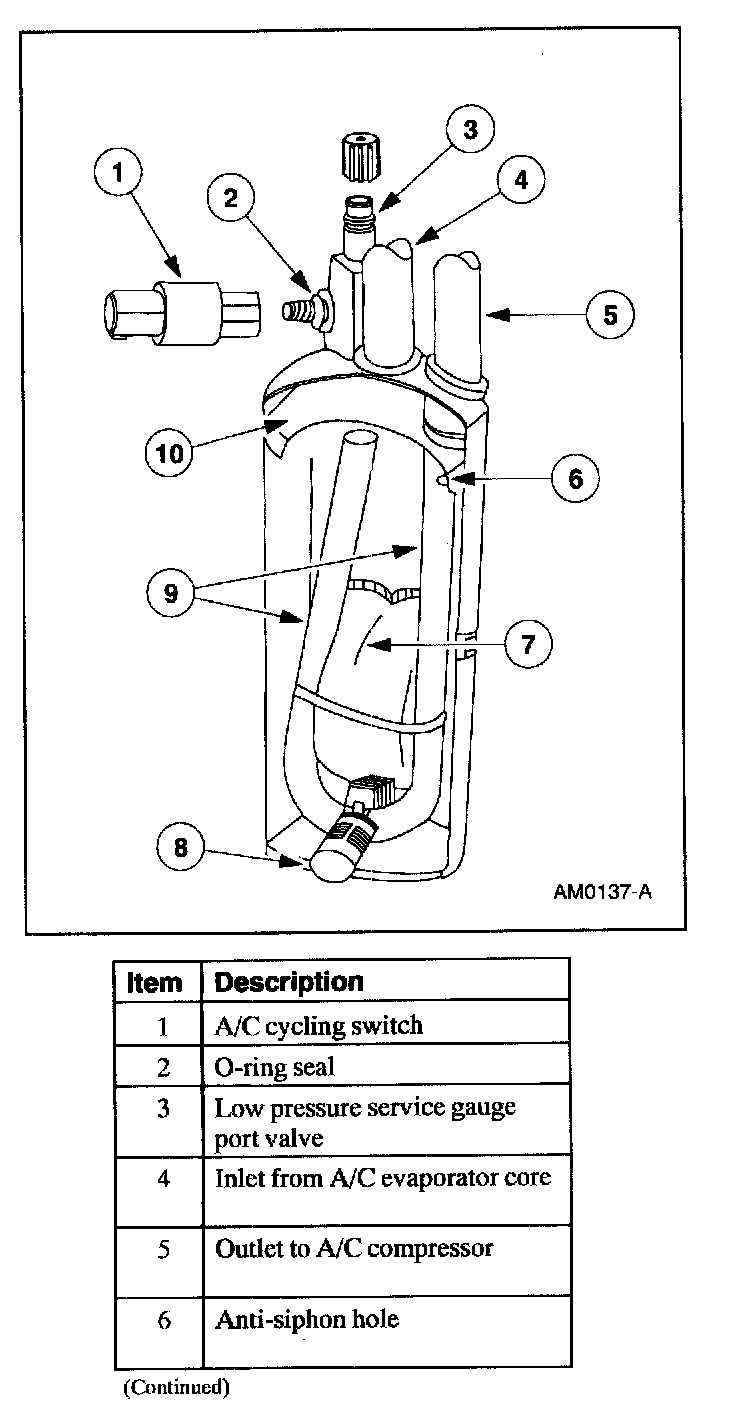

Suction Accumulator Part 1:

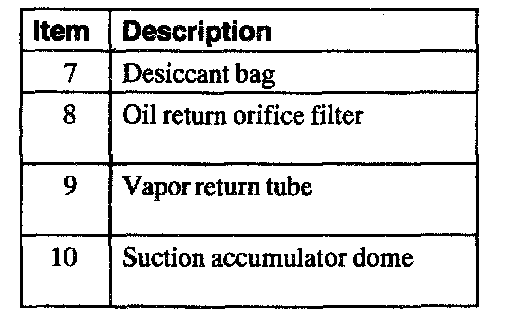

Suction Accumulator (Legend Continued) Part 2:

Spring Lock Coupling:

Service Gauge Port Values:
