Pinpoint Test A: Electronic Shift Functional Test

WARNING: This page is about a different variant/trim than selected.

CAUTION: The function test must be carried out on a hard surface in a vacant area without traffic.

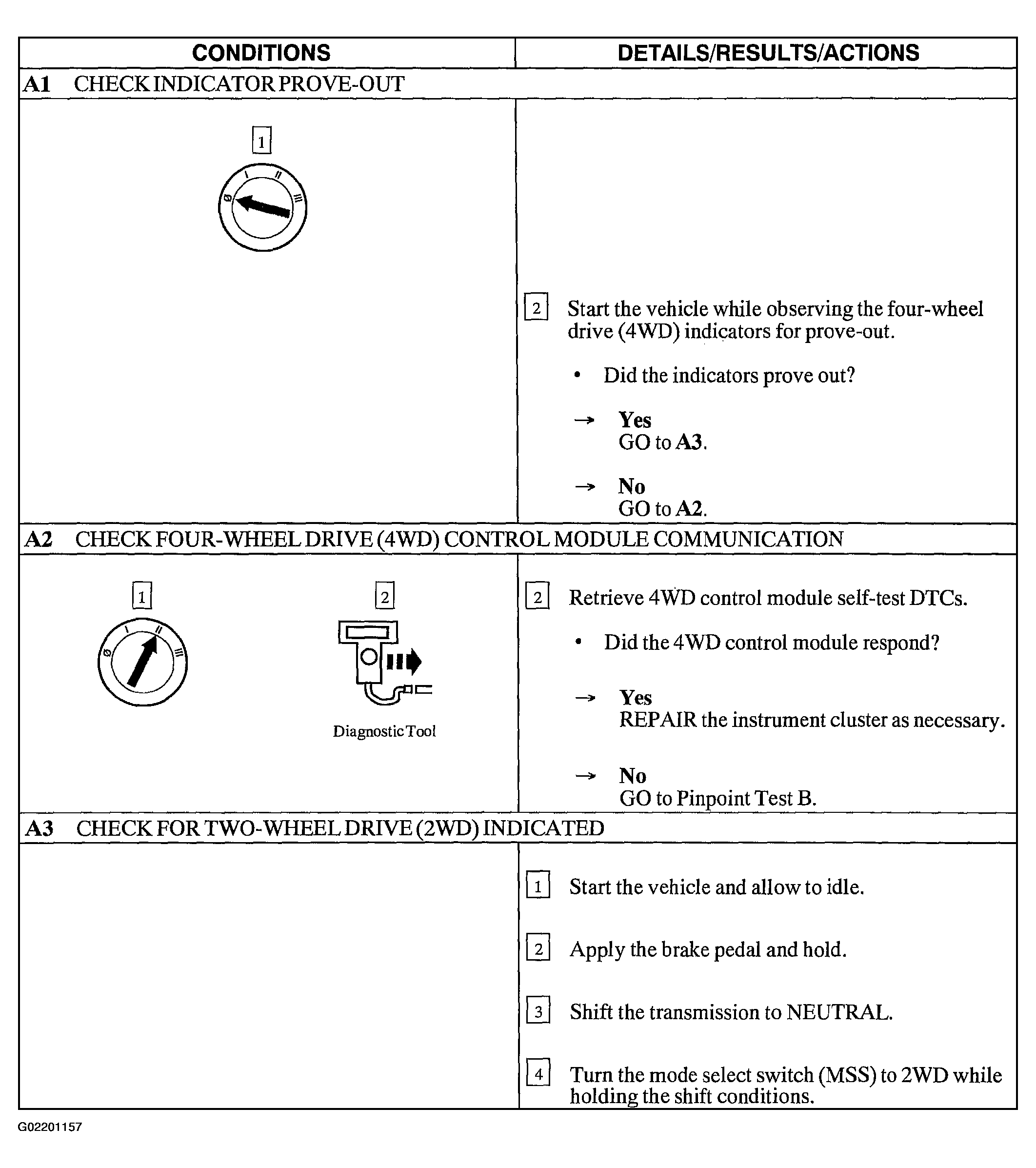

Fig 1: Pinpoint Test A: Electronic Shift Functional Test (Steps A1-A3)

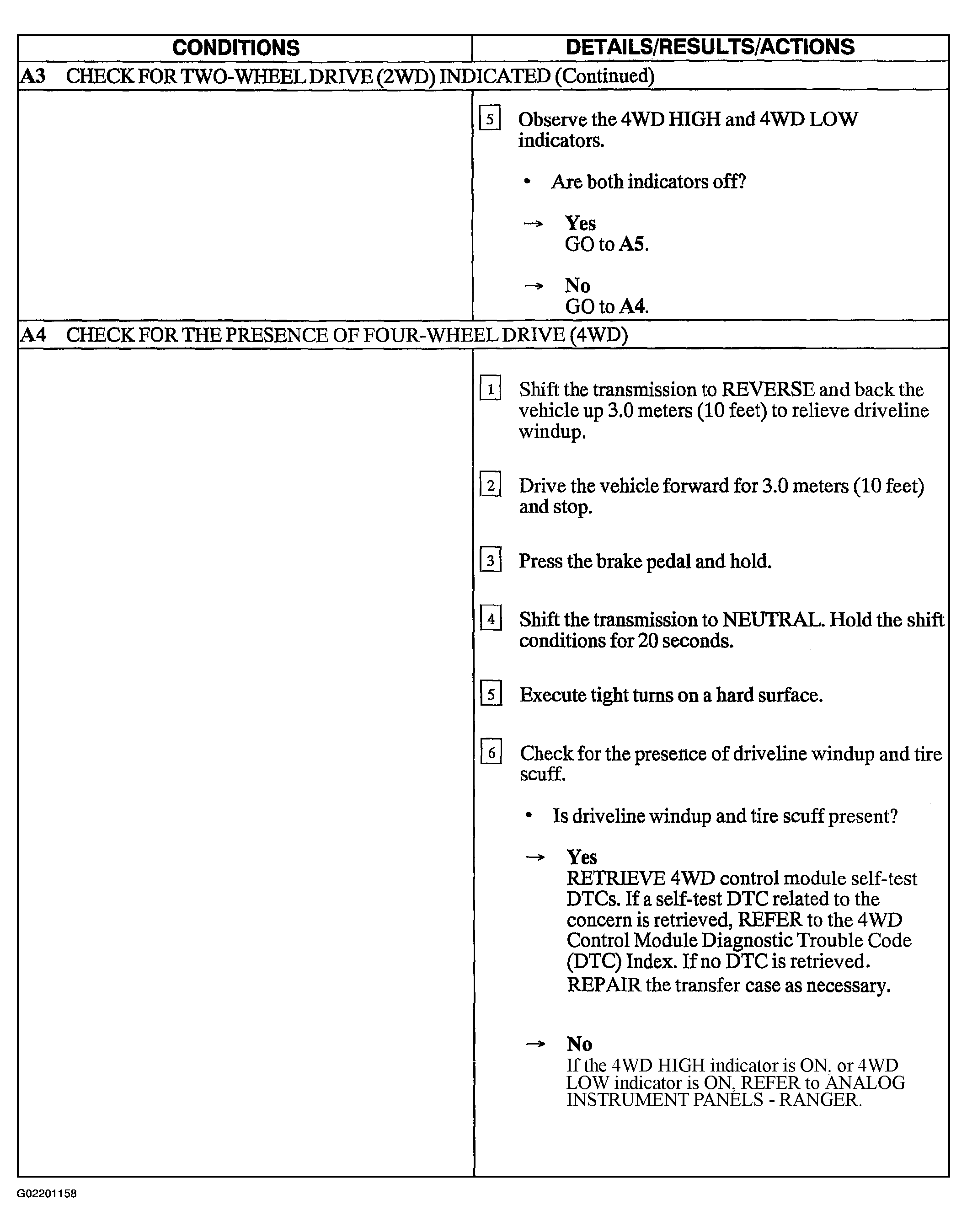

Fig 2: Pinpoint Test A: Electronic Shift Functional Test (Steps A3 Cont.-A4)

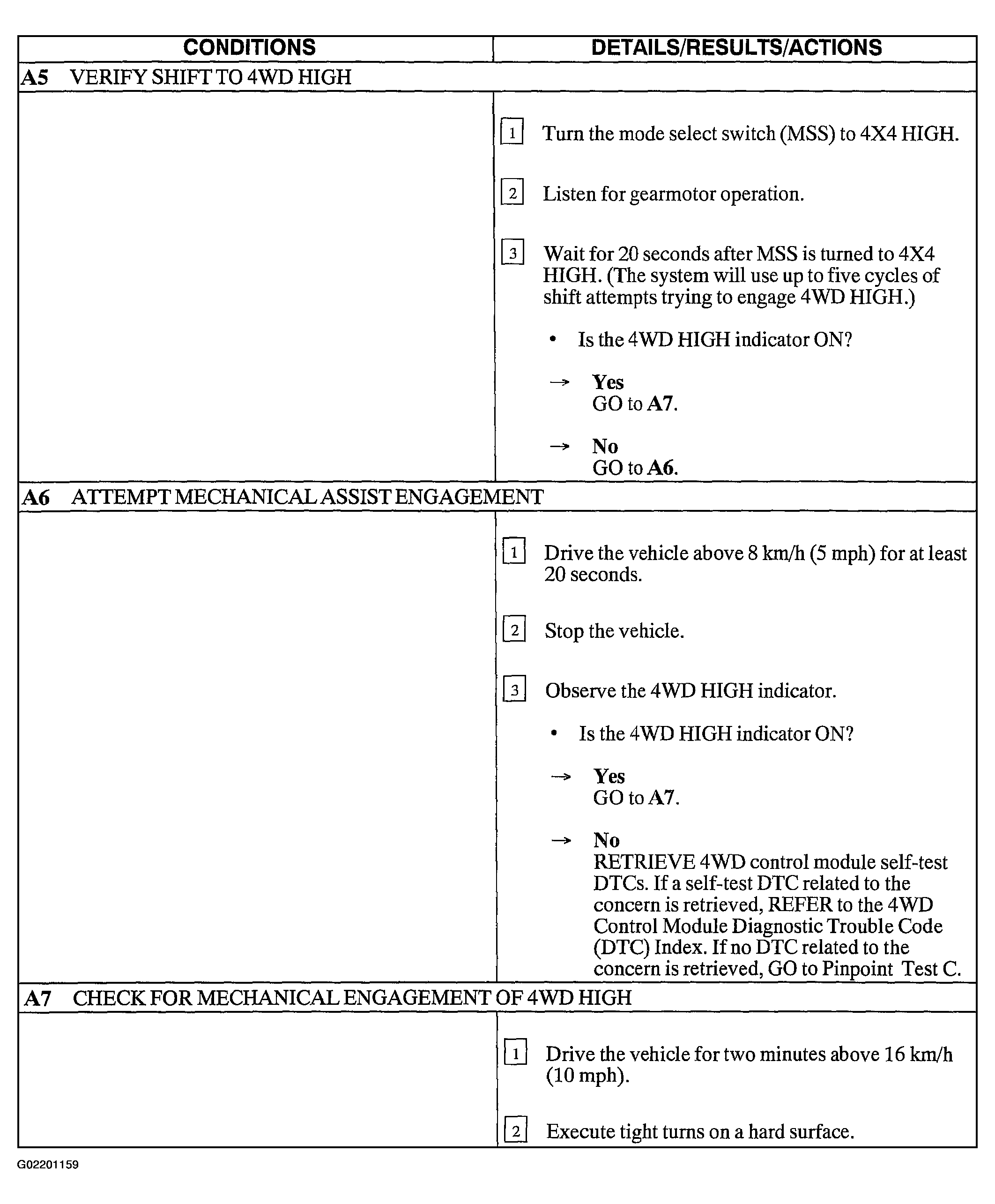

Fig 3: Pinpoint Test A: Electronic Shift Functional Test (Steps A5-A7)

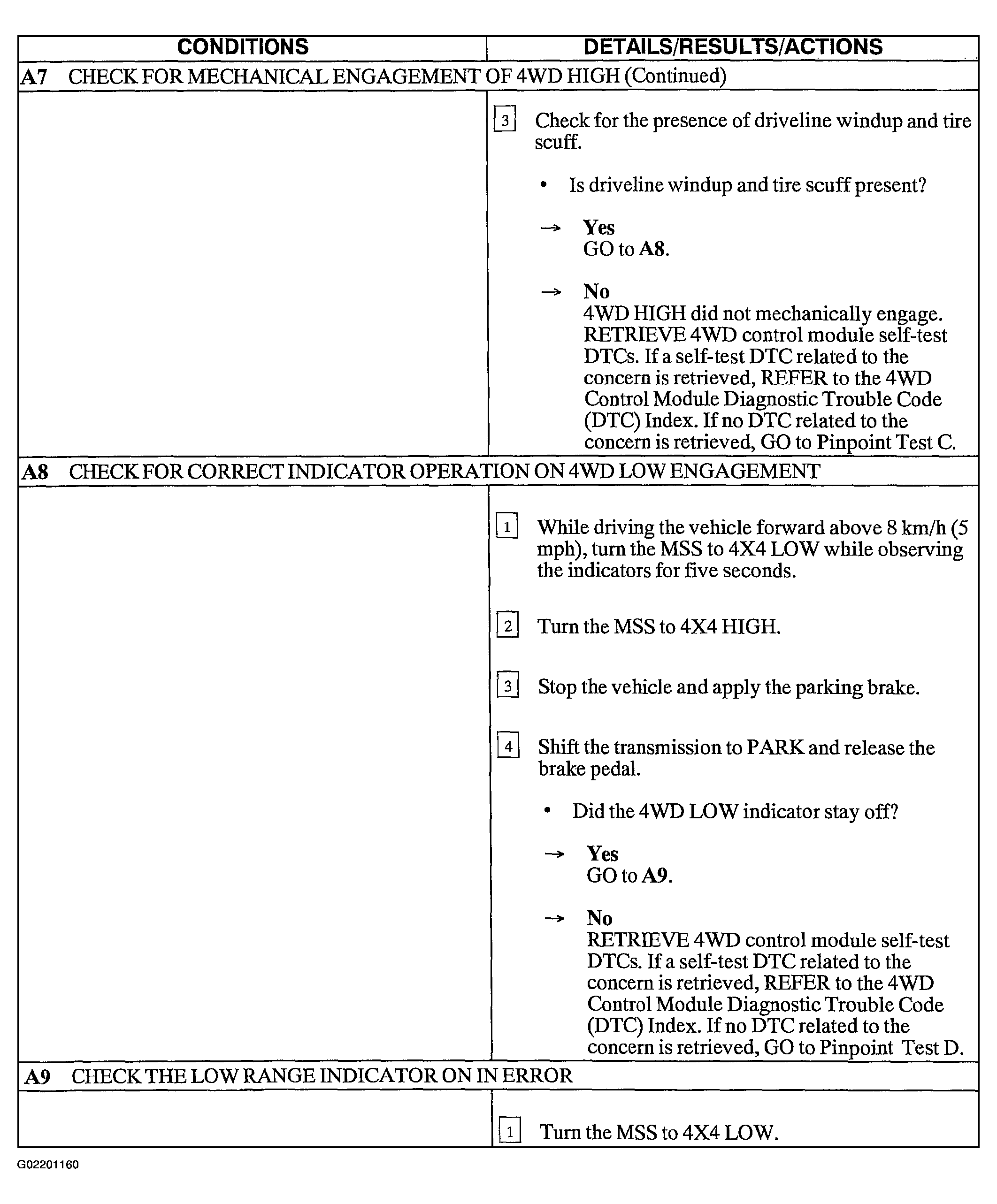

Fig 4: Pinpoint Test A: Electronic Shift Functional Test (Steps A7 Cont.-A9)

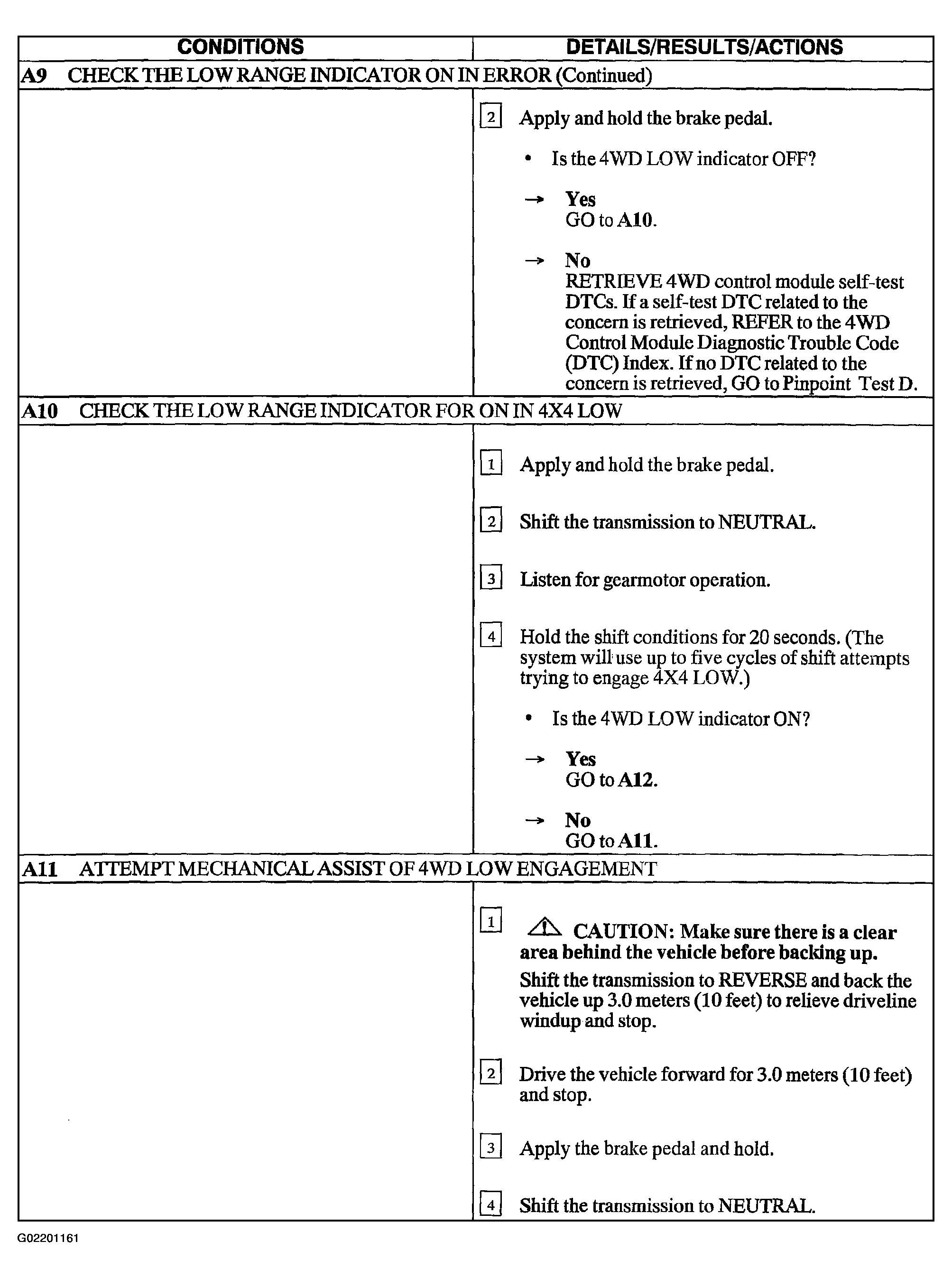

Fig 5: Pinpoint Test A: Electronic Shift Functional Test (Steps A9 Cont.-A11)

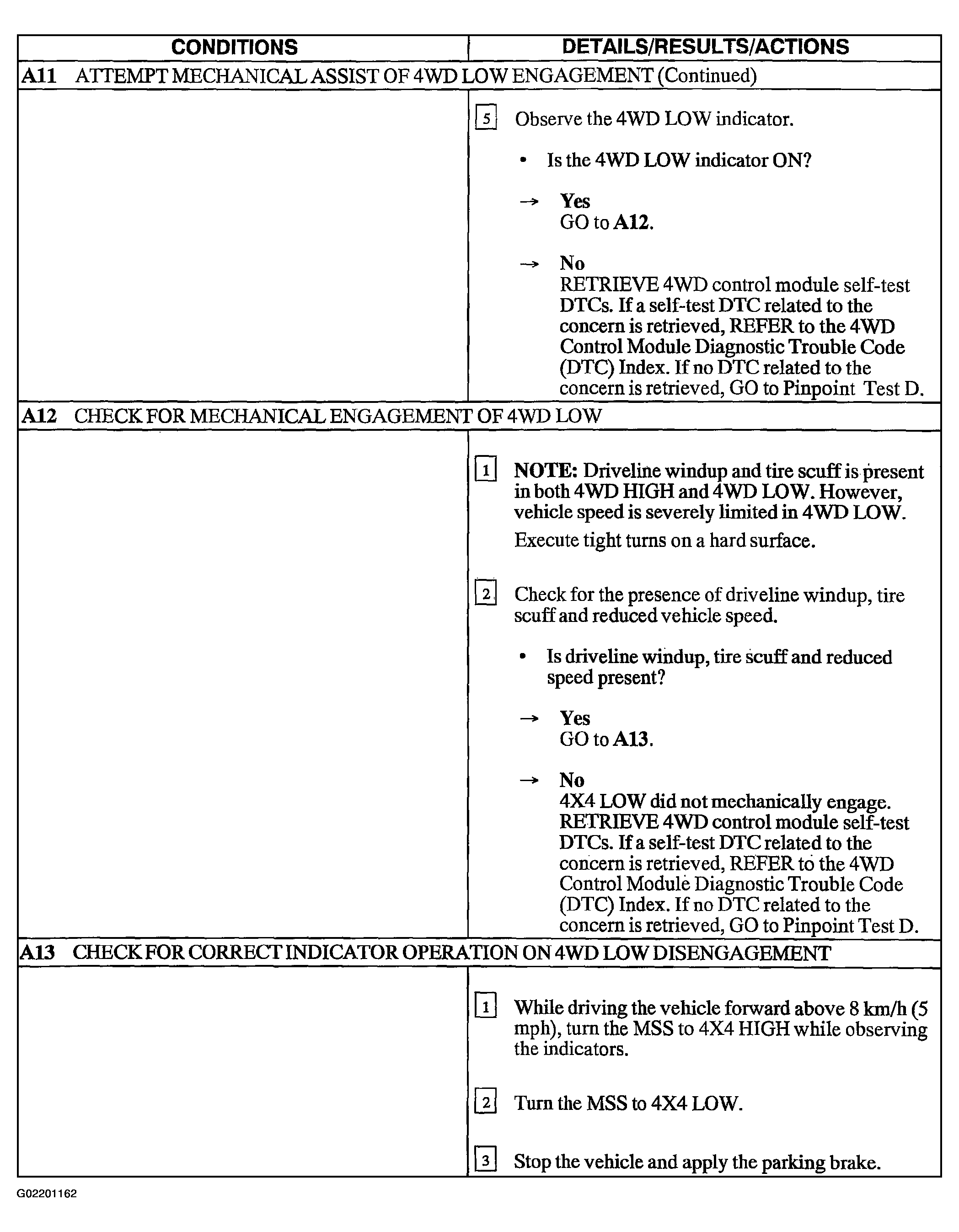

Fig 6: Pinpoint Test A: Electronic Shift Functional Test (Steps A11 Cont.-A13)

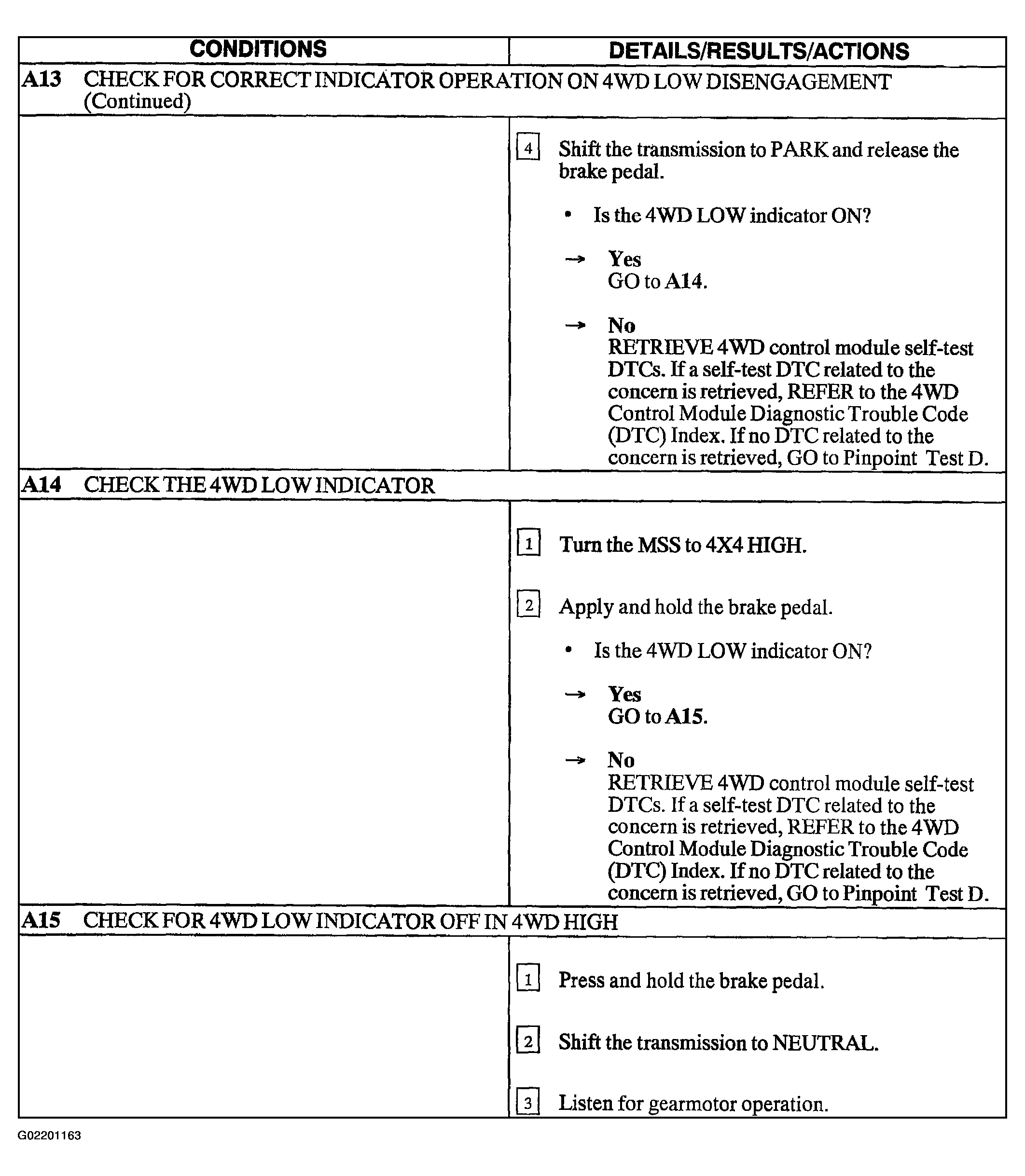

Fig 7: Pinpoint Test A: Electronic Shift Functional Test (Steps A13 Cont.-A15)

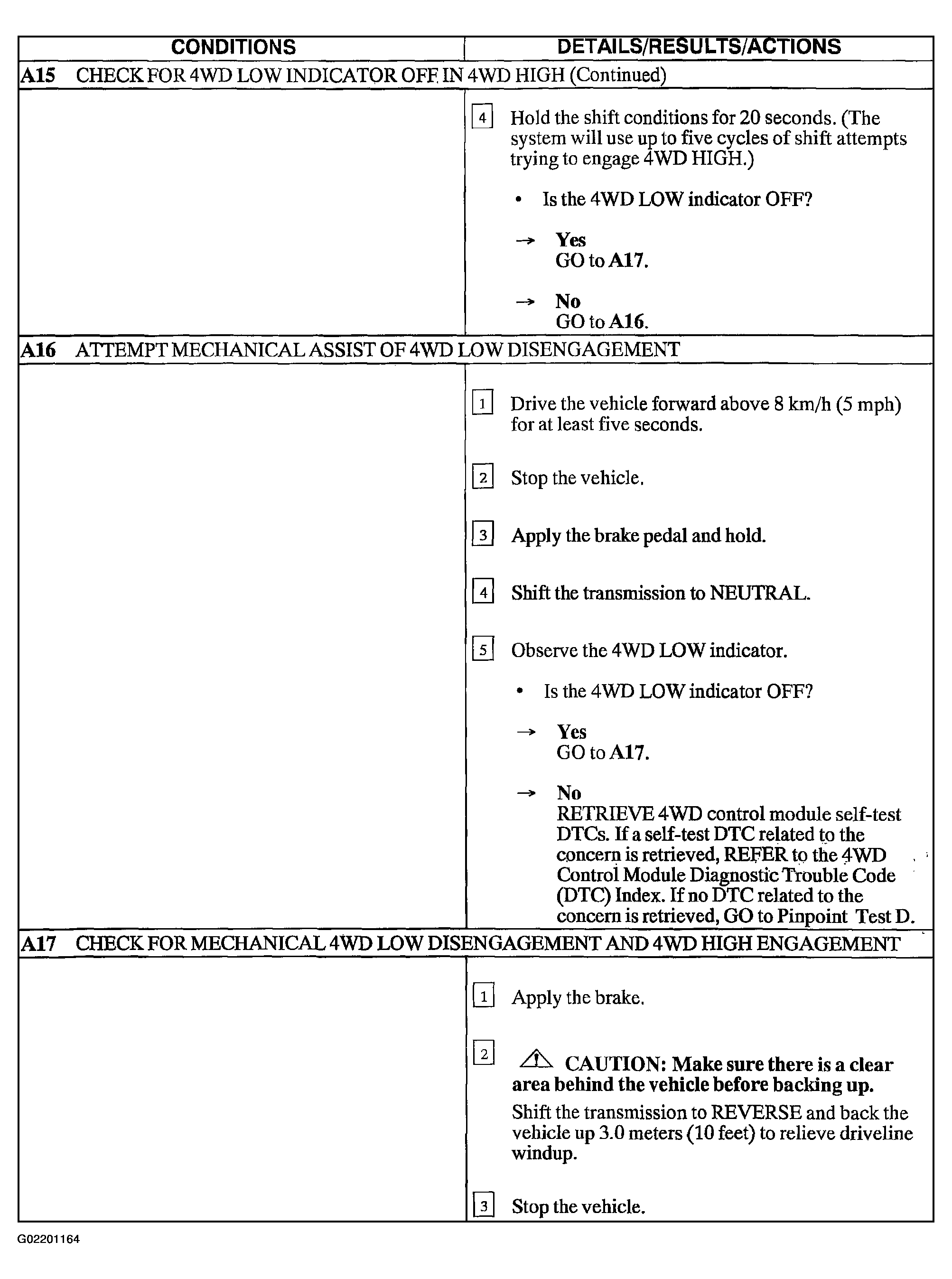

Fig 8: Pinpoint Test A: Electronic Shift Functional Test (Steps A15 Cont.- A17)

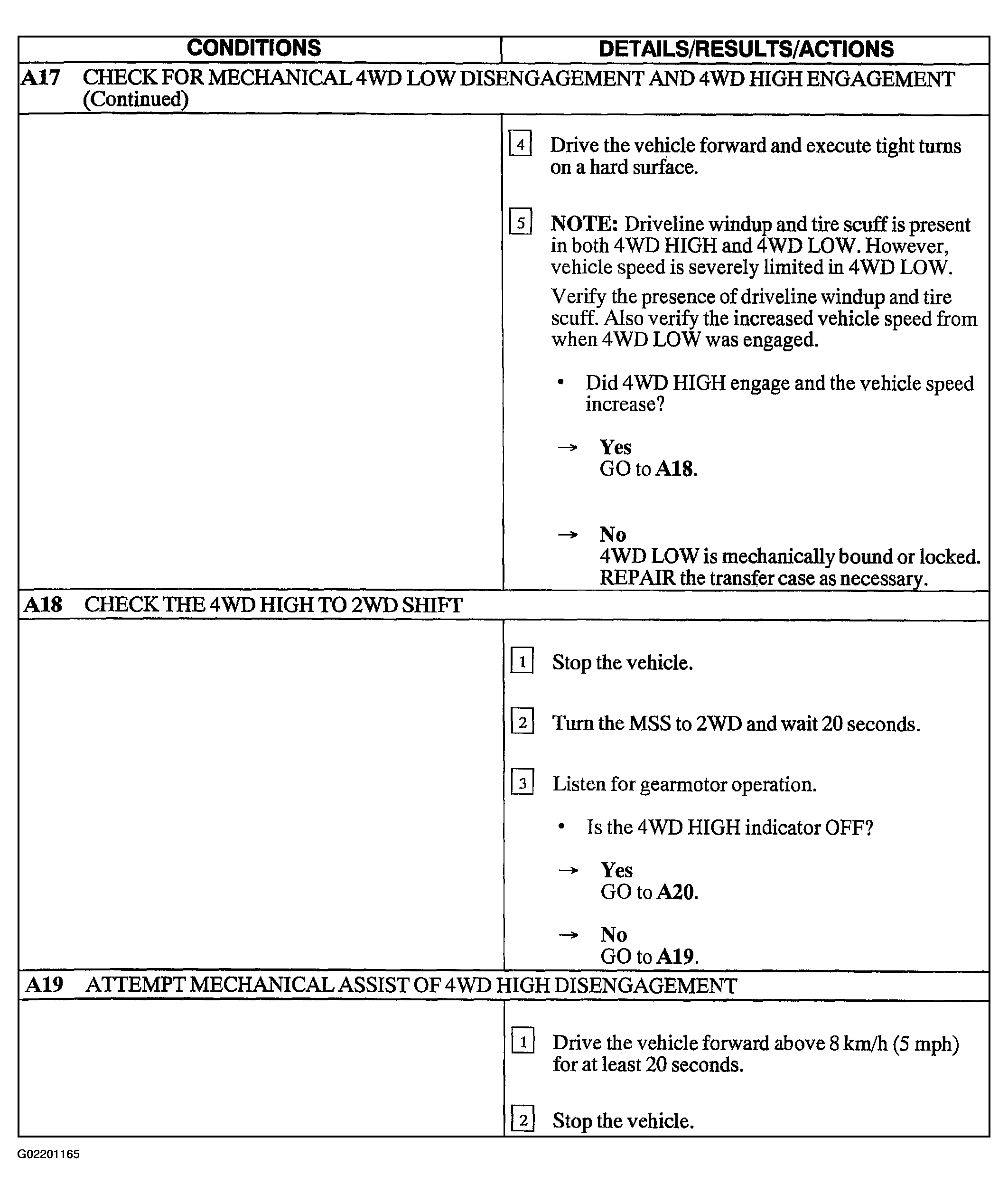

Fig 9: Pinpoint Test A: Electronic Shift Functional Test (Steps A17 Cont.- A19)

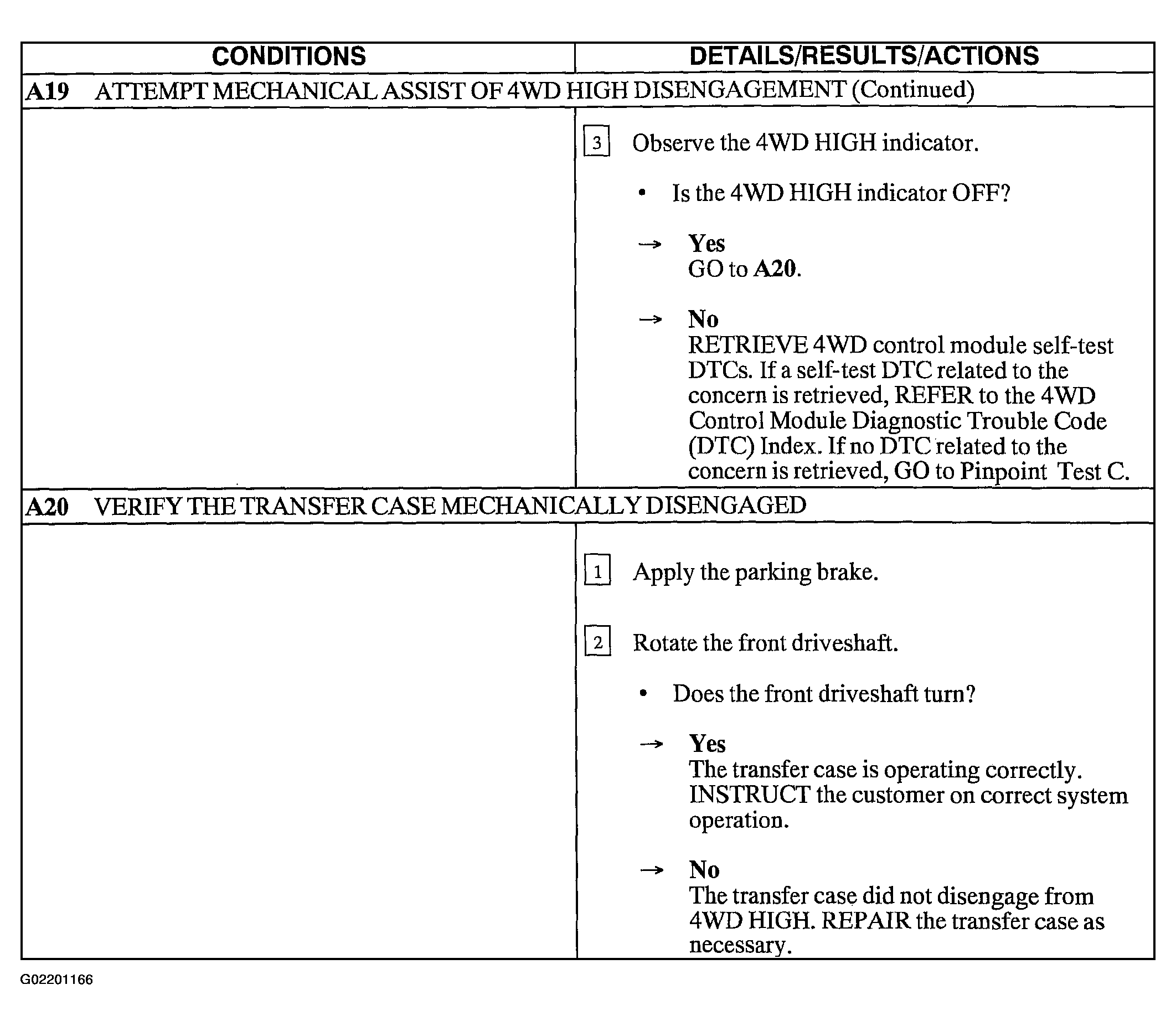

Fig 10: Pinpoint Test A: Electronic Shift Functional Test (Steps A19 Cont.-A20)
