Automatic Transmission/Transaxle

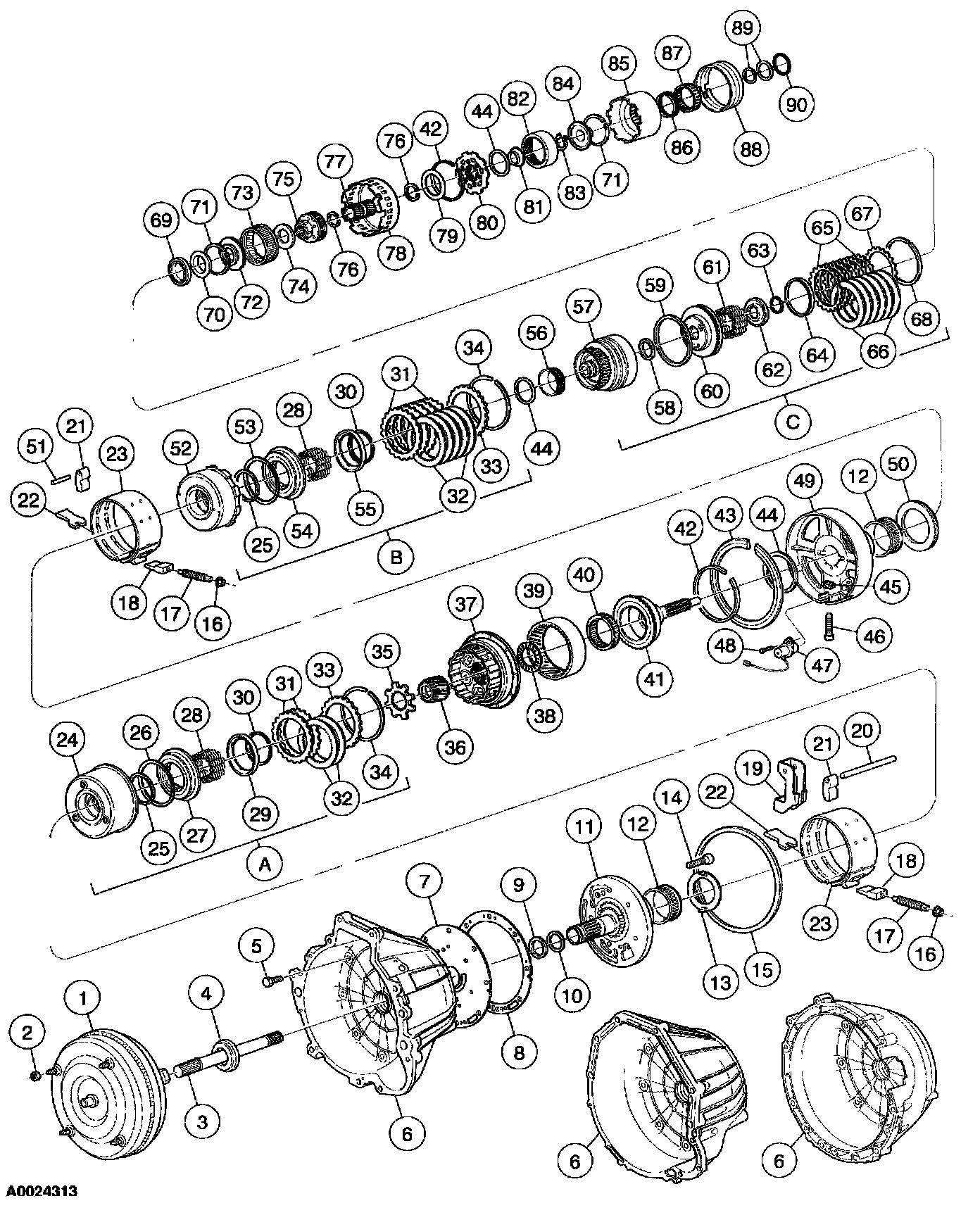

Disassembled Views Part 1 of 6





Disassembled Views Part 2 of 6





Disassembled Views Part 3 of 6





Disassembled Views Part 4 of 6





Disassembled Views Part 5 of 6





Disassembled Views Part 6 of 6
