Test F: 4WD Control Module Does Not Respond to the Diagnostic Tool
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Test F: 4WD Control Module Does Not Respond to the Diagnostic Tool

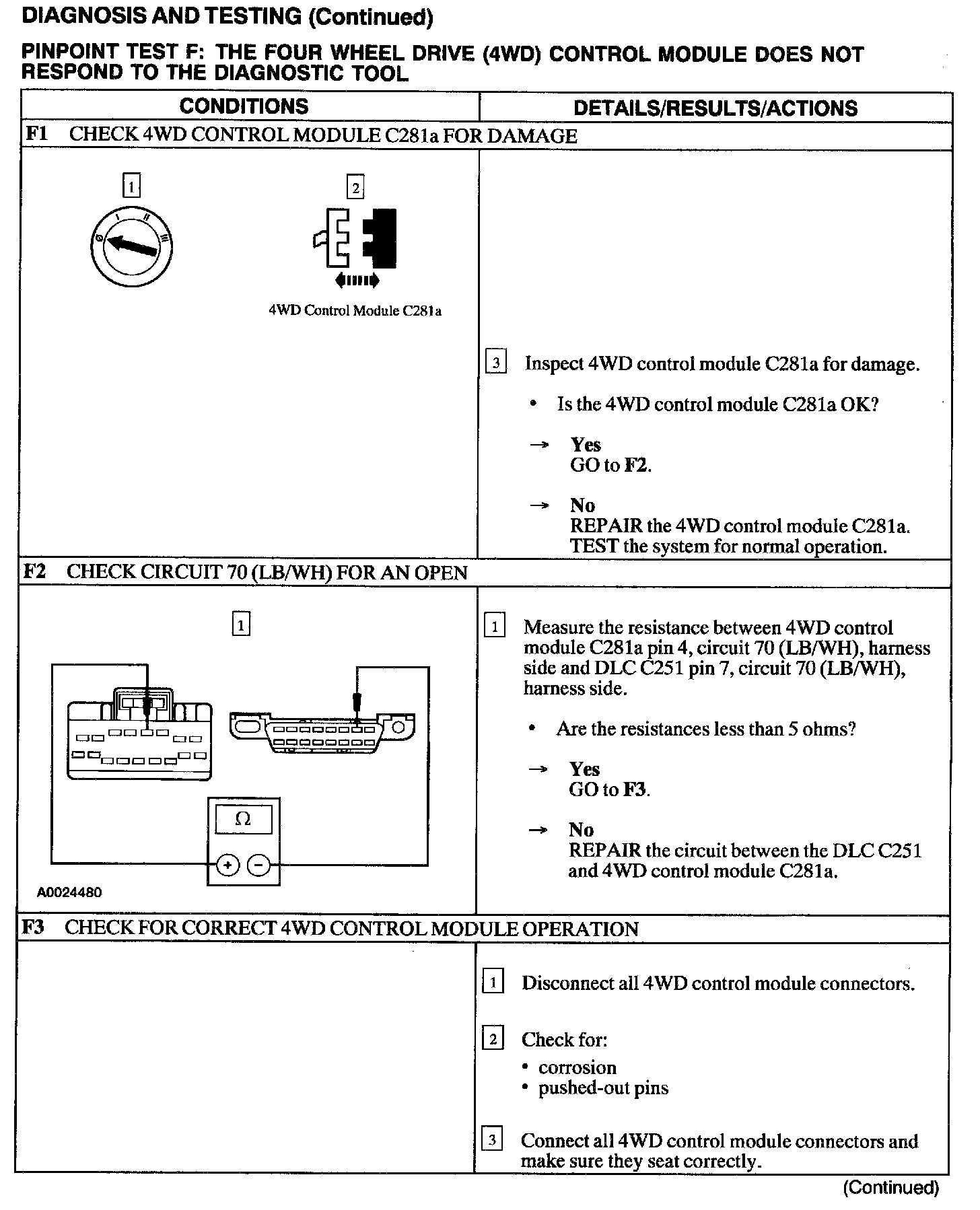

F1 - F3:

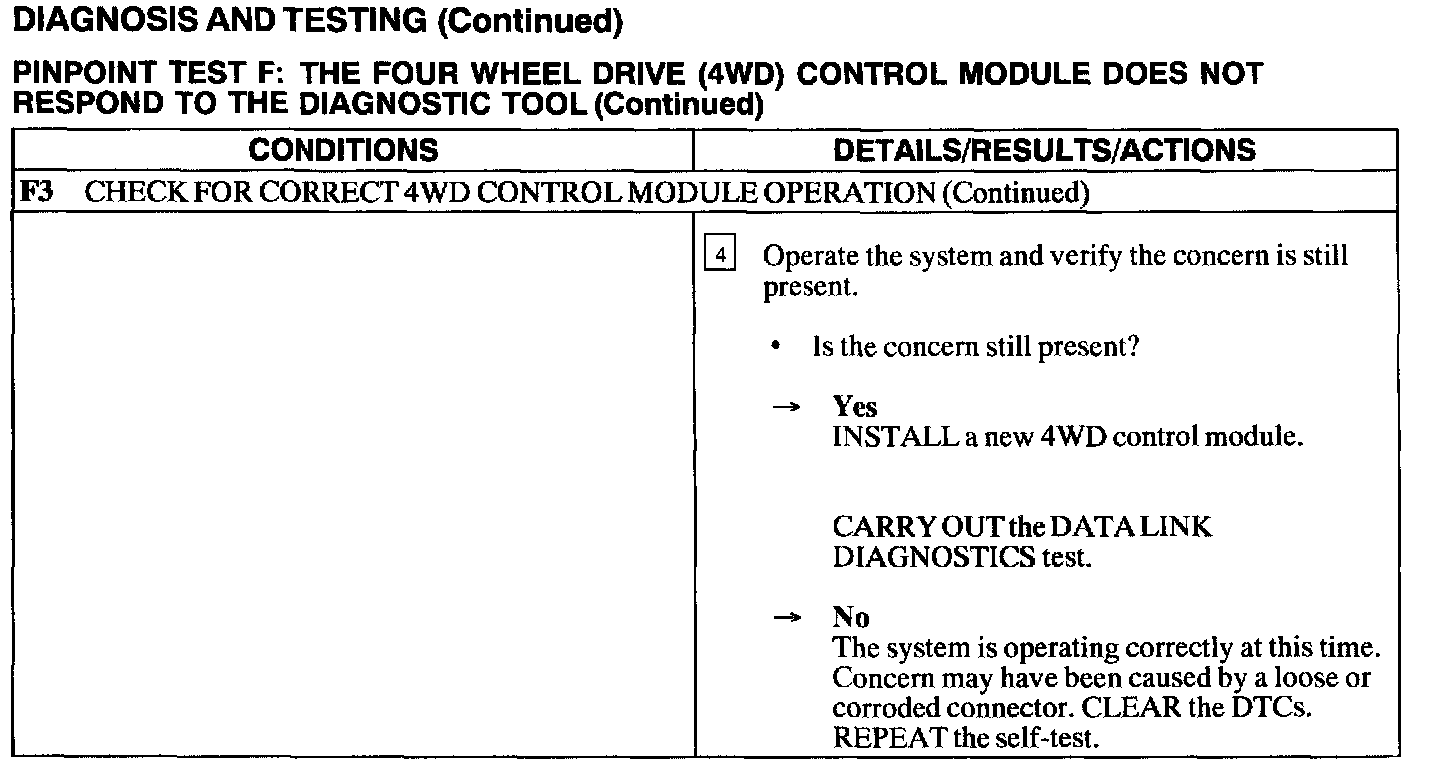

F3:
