System Specifications

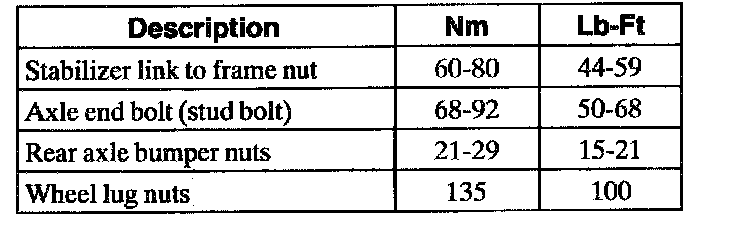

Suspension Systems General Specifications

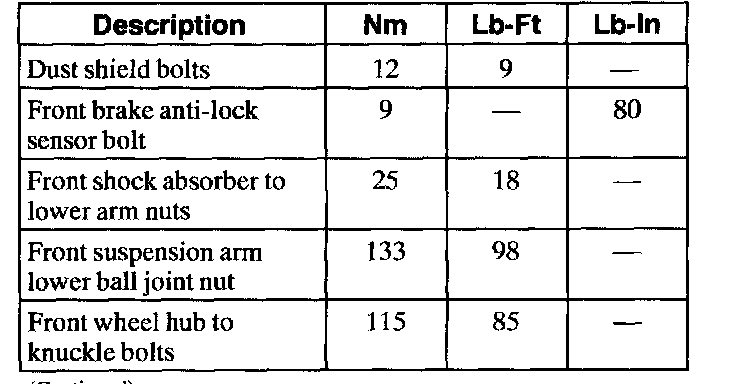

Suspension Systems Torque Specifications

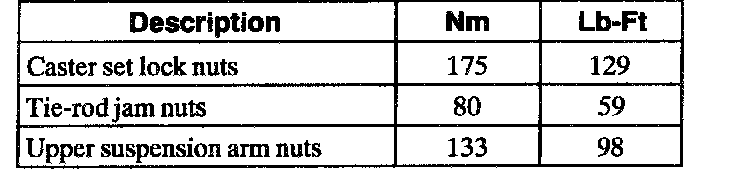

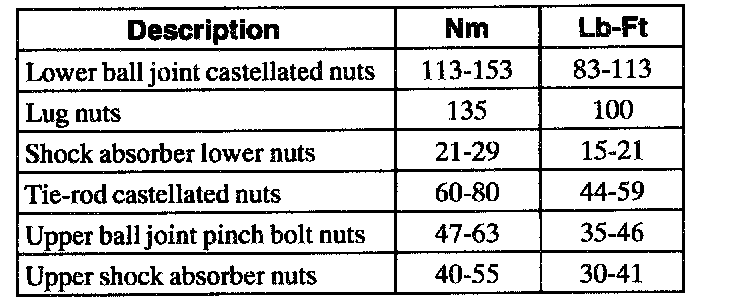

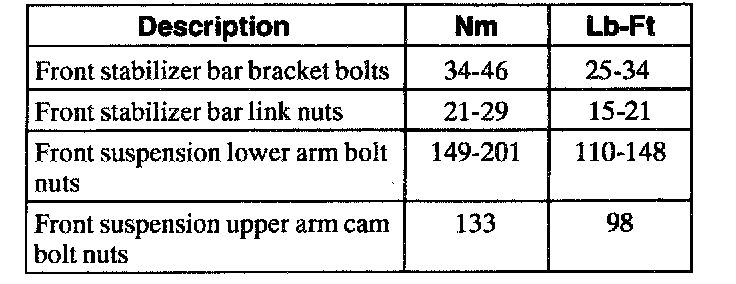

Front Suspension (4X2) Torque Specifications

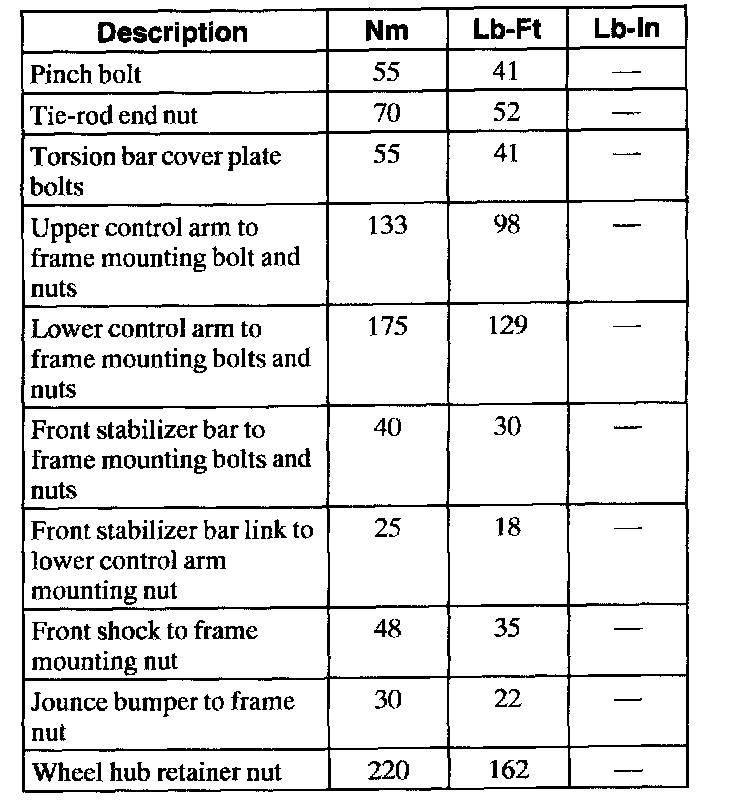

Front Suspension (4X4) Torque Specifications

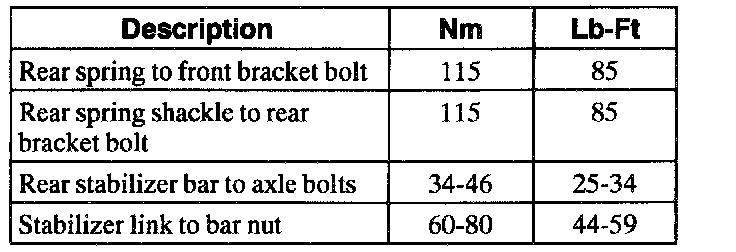

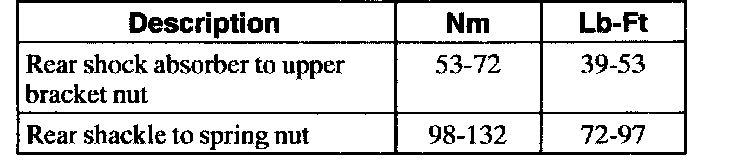

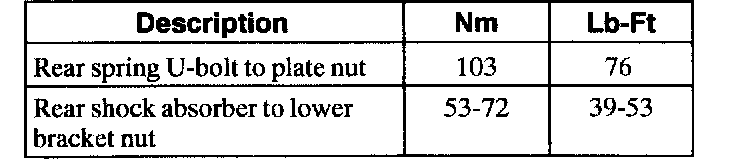

Rear Suspension Torque Specifications
