Pinpoint Test A: No Communication With The Driver Door Module (DDM)

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

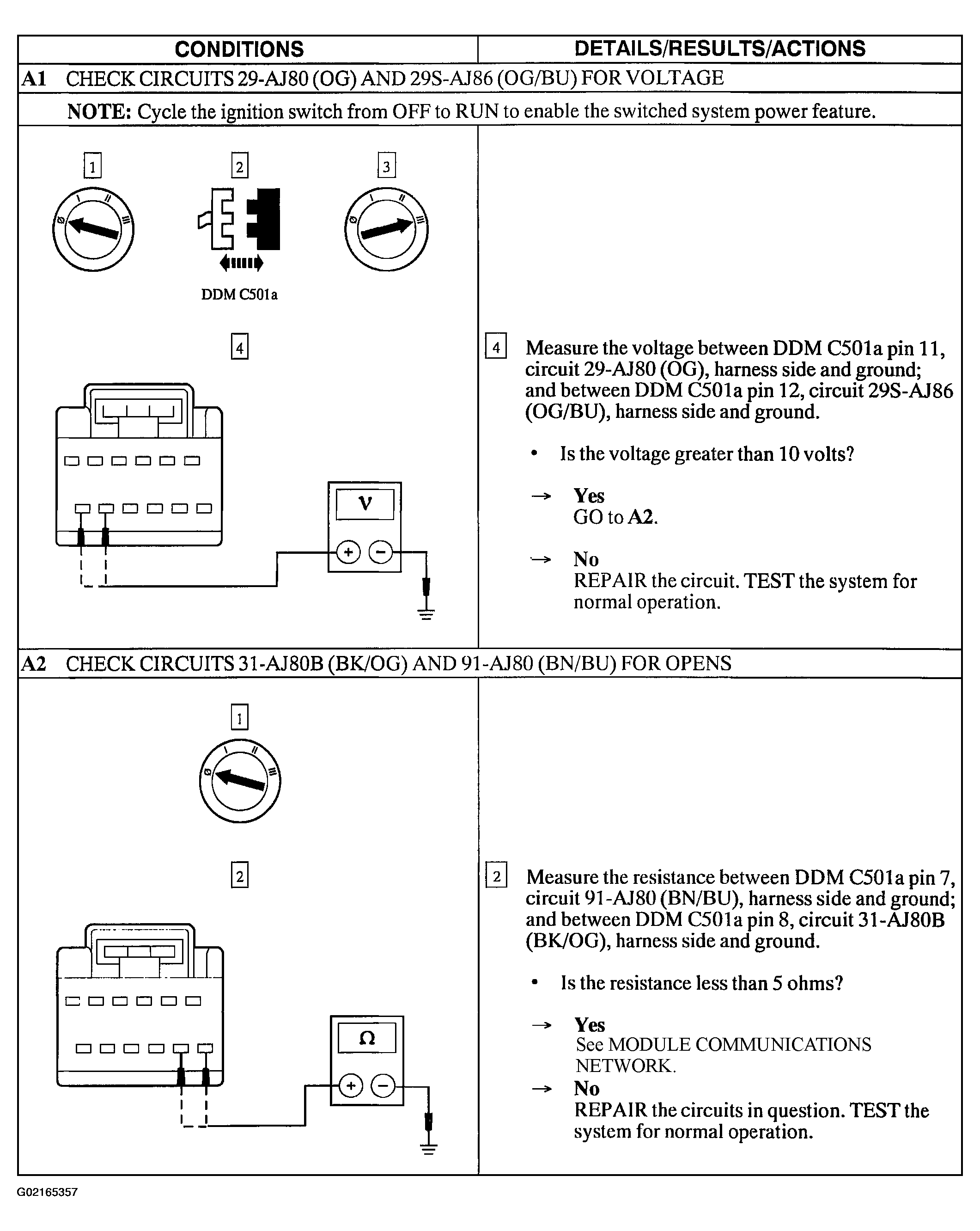

Fig 1: Pinpoint Test A: No Communication With The Driver Door Module (DDM) (Steps A1-A2)
G02165357Courtesy of FORD MOTOR CO.
