Sun & Shell Assembly - Disassembly: Notes

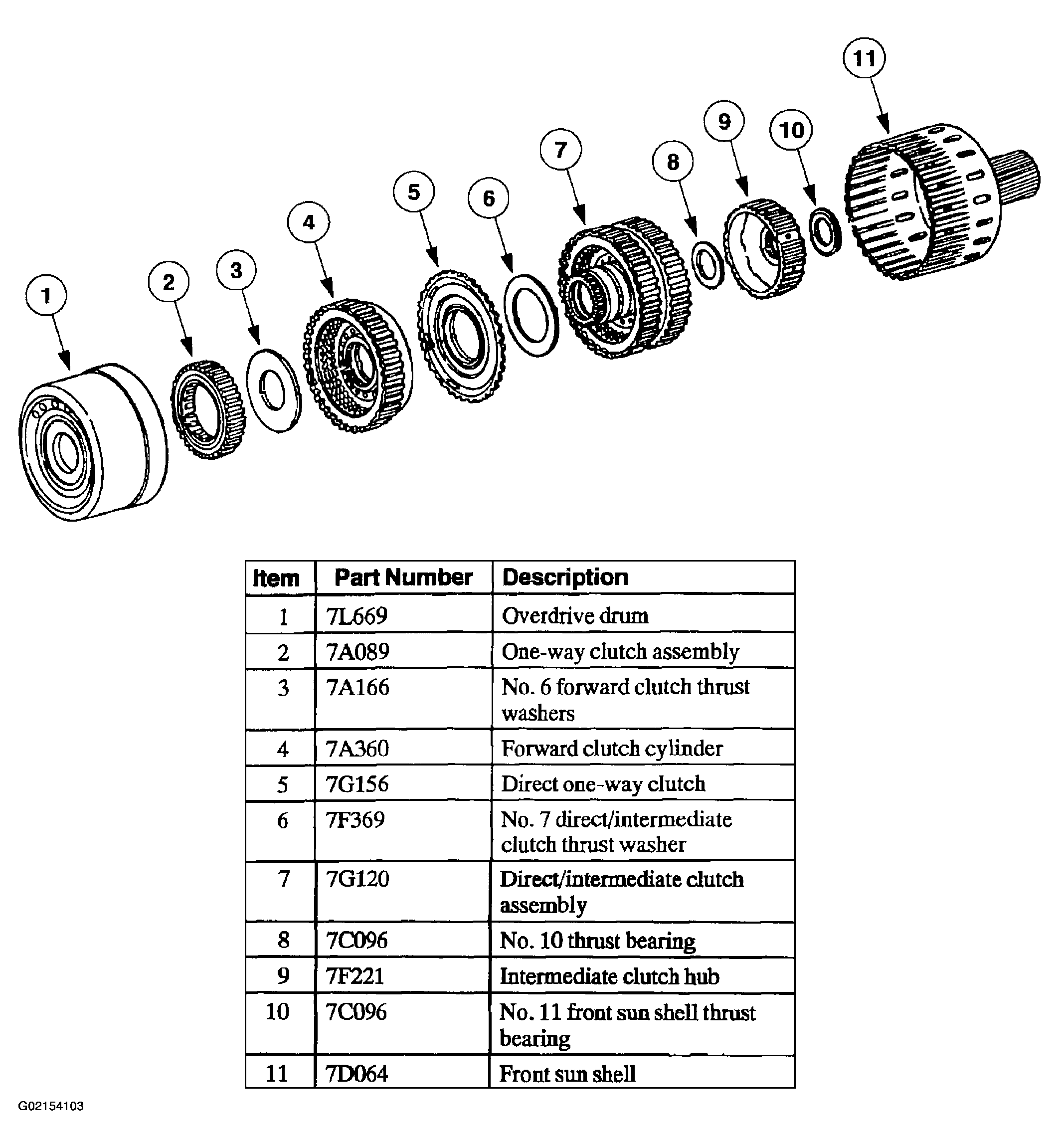

Fig 1: Sun & Shell Assembly
G02154103Courtesy of FORD MOTOR CO.
