Pinpoint Test A: No Communication With The Dual Automatic Temperature Control (DATC) Module

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

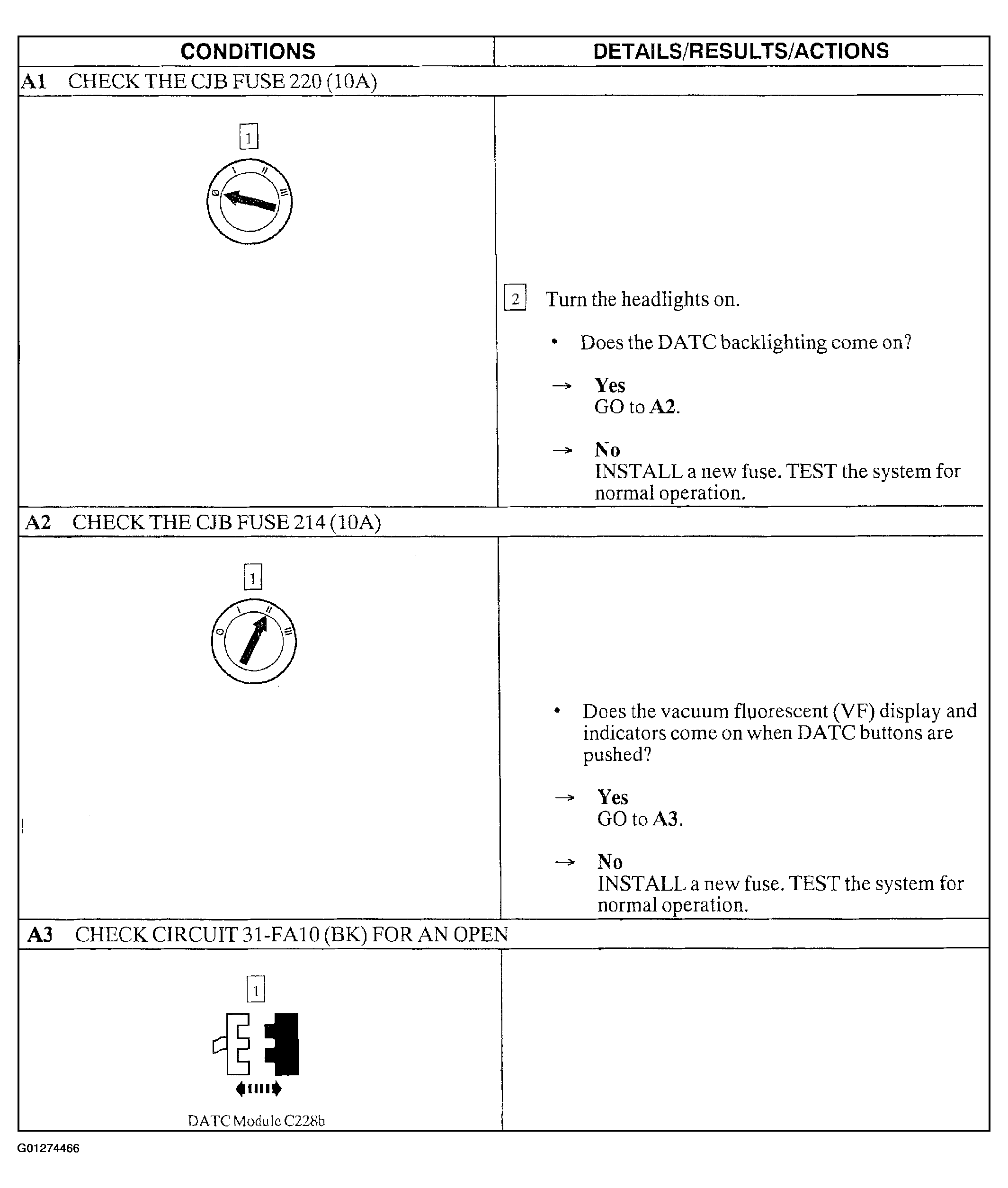

Fig 1: Pinpoint Test A: No Communication With The Dual Automatic Temperature Control (DATC) Module (Steps A1-A3)

Courtesy of FORD MOTOR CO.

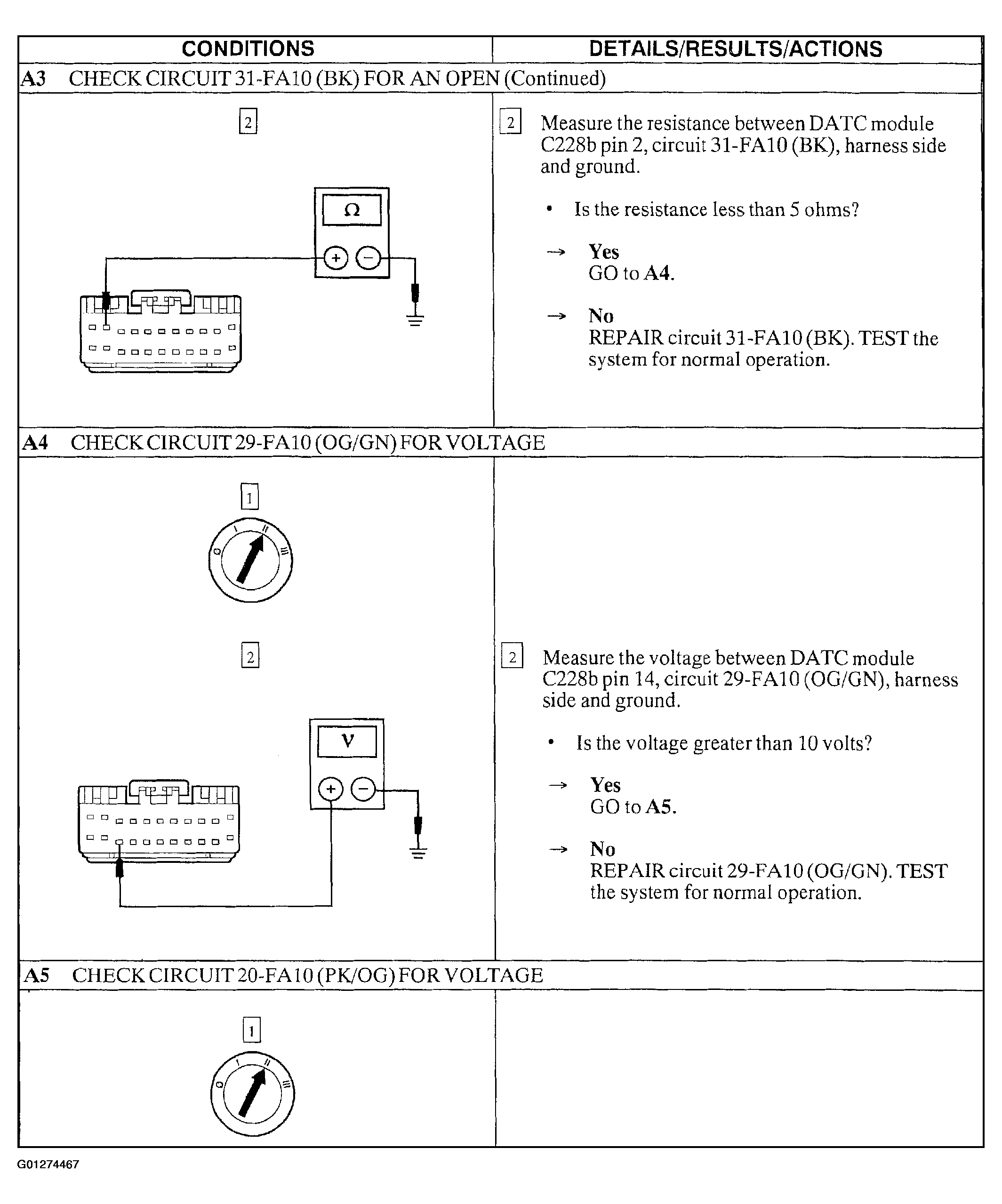

Fig 2: Pinpoint Test A: No Communication With The Dual Automatic Temperature Control (DATC) Module (Steps A3 Cont. -A5)

Courtesy of FORD MOTOR CO.

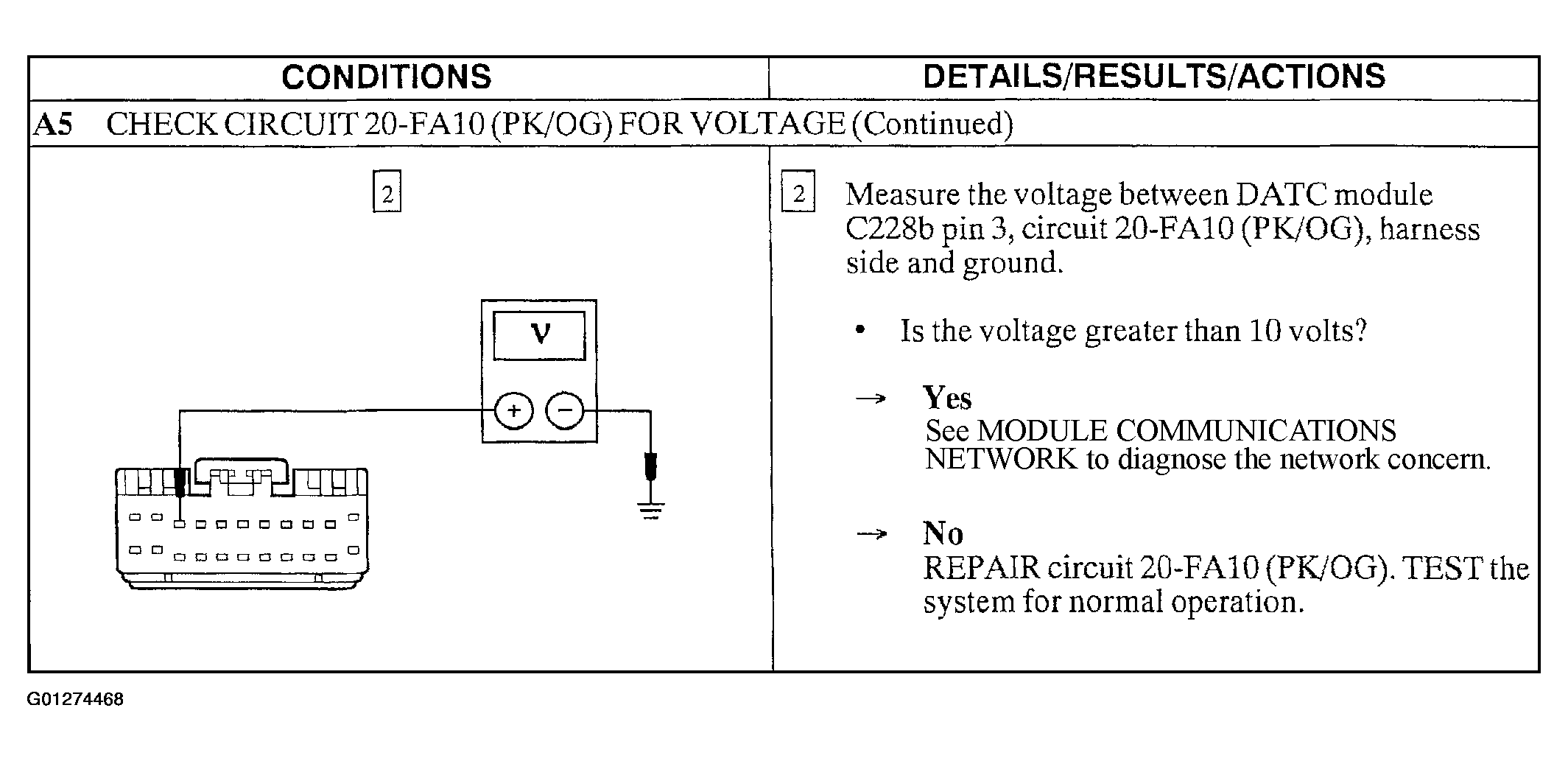

Fig 3: Pinpoint Test A: No Communication With The Dual Automatic Temperature Control (DATC) Module (Step A5 Cont.)

Courtesy of FORD MOTOR CO.
