Pinpoint Test P: The Temperature Set Point Does Not Repeat After Turning The Ignition Switch Off

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

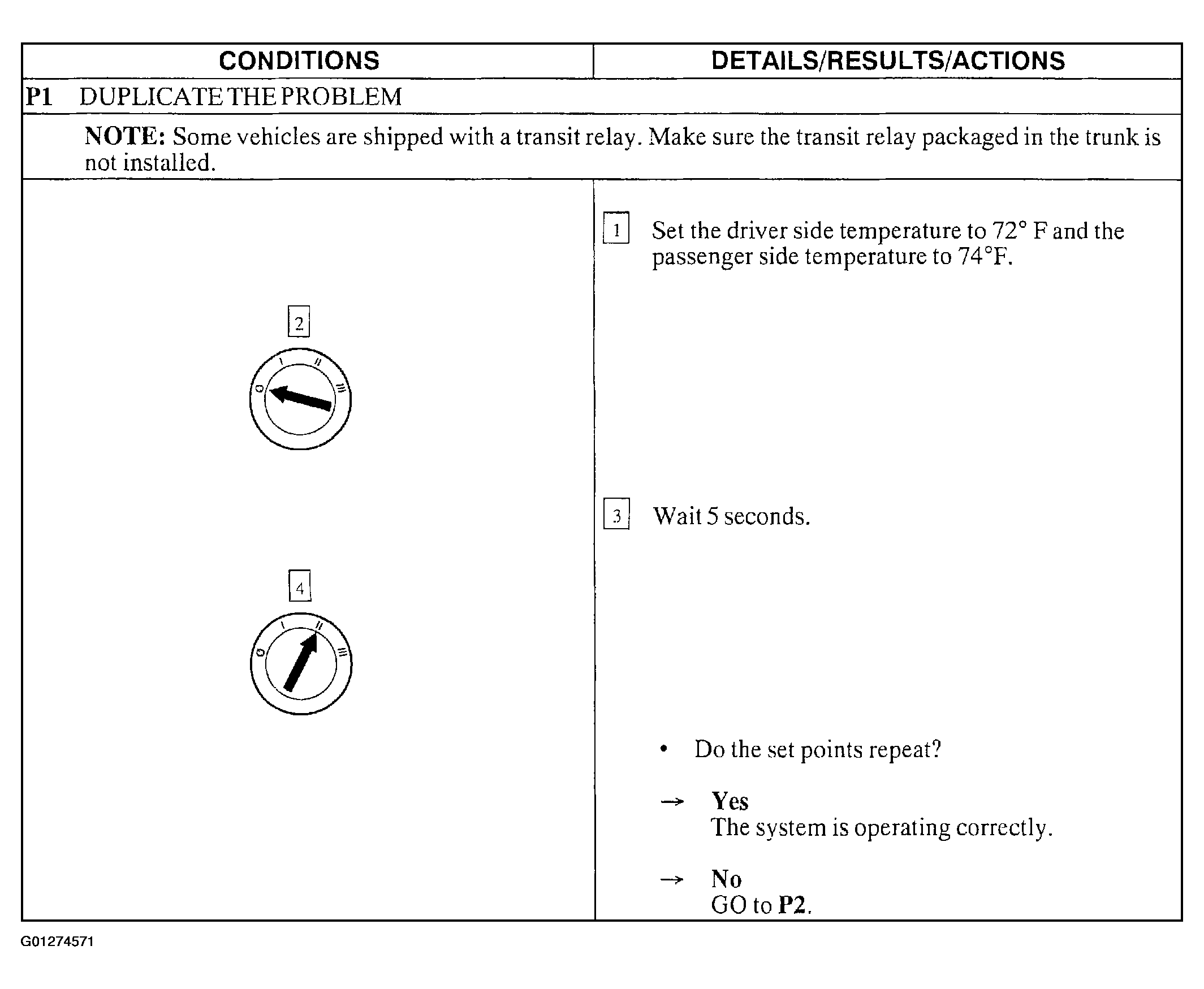

Fig 1: Pinpoint Test P: The Temperature Set Point Does Not Repeat After Turning The Ignition Switch Off (Step P1)

Courtesy of FORD MOTOR CO.

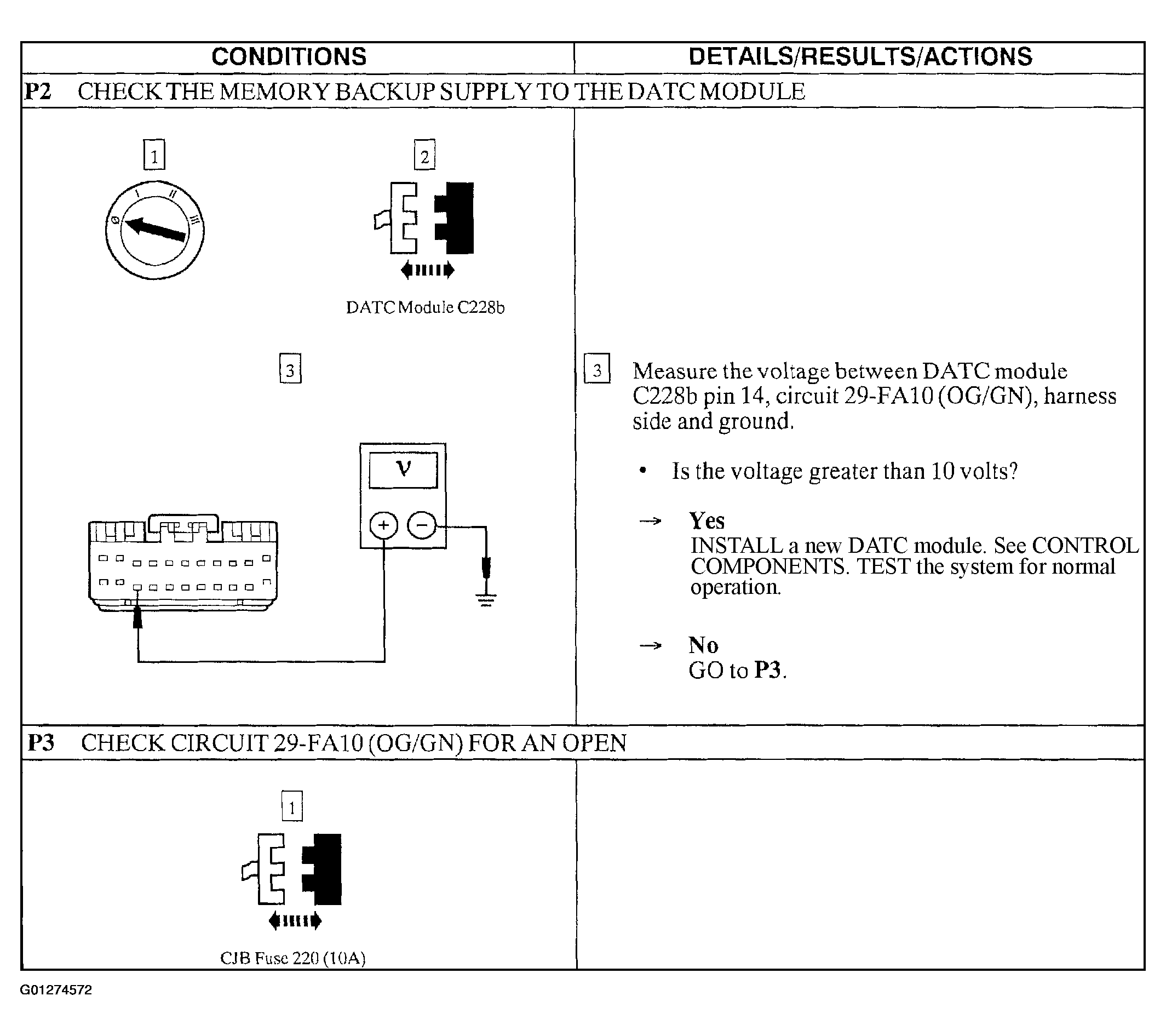

Fig 2: Pinpoint Test P: The Temperature Set Point Does Not Repeat After Turning The Ignition Switch Off (Steps P2-P3)

Courtesy of FORD MOTOR CO.

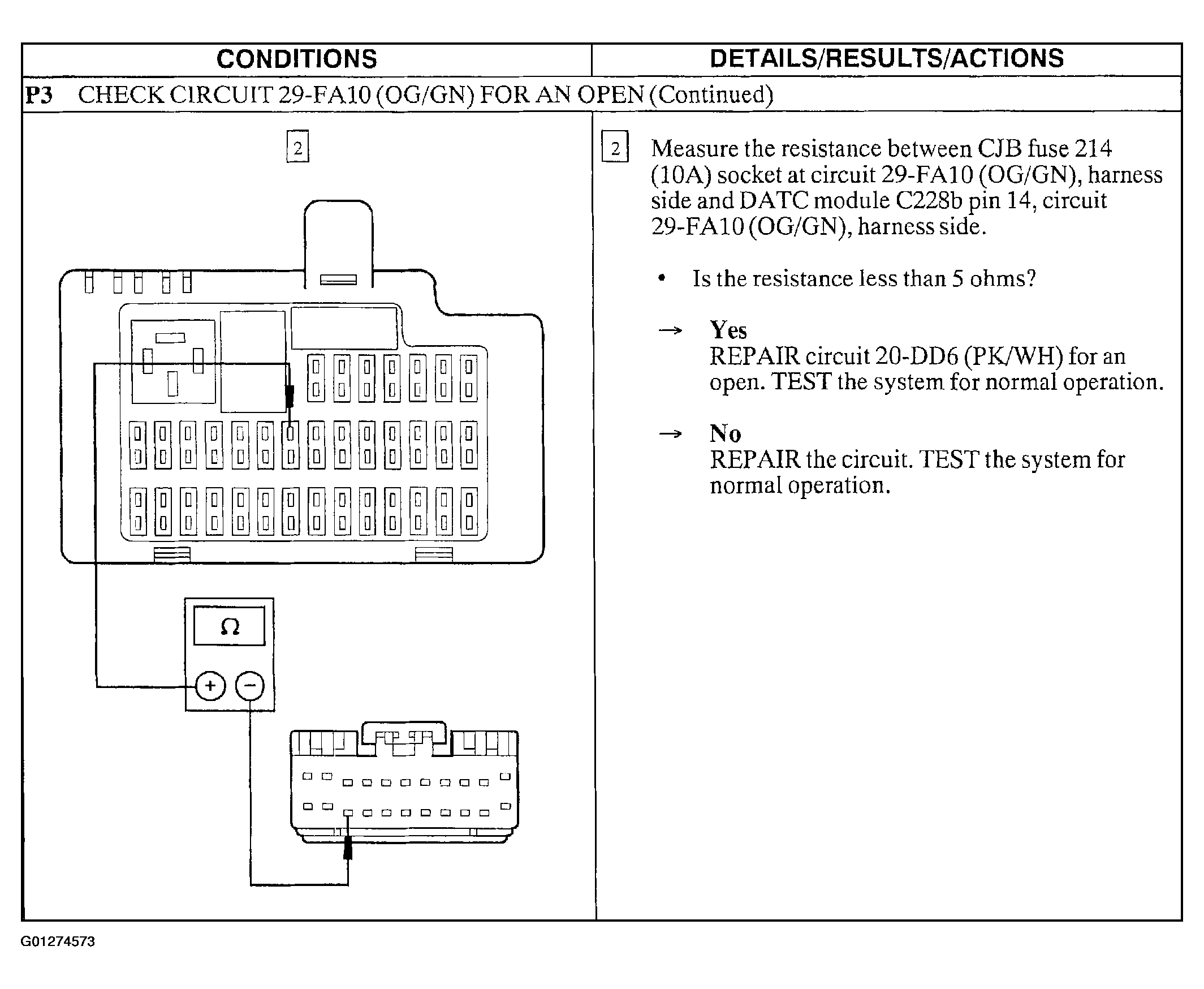

Fig 3: Pinpoint Test P: The Temperature Set Point Does Not Repeat After Turning The Ignition Switch Off (Step P3 Cont.)

Courtesy of FORD MOTOR CO.
