Pinpoint Test Q: The Exterior Temperature Display Does Not Function

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Pinpoint Test Q: The Exterior Temperature Display Does Not Function (Step Q1)
G01274574Courtesy of FORD MOTOR CO.

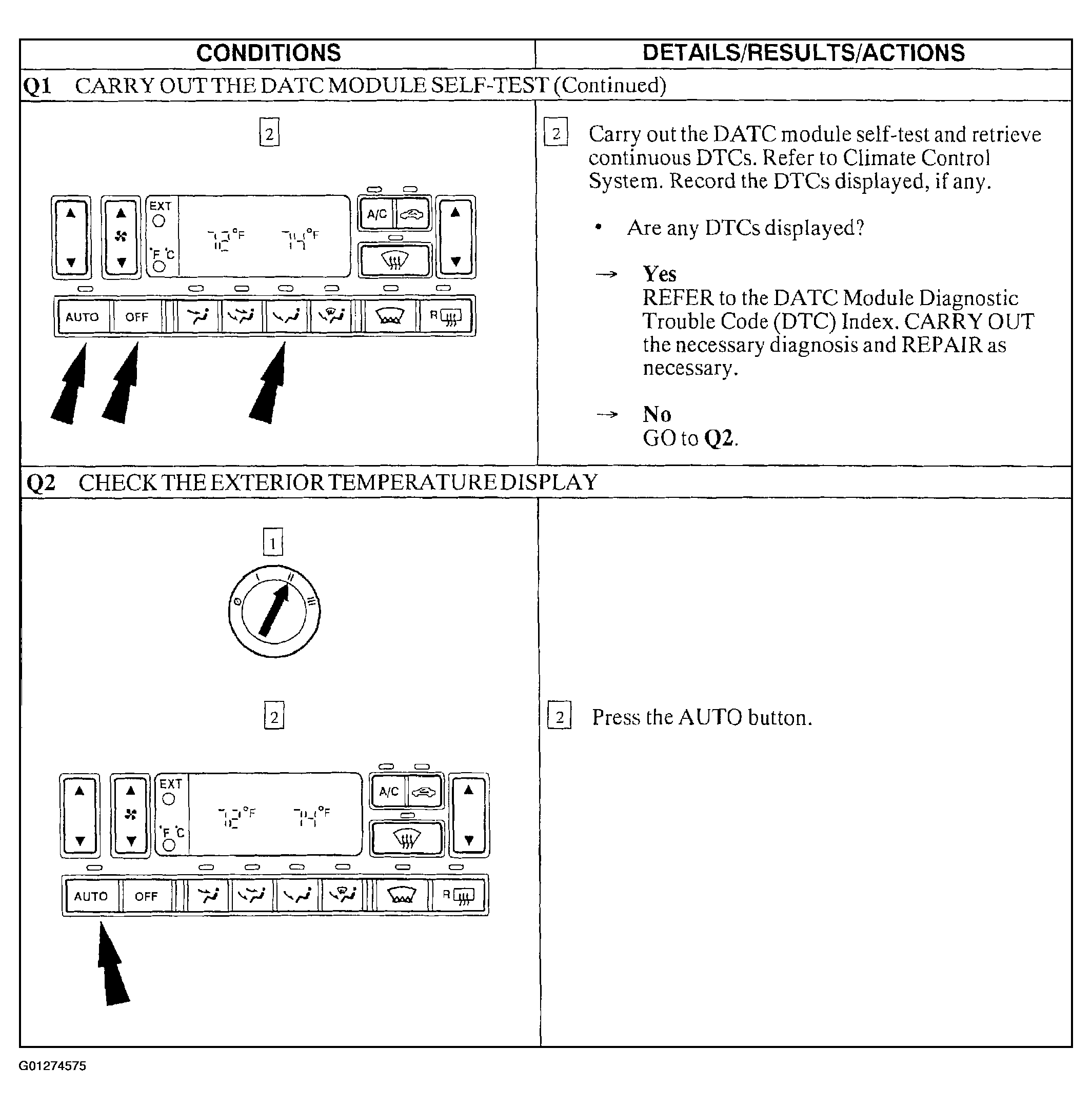

Fig 2: Pinpoint Test Q: The Exterior Temperature Display Does Not Function (Steps Q1 Cont. -Q2)
G01274575Courtesy of FORD MOTOR CO.

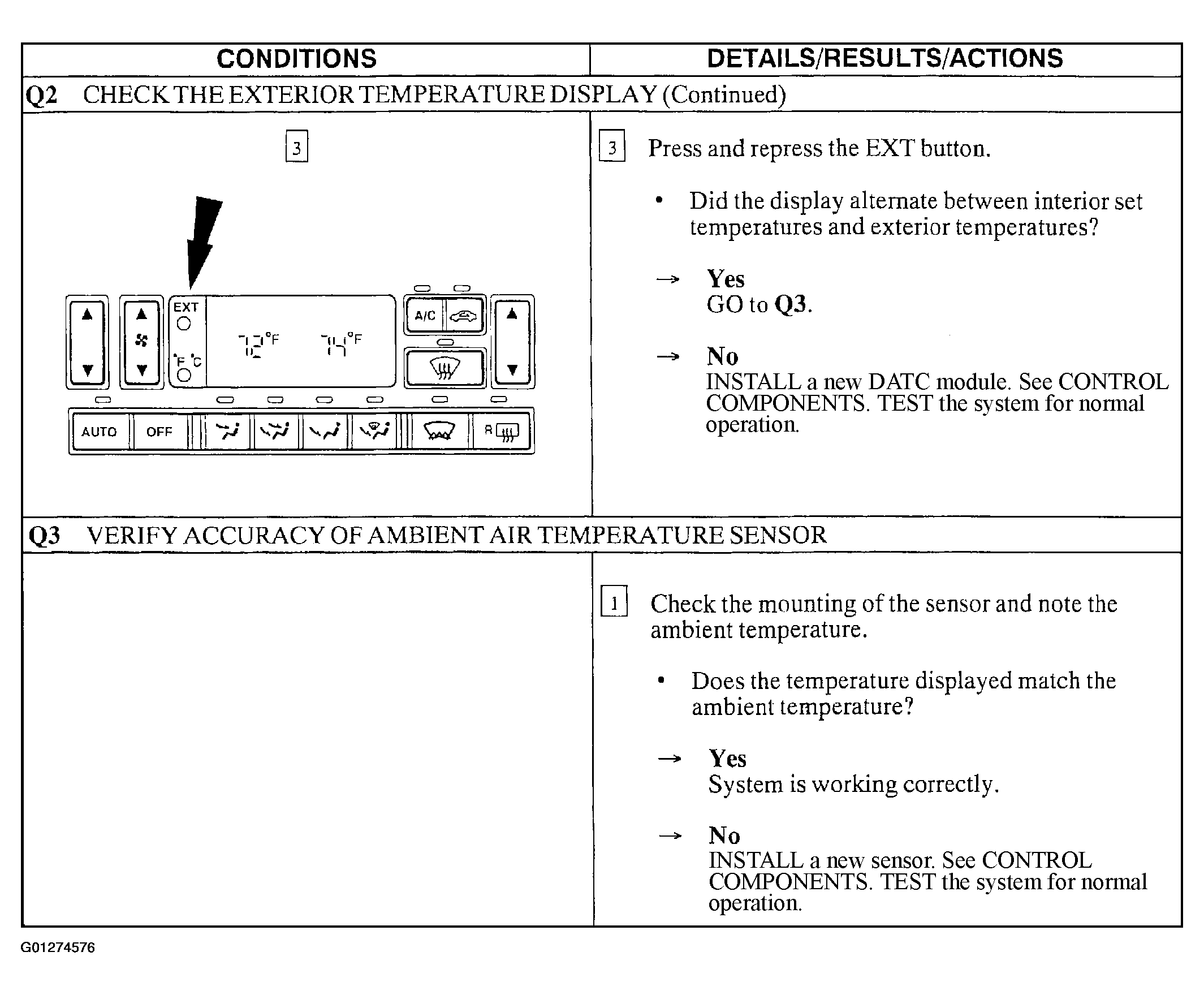

Fig 3: Pinpoint Test Q: The Exterior Temperature Display Does Not Function (Steps Q2 Cont. -Q3)
G01274576Courtesy of FORD MOTOR CO.
