Connector Identification

NOTE: For connector identification, refer to illustrations. See Fig 1 -Fig 8 .

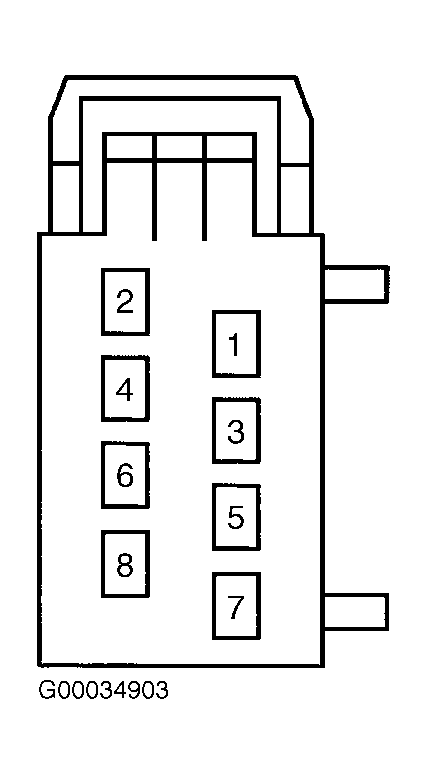

Fig 1: Identifying Left C355, Right C352 Power Sliding Door Module & Rear Electronic Module C344 Harness Connector Terminals

Courtesy of FORD MOTOR CO.

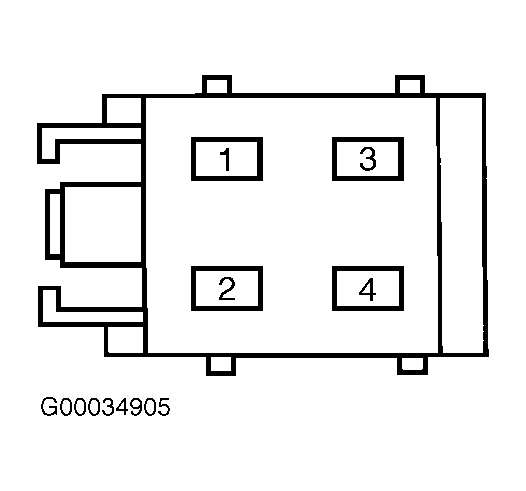

Fig 2: Identifying Left C354 & Right C351 Power Sliding Door Module Harness Connector Terminals

Courtesy of FORD MOTOR CO.

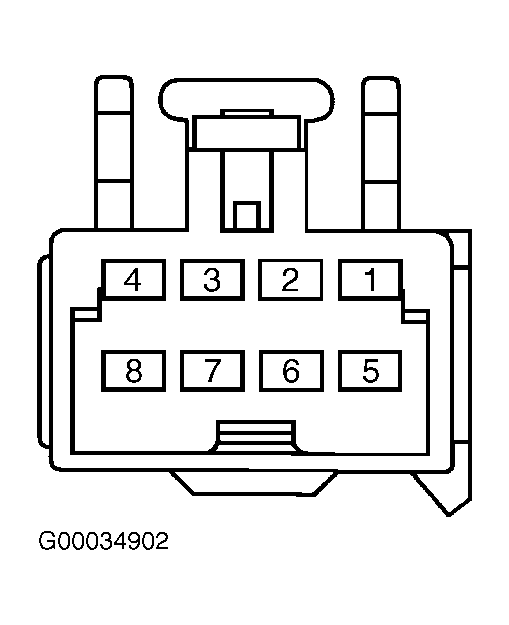

Fig 3: Identifying Rear Electronic Module C342 Harness Connector Terminals

Courtesy of FORD MOTOR CO.

Fig 4: Identifying Rear Electronic Module C343 Harness Connector Terminals

Courtesy of FORD MOTOR CO.

Fig 5: Identifying Rear Electronic Module C341 Harness Connector Terminals

Courtesy of FORD MOTOR CO.

Fig 6: Identifying Left C338, C700 & Right C337, C800 Power Sliding Door Contact Harness Connector Terminals

Courtesy of FORD MOTOR CO.

Fig 7: Identifying Overhead Console Harness Connector C915 Terminals

Courtesy of FORD MOTOR CO.

Fig 8: Identifying Left C942 & Right C941 "B" Pillar Switch Harness Connector Terminals
