Connector Identification

WARNING: This page is about a different car, the 2000 Ford Windstar and 1999 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For connector identification, refer to illustrations. See Fig 1 - Fig 10 .

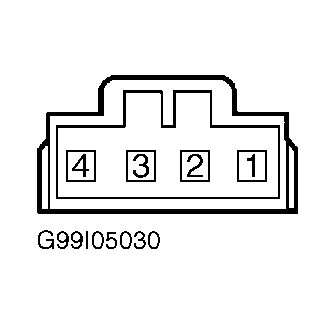

Fig 1: Identifying LPSDM & RPSDM 4-Pin Harness Connector Terminals (C354 & C351)

Courtesy of FORD MOTOR CO.

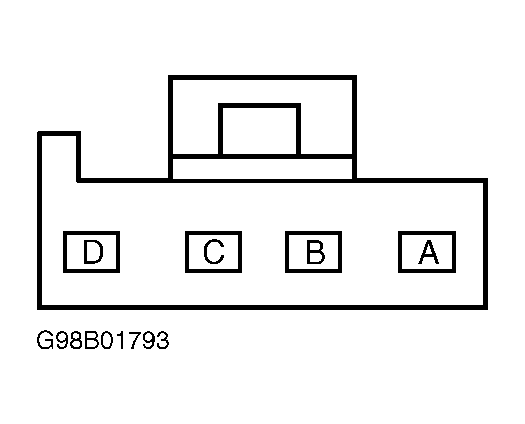

Fig 2: Identifying LPSDM Motor & RPSDM Motor 4-Pin Harness Connector Terminals

Courtesy of FORD MOTOR CO.

Fig 3: Identifying Position Sensor & Clutch 4-Pin Harness Connector Terminals

Courtesy of FORD MOTOR CO.

Fig 4: Identifying Left & Right "B" Pillar Switch 6-Pin Connector Terminals (C942 & C941)

Courtesy of FORD MOTOR CO.

Fig 5: Identifying Overhead Console 8-Pin Harness Connector Terminals (C915)

Courtesy of FORD MOTOR CO.

Fig 6: Identifying LPSDM, RPSDM, Left & Right Sliding Door Contact 8-Pin Harness Connector Terminals (C337, C338, C700 & C800)

Courtesy of FORD MOTOR CO.

Fig 7: Identifying LPSDM, RPSDM & REM 12-Pin Harness Connector Terminals (C355, C352 & C344)

Courtesy of FORD MOTOR CO.

Fig 8: Identifying REM 20-Pin Harness Connector Terminals (C343)

Courtesy of FORD MOTOR CO.

Fig 9: Identifying REM 22-Pin Harness Connector Terminals (C341)

Courtesy of FORD MOTOR CO.

Fig 10: Identifying REM 26-Pin Harness Connector Terminals (C342)

Courtesy of FORD MOTOR CO.
