Drive Sprocket/Turbine Shaft: Disassembly

  1. Remove the drive sprocket/turbine shaft seal and O-ring.
    • Remove the drive sprocket/turbine shaft O-ring.
    • Remove the drive sprocket/turbine shaft seal.

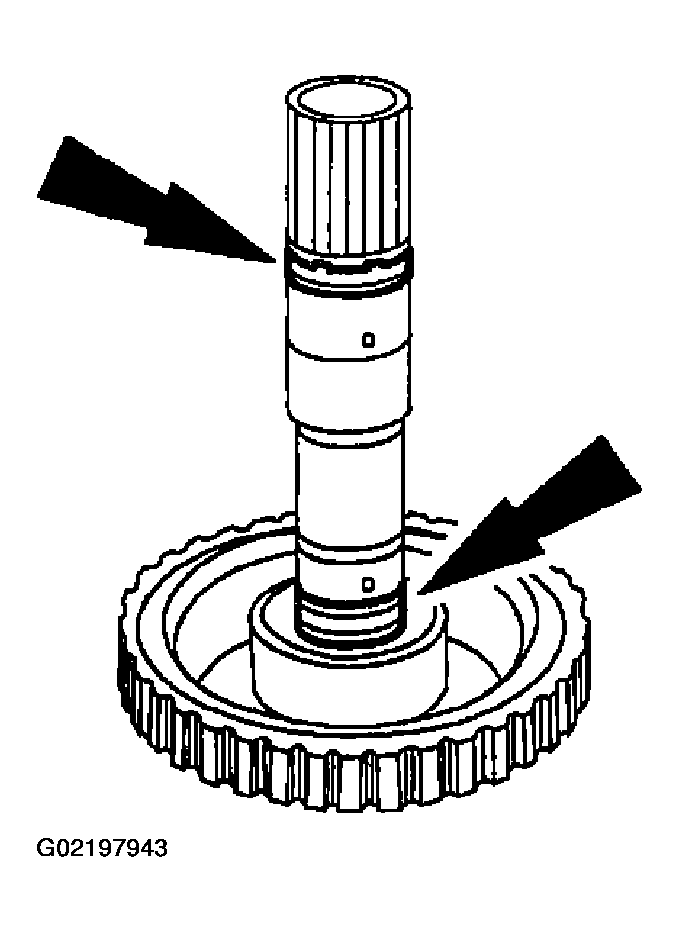

    Fig 1: Removing Drive Sprocket/Turbine Shaft Seal
    G02197943
  2. Inspect the bearing race for wear. If the bearing is worn a new drive sprocket/turbine shaft will need to be installed.

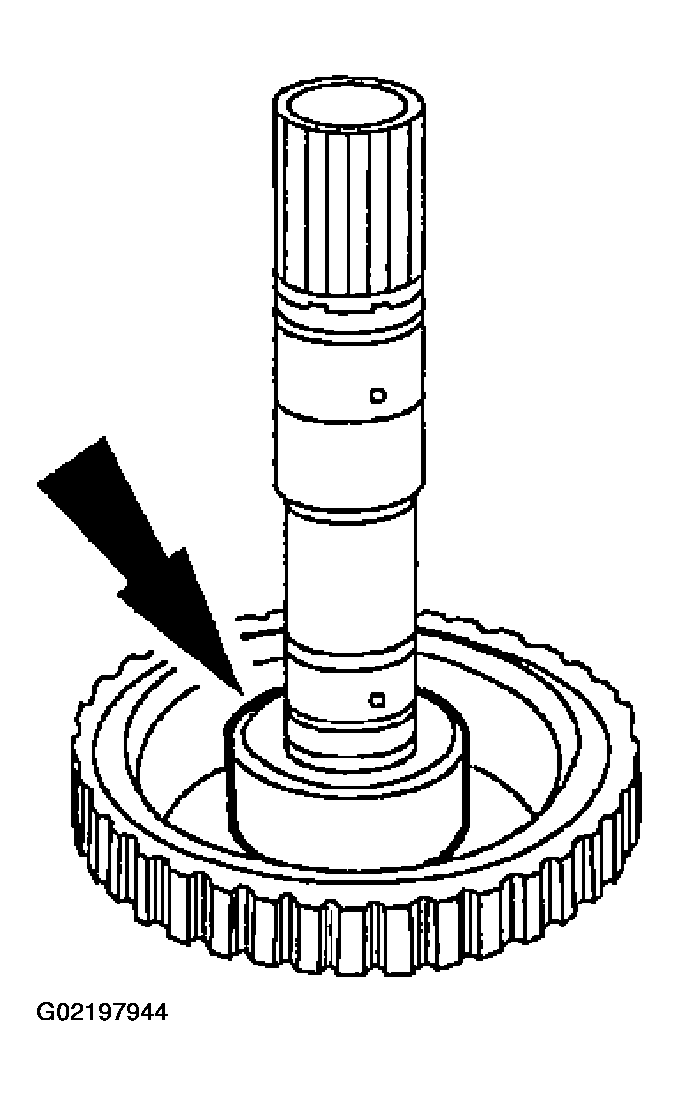

    Fig 2: Inspecting Bearing Race For Wear
    G02197944
  3. Remove the turbine shaft front seal.

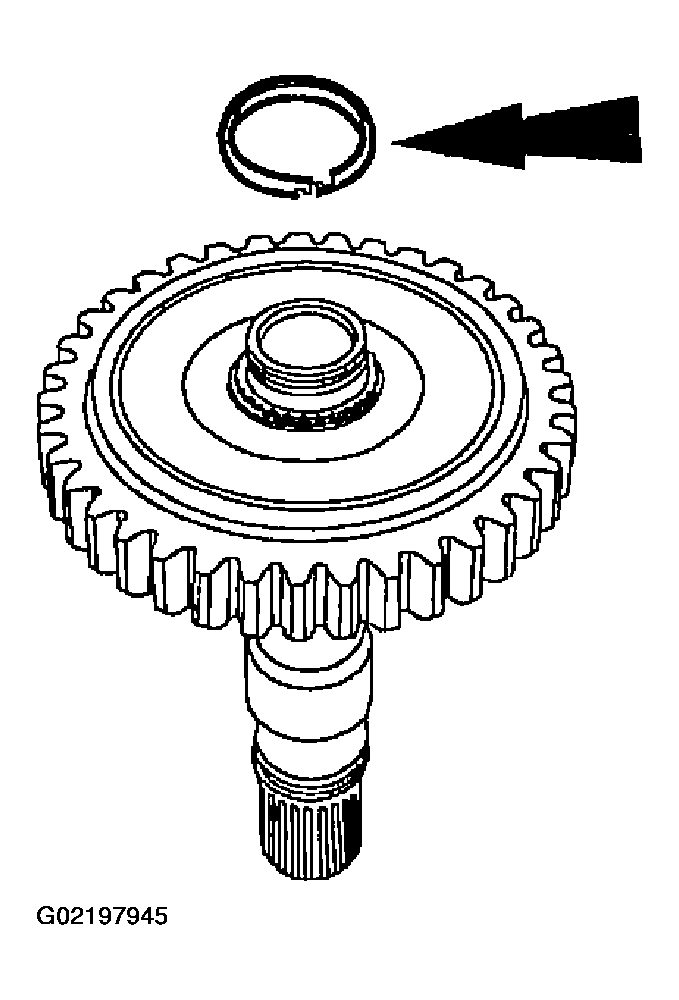

    Fig 3: Removing Turbine Shaft Front Seal
    G02197945
