Pinpoint Test B: Brake Pedal Position Input Circuit Failure

WARNING: This page is about a different car, the 2004 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

Test Step

B1 CHECK CIRCUIT 15S-CF58 (GN/OG) FOR AN OPEN

Key in OFF position.
Disconnect: Traction Control Module C135.
Key ON position.
Measure the voltage between the traction control module C135 pin 41, circuit 15S-CF58 (GN/OG), harness side and ground while pressing and releasing the brake pedal.

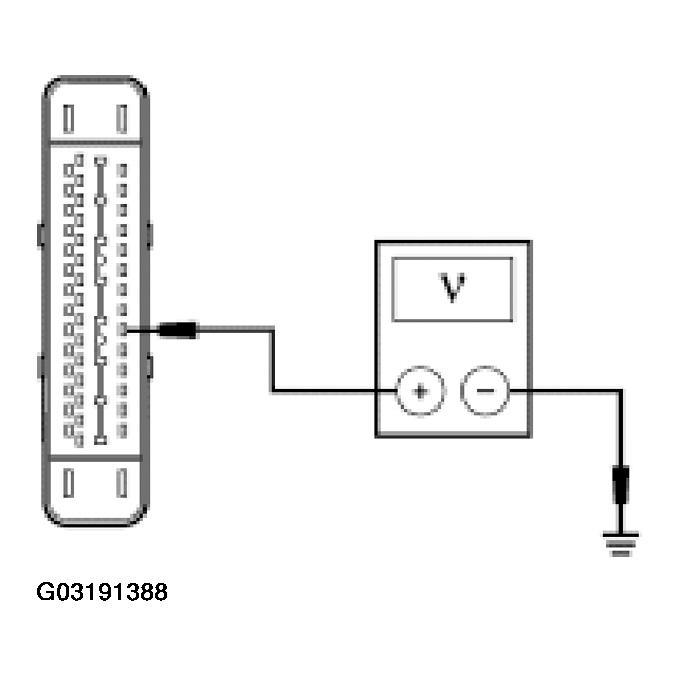

Fig 1: Checking Circuit 15S-CF58 (GN/OG) For Open
Courtesy of FORD MOTOR CO.
Is the voltage greater than 10 volts with the brake pedal pressed, and zero volts with the brake pedal released?

Result / Action to Take

Yes

INSTALL a new HCU. REFER to ANTI-LOCK CONTROL . CLEAR the DTCs. REPEAT the self-test. TEST the system for normal operation.

REPAIR the circuit. CLEAR the DTCs. REPEAT the self-test. TEST the system for normal operation.
