Pinpoint Test F: The Washer Pump Is Inoperative - Front And Rear Washers Stay On Continuously.
WARNING: This page is about a different car, the 2002 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

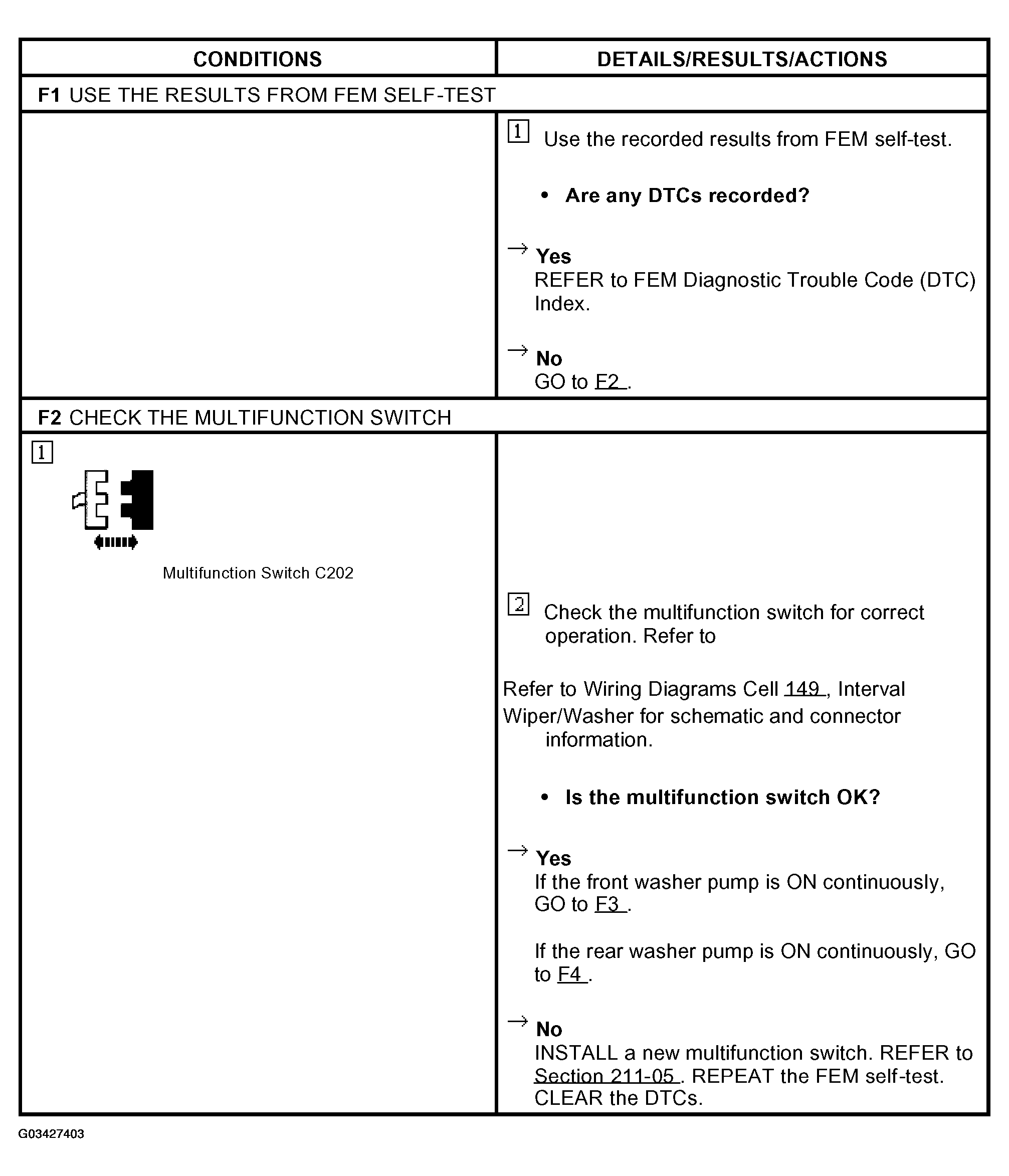

Fig 1: Pinpoint Test F: Washer Pump Is Inoperative - Front And Rear Washers Stay On Continuously (F1 & F2)
Courtesy of FORD MOTOR CO.

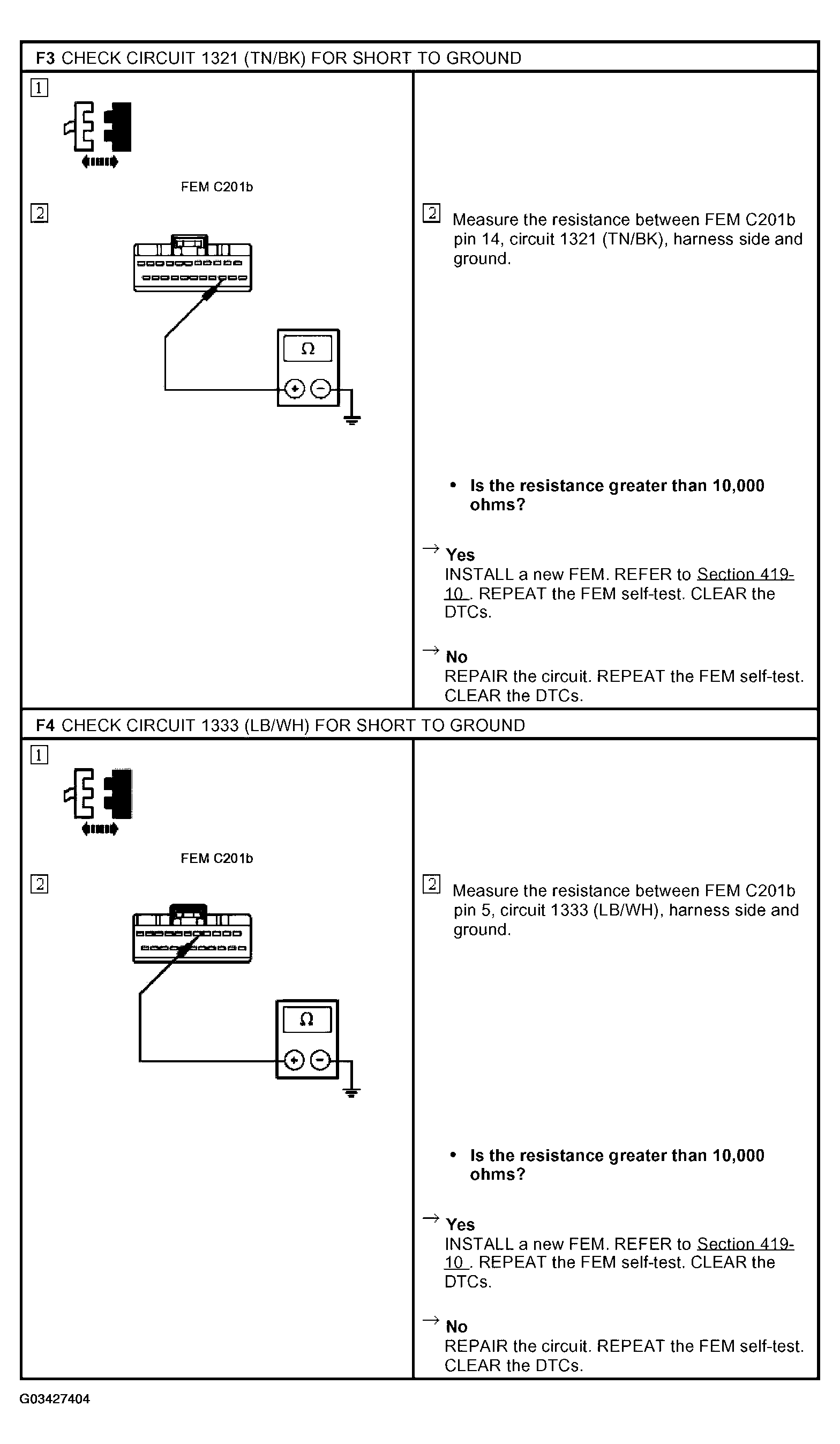

Fig 2: Pinpoint Test F: Washer Pump Is Inoperative - Front And Rear Washers Stay On Continuously (F3 & F4)
