Strut And Spring Assembly: Disassembly

WARNING: This page is about a different car, the 2004 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the strut and spring assembly. For additional information, refer to STRUT AND SPRING ASSEMBLY .
    2. WARNING: As the spring is under extreme tension care must be taken at all times. Failure to follow this instruction may result in personal injury.

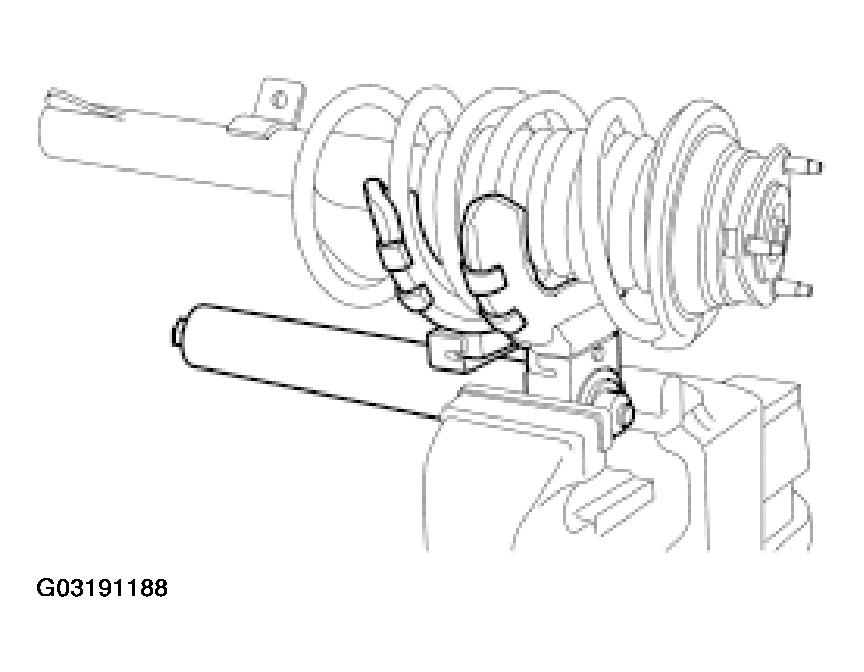

    Fig 1: Compressing Spring
    G03191188Courtesy of FORD MOTOR CO.
  2. Using a suitable coil spring compressor, compress the spring.
    3. CAUTION: Use an Allen key to prevent the piston rod from rotating.

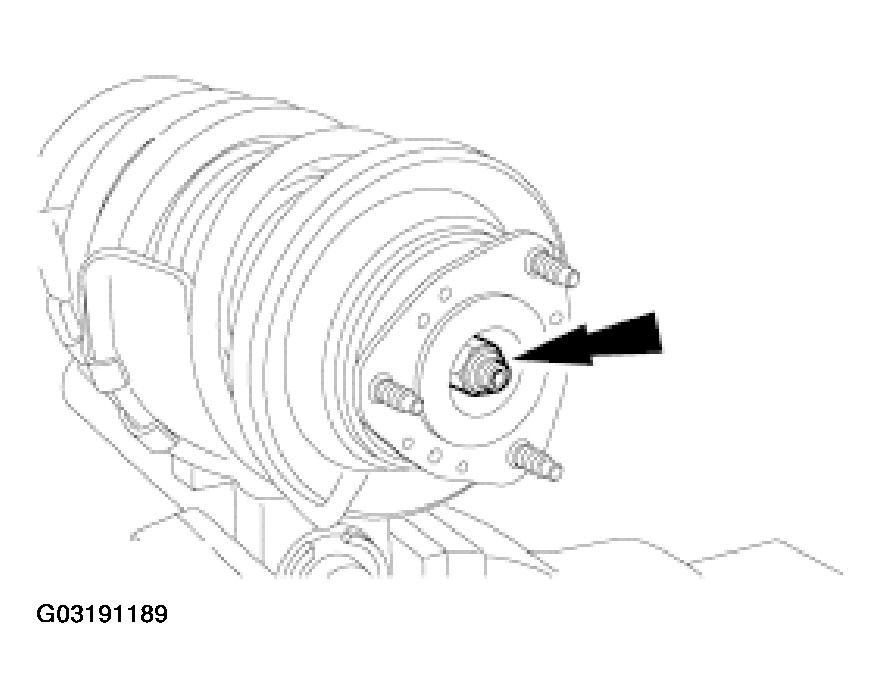

    Fig 2: Loosening Thrust Bearing Nut
    G03191189Courtesy of FORD MOTOR CO.
  3. Loosen the thrust bearing nut.
  4. Disassemble the strut and spring assembly.
    1. Remove the thrust bearing nut.
    2. Remove the top mount.
    3. Remove the thrust bearing.
    4. Remove the strut.
    5. Remove the bump stop.
    6. Remove the boot.

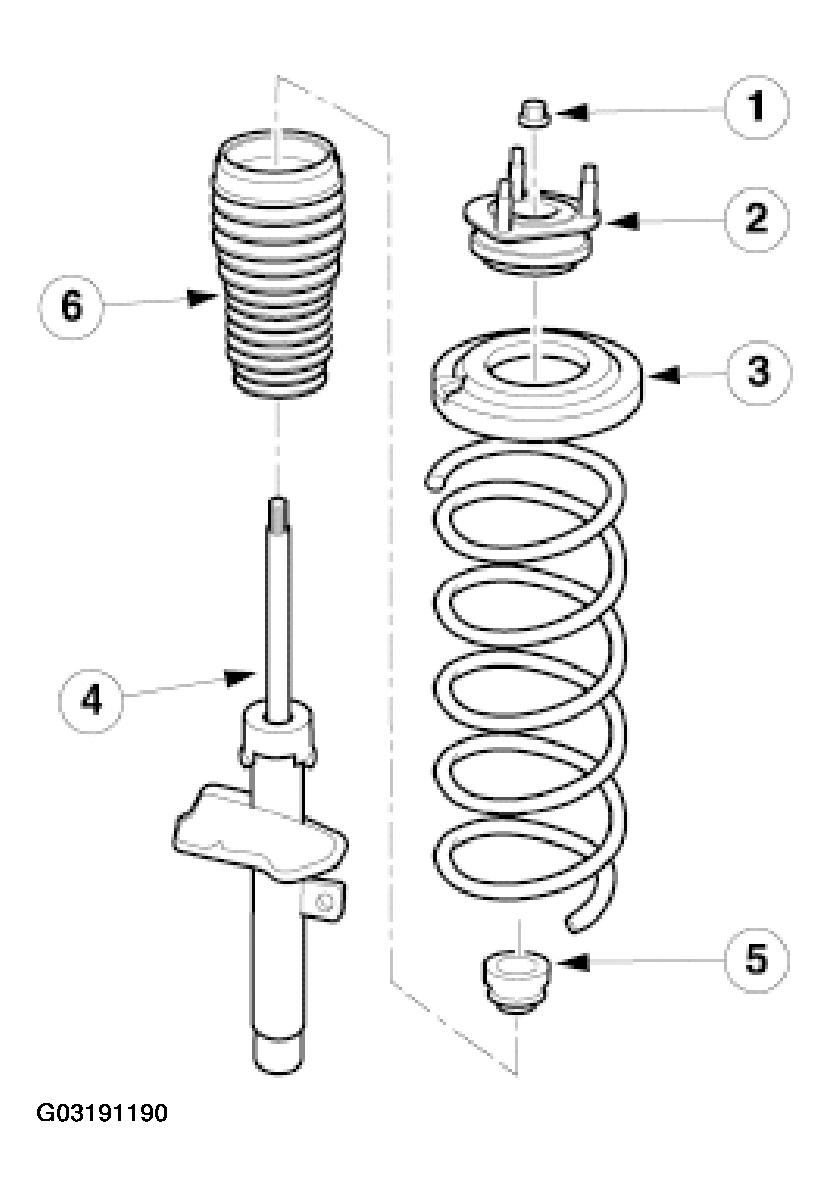

    Fig 3: Disassembling Strut And Spring Assembly
    G03191190Courtesy of FORD MOTOR CO.
