Strut And Spring Assembly: Removal

WARNING: This page is about a different car, the 2004 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

Remove the wheel and tires. For additional information, refer to WHEELS AND TIRES .
Detach the brake hose from the support bracket and detach the stabilizer bar connecting link.

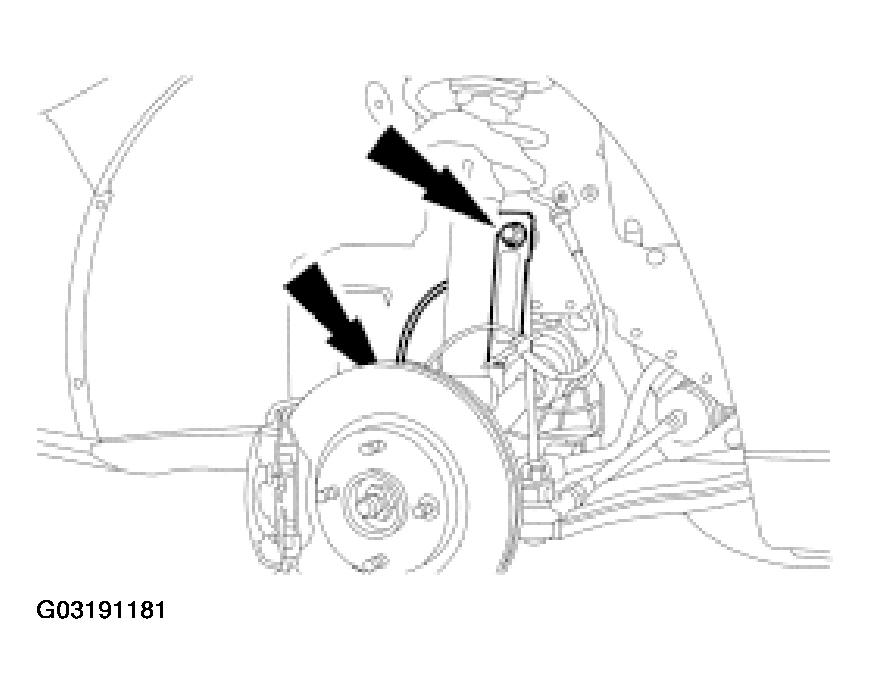

Fig 1: Detaching Stabilizer Bar Connecting Link
Courtesy of FORD MOTOR CO.
Remove the wheel knuckle bolt.

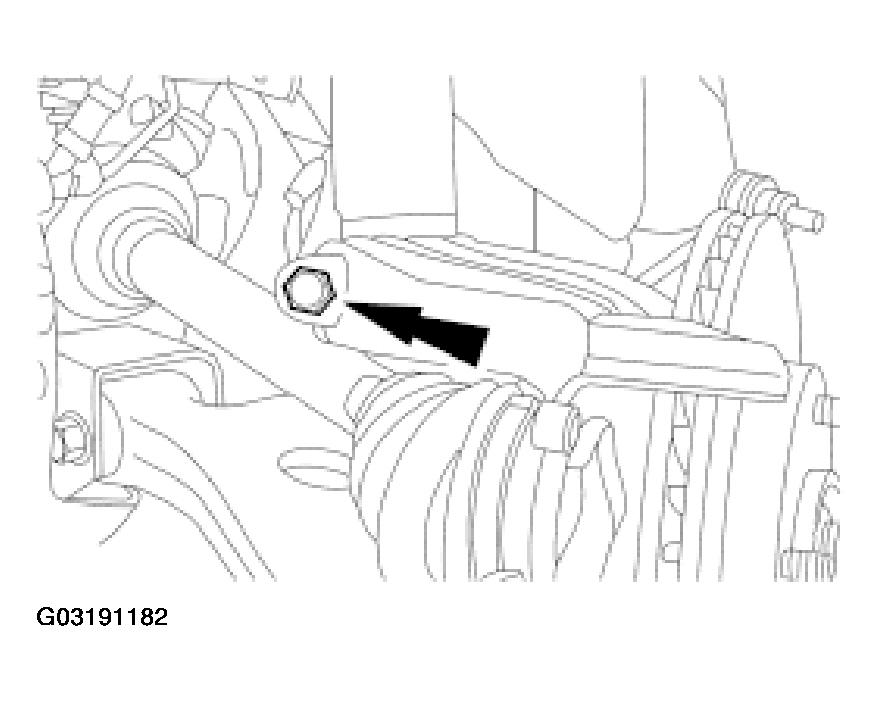

Fig 2: Removing Wheel Knuckle Bolt
Courtesy of FORD MOTOR CO.
Detach the wheel knuckle.
1. Using a suitable lever, release the knuckle.
2. Detach the wheel knuckle.
  - Support the halfshaft out of the way.

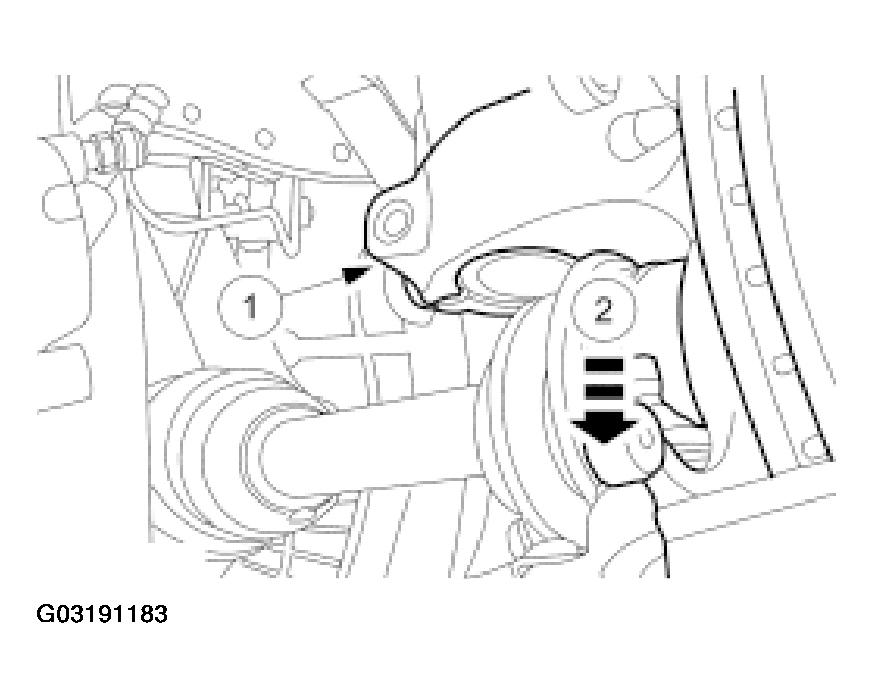

Fig 3: Removing Wheel Knuckle
Courtesy of FORD MOTOR CO.

CAUTION: Support the strut and spring assembly to prevent damage.

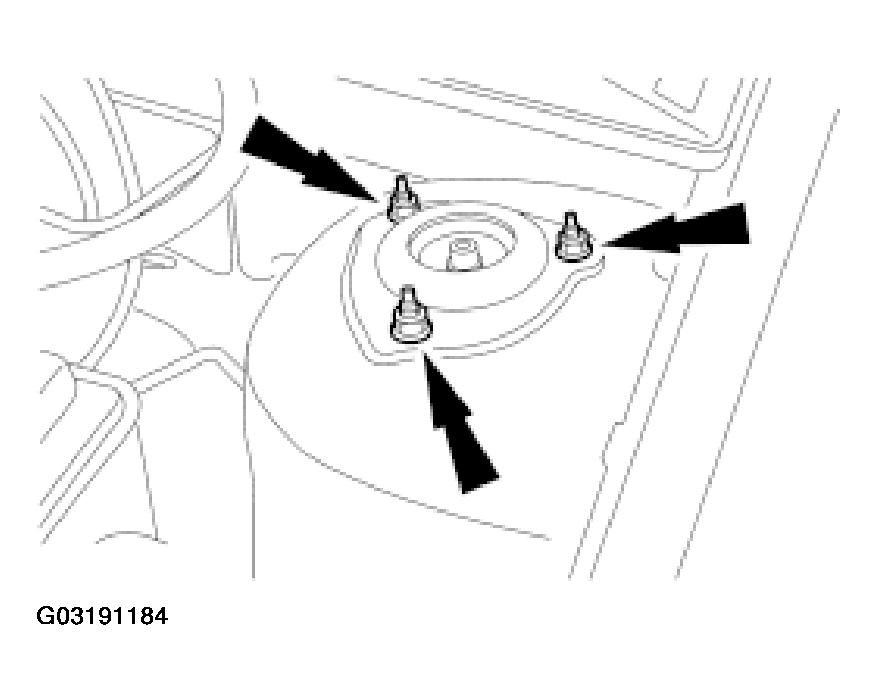

Fig 4: Removing Strut Tower Nuts

Courtesy of FORD MOTOR CO.

Remove the strut tower nuts.
Remove the strut and spring assembly.
