Idler Gear: Notes

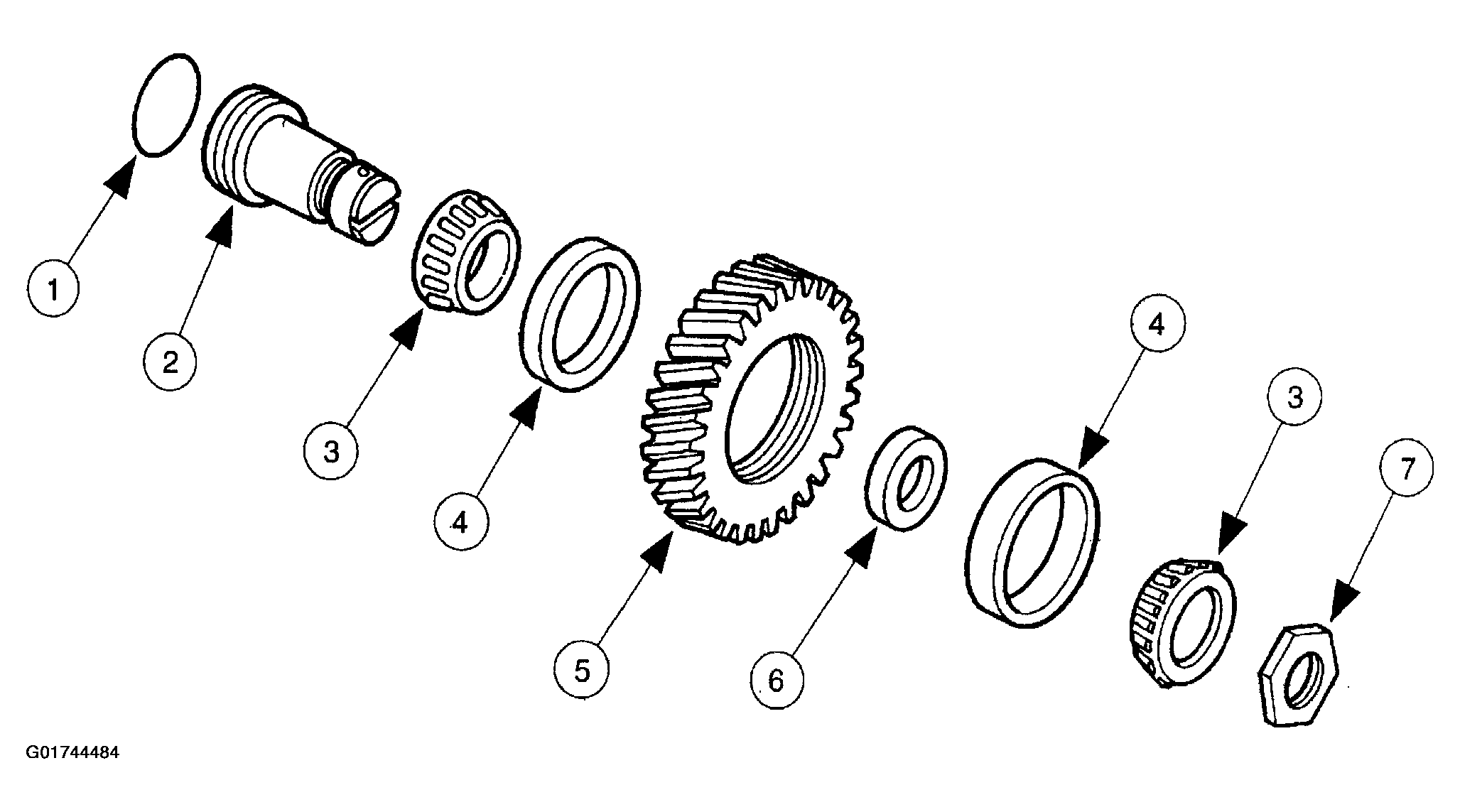

Fig 1: Identifying Idler Gear Components
G01744484Courtesy of FORD MOTOR CO.

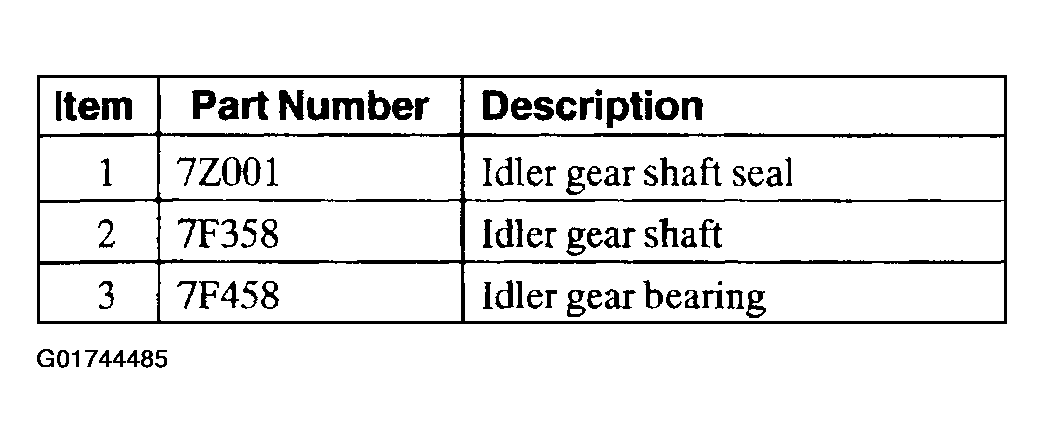

Fig 2: Idler Gear Components Legend (Items 1-3)
G01744485Courtesy of FORD MOTOR CO.

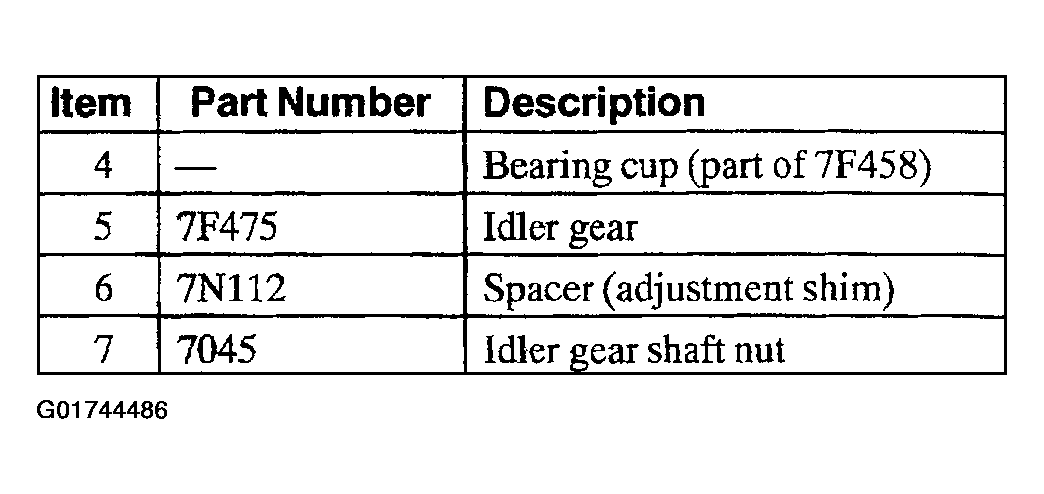

Fig 3: Idler Gear Components Legend (Items 4-7)
G01744486Courtesy of FORD MOTOR CO.
