Main Control Valve Body-Premain: Assembly

Clean all components with a suitable solvent and use compressed air to dry all parts and clean the fluid passages. Perform the following before assembling:
- Inspect the valves for damage or wear.
- Check for worn or broken springs.

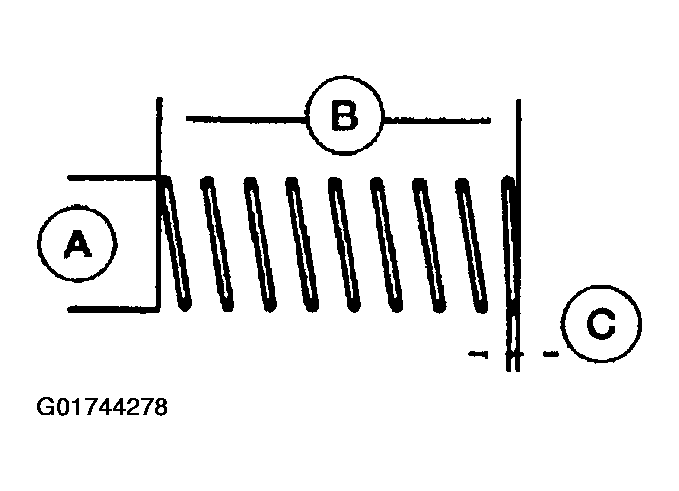

Fig 1: Identifying Spring Measurements

Courtesy of FORD MOTOR CO.

NOTE: Do not compress the spring when measuring it with vernier calipers.

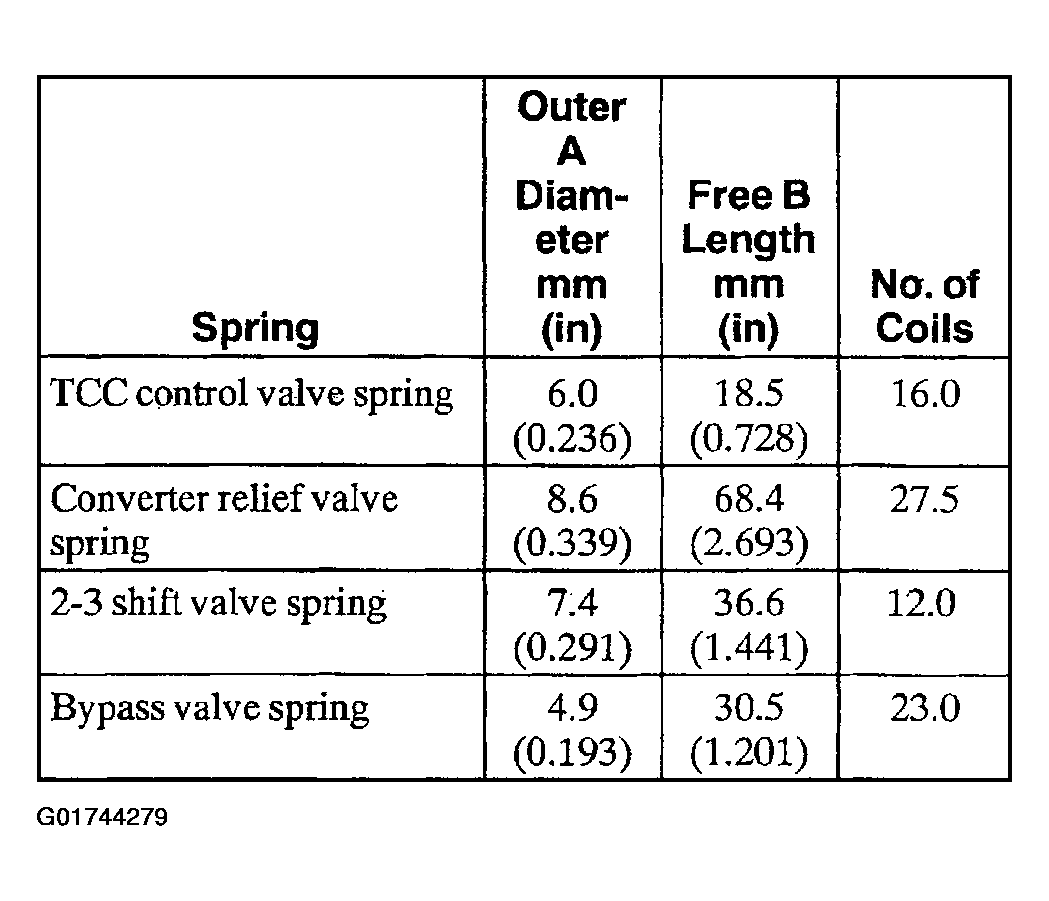

Fig 2: Spring Specification Chart (1 Of 2)

Courtesy of FORD MOTOR CO.

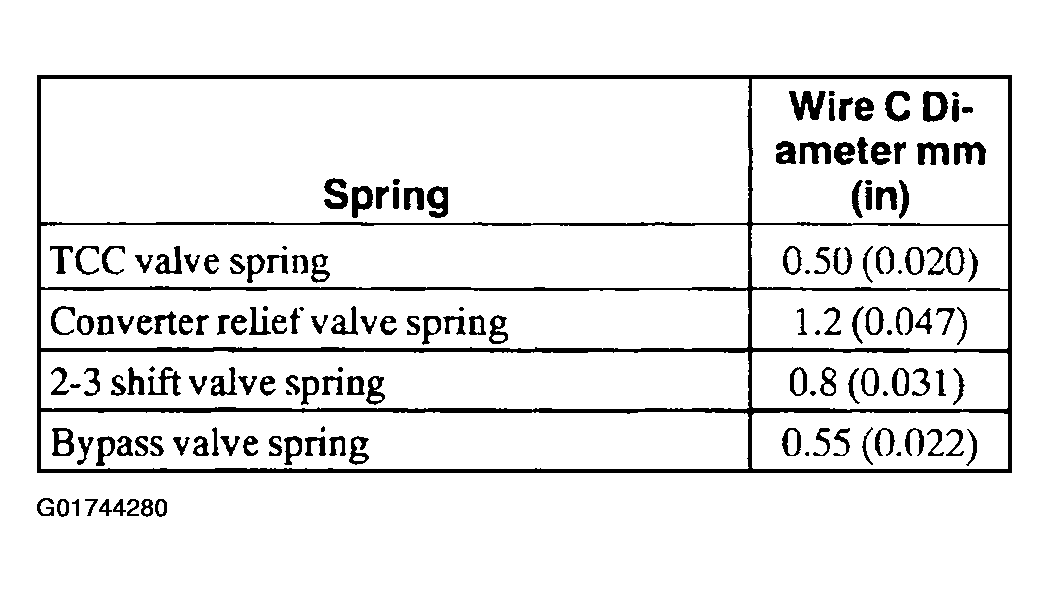

Fig 3: Spring Specification Chart (2 Of 2)

Courtesy of FORD MOTOR CO.

Measure the free length of the bypass valve spring, the 2-3 shift spring, the converter relief spring, and the torque converter clutch (TCC) control valve spring. For spring specifications, use the following spring specification chart.
- If not as specified, replace the spring.

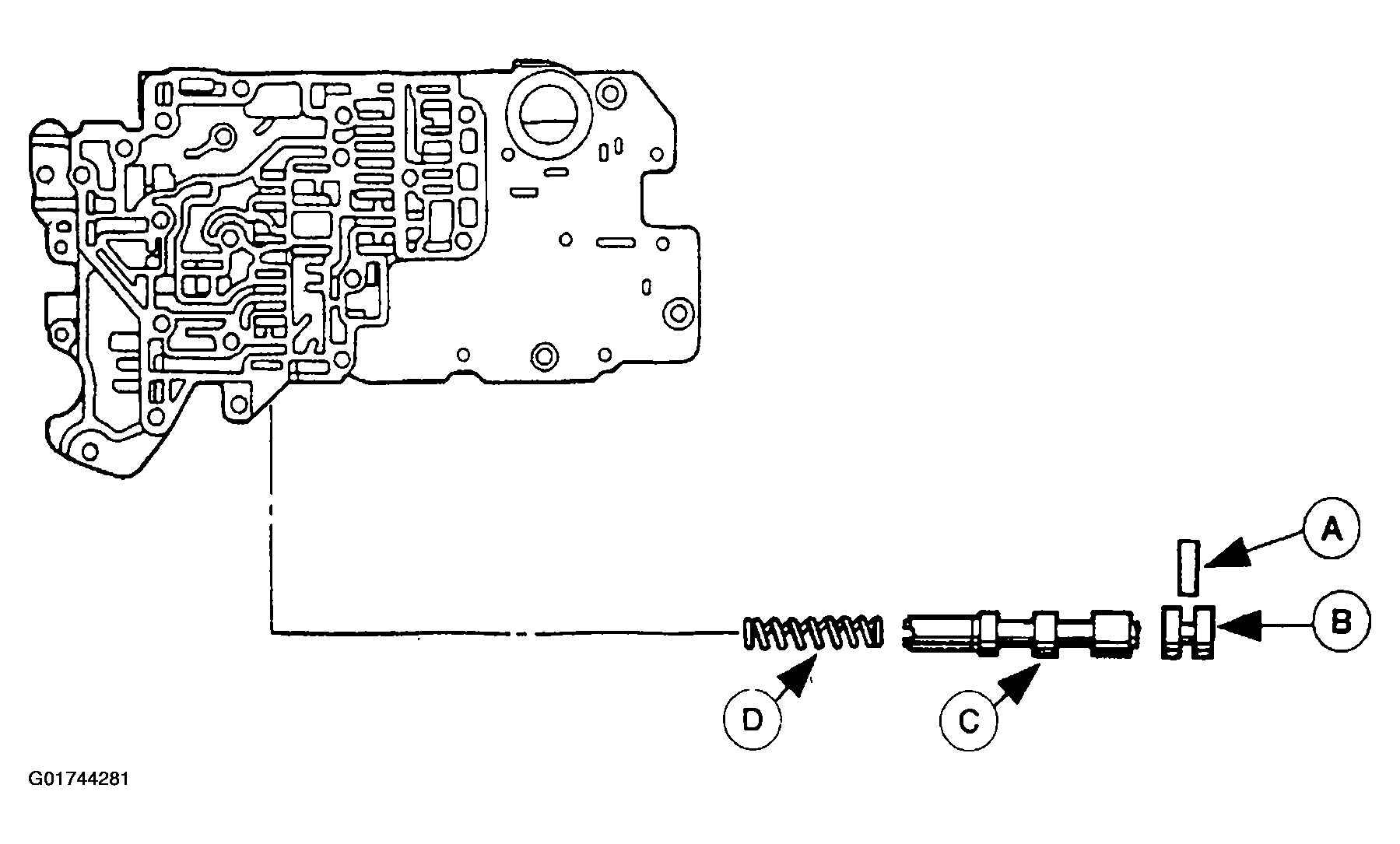

Fig 4: Installing TCC Control Valve Spring, TCC Control Valve, Stop Plug & Stop Pin

Courtesy of FORD MOTOR CO.

Install the (D) TCC control valve spring, (C) TCC control valve, (B) stop plug, and the (A) stop pin.

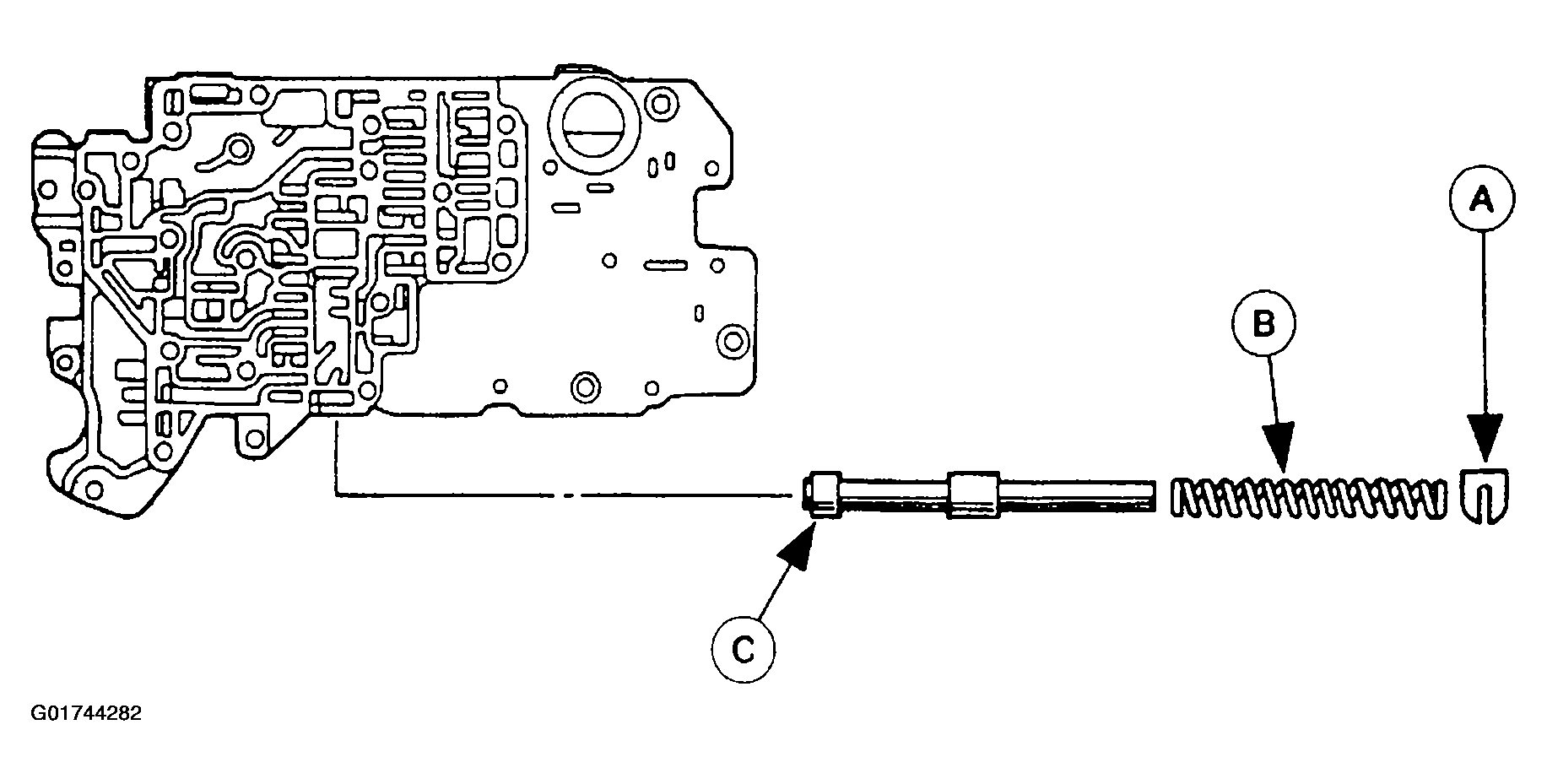

Fig 5: Installing Converter Relief Valve, Converter Relief Valve Spring & Spring Retainer

Courtesy of FORD MOTOR CO.

Install the (C) converter relief valve, (B) converter relief valve spring and the (A) spring retainer.

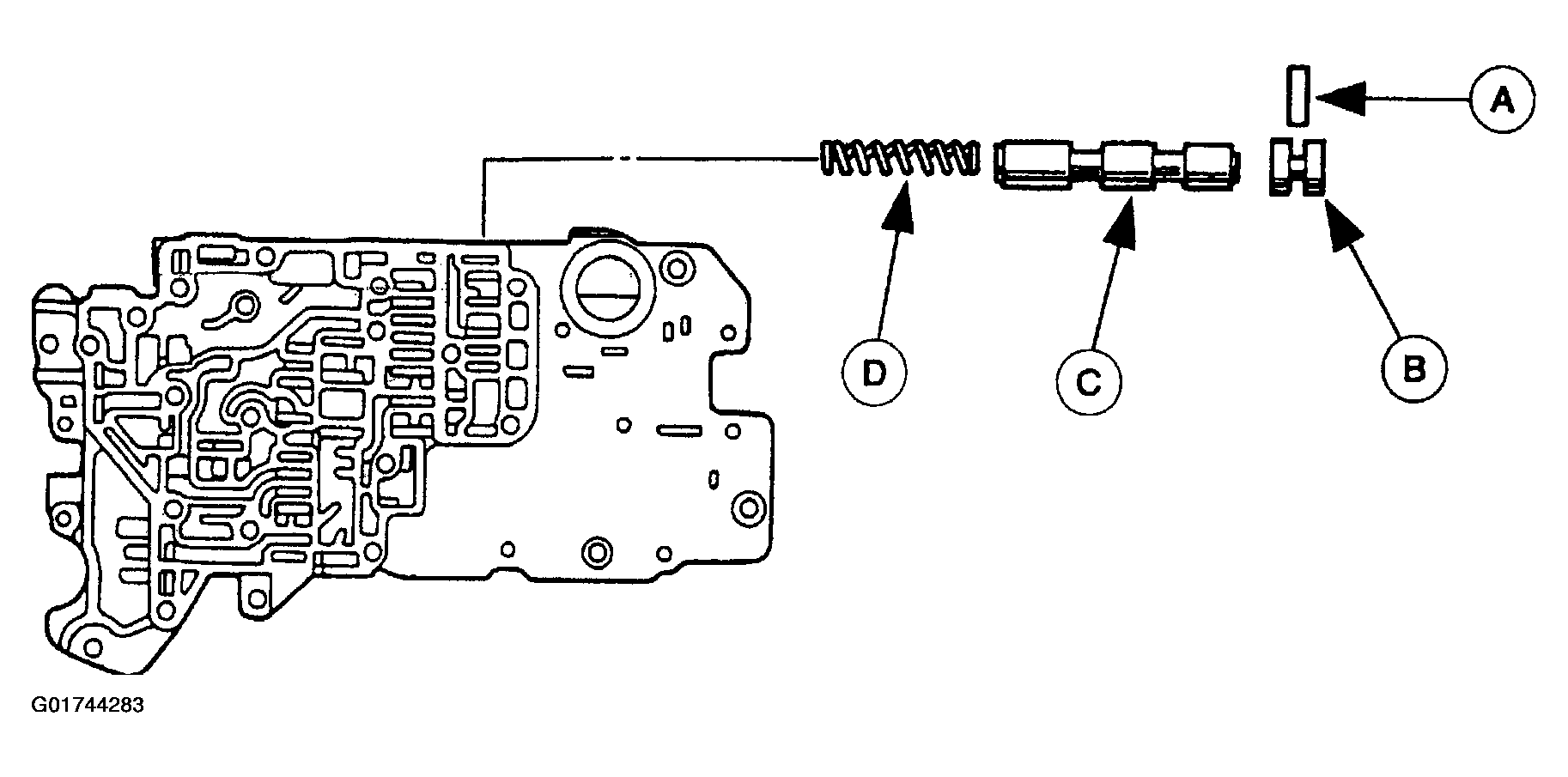

Fig 6: Installing 2-3 Shift Valve Spring, Bypass Valve, Stop Plug & Stop Pin

Courtesy of FORD MOTOR CO.

Install the (D) 2-3 shift valve spring, (C) bypass valve, (B) stop plug, and the (A) stop pin.

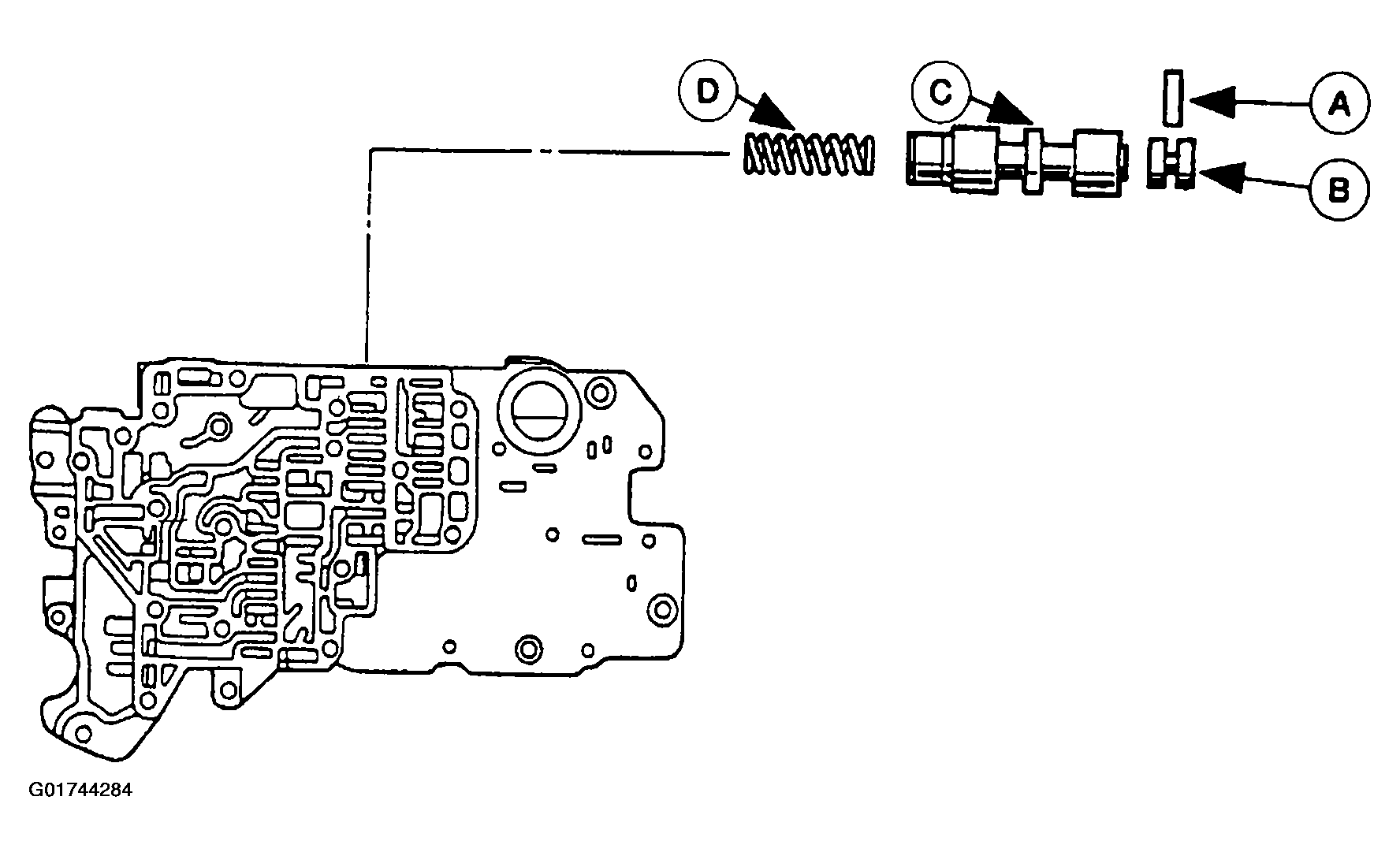

Fig 7: Installing Bypass Valve Spring, 2-3 Shift Valve, Stop Plug, & Stop Pin

Courtesy of FORD MOTOR CO.

Install the (D) bypass valve spring, (C) 2-3 shift valve, (B) stop plug, and the (A) stop pin.
