Torque Converter Stator Support: Notes

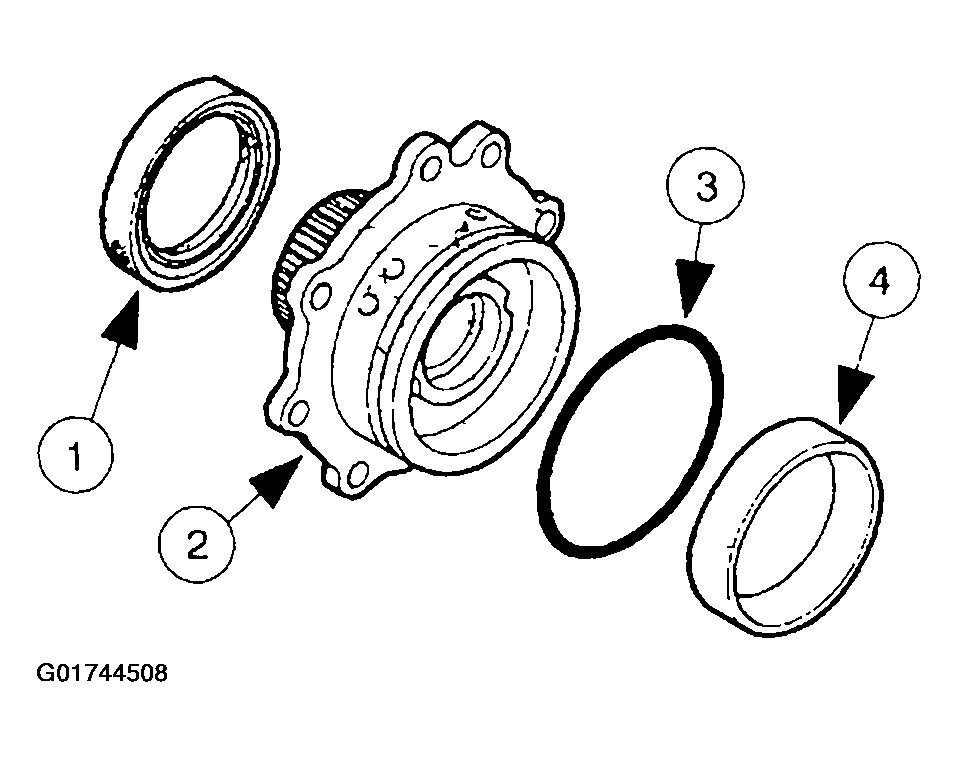

Fig 1: Identifying Torque Converter Stator Support Components
G01744508Courtesy of FORD MOTOR CO.

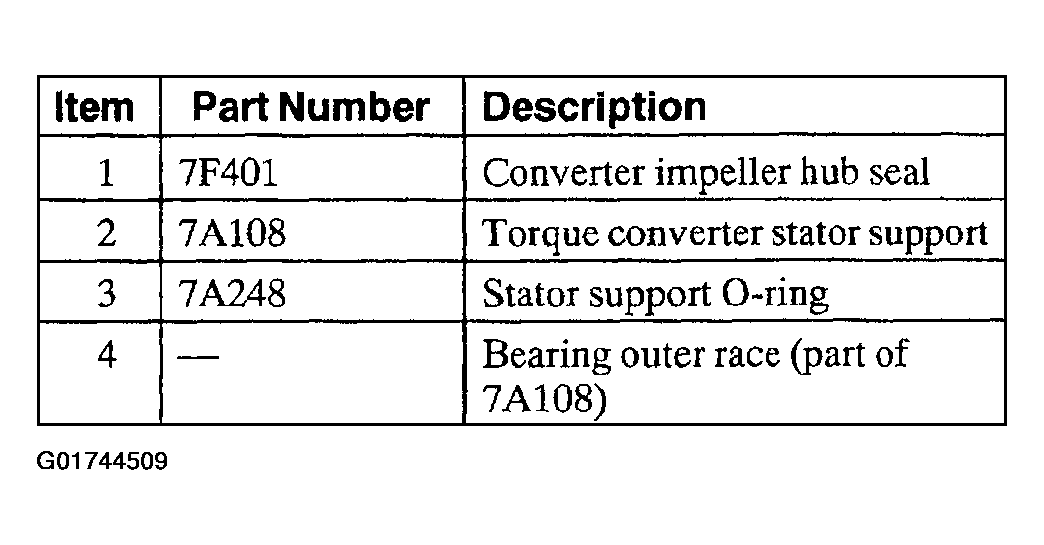

Fig 2: Torque Converter Stator Support Legend
G01744509Courtesy of FORD MOTOR CO.
