Pinpoint Test P: The Temperature Controls Do Not Operate Using The Front/Rear Auxiliary Climate Controls

WARNING: This page is about a different car, the 2002 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

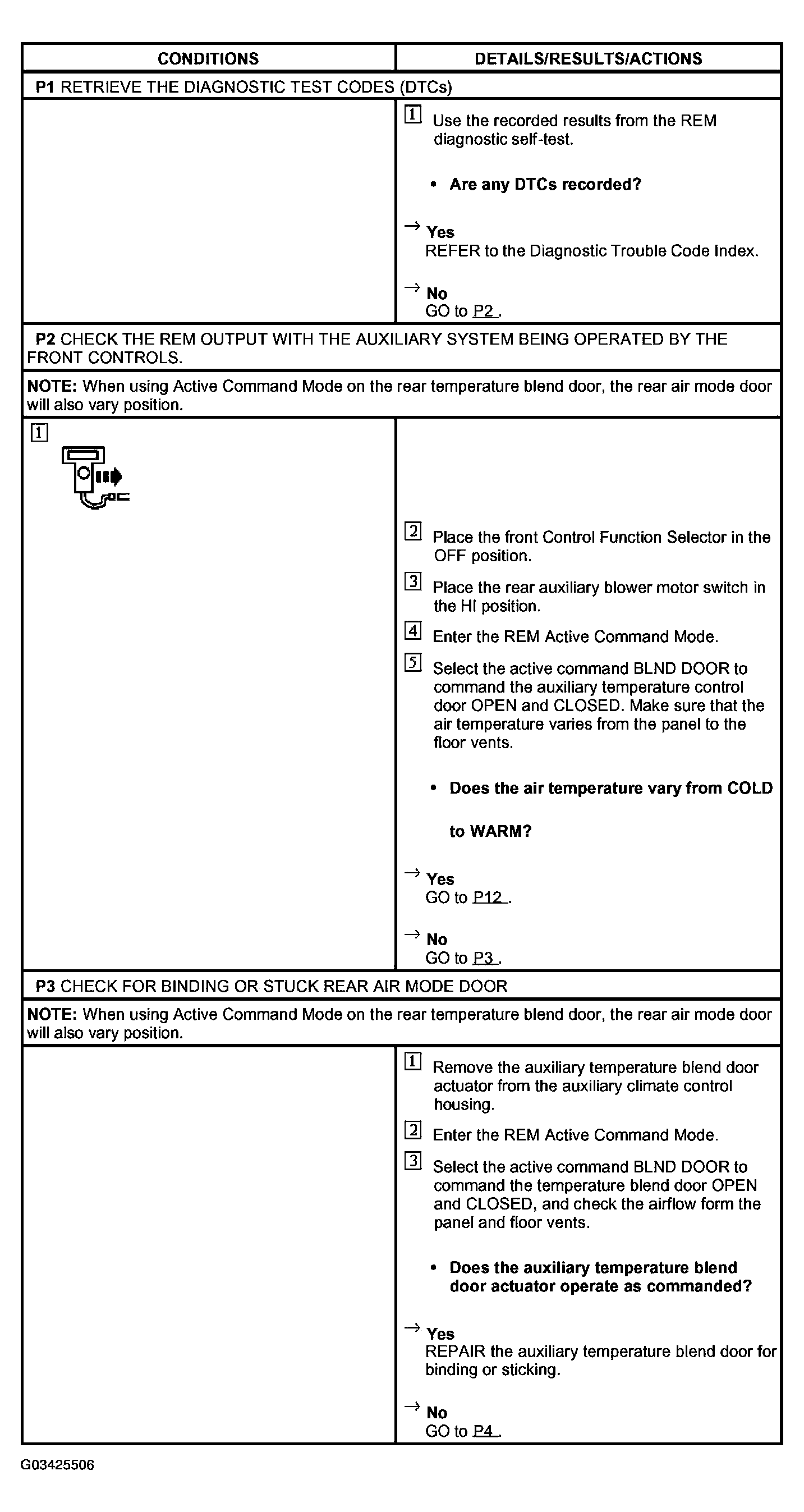

Fig 1: Pinpoint Test P: Temperature Controls Not Operate Using Front/Rear Auxiliary Climate Controls (P1-P3)

Courtesy of FORD MOTOR CO.

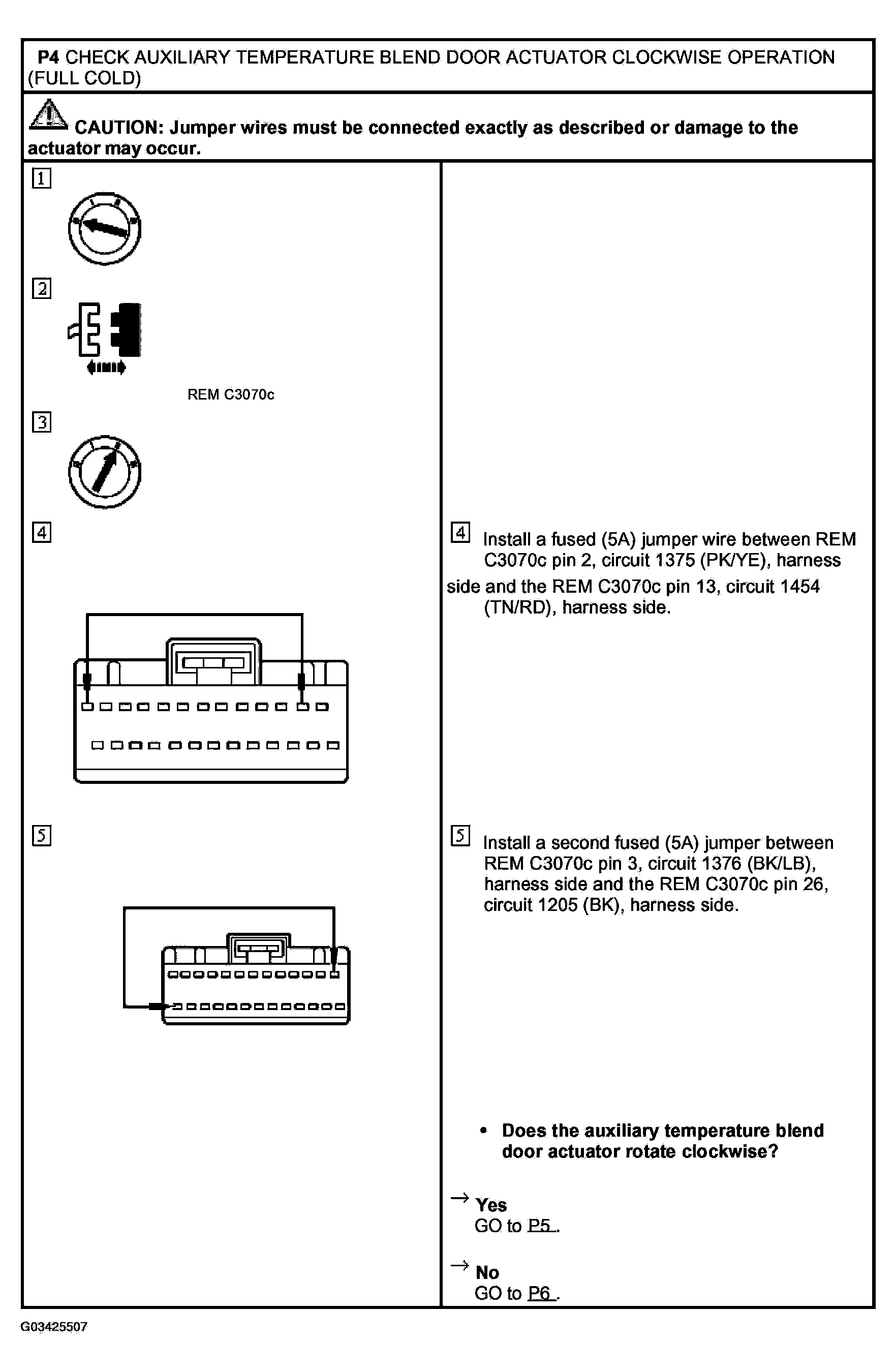

Fig 2: Pinpoint Test P: Temperature Controls Not Operate Using Front/Rear Auxiliary Climate Controls (P4)

Courtesy of FORD MOTOR CO.

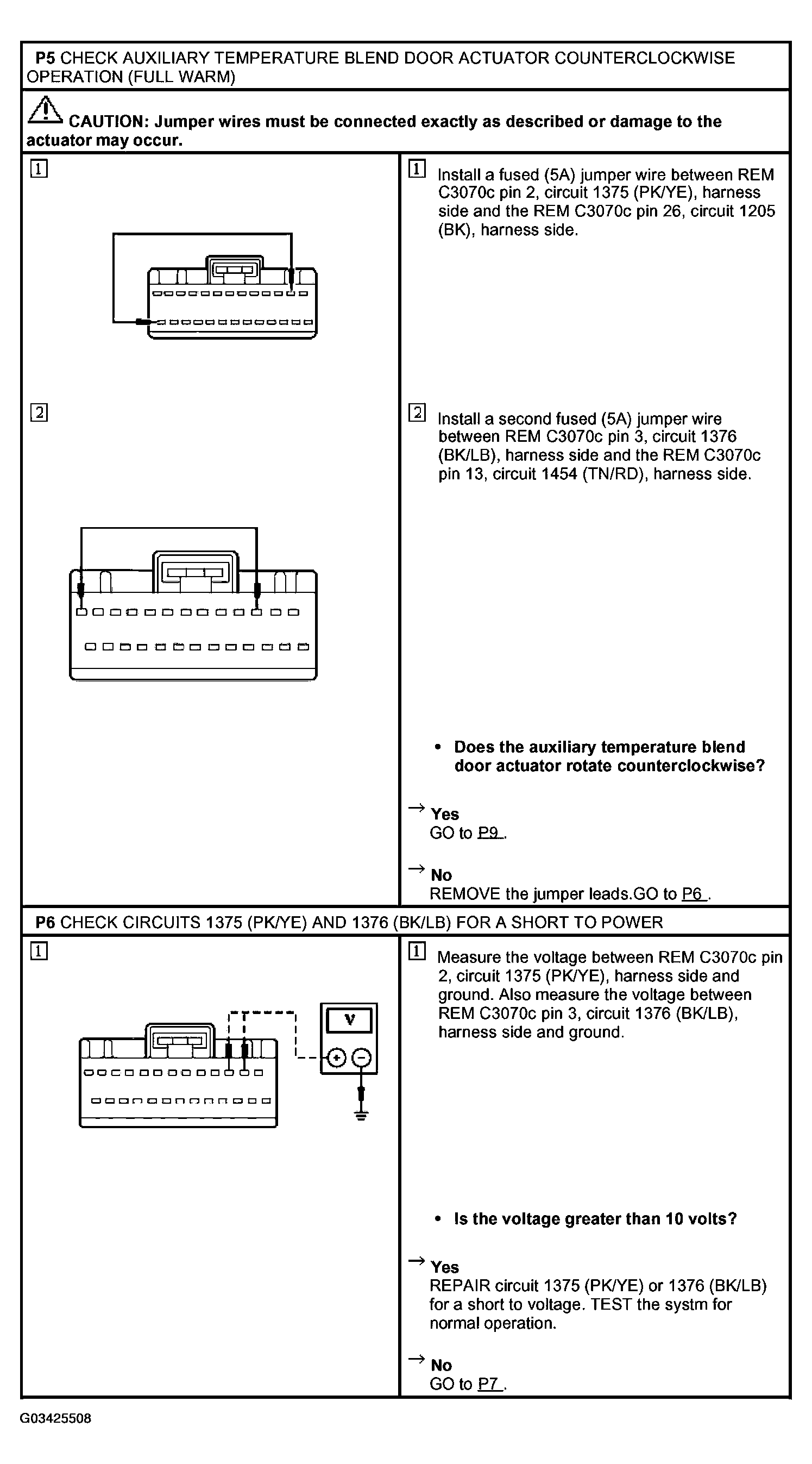

Fig 3: Pinpoint Test P: Temperature Controls Not Operate Using Front/Rear Auxiliary Climate Controls (P5 & P6)

Courtesy of FORD MOTOR CO.

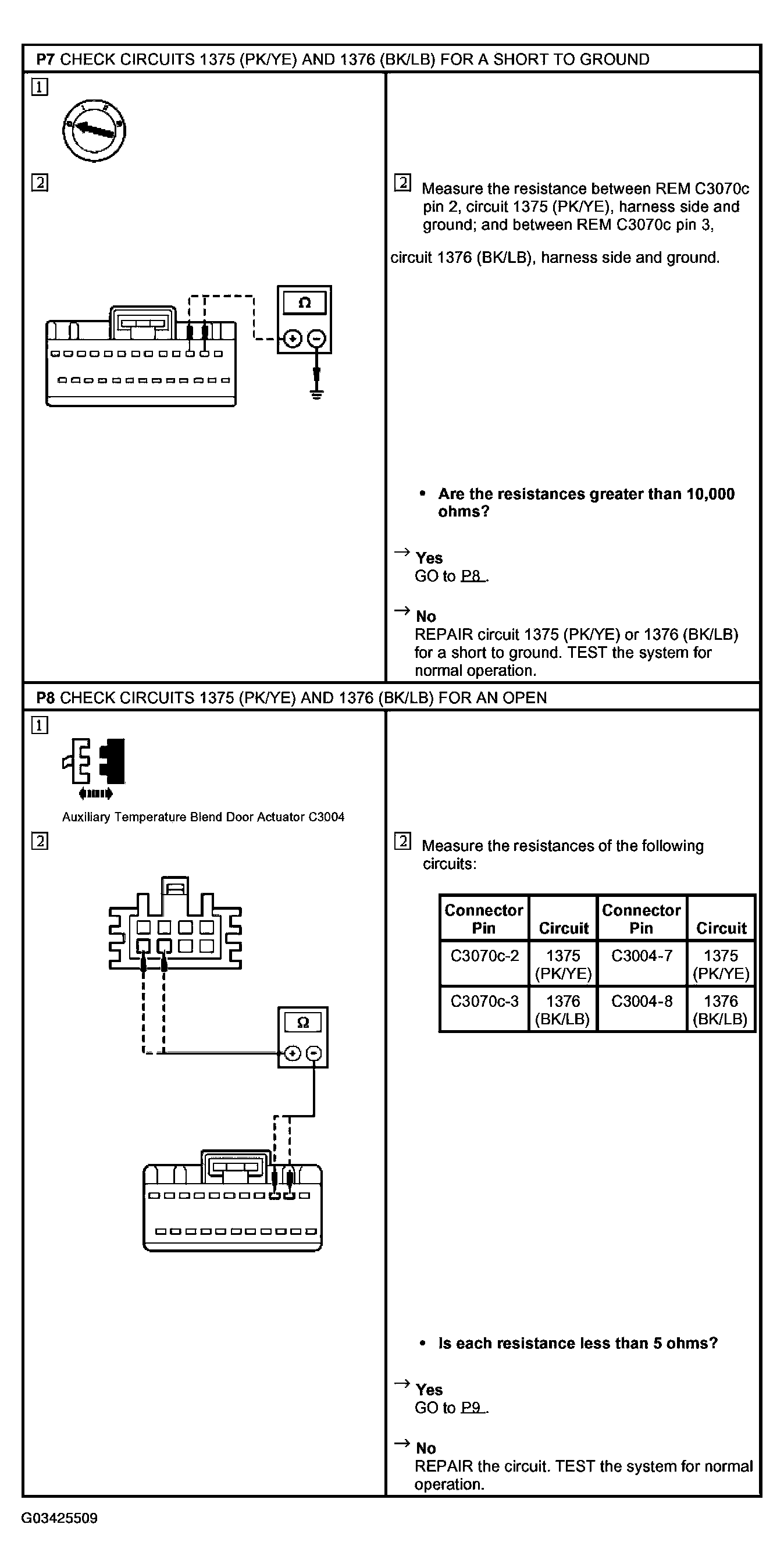

Fig 4: Pinpoint Test P: Temperature Controls Not Operate Using Front/Rear Auxiliary Climate Controls (P7 & P8)

Courtesy of FORD MOTOR CO.

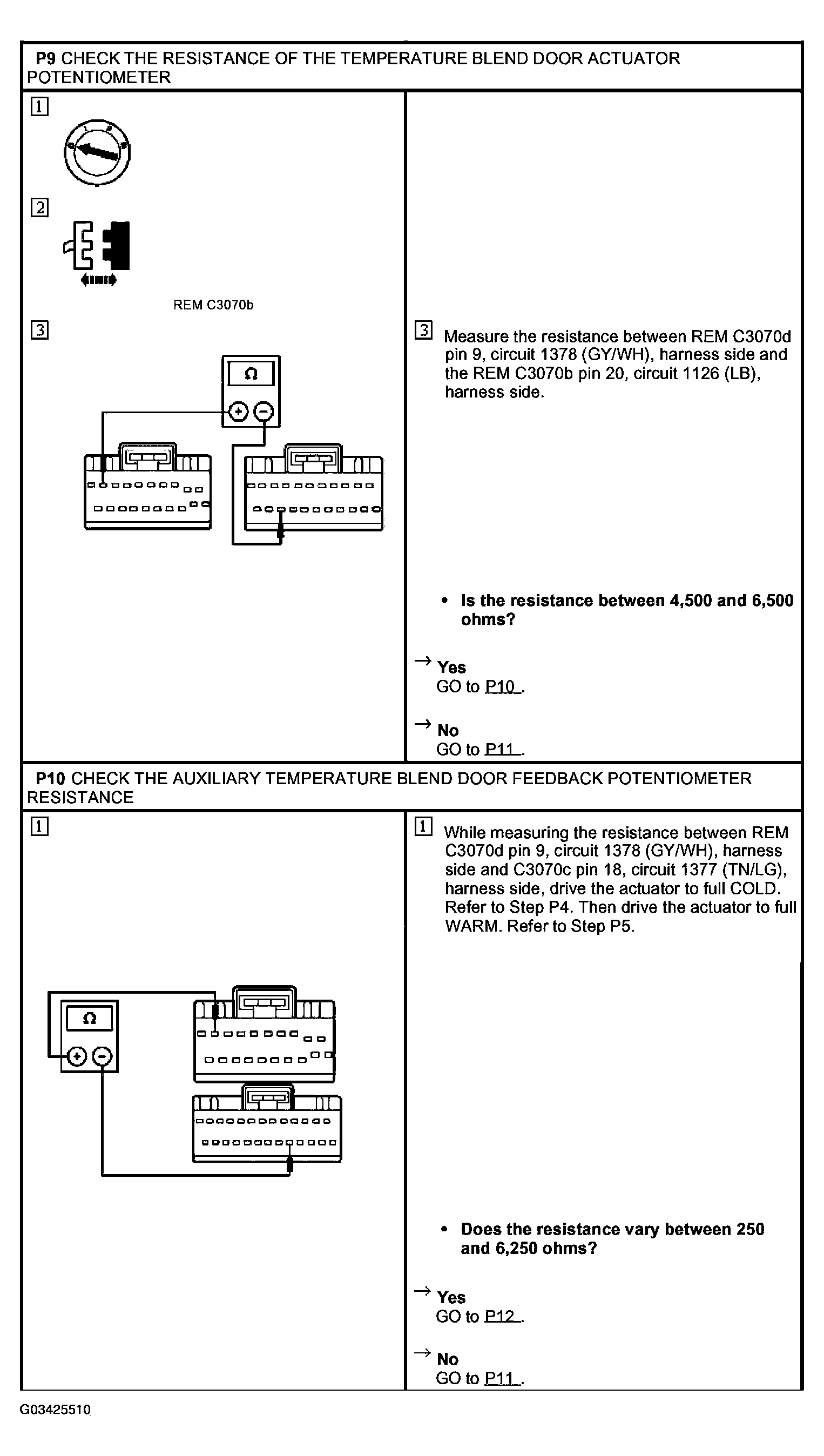

Fig 5: Pinpoint Test P: Temperature Controls Not Operate Using Front/Rear Auxiliary Climate Controls (P9 & P10)

Courtesy of FORD MOTOR CO.

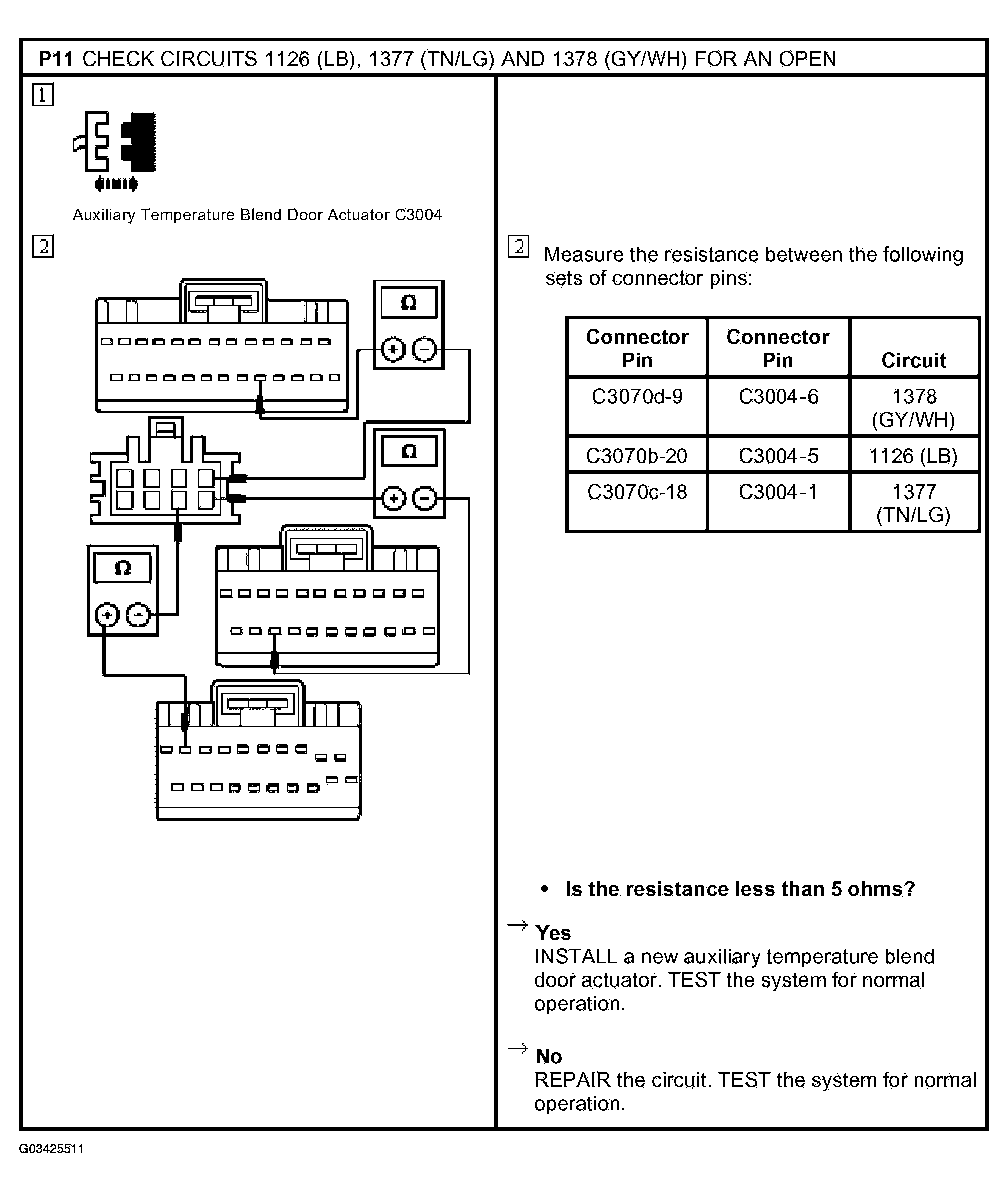

Fig 6: Pinpoint Test P: Temperature Controls Not Operate Using Front/Rear Auxiliary Climate Controls (P11)

Courtesy of FORD MOTOR CO.

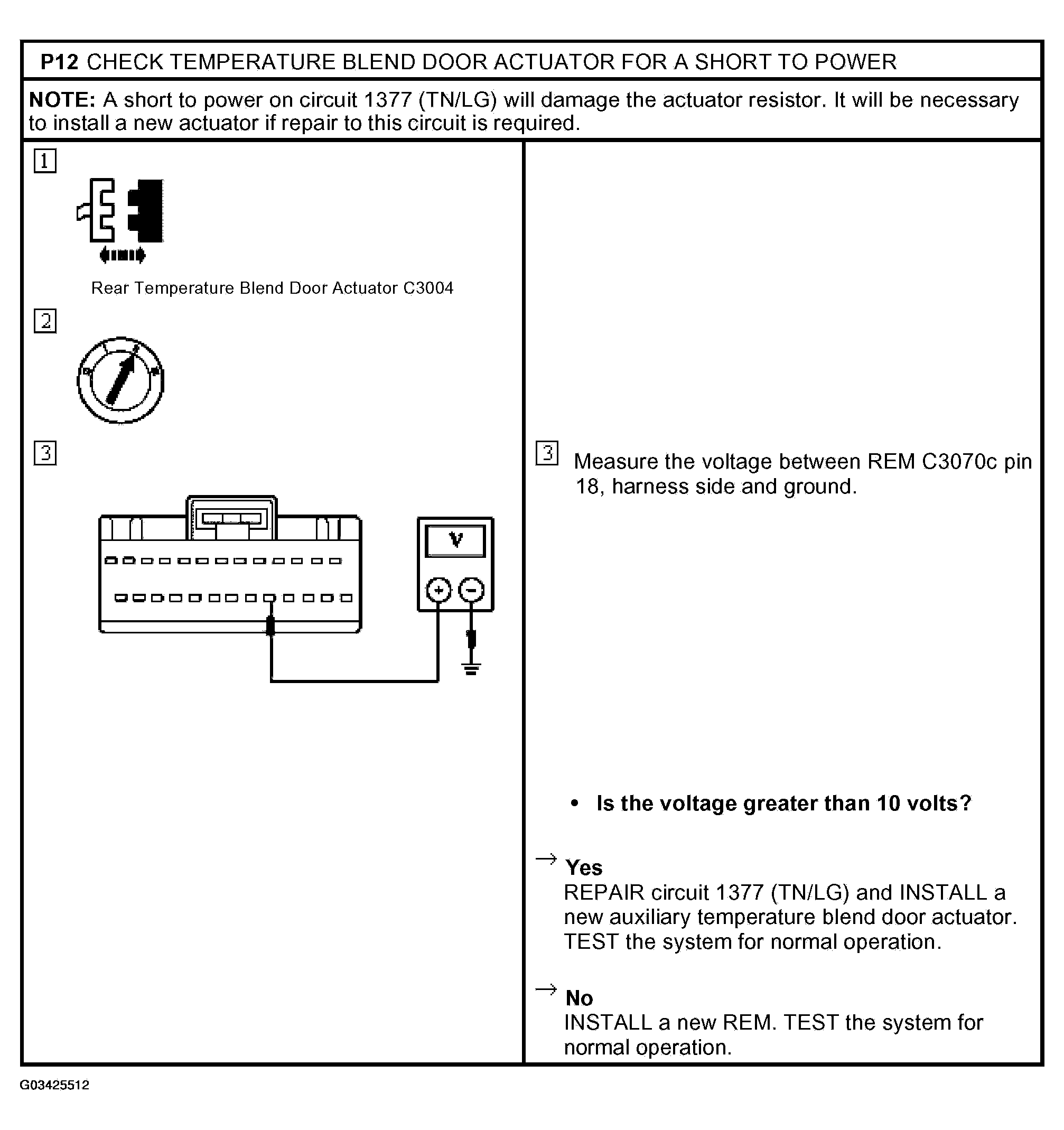

Fig 7: Pinpoint Test P: Temperature Controls Not Operate Using Front/Rear Auxiliary Climate Controls (P12)

Courtesy of FORD MOTOR CO.
