Pinpoint Test Q: The Panel/Floor And Cool/Warm Controls Do Not Operate Using The Front/Rear Auxiliary Controls

WARNING: This page is about a different car, the 2002 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

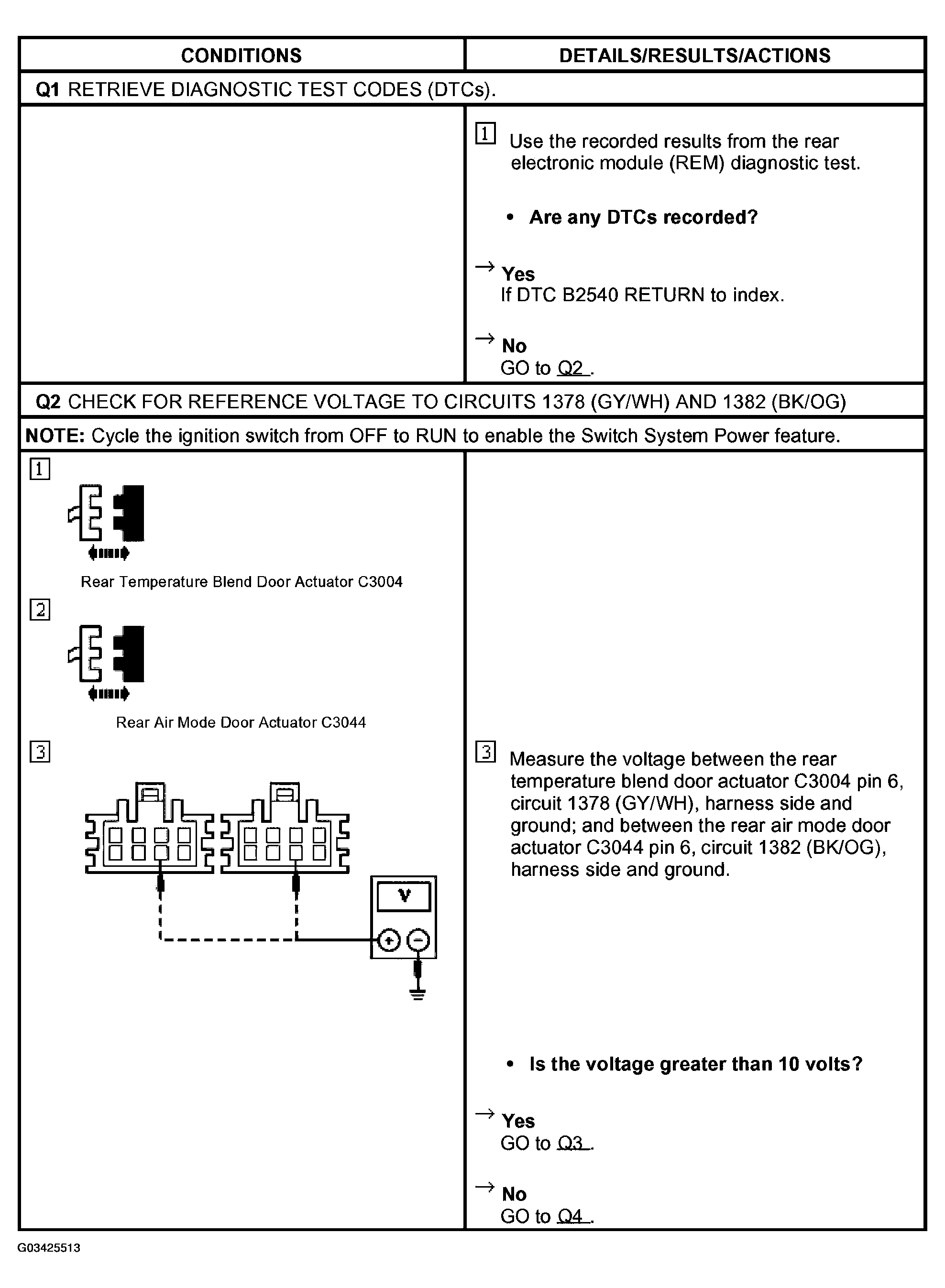

Fig 1: Pinpoint Test Q: Panel/Floor And Cool/Warm Controls Not Operating Using Front/Rear Auxiliary Controls (Q1 & Q2)

Courtesy of FORD MOTOR CO.

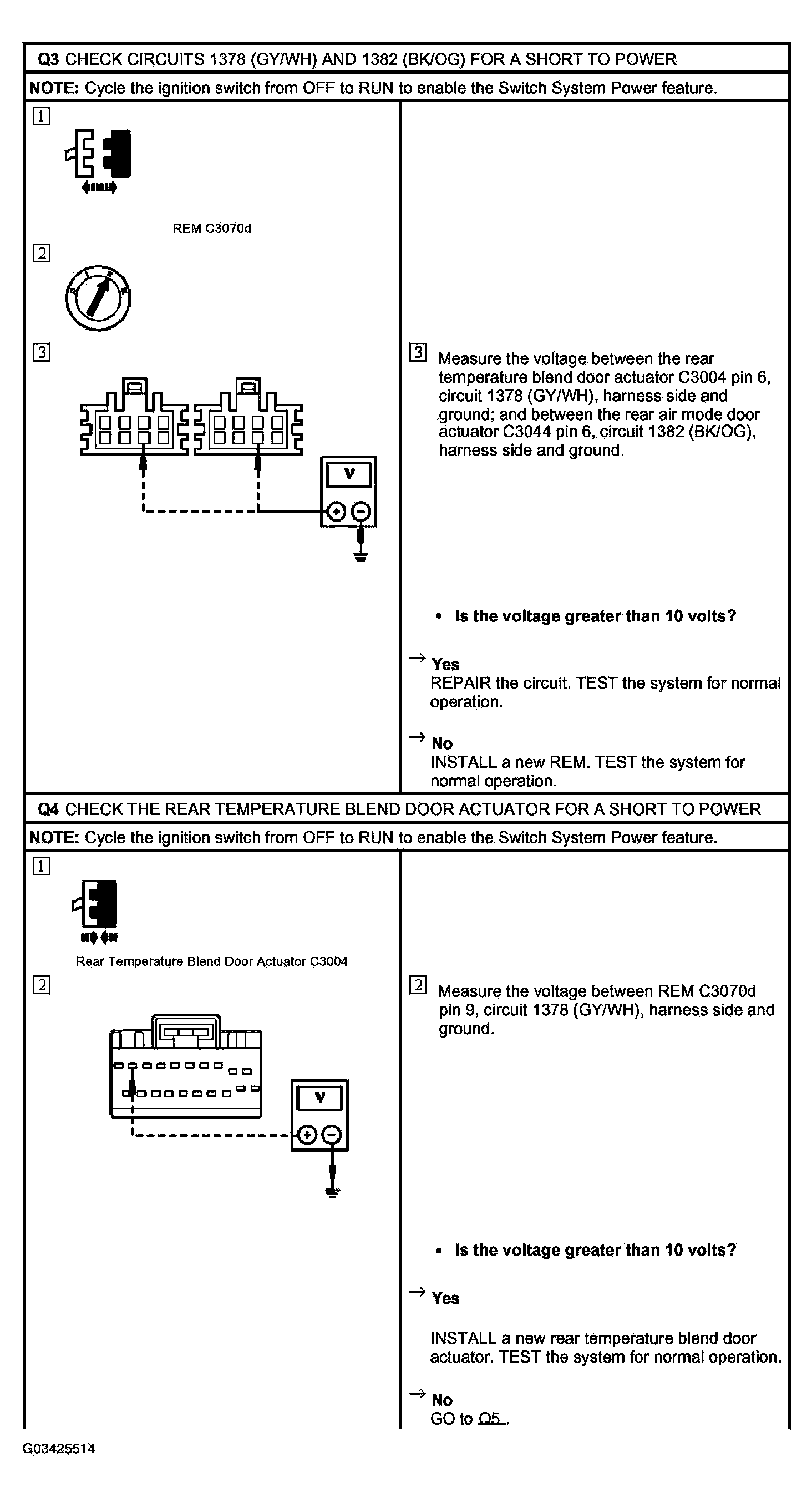

Fig 2: Pinpoint Test Q: Panel/Floor And Cool/Warm Controls Not Operating Using Front/Rear Auxiliary Controls (Q3 & Q4)

Courtesy of FORD MOTOR CO.

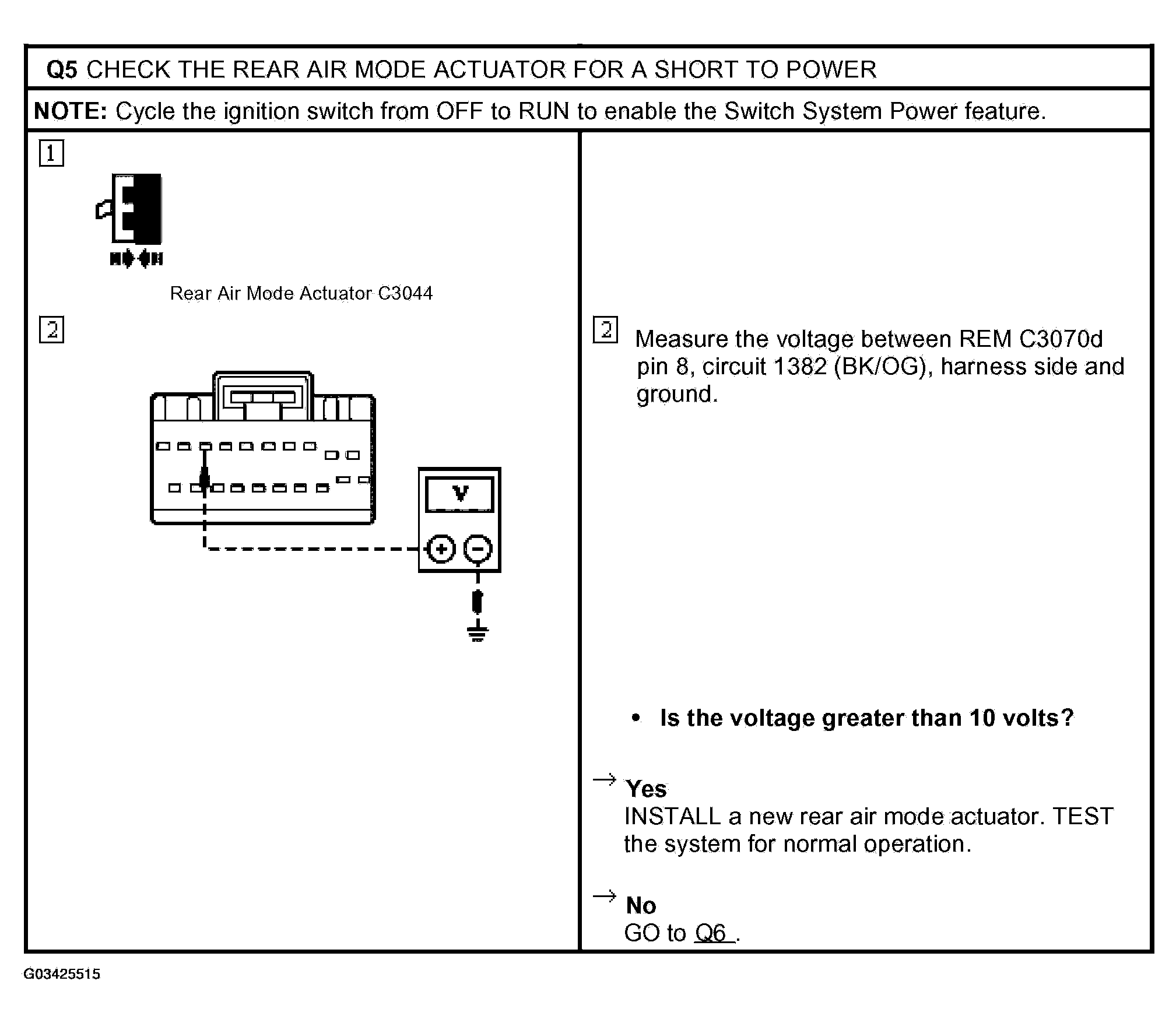

Fig 3: Pinpoint Test Q: Panel/Floor And Cool/Warm Controls Not Operating Using Front/Rear Auxiliary Controls (Q5)

Courtesy of FORD MOTOR CO.

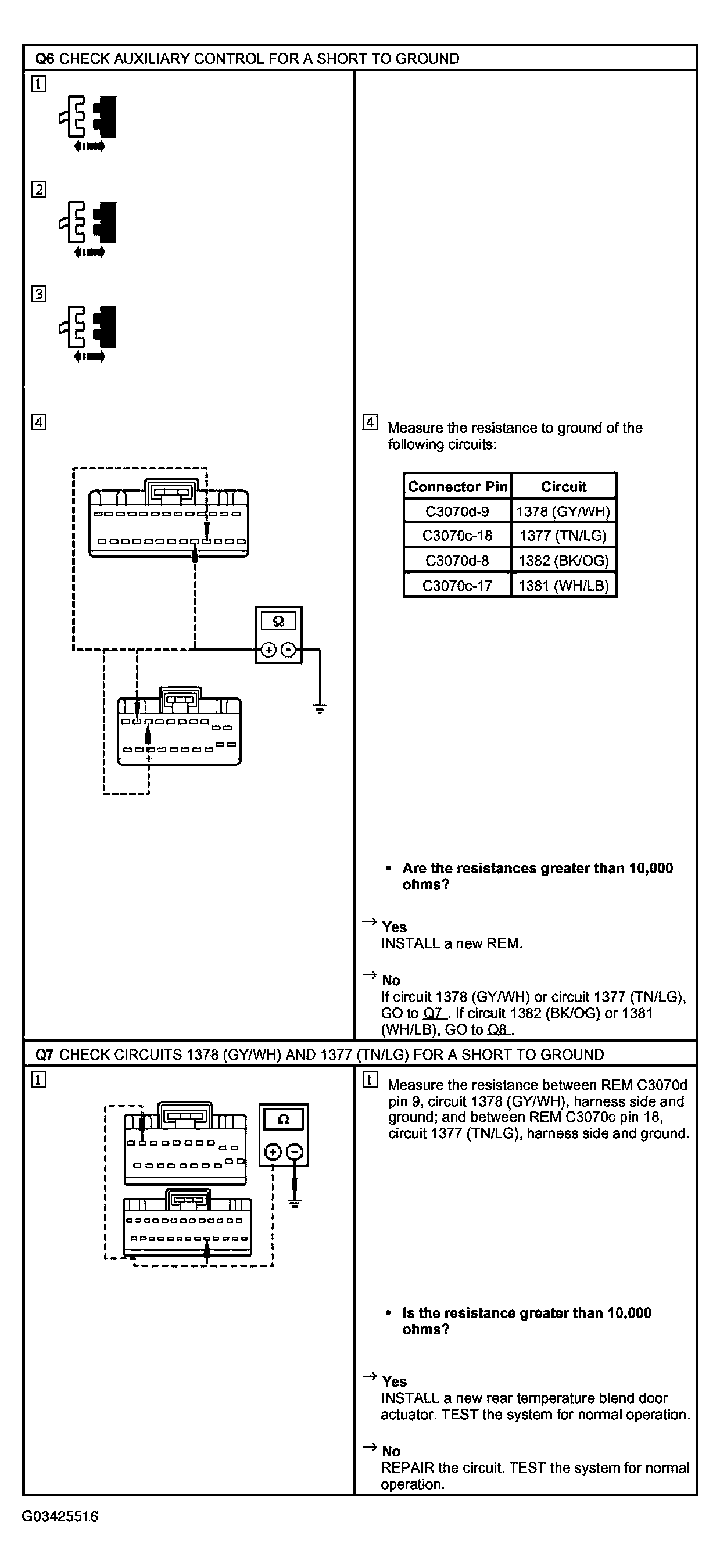

Fig 4: Pinpoint Test Q: Panel/Floor And Cool/Warm Controls Not Operating Using Front/Rear Auxiliary Controls (Q6 & Q7)

Courtesy of FORD MOTOR CO.

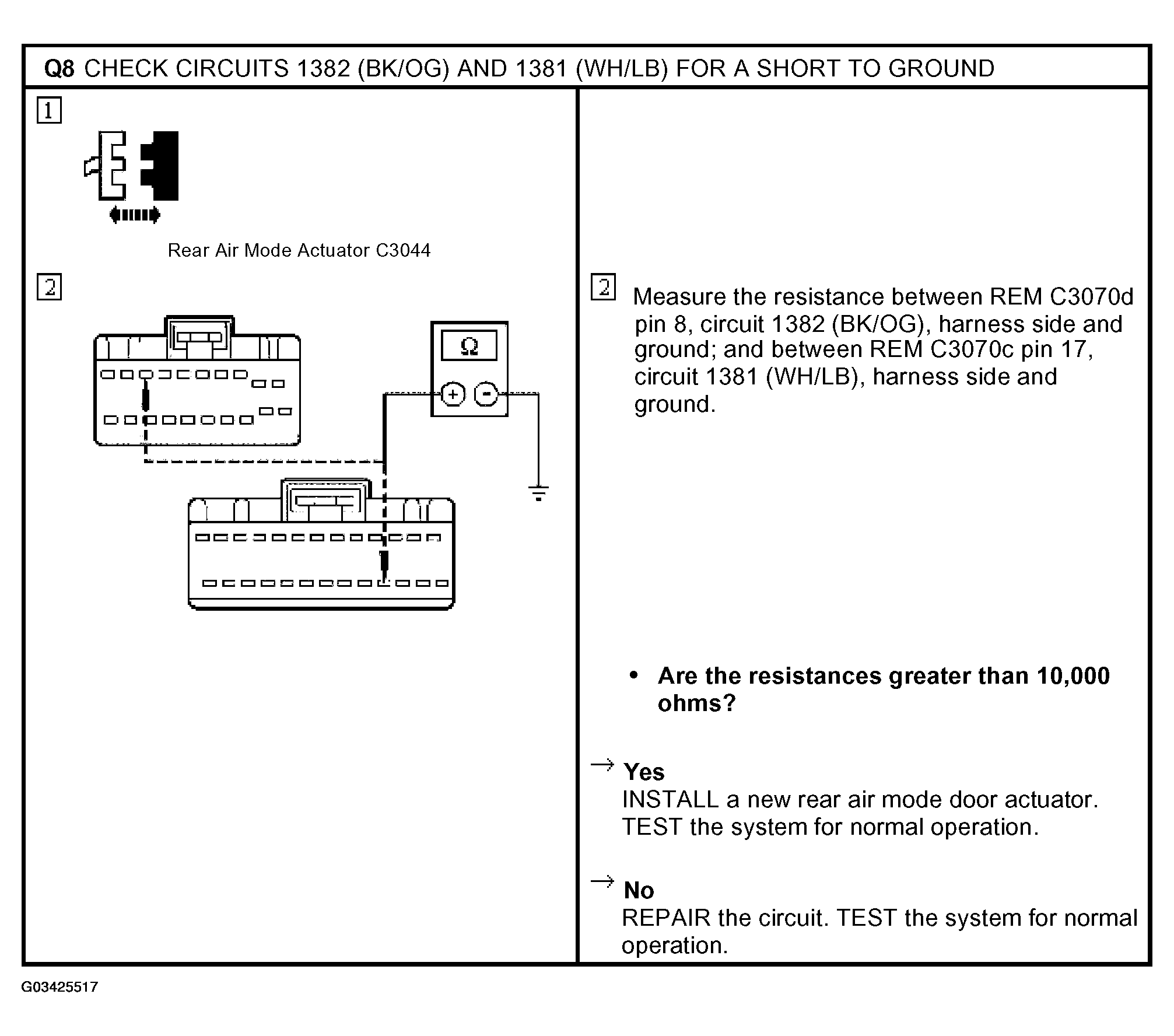

Fig 5: Pinpoint Test Q: Panel/Floor And Cool/Warm Controls Not Operating Using Front/Rear Auxiliary Controls (Q8)

Courtesy of FORD MOTOR CO.
