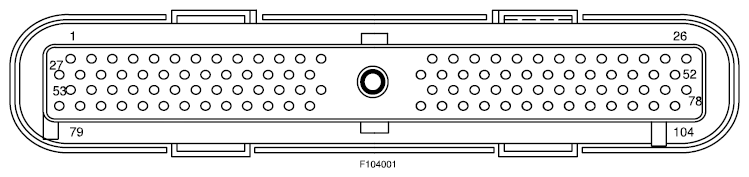

| 1 |
1025 (OG/YE) |
Coil On Plug (COP) 6 (12029), control |
| 2 |
658 (PK/LG) |
Malfunction Indicator Lamp (MIL), control |
| 3 |
570 (BK/WH) |
Ground |
| 4 |
... |
not used |
| 5 |
... |
not used |
| 6 |
237 (OG/YE) |
Shift solenoid A |
| 7 |
... |
not used |
| 8 |
... |
not used |
| 9 |
29 (YE/WH) |
Fuel pump/fuel gauge sender |
| 10 |
... |
not used |
| 11 |
315 (VT/OG) |
Shift solenoid B |
| 12 |
911 (WH/LG) |
Transmission Control Indicator Lamp (TCIL) |
| 13 |
107 (VT) |
Module programming signal |
| 14 |
... |
not used |
| 15 |
915 (PK/LB) |
SCP Bus... |
| 16 |
914 (TN/OG) |
SCP Bus + |
| 17 |
... |
not used |
| 18 |
... |
not used |
| 19 |
... |
not used |
| 20 |
1907 (WH/LG) |
Instrument cluster |
| 21 |
138 (BK/PK) |
Powertrain Control Module (PCM) (12A650) + |
| 22 |
139 (GY/YE) |
Powertrain Control Module (PCM) (12A650)... |
| 23 |
... |
not used |
| 24 |
... |
not used |
| 25 |
57 (BK) |
Ground |
| 26 |
1024 (LG/WH) |
Coil On Plug (COP) 1 (12029), control |
| 27 |
1021 (LG/YE) |
Coil On Plug (COP) 5 (12029), control |
| 28 |
229 (RD/OG) |
Engine cooling fan relay, control |
| 29 |
224 (TN/WH) |
PCM, to transmission overdrive cancel switch |
| 30 |
... |
not used |
| 31 |
... |
not used |
| 32 |
... |
not used |
| 33 |
676 (PK/OG) |
Vehicle Speed Sensor (VSS)... |
| 34 |
1144 (YE/BK) |
Digital Transmission Range (DTR) sensor, TR1 |
| 35 |
392 (RD/LG) |
Heated Oxygen Sensor (HO2S) #12 (9G444), input |
| 36 |
968 (TN/LB) |
Mass Air Flow (MAF) sensor (12B579), signal, return |
| 37 |
923 (OG/BK) |
Transmission Fluid Temperature (TFT) sensor, input |
| 38 |
... |
not used |
| 39 |
743 (GY) |
Intake Air Temperature (IAT) sensor (12A697), input |
| 40 |
238 (DG/YE) |
Fuel pump relay, switched power, output |
| 41 |
347 (BK/YE) |
A/C high pressure switch (19D594) |
| 42 |
39 (RD/WH) |
Engine Coolant Temperature (ECT) sender, input |
| 43 |
205 (DG/LG) |
Instrument cluster |
| 44 |
... |
not used |
| 45 |
1270 (OG/RD) |
Engine cooling, indicator, signal |
| 46 |
639 (LG/VT) |
High speed cooling fan relay, control |
| 47 |
360 (BN/PK) |
EGR Vacuum Regulator (EVR), control |
| 48 |
... |
not used |
| 49 |
1145 (LB/BK) |
Digital Transmission Range (DTR) sensor, TR2 |
| 50 |
1143 (WH/BK) |
Digital Transmission Range (DTR) sensor, TR4 |
| 51 |
570 (BK/WH) |
Ground |
| 52 |
1028 (WH/PK) |
Coil On Plug (COP) 3 (12029), control |
| 53 |
1030 (DG/VT) |
Coil On Plug (COP) 4 (12029), control |
| 54 |
126 (VT/YE) |
Torque Converter Clutch (TCC) solenoid |
| 55 |
554 (YE/BK) |
Voltage supplied at all times (overload protected) |
| 56 |
191 (LG/BK) |
Powertrain Control Module (PCM) (12A650), Vapor management valve |
| 57 |
- |
not used |
| 58 |
679 (GY/BK) |
Vehicle Speed Sensor (VSS) + |
| 59 |
- |
not used |
| 60 |
74 (OG/LG) |
Heated Oxygen Sensor (HO2S) #11 (9F472), input |
| 61 |
393 (VT/LG) |
Heated Oxygen Sensor (HO2S) #22 (9G444), input |
| 62 |
791 (RD/PK) |
Fuel tank pressure transducer sensor (9C968) |
| 225 (BK/YE) |
Cylinder-head temperature sensor (6G004), signal - Natural Gas Vehicle (NGV) |
| 63 |
141 (RD/PK) |
Injector pressure sensor, except 1, 9 TDI unit injector engine - Natural Gas Vehicle (NGV) |
| 64 |
199 (LB/YE) |
Digital Transmission Range (DTR) sensor, TR3A |
| 65 |
352 (BN/LG) |
Differential Pressure Feedback EGR (DPFE) sensor, input |
| 66 |
1102 (YE/LG) |
Cylinder-head temperature sensor (6G004), to, Powertrain Control Module (PCM) (12A650) |
| 67 |
91 (VT/WH) |
Canister vent |
| 68 |
- |
not used |
| 69 |
331 (PK/YE) |
A/C clutch relay, control |
| 70 |
- |
not used |
| 71 |
361 (RD) |
Voltage supplied in Start and Run (overload protected) |
| 72 |
561 (TN/RD) |
Fuel injector 7, control |
| 73 |
559 (TN/BK) |
Fuel injector 5, control |
| 74 |
557 (BN/YE) |
Fuel injector 3, control |
| 75 |
555 (TN) |
Fuel injector 1, control |
| 76 |
- |
not used |
| 77 |
570 (BK/WH) |
Ground |
| 78 |
1027 (PK/LB) |
Coil On Plug (COP) 7 (12029), control |
| 79 |
1029 (WH/RD) |
Coil On Plug (COP) 8 (12029), control |
| 80 |
926 (LB/OG) |
Fuel pump relay, control |
| 81 |
925 (WH/LB) |
Electronic Pressure Control (EPC) solenoid |
| 82 |
- |
not used |
| 83 |
264 (WH/LB) |
Idle Air Control (IAC) valve (9F715), control |
| 84 |
136 (DB/YE) |
Output Shaft Speed (OSS) sensor (7H103) |
| 85 |
282(DB/OG) |
Camshaft position sensor (6B288), input |
| 86 |
1154 (WH/BK) |
A/C high pressure switch (19D594) |
| 87 |
94 (RD/BK) |
Heated Oxygen Sensor (HO2S) #21 (9F472), input |
| 88 |
967 (LB/RD) |
Mass Air Flow (MAF) sensor (12B579), output |
| 89 |
355 (GY/WH) |
Throttle Position Sensor (TPS) (9B989), input |
| 90 |
351 (BN/WH) |
Reference, voltage |
| 91 |
359 (GY/RD) |
signal, return |
| 92 |
511 (LG) |
Brake pedal position switch (13480), to stoplamps |
| 93 |
387 (RD/WH) |
Heated Oxygen Sensor (HO2S) #11 (9F472), heater |
| 94 |
388 (YE/LB) |
Heated Oxygen Sensor (HO2S) #21 (9F472), heater |
| 95 |
389 (WH/BK) |
Heated Oxygen Sensor (HO2S) #12 (9G444), heater |
| 96 |
390 (TN/YE) |
Heated Oxygen Sensor (HO2S) #22 (9G444), heater |
| 97 |
- |
not used |
| 98 |
562 (LB) |
Fuel injector 8, control |
| 99 |
560 (LG/OG) |
Fuel injector 6, control |
| 100 |
558 (BN/LB) |
Fuel injector 4, control |
| 101 |
556 (WH) |
Fuel injector 2, control |
| 102 |
- |
not used |
| 103 |
570 (BK/WH) |
Ground |
| 104 |
1026 |
Coil On Plug (COP) 2 (12029), control |
