Pinpoint Test F: No Communication With The Module - Anti-Lock Brake Control Module

CAUTION: The Flex Probe Kit must be used for all test connections. Use of standard multimeter probes may damage wiring terminals.

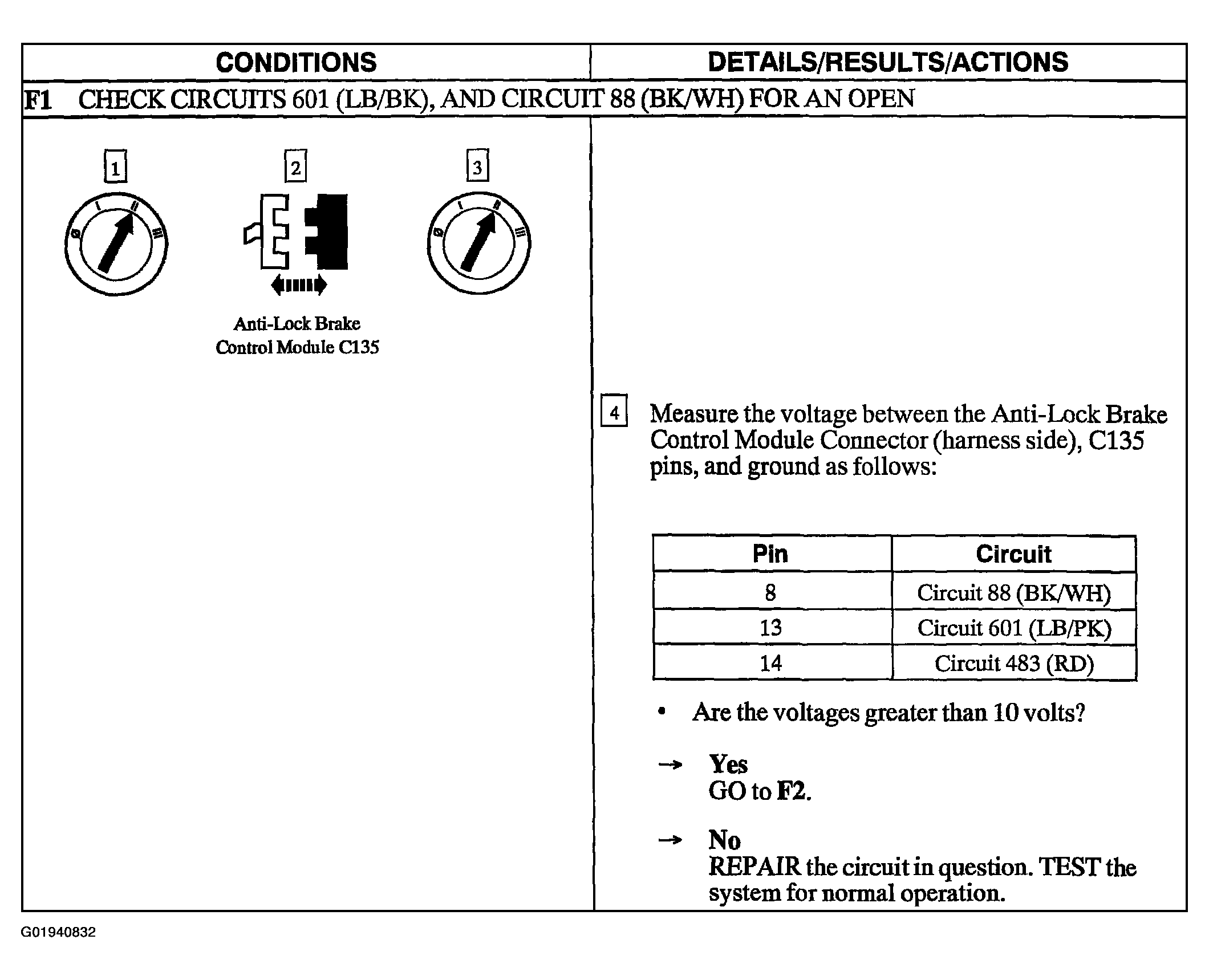

Fig 1: Pinpoint Test F: No Communication With The Module - Anti-Lock Brake Control Module (Step F1)

Courtesy of FORD MOTOR CO.

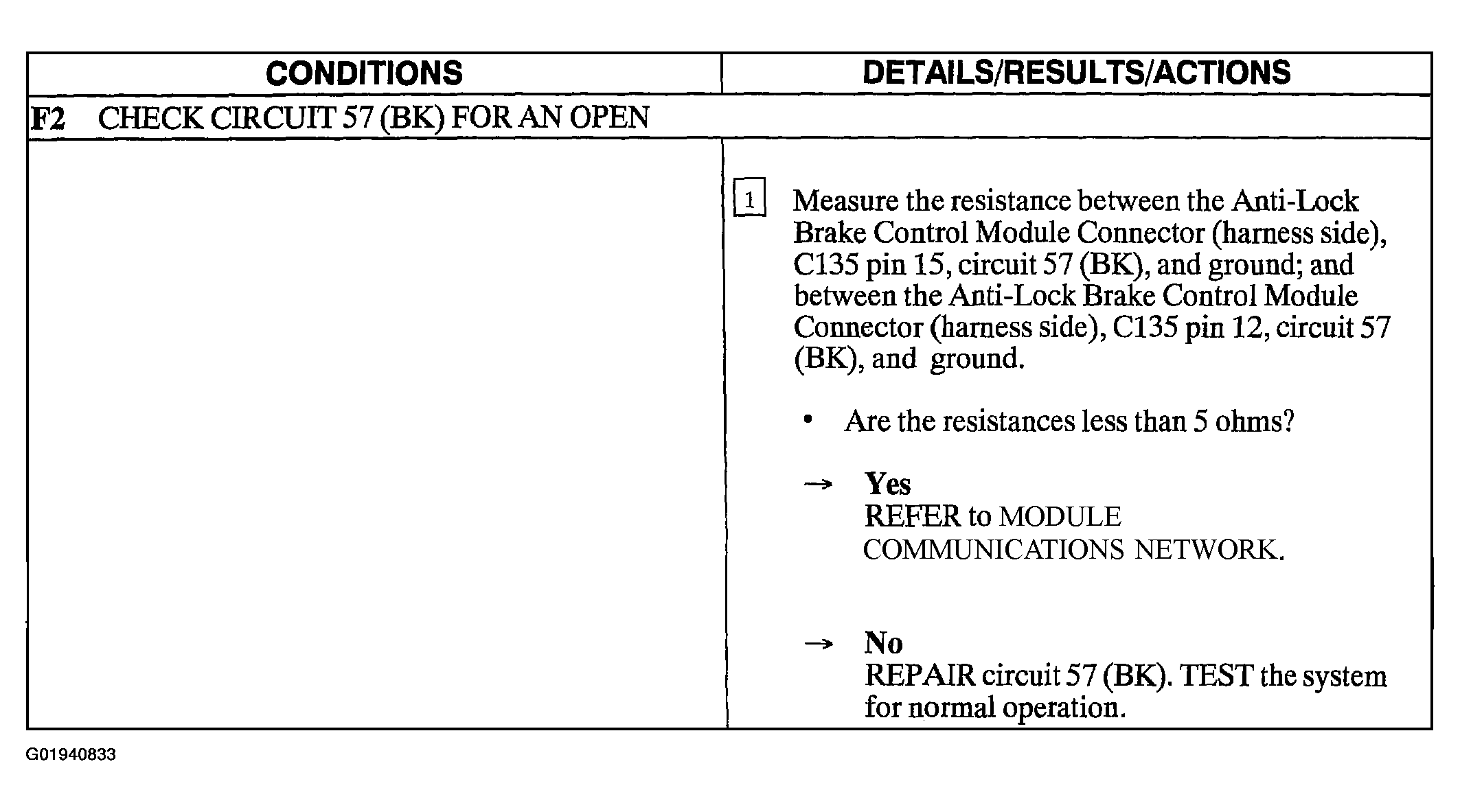

Fig 2: Pinpoint Test F: No Communication With The Module - Anti-Lock Brake Control Module (Step F2)

Courtesy of FORD MOTOR CO.
