Pinpoint Test B: No Communication With The Module-Unable To Perform On-Demand Self-Test On Lighting Control Module

WARNING: This page is about a different car, the 2002 Lincoln Continental. However, it is still accessible from the selected car via links, so may be relevant.

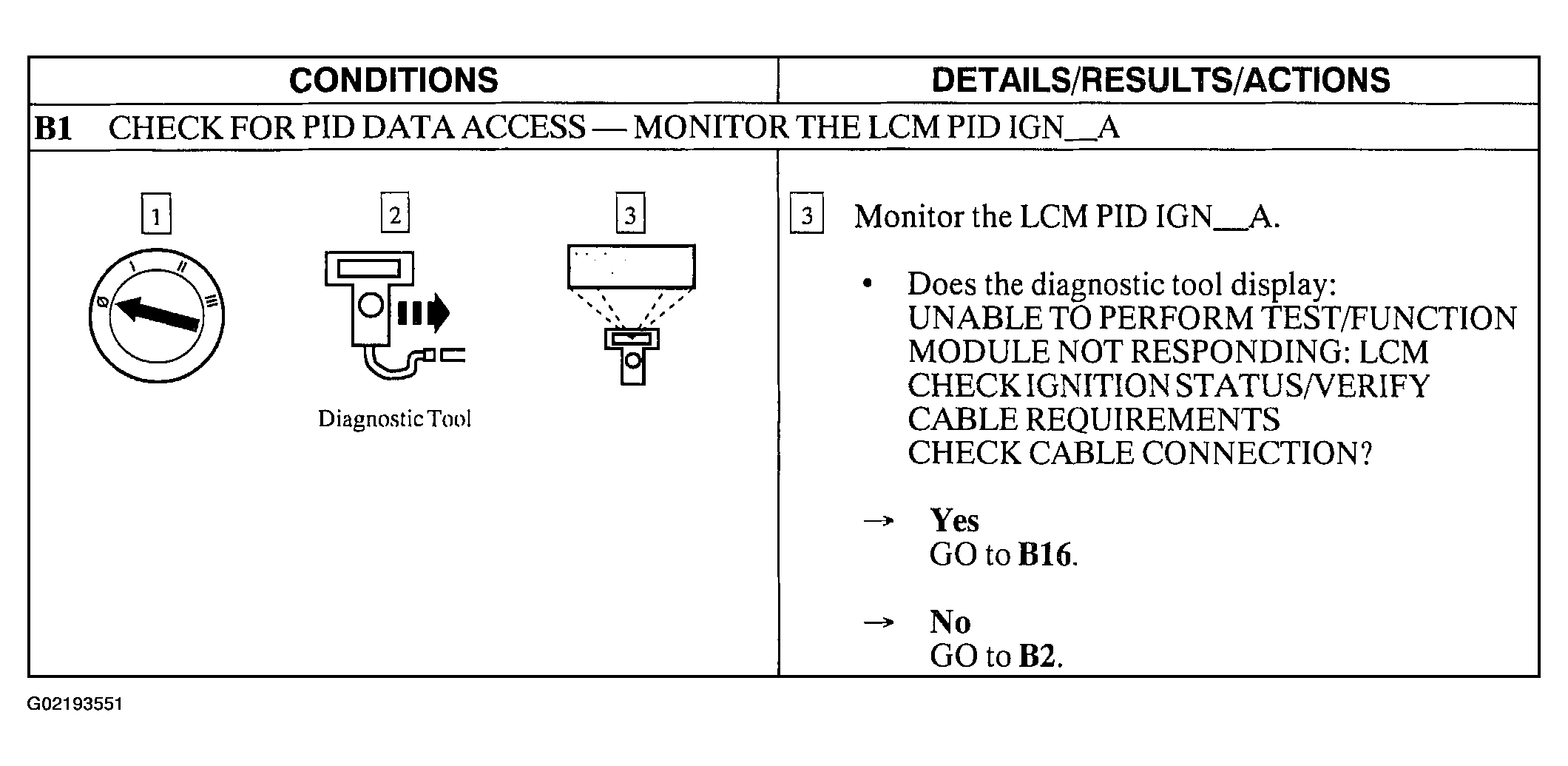

Fig 1: Pinpoint Test B: No Communication With The Module-Unable To Perform On-Demand Self-Test On Lighting Control Module (Step B1)

Courtesy of FORD MOTOR CO.

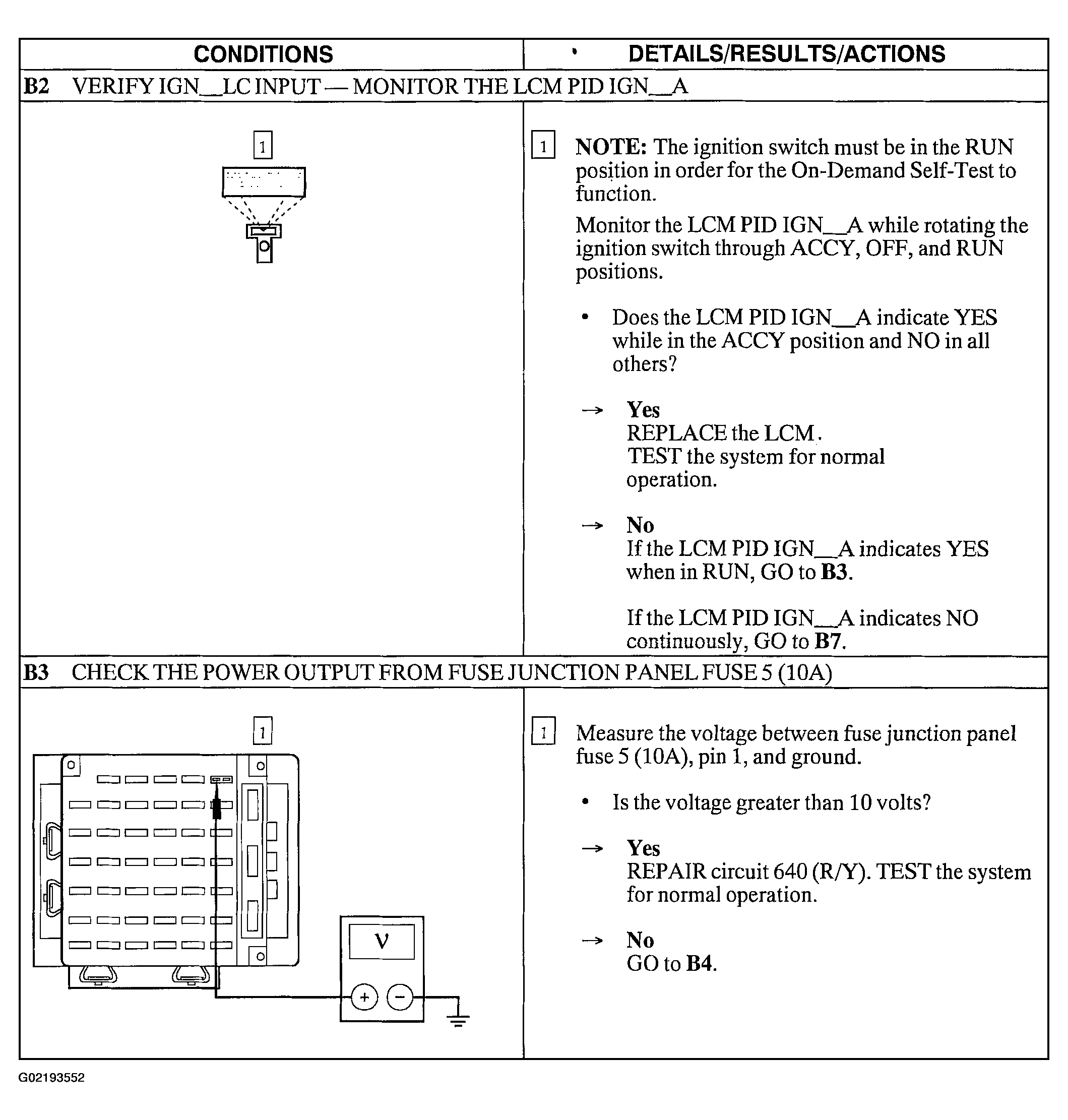

Fig 2: Pinpoint Test B: No Communication With The Module-Unable To Perform On-Demand Self-Test On Lighting Control Module (Steps B1 & B2)

Courtesy of FORD MOTOR CO.

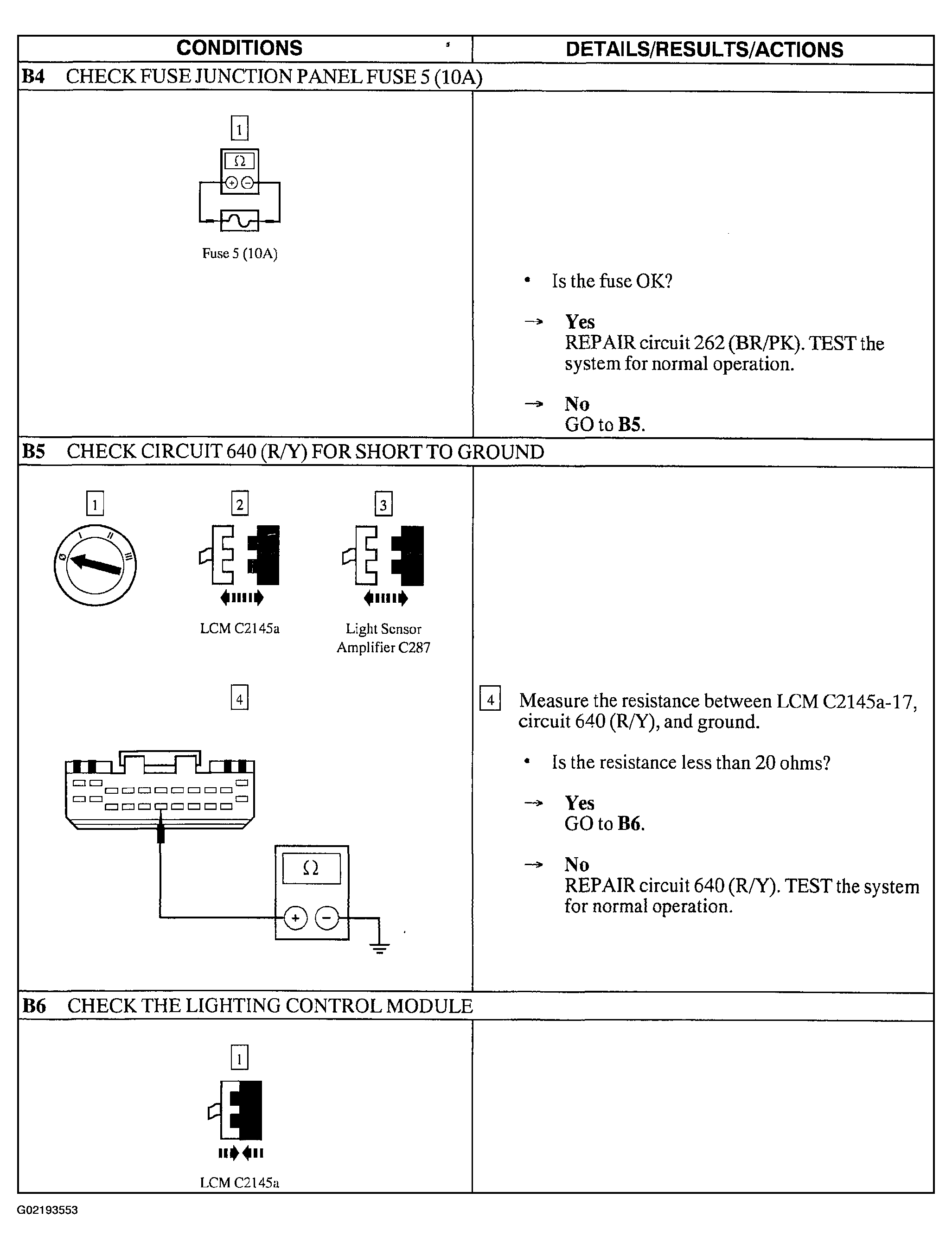

Fig 3: Pinpoint Test B: No Communication With The Module-Unable To Perform On-Demand Self-Test On Lighting Control Module (Steps B4-B6)

Courtesy of FORD MOTOR CO.

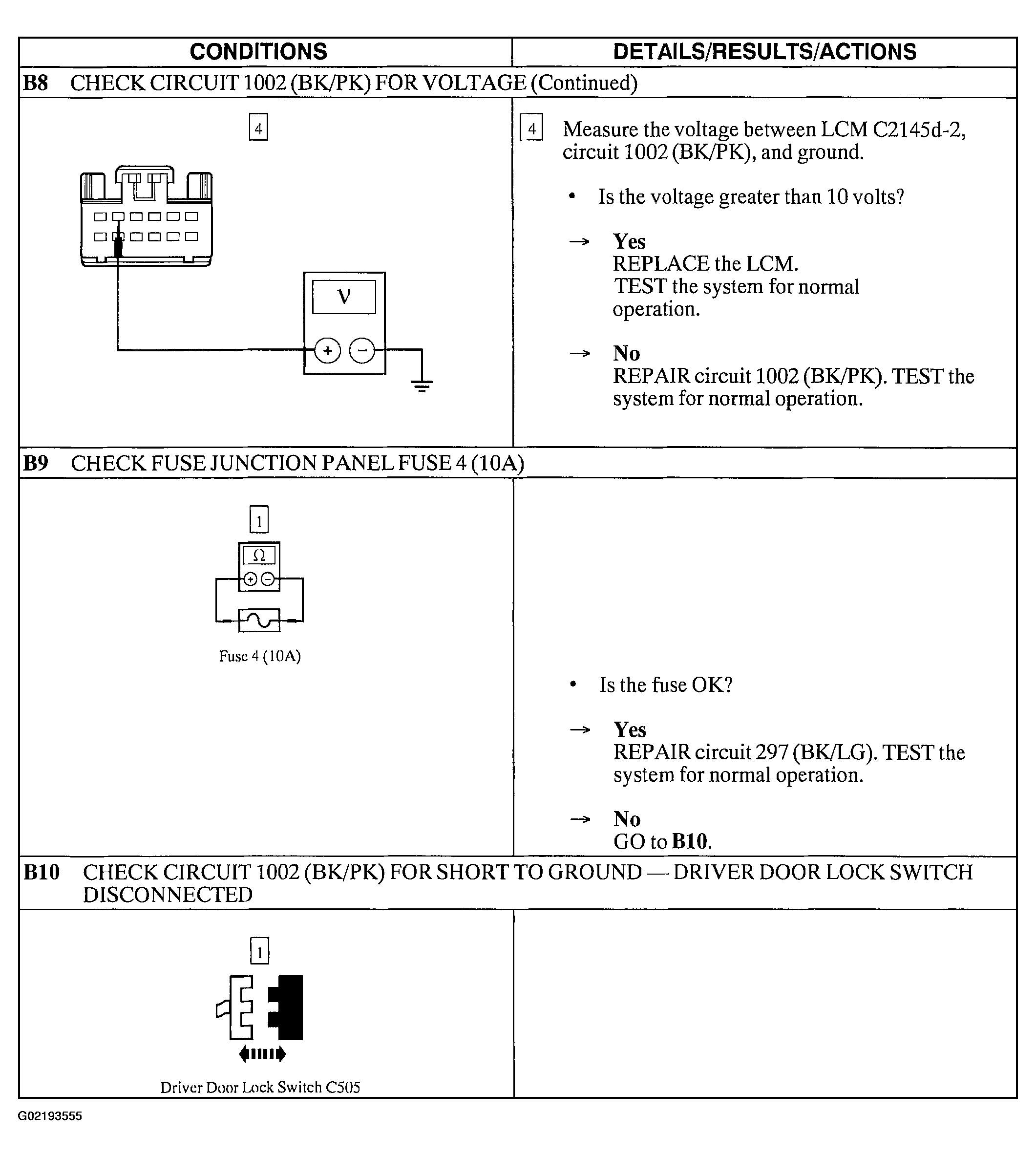

Fig 4: Pinpoint Test B: No Communication With The Module-Unable To Perform On-Demand Self-Test On Lighting Control Module (Steps B6 Cont.-B8)

Courtesy of FORD MOTOR CO.

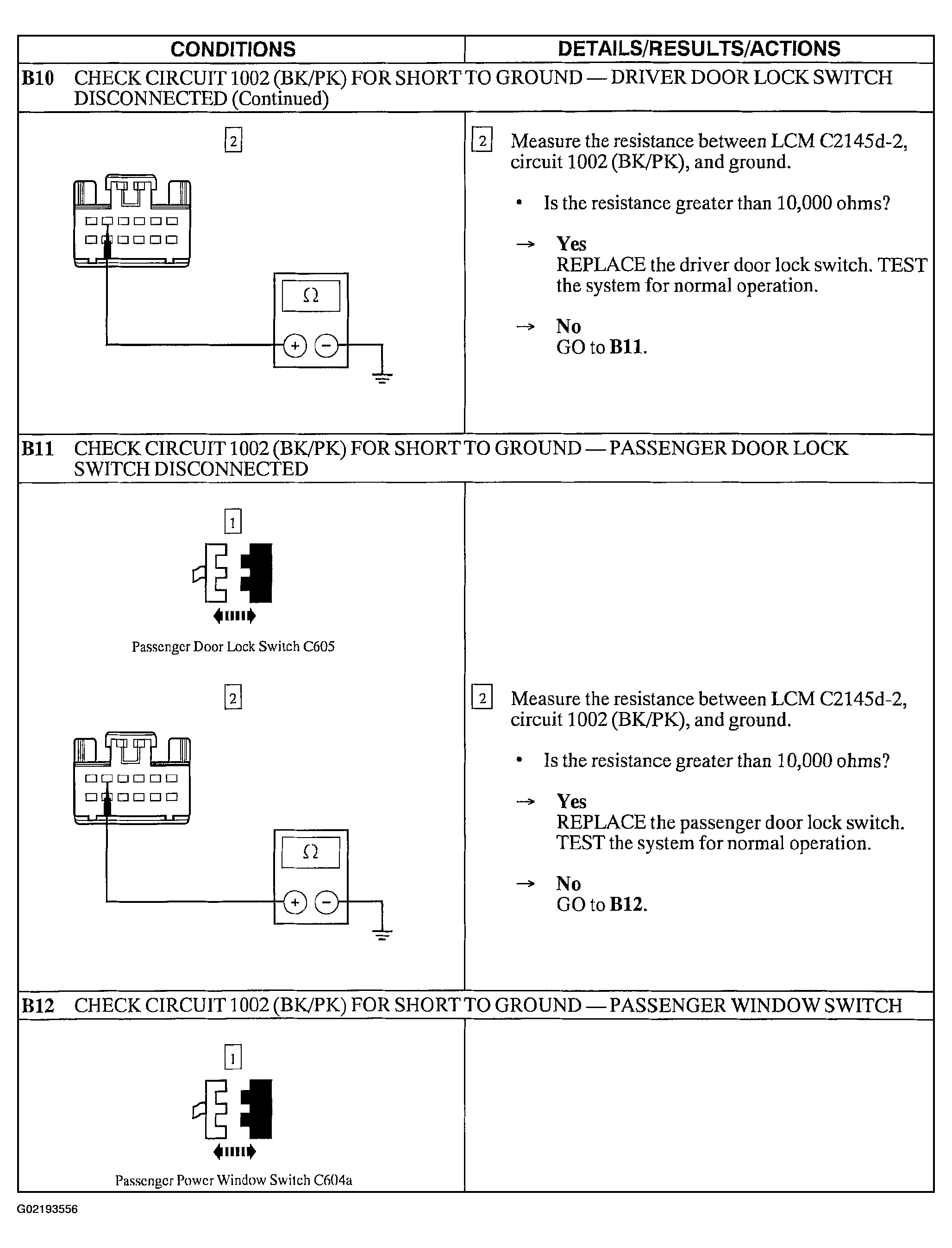

Fig 5: Pinpoint Test B: No Communication With The Module-Unable To Perform On-Demand Self-Test On Lighting Control Module (Steps B8 Cont.-B10)

Courtesy of FORD MOTOR CO.

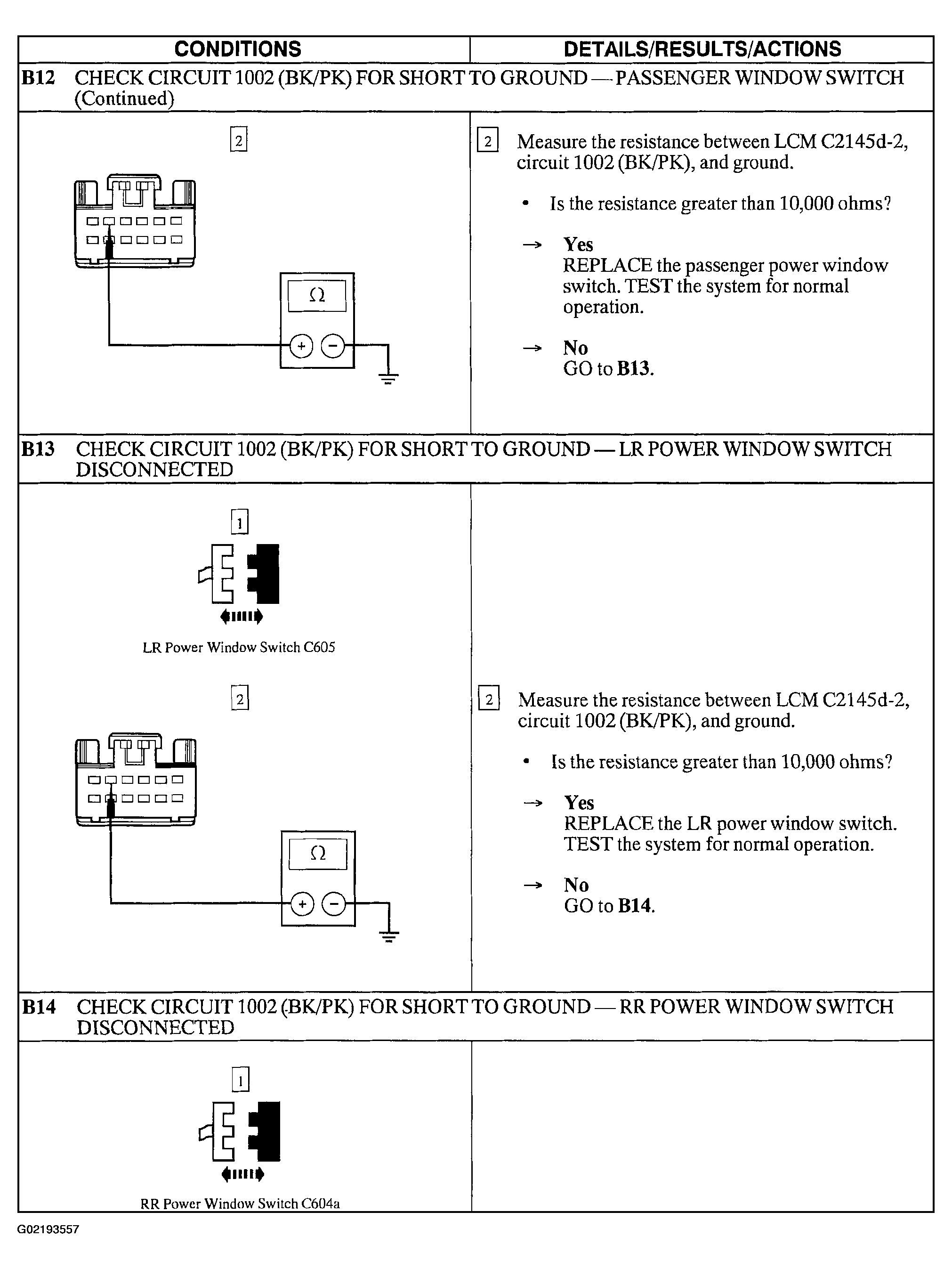

Fig 6: Pinpoint Test B: No Communication With The Module-Unable To Perform On-Demand Self-Test On Lighting Control Module (Steps B10 Cont.-B12)

Courtesy of FORD MOTOR CO.

Fig 7: Pinpoint Test B: No Communication With The Module-Unable To Perform On-Demand Self-Test On Lighting Control Module (Steps B12 Cont.-B14)

Courtesy of FORD MOTOR CO.

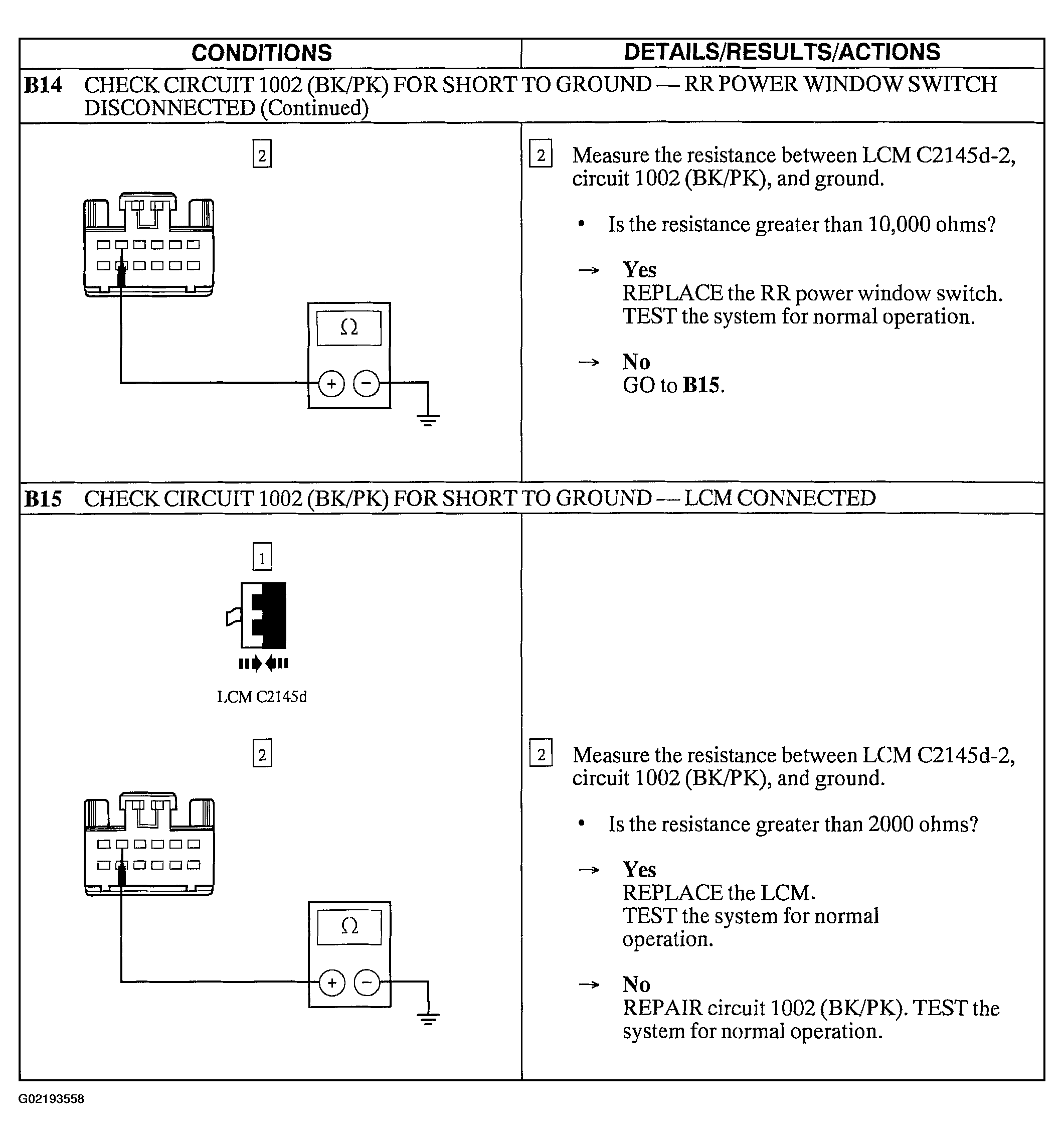

Fig 8: Pinpoint Test B: No Communication With The Module-Unable To Perform On-Demand Self-Test On Lighting Control Module (Steps B14 Cont. & B15)

Courtesy of FORD MOTOR CO.

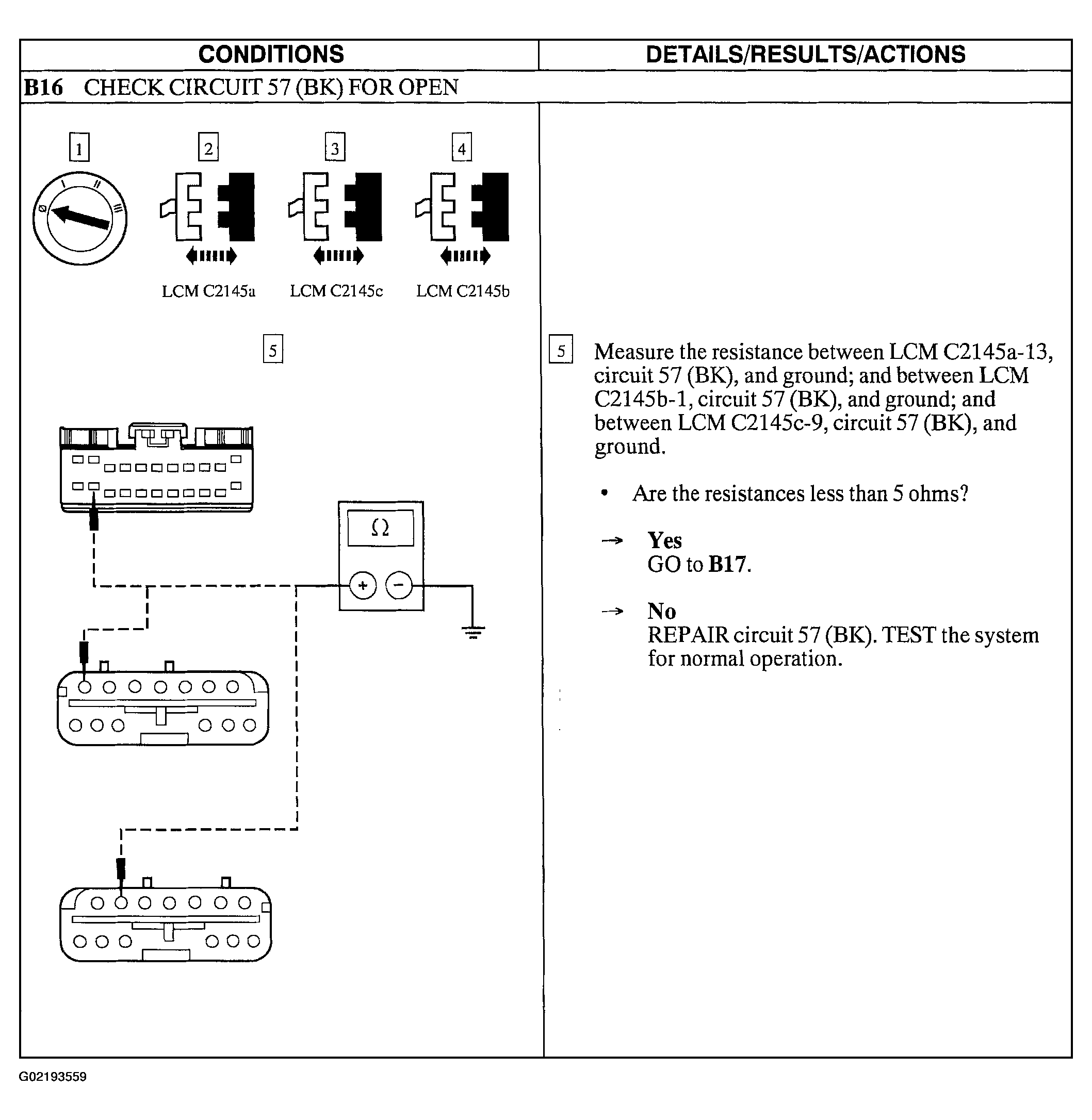

Fig 9: Pinpoint Test B: No Communication With The Module-Unable To Perform On-Demand Self-Test On Lighting Control Module (Step B16)

Courtesy of FORD MOTOR CO.

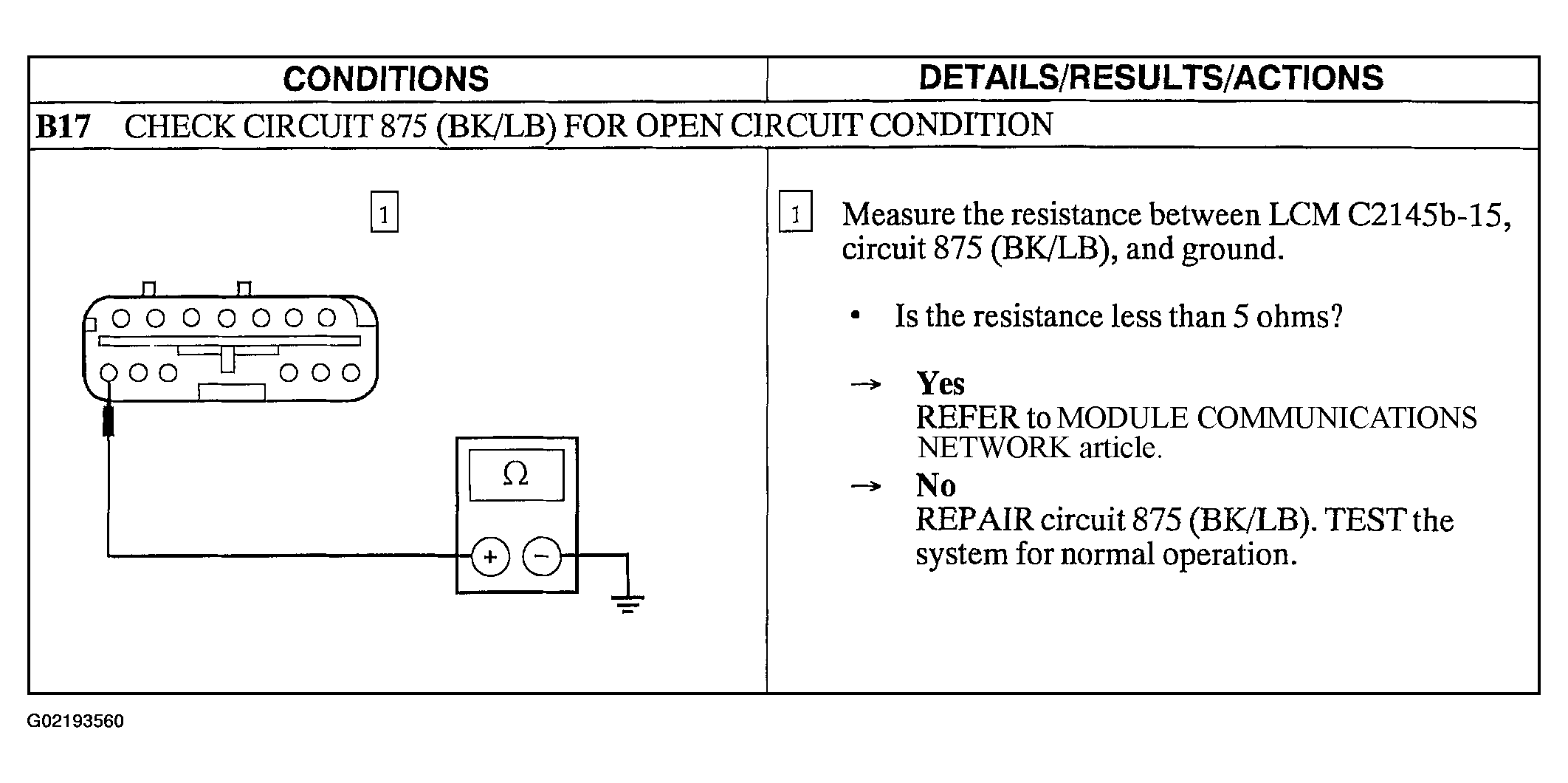

Fig 10: Pinpoint Test B: No Communication With The Module-Unable To Perform On-Demand Self-Test On Lighting Control Module (Step B17)

Courtesy of FORD MOTOR CO.
