Pinpoint Test D: The Doors Do Not Lock/Unlock Using The Keyless Entry Keypad

WARNING: This page is about a different car, the 2002 Lincoln Continental. However, it is still accessible from the selected car via links, so may be relevant.

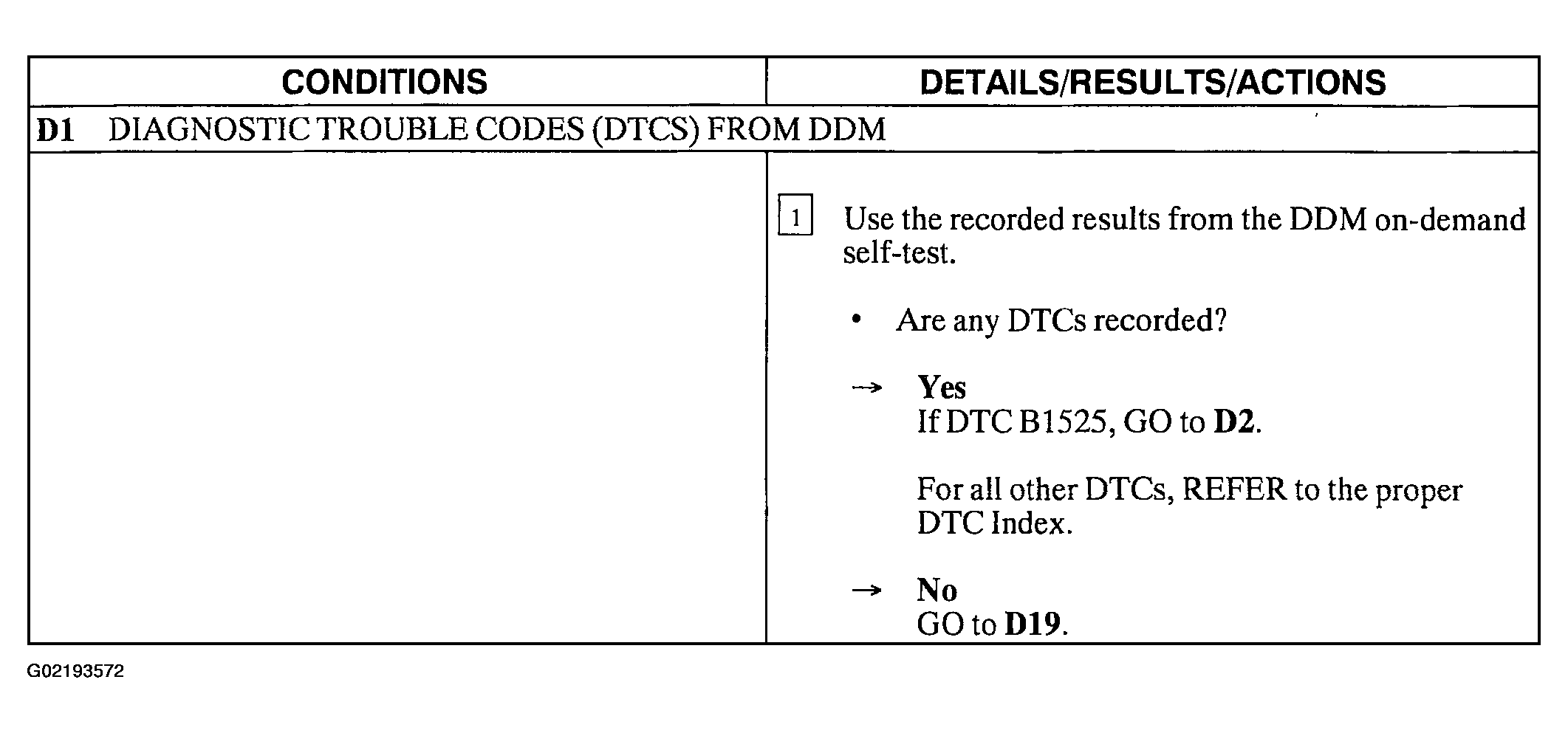

Fig 1: Pinpoint Test D: The Doors Do Not Lock/Unlock Using The Keyless Entry Keypad (Step D1)

Courtesy of FORD MOTOR CO.

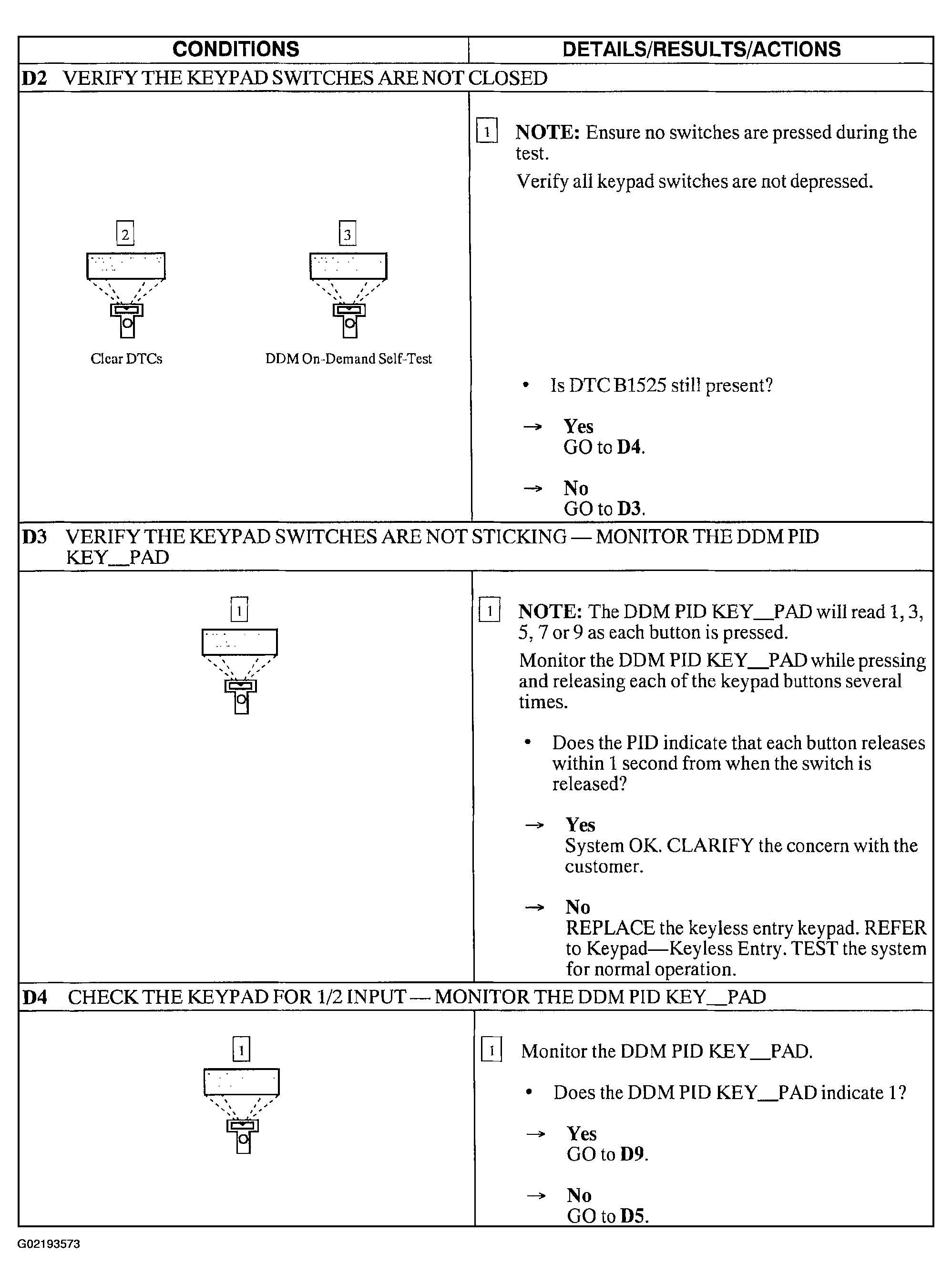

Fig 2: Pinpoint Test D: The Doors Do Not Lock/Unlock Using The Keyless Entry Keypad (Steps D2-D4)

Courtesy of FORD MOTOR CO.

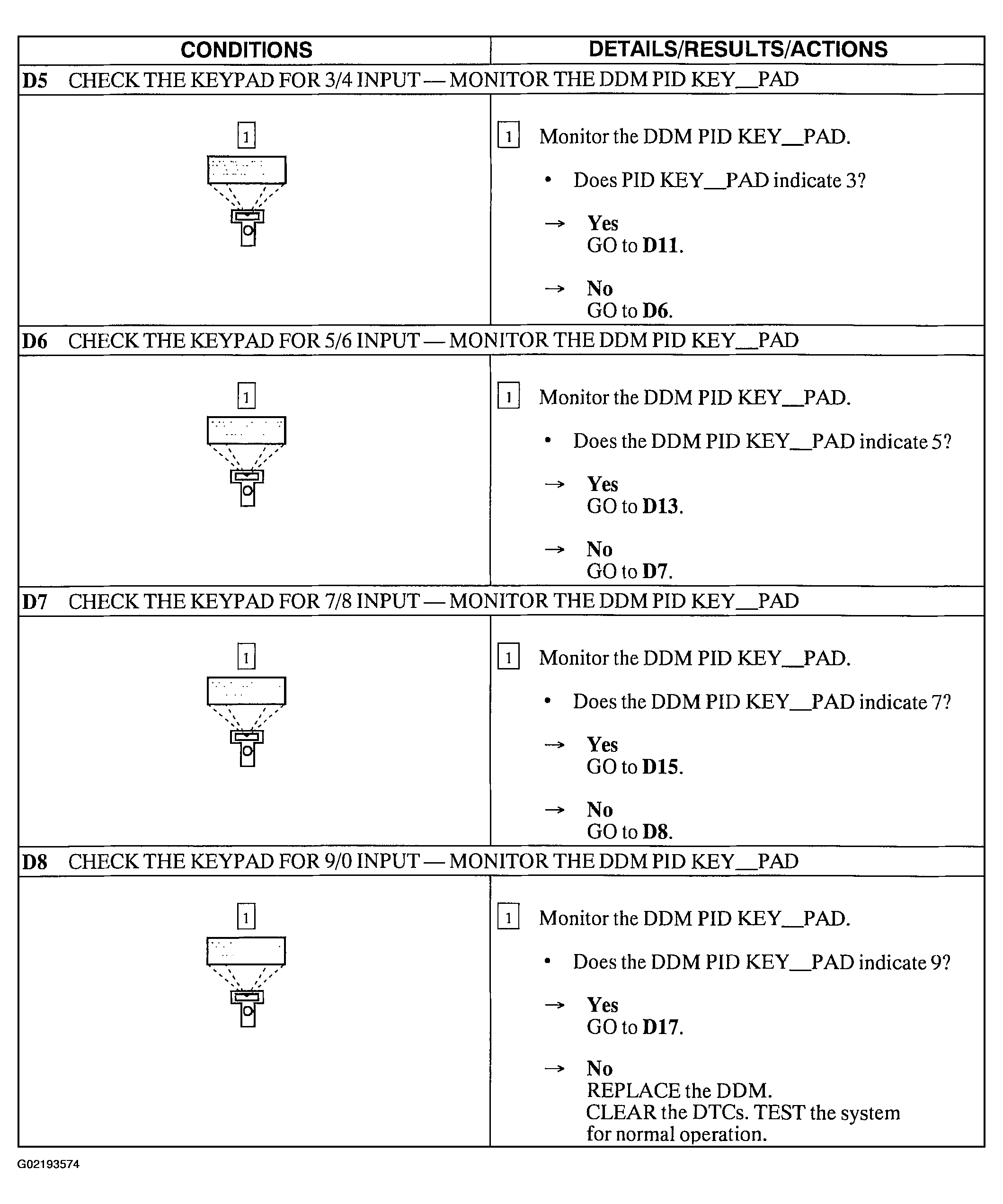

Fig 3: Pinpoint Test D: The Doors Do Not Lock/Unlock Using The Keyless Entry Keypad (Steps D5-D8)

Courtesy of FORD MOTOR CO.

Fig 4: Pinpoint Test D: The Doors Do Not Lock/Unlock Using The Keyless Entry Keypad (Steps D9 & D10)

Courtesy of FORD MOTOR CO.

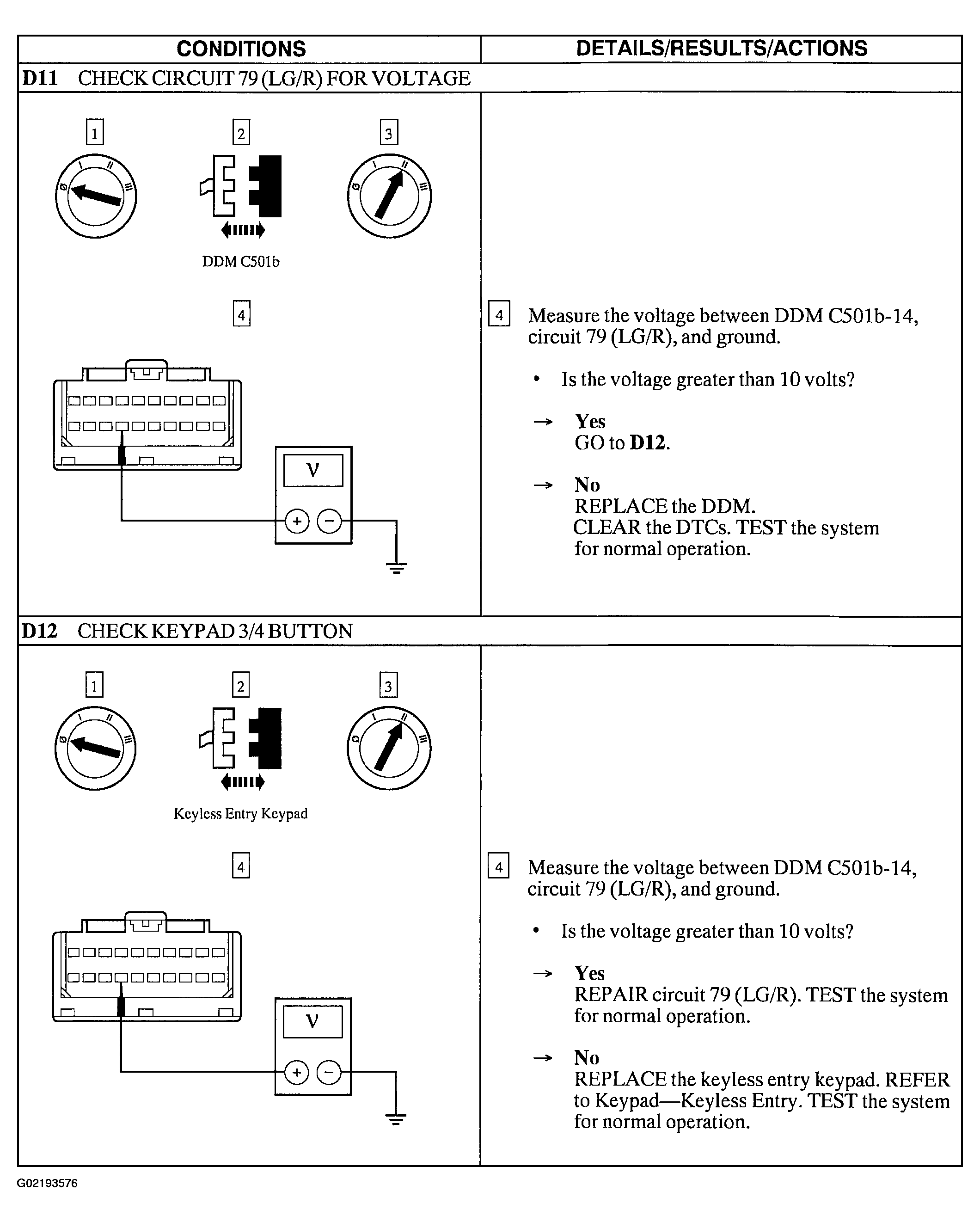

Fig 5: Pinpoint Test D: The Doors Do Not Lock/Unlock Using The Keyless Entry Keypad (Steps D11 & D12)

Courtesy of FORD MOTOR CO.

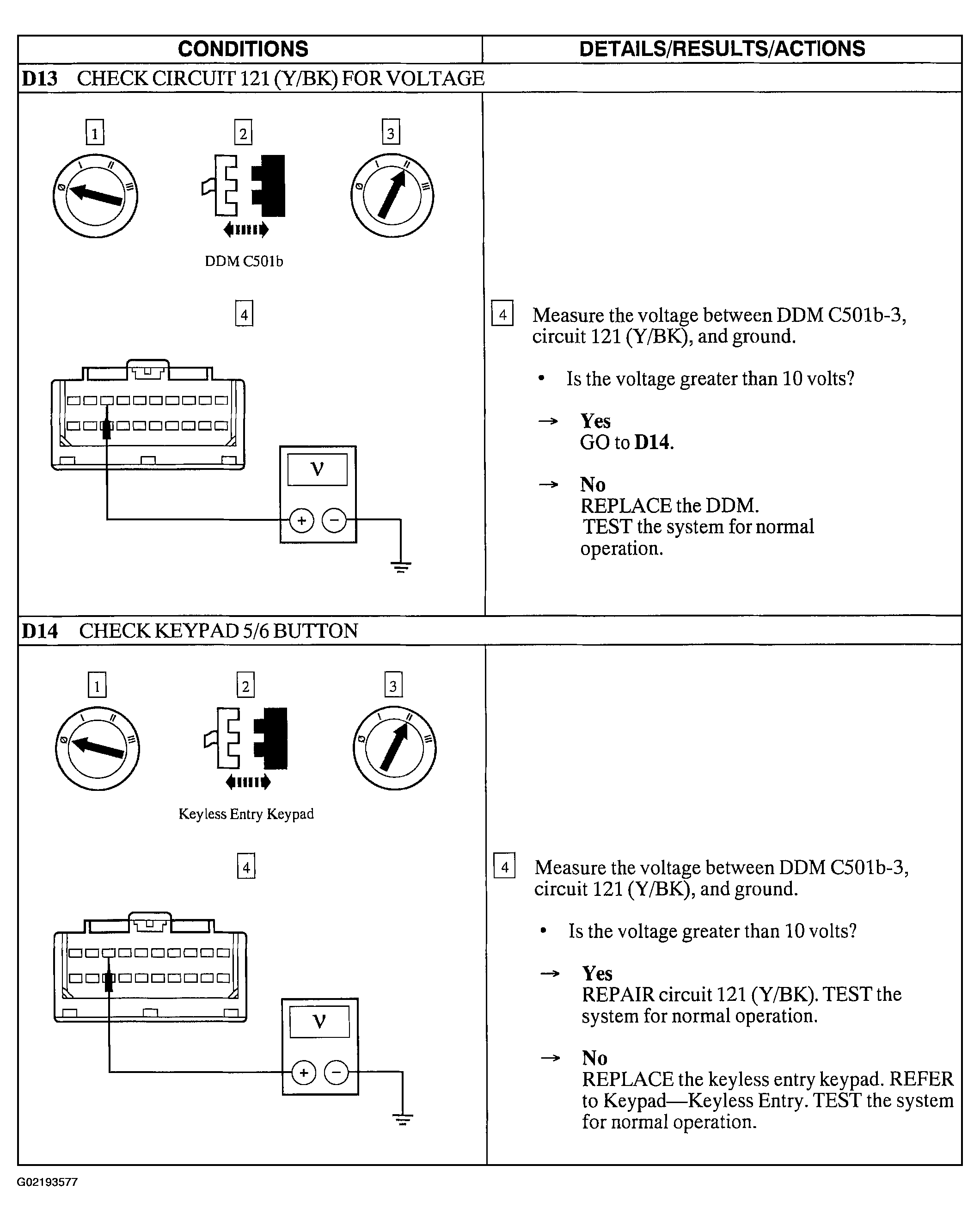

Fig 6: Pinpoint Test D: The Doors Do Not Lock/Unlock Using The Keyless Entry Keypad (Steps D13 & D14)

Courtesy of FORD MOTOR CO.

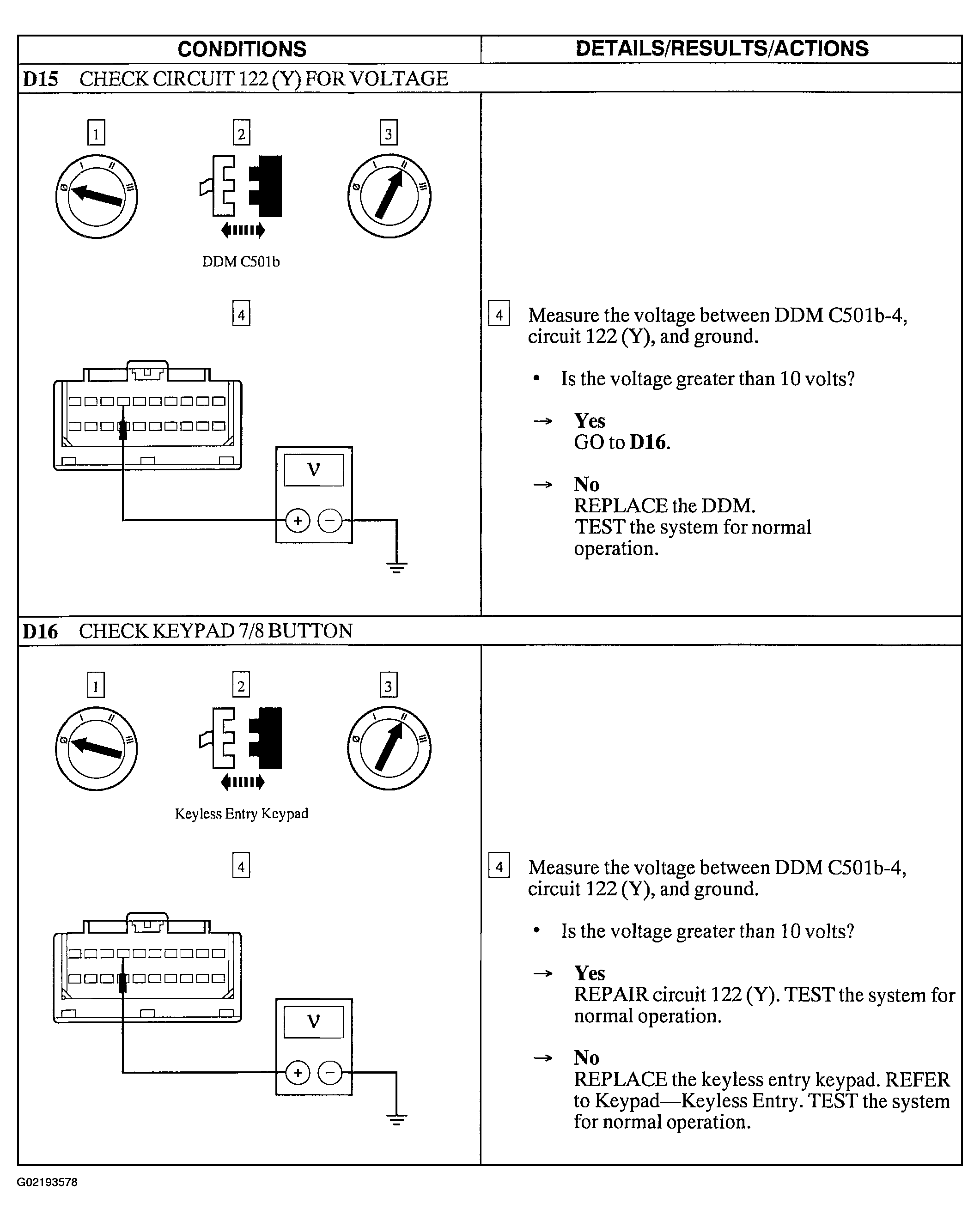

Fig 7: Pinpoint Test D: The Doors Do Not Lock/Unlock Using The Keyless Entry Keypad (Steps D15 & D16)

Courtesy of FORD MOTOR CO.

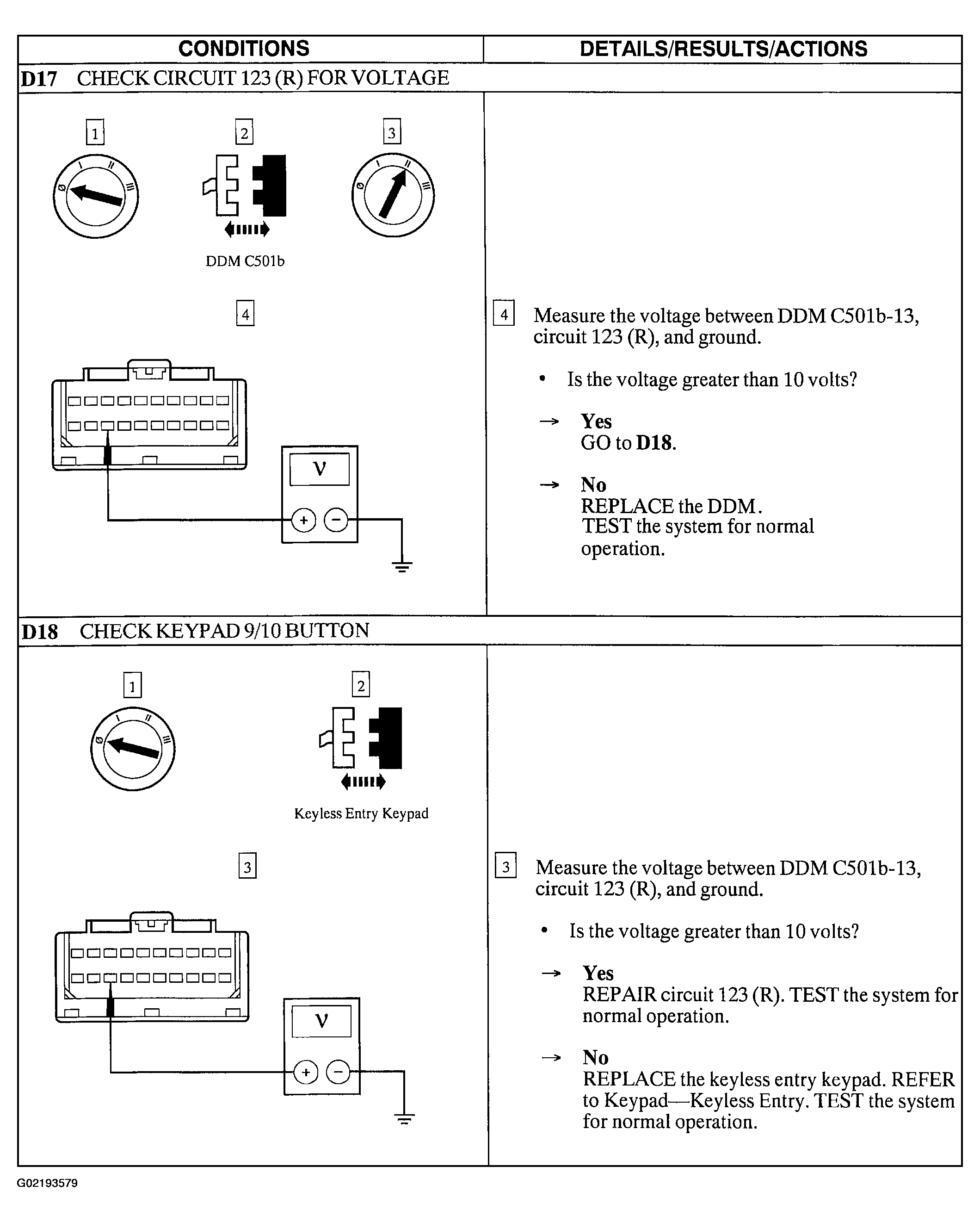

Fig 8: Pinpoint Test D: The Doors Do Not Lock/Unlock Using The Keyless Entry Keypad (Steps D17 & D18)

Courtesy of FORD MOTOR CO.

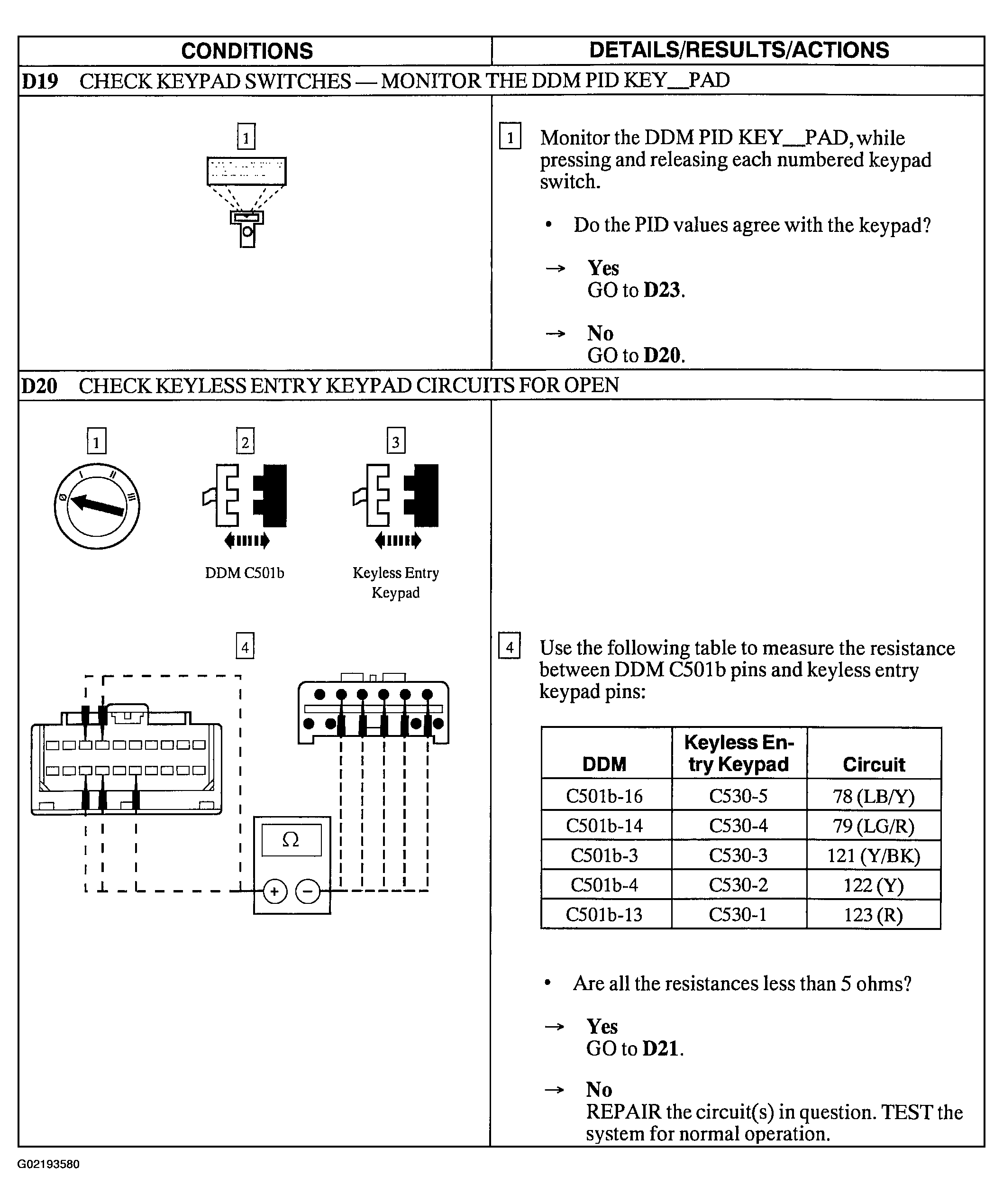

Fig 9: Pinpoint Test D: The Doors Do Not Lock/Unlock Using The Keyless Entry Keypad (Steps D19 & D20)

Courtesy of FORD MOTOR CO.

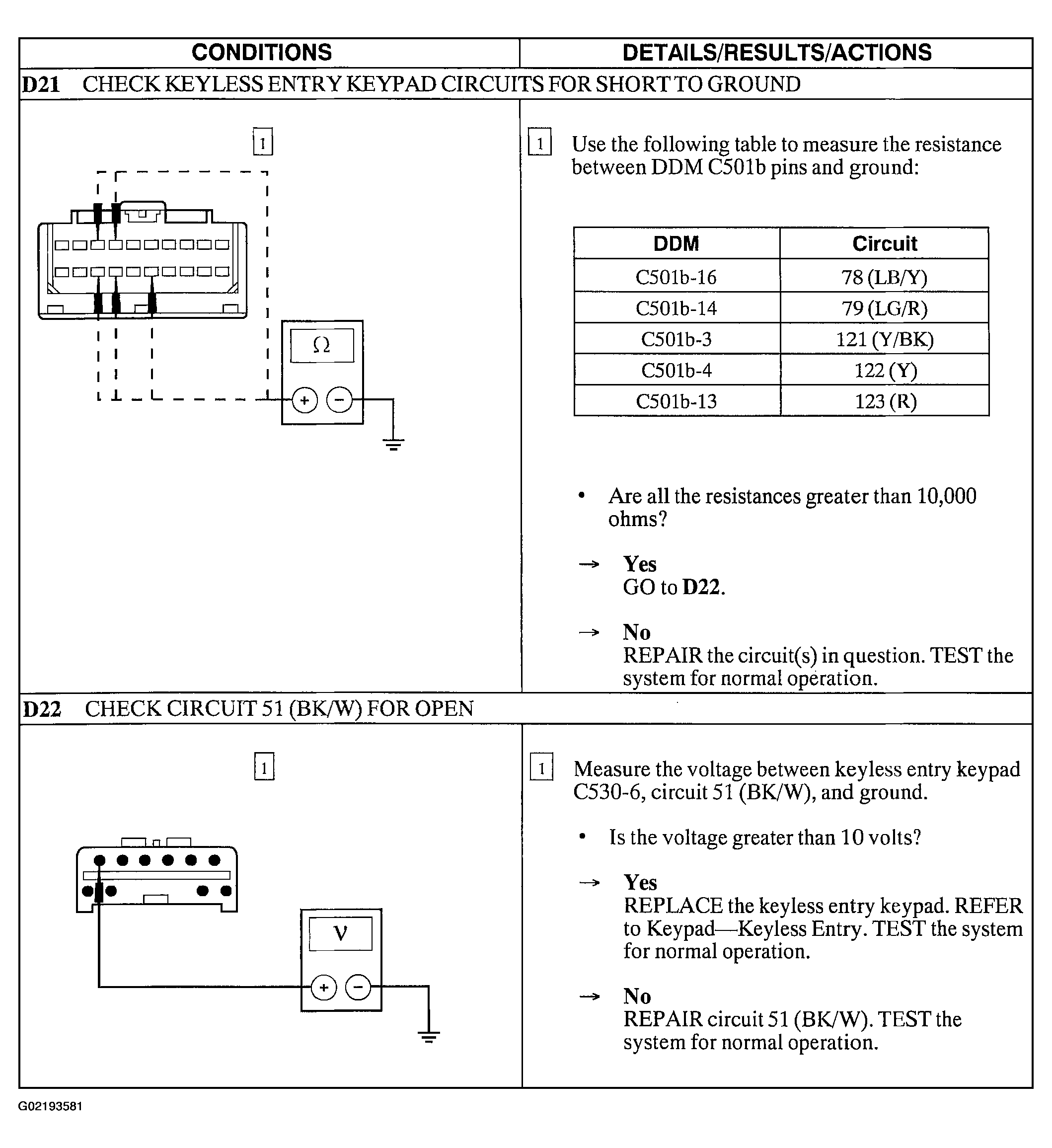

Fig 10: Pinpoint Test D: The Doors Do Not Lock/Unlock Using The Keyless Entry Keypad (Steps D21 & D22)

Courtesy of FORD MOTOR CO.

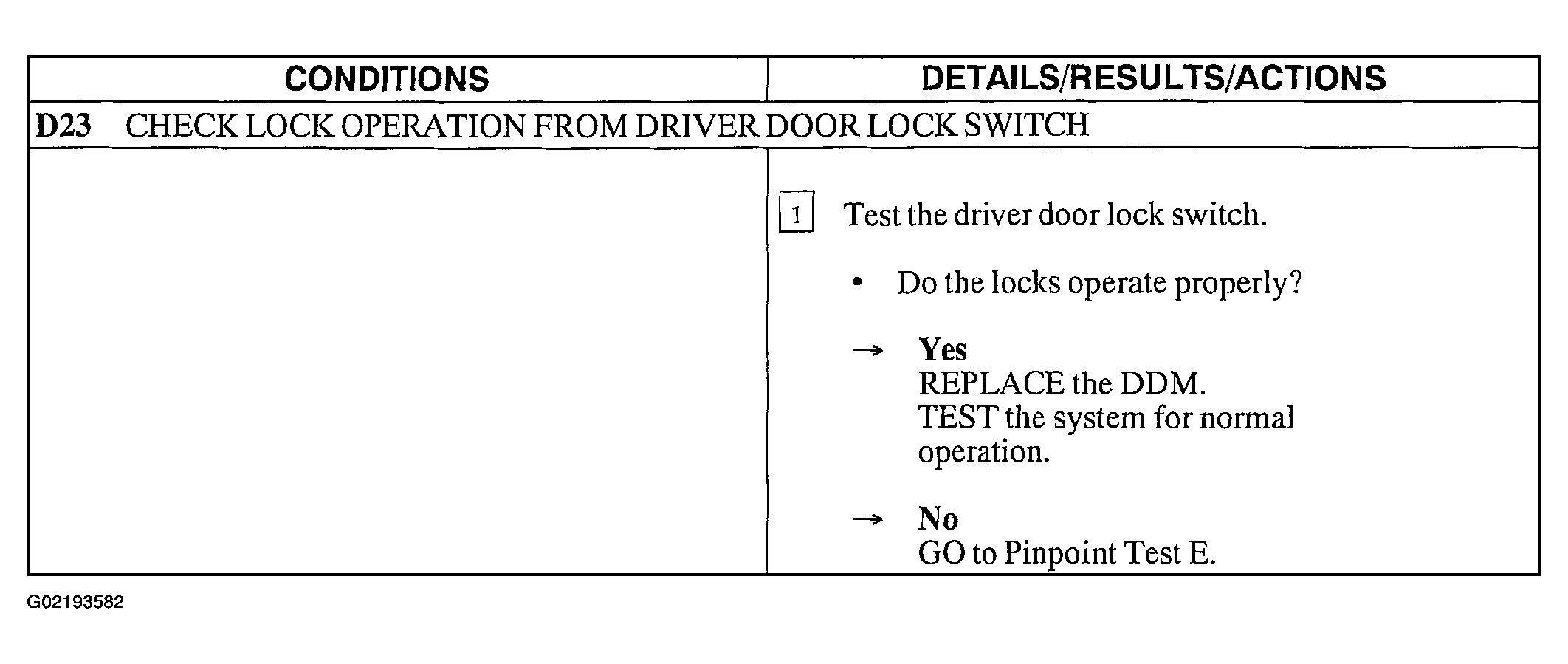

Fig 11: Pinpoint Test D: The Doors Do Not Lock/Unlock Using The Keyless Entry Keypad (Step D23)

Courtesy of FORD MOTOR CO.
