OSC Parameter Chart

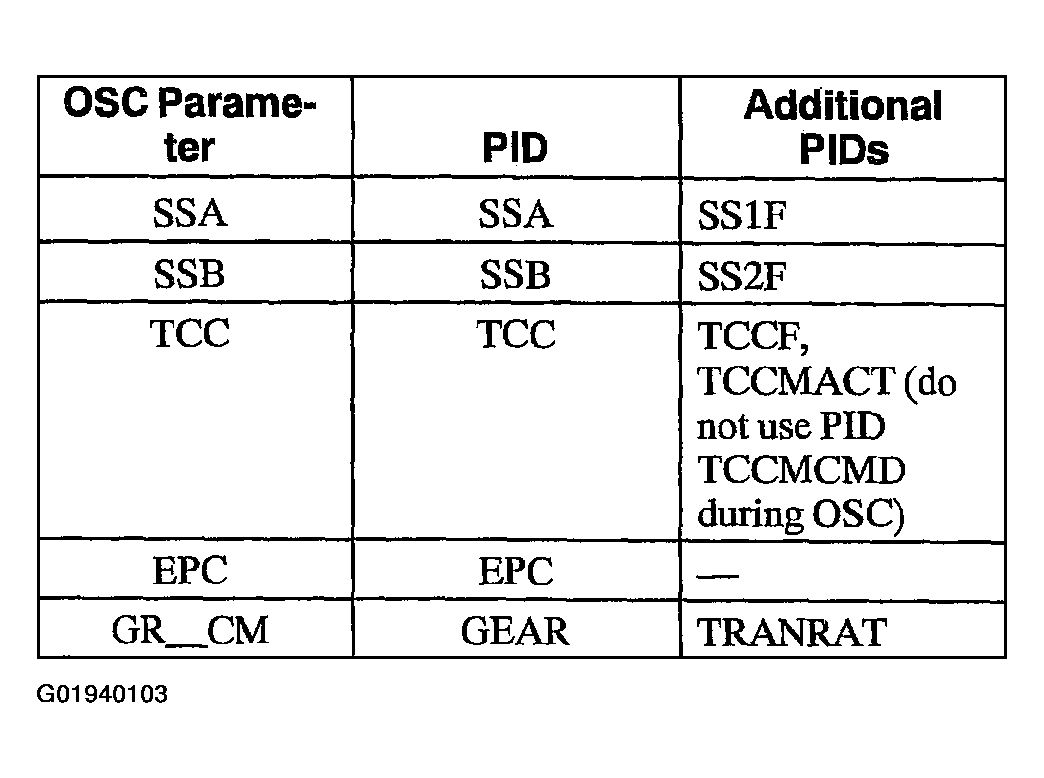

Fig 1: Identifying OSC Parameter Chart

Courtesy of FORD MOTOR CO.

To confirm that the OSC substitution occurred, SEND the OSC value and monitor the corresponding PID value. If no ERROR MESSAGE was received and the value of the corresponding PID remains the same as the value sent from OSC, then the OSC substitution was successful.
