Main Control Valve Body: Disassembly

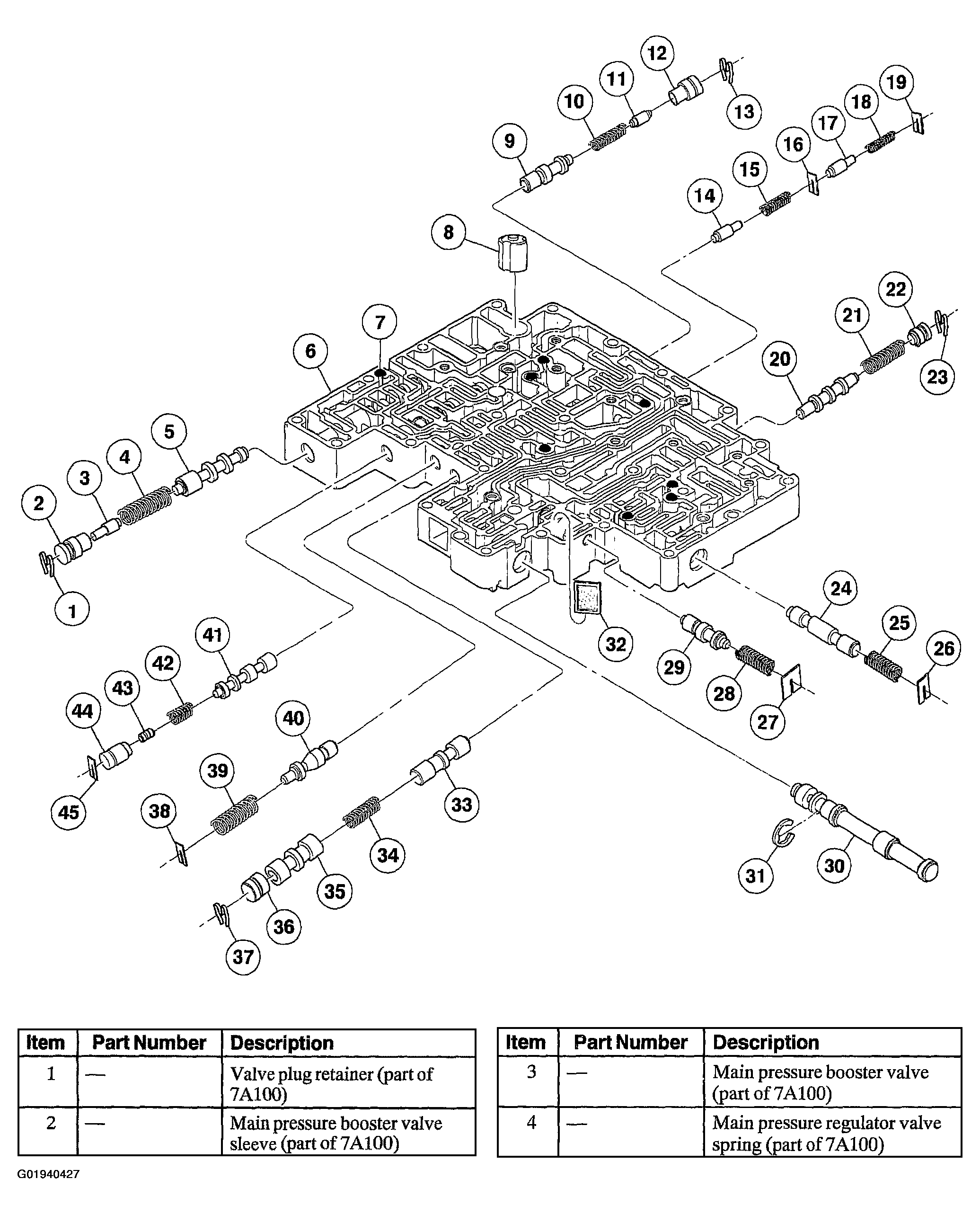

Fig 1: Main Control Valve Body - Disassembled View

Courtesy of FORD MOTOR CO.

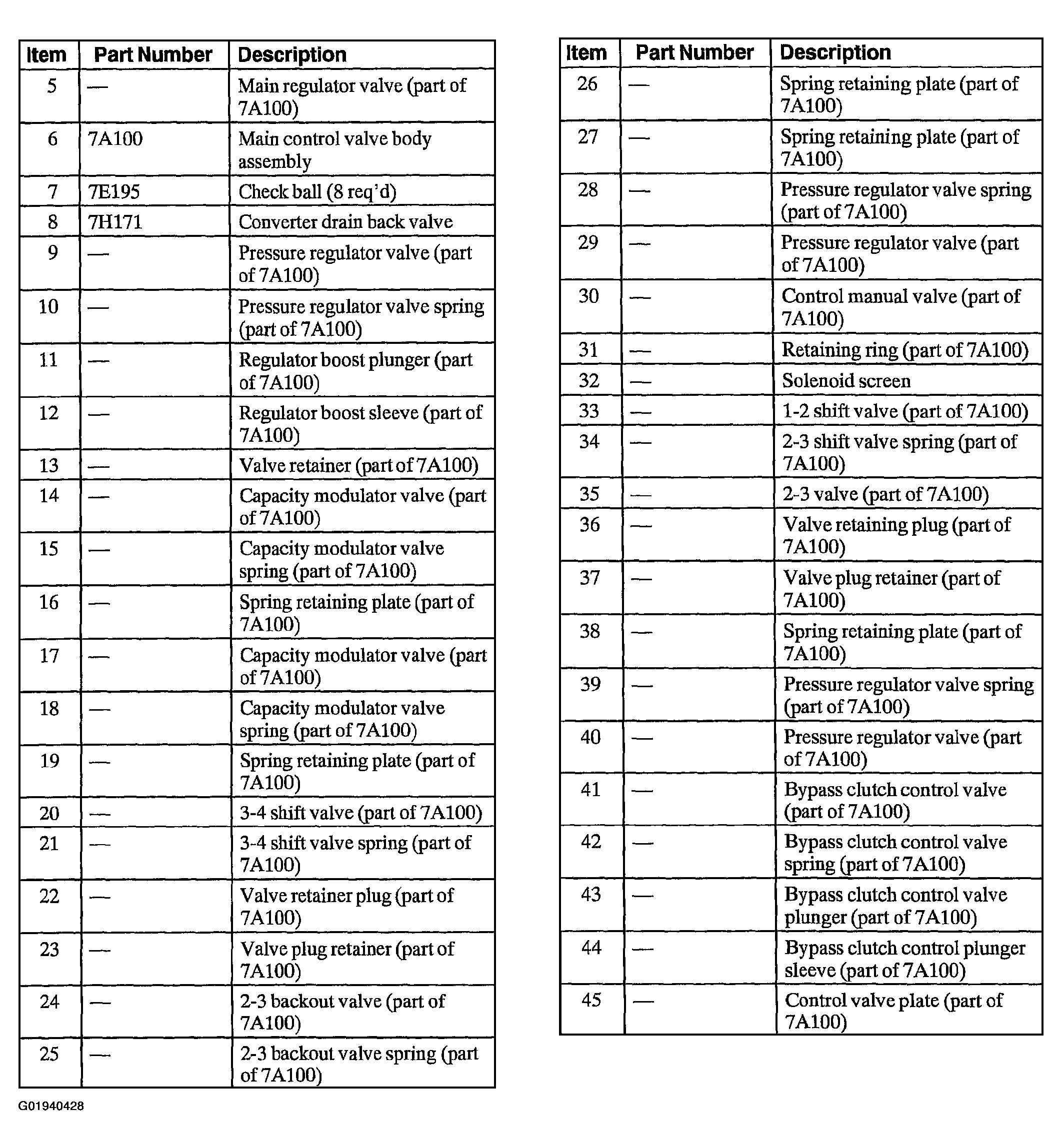

Fig 2: Main Control Valve Body - Legend

Courtesy of FORD MOTOR CO.

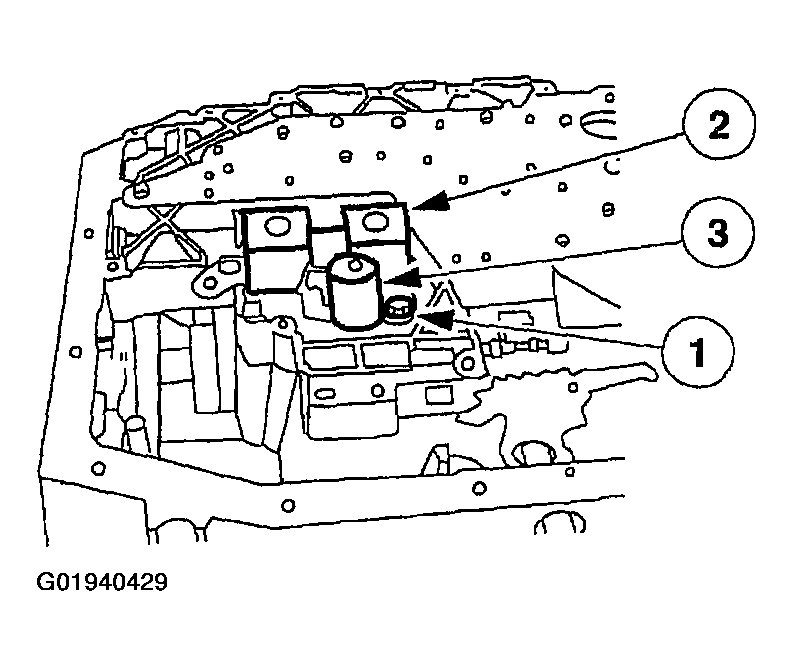

Remove the torque converter clutch (TCC) solenoid and the shift solenoid.
1. Remove the bolt.
2. Remove the shift solenoid.
3. Remove the TCC solenoid.
Fig 3: Identifying Shift Solenoid & TCC Solenoid
Courtesy of FORD MOTOR CO.

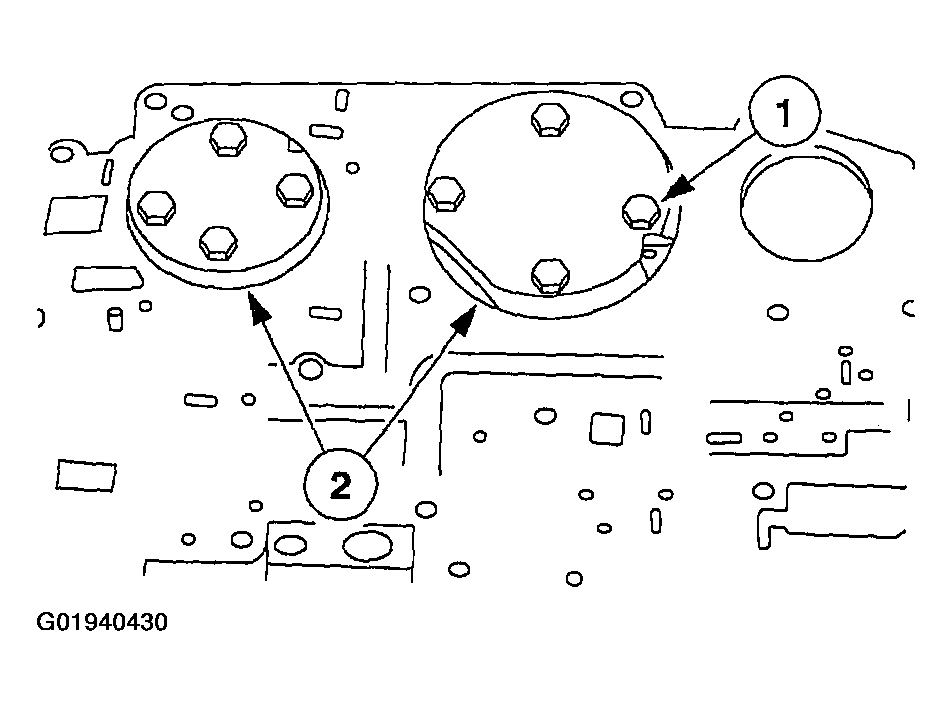

Remove the two reinforcement plates.
1. Remove the bolts.
2. Remove the plates.
Fig 4: Identifying Reinforcement Plates & Bolts
Courtesy of FORD MOTOR CO.

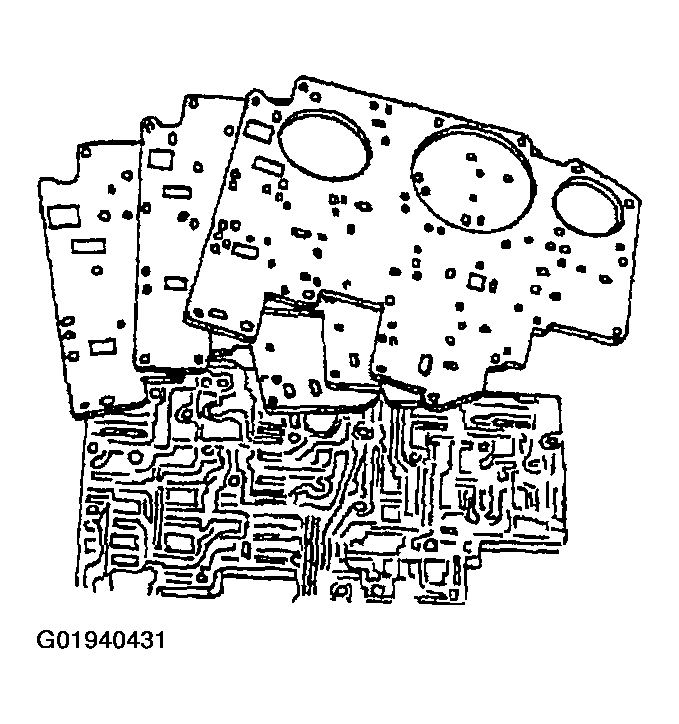

Remove the separator plate and discard the gaskets.

Fig 5: Identifying separator plate
Courtesy of FORD MOTOR CO.

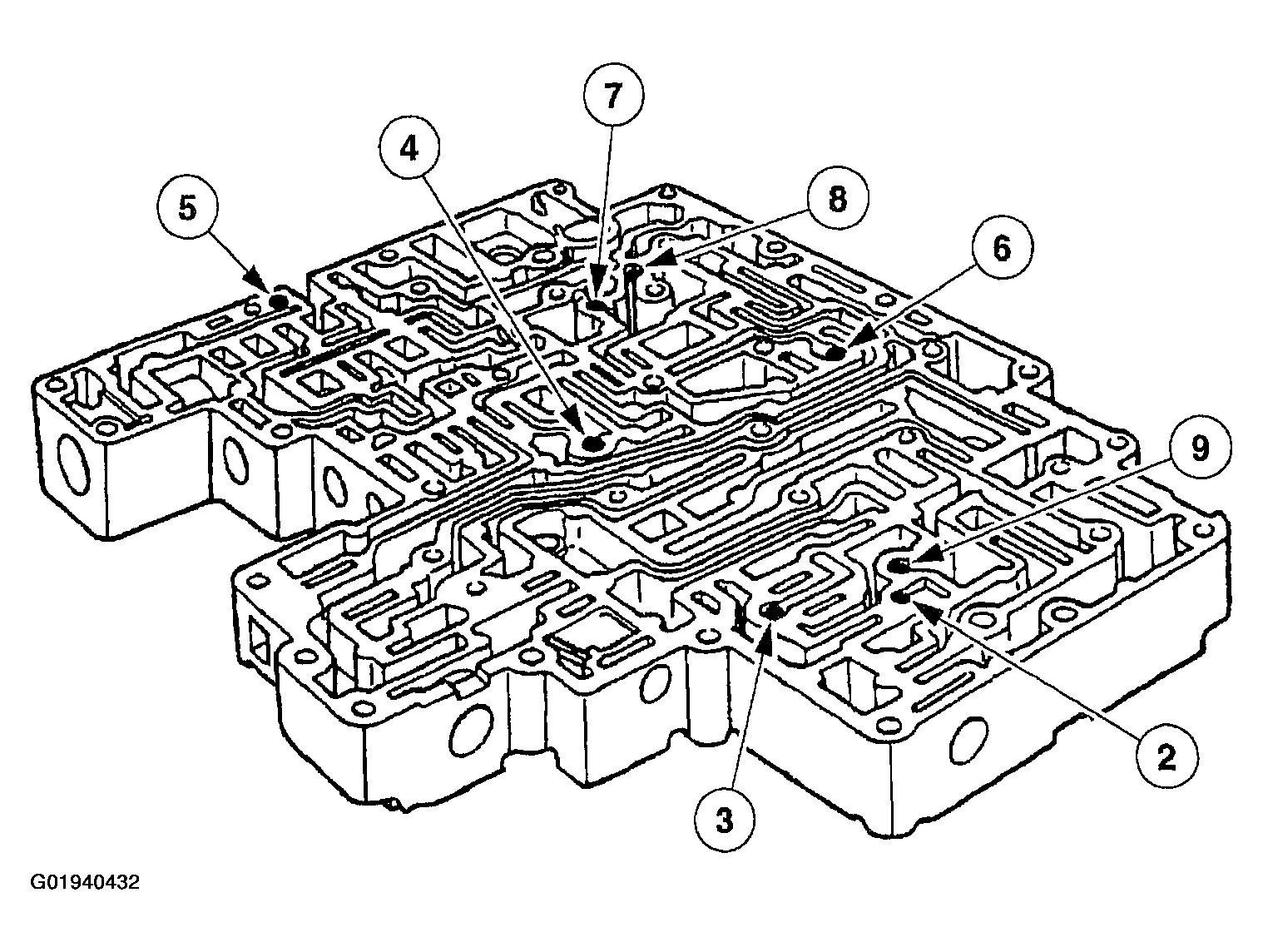

NOTE: Note the location of the eight coasting booster valve shuttle balls for assembly.

Fig 6: Identifying Coasting Booster Valve Shuttle Balls (1 Of 2)

Courtesy of FORD MOTOR CO.

Remove the eight coasting booster valve shuttle balls.

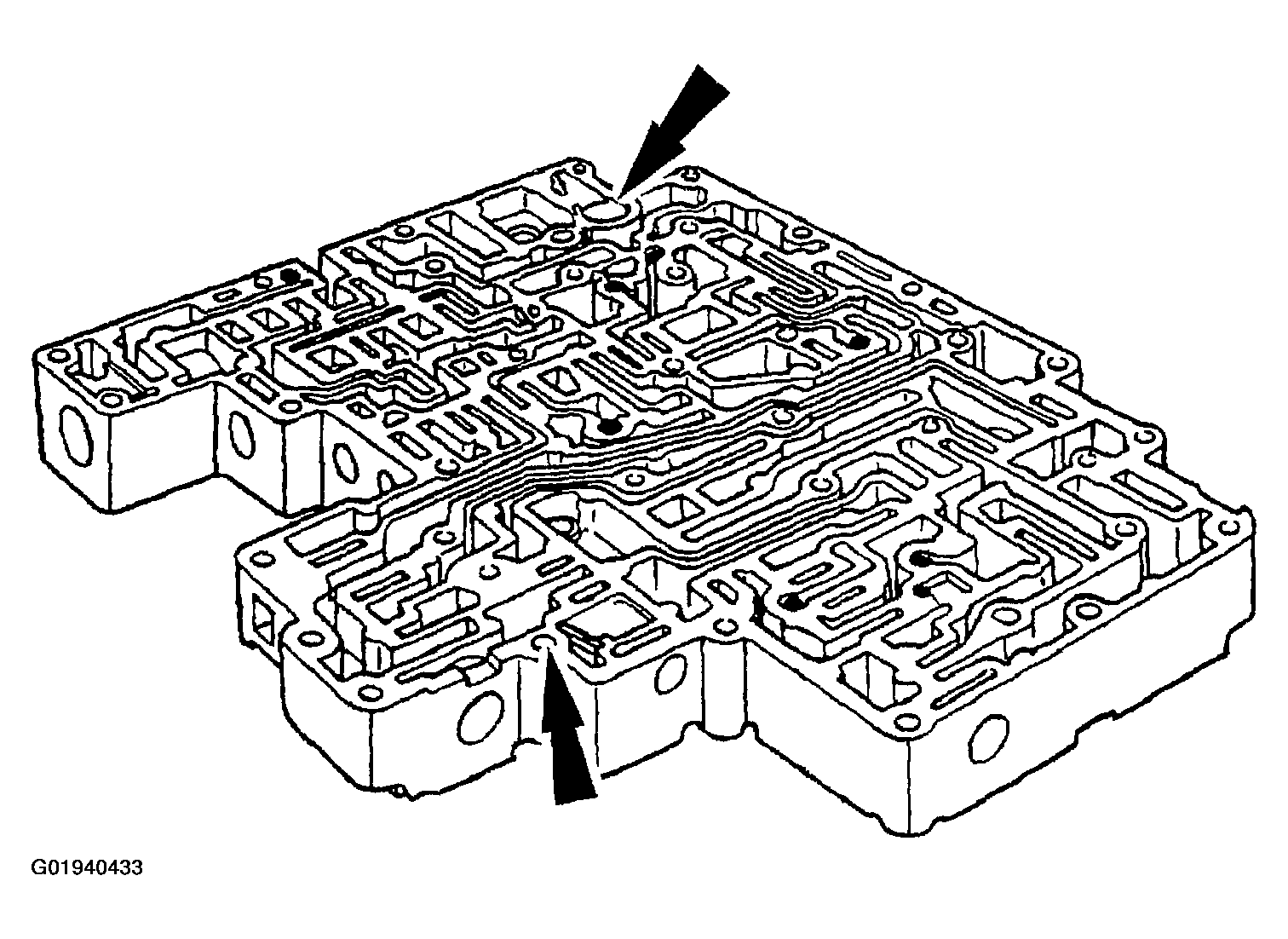

Remove the converter drain back valve and solenoid pressure supply screen.

Fig 7: Locating Converter Drain Back Valve & Solenoid Pressure Supply Screen
Courtesy of FORD MOTOR CO.

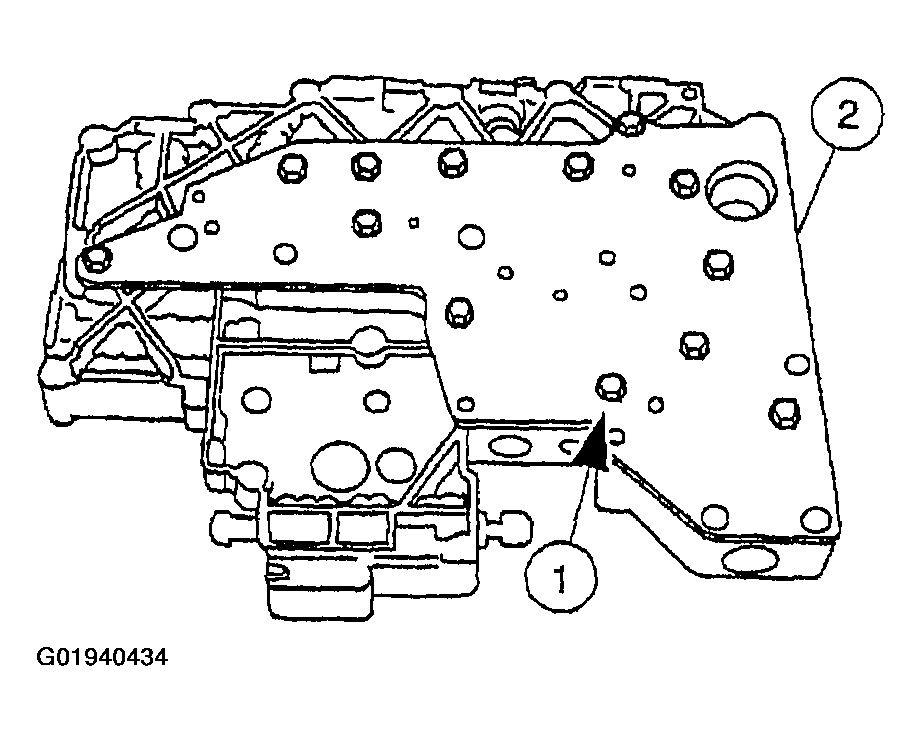

Remove the main control valve body cover plate.
1. Remove the 13 bolts.
2. Remove the valve body cover plate and gasket.
Fig 8: Identifying Valve Body Cover Plate & Bolts
Courtesy of FORD MOTOR CO.
