Reverse Clutch: Notes

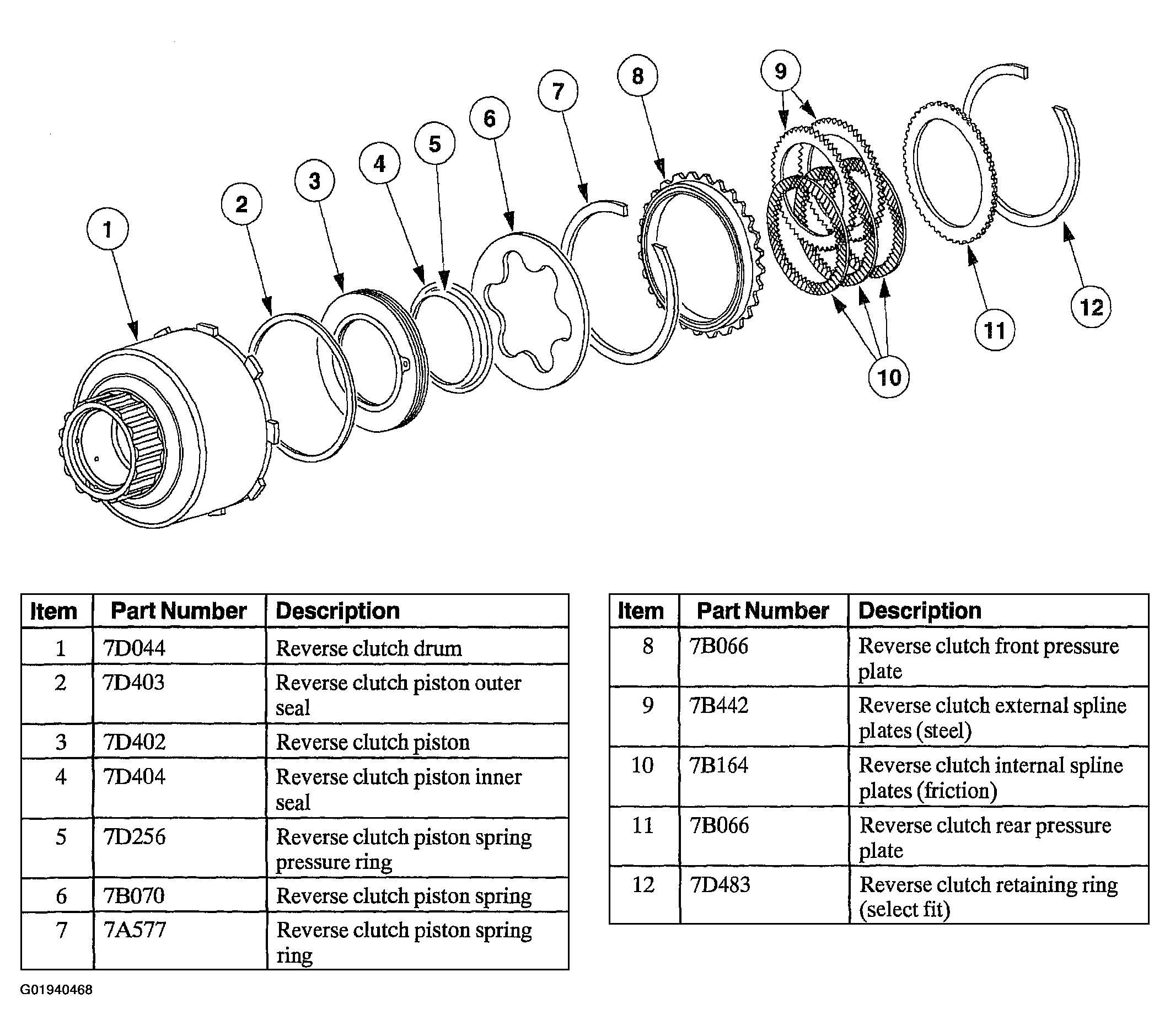

Fig 1: Reverse Clutch - Disassembled View
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
